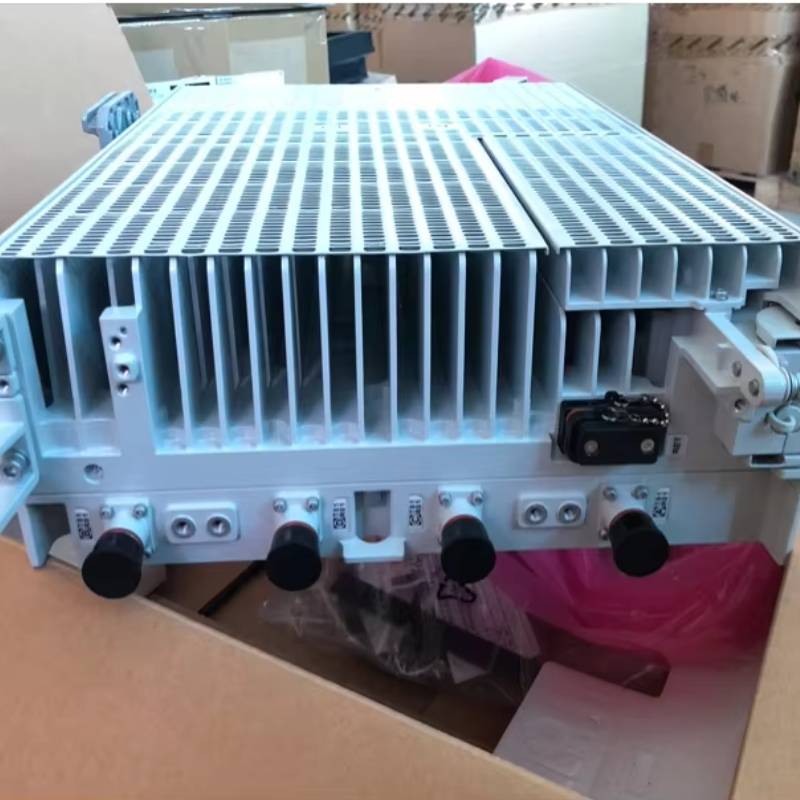

Huawei RRU5904 02311UWH

The Huawei RRU5904 (Part Number: 02311UWH) is an outdoor multi-mode Remote Radio Unit designed for Huawei DBS3900 and DBS5900 distributed base station systems.

Key Specifications & Features:

• Band / Frequency: Band 3 (1800 MHz); Transmit (TX): 1805–1880 MHz, Receive (RX): 1710–1785 MHz.
• Configuration: 4T4R (4 Transmitters, 4 Receivers).
• Output Power: 4 x 60W nominal (240W total output).
• Technologies Supported: GSM, FDD-LTE, NB-IoT, and 5G NR FDD ready via Software Defined Radio (SDR).
• Bandwidth: 45 MHz Instantaneous Bandwidth (IBW).
• Interfaces: CPRI optical interface (9.8 Gbps).
• Power Supply: -48 VDC.
• Cooling System: Passive heatsink (fanless design).
• Hardware Model / BOM: WD5MERUMH30 / 02311UWH.
