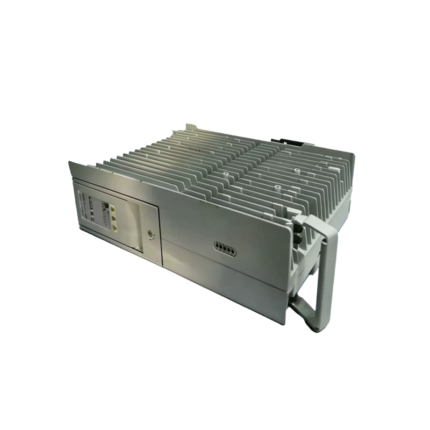

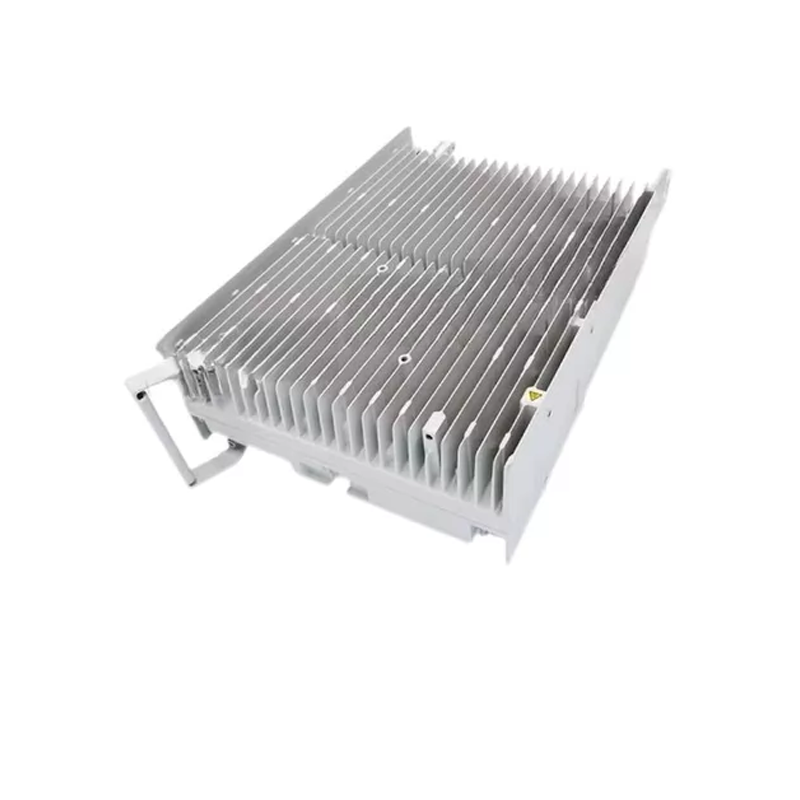

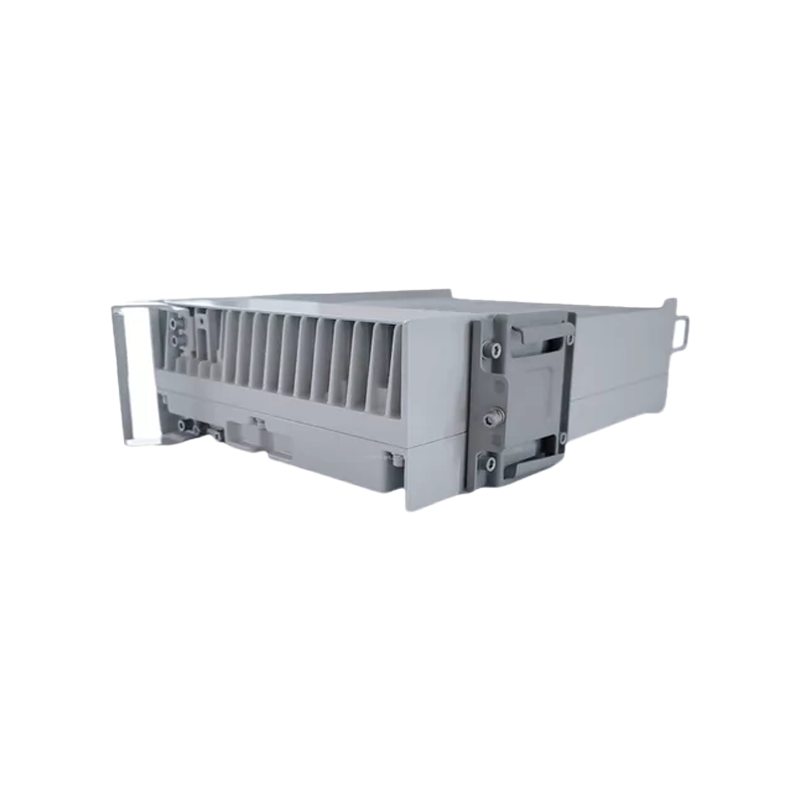

Huawei RRU3971 02311NCV
RRU3971 02311NCV HUAWEI RRU base station
The Huawei RRU3971 02311NCV is an outdoor Remote Radio Unit (RRU) designed for Huawei distributed base station systems such as the DBS3900 and DBS5900.
Key Specifications:
• Part / BOM Number: 02311NCV (Hardware reference: WD5MIRUIG10)
• Frequency Band: 2100 MHz (Band 1; TX: 2110–2170 MHz / RX: 1920–1980 MHz)
• Configuration: 4T4R (4 Transmitters, 4 Receivers)
• Output Power: 4 × 40W (Total 160W)
• Power Supply: -48V DC (-36V DC to -57V DC)
• Interface / Transport: 9.8G optical/SFP interface
• Standards Support: Multi-mode / Multi-standard (UMTS / LTE)
• Enclosure: Outdoor IP-rated weather-resistant housing
