Huawei SmartAX MA5800 X2 OLT

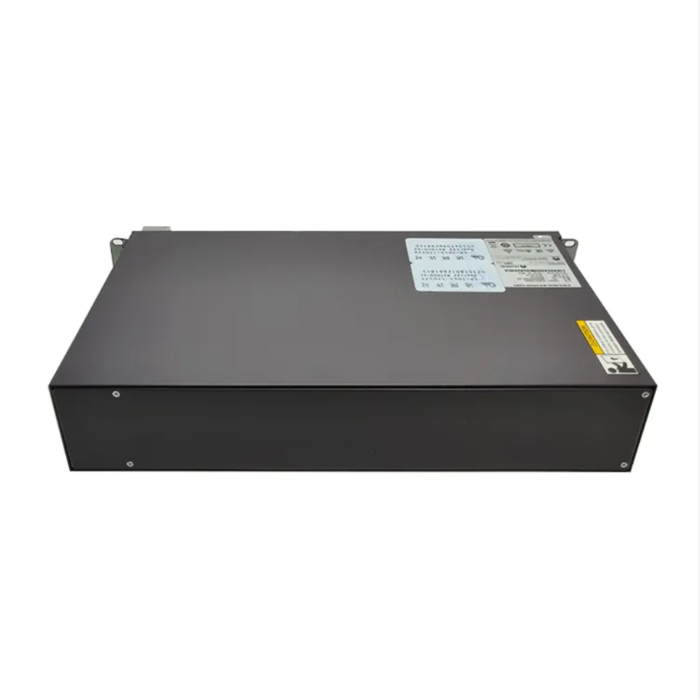

Huawei SmartAX MA5800 X2 OLT Chassis with 2xcontrol board, 1x power board
Control board:MPSC,MPSA,MPSG
Power board:PISA,PISB
Huawei MA5800 X2 is a next generation, 40G capacity Optical line Terminal (OLT), has 2 service slots, each service slot has 200G throughput capacity, smoothly evolve to 40G/100G PON. Support up to 8 times MAC address and ARP table than MA5608T, makes service configuration and expansion more easily.
Huawei SmartAX MA5800 X2 OLT is the industry’s first distributed architecture intelligent aggregation OLT platform, positioned as the next-generation OLT for NG-PON. The MA5800-X2 has three characteristics of ultra-wideband, full convergence, and intelligence to meet the needs of the development of ultra-wideband networks that are wider, faster, and smarter, and to provide users with a better business connection experience. Help customers build a “broader, faster, smarter” access network to provide a better business experience.
SmartAX MA5800-X2 (MA5800-X2 for short) supports PON/P2P full-service access, – it supports home, enterprise, mobile backhaul and other full-service access; Huawei The MA5800-X2 combines the functions of an OLT and an aggregation switch to simplify network levels, reduce space and power consumption, and reduce OPEX.
| Product Specifications | |||
| Switching capacity of the system | 480 Gbit/s | ||
| Maximum bandwidth per slot | MPSC:80Gbit/s MPSA:40Gbit/s |
||
| Maximum number of MAC address | 262144 | ||
| Maximum number of ARP/routing entries | 65536 | ||
| Maximum number of concurrent 4K video users | 2000 | ||
| GPON ports | 32 | ||
| XG-PON ports | 32 | ||
| XGS-GPON ports | 16 | ||
| GE/FE ports | 96 | ||
| 10GE ports | 16 | ||
| Cabinet supported | N63E-22 | ||
| Board Supported | |||
| Control Board | |||
| MPSG | It provides 2 GE/10GE and 2GE upstream transmission ports and supports load sharing. 248 Gbit/s Payload switching capacity of the control board (load sharing mode) 40 Gbit/s Maximum payload bandwidth per service slot (load sharing mode) NOTE: MPSG shares the same specification and performance as MPSA except that MPSG doesn’t support the Sync ETH clock, 1588v2 Synchronization and 1588ACR function. |
||
| MPSC | It provides 4 GE/10GE upstream transmission ports and supports load sharing. By default, MA5800 connects to upstream network through the control board | ||
| MPSA | It provides 2 GE/10GE and 2GE upstream transmission ports and supports load sharing. By default, MA5800 connects to upstream network through the control board | ||
| Upstream interface board | |||
| NXED | Enhanced 8-port 10GE upastream interface board, supporting 10GE/GE Ethernet upstream transmission. NXED is used when upstream ports currently provided in MA5800 are not enough. | ||
| Service board | |||
| GPHF | Provides 16 GPON ports for access services | ||
| CGHF | Provides 16-port XG-PON and GPON Combo ports for home access services | ||
| CSHF | Provides 16-port XGS-PON and GPON Combo ports for home access services | ||
| FLHF | Provides GPON, XG(S)-PON, and XG(S)-PON&GPON Combo ports for home access services | ||
| GPSF | Provides 16 GPON ports for home access services | ||
| XGHD | Provides 8 asymmetric 10G GPON ports for access services. | ||
| TWED | Provides 8 symmetric 10G GPON ports for access services. | ||
| EDSH | 32-channel E1 upstream board, supporting native TDM mode. | ||
| OGHK | 48-port aggregated GE/FE optical interface board, supporting up to 48 channels of GE/FE | ||
| OXHD | 8-port aggregated 10GE optical interface board, supporting GE/10GE Ethernet aggregation. | ||
| Power board | |||
| PISA | Provides -48V DC input | ||
| PISB | Provides one AC power input and supports battery for power backup. | ||
| Fan Monitoring board | |||
| FMSA | Supplier power to fans; controls and moniotes the fans | ||
| Dimensions (W x D x H) (mm) |
2 U high and 19 inch wide442 mm x 268.7 mm x 88.1 mmIncluding IEC mounting brackets: 482.6 mm x 268.7 mm x 88.1 mm Including ETSI mounting brackets: 535 mm x 268.7 mm x 88.1 mm |
||
| Maximum weight(including mounting brackets) | 9.4 kg | ||
| Maximum input current | 20 A | ||
| Power supply | Power supply mode: DC Working voltage range: -38.4 V to -72 V Rated voltage: -48 V / -60 V |
||
| Ambient temperature | -40°C to +65°C The MA5800 can start up at a lowest The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. Note:The 65°C temperature refers to the highest temperature measured at the air intake vent of service subrack. |
||
| Ambient humidity | 5% RH to 95% RH | ||
