Fiberhome AN5516-06 OLT

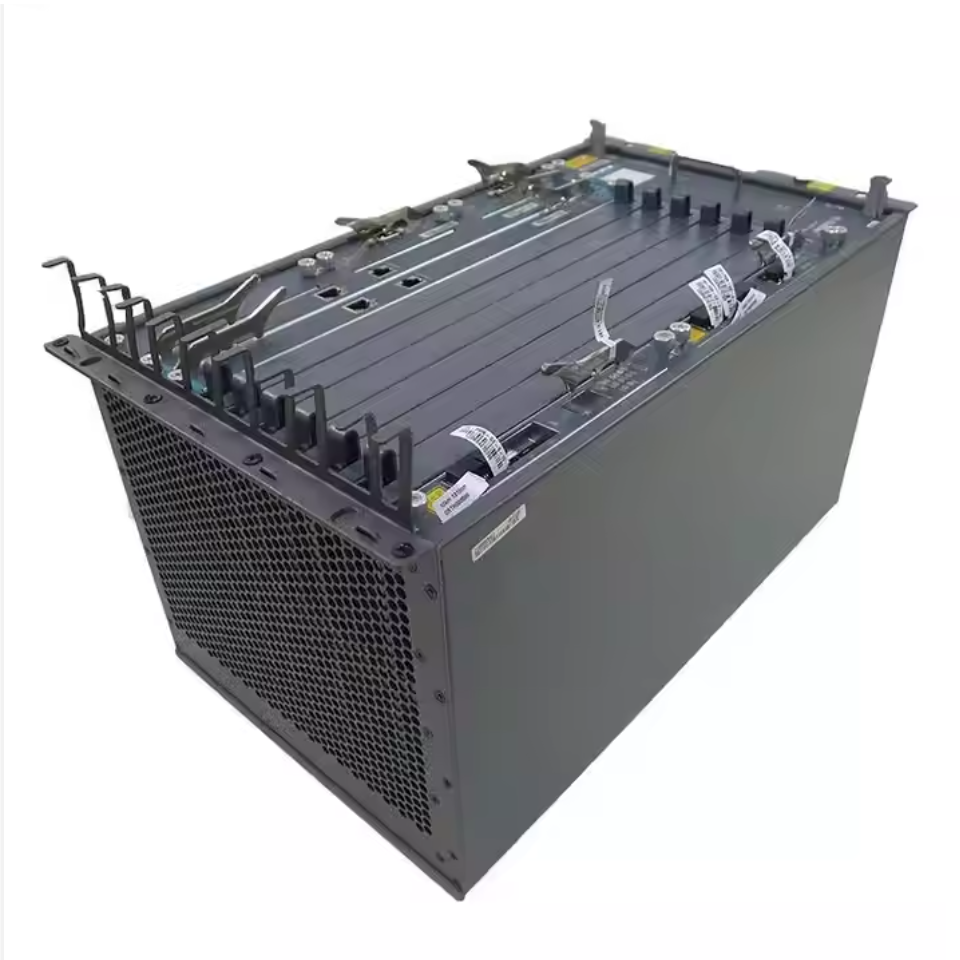

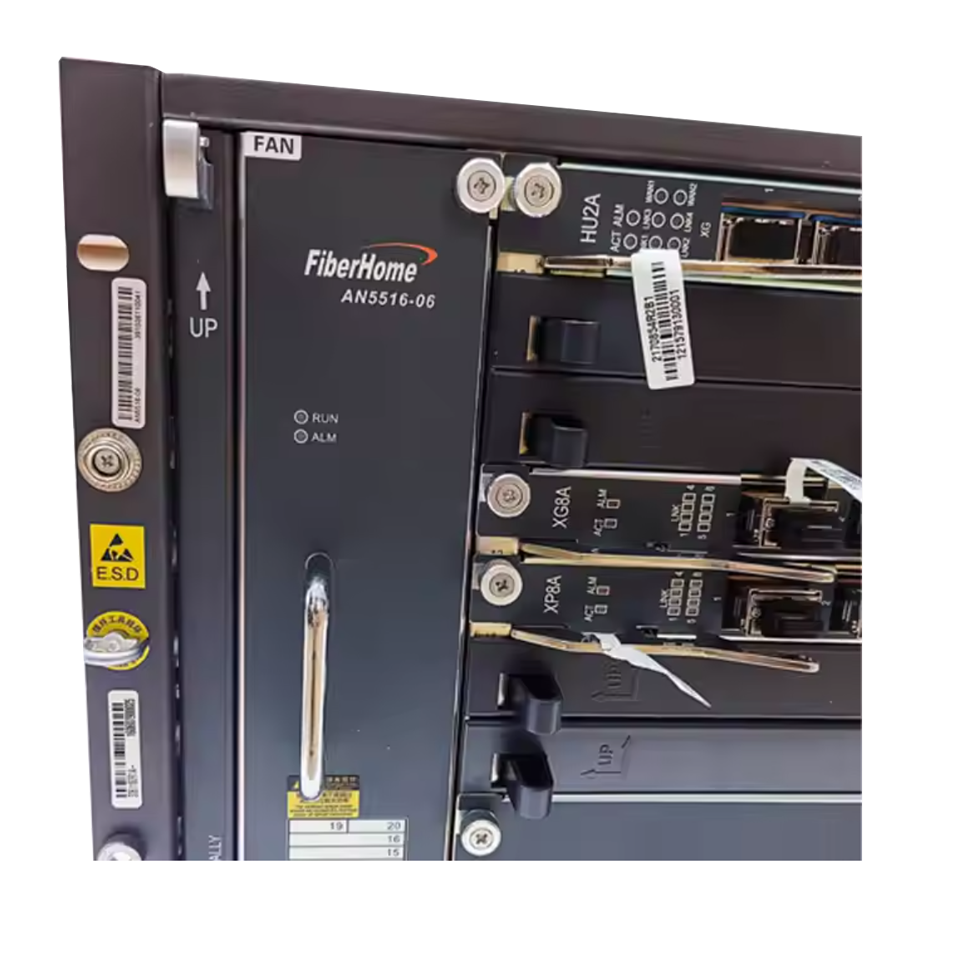

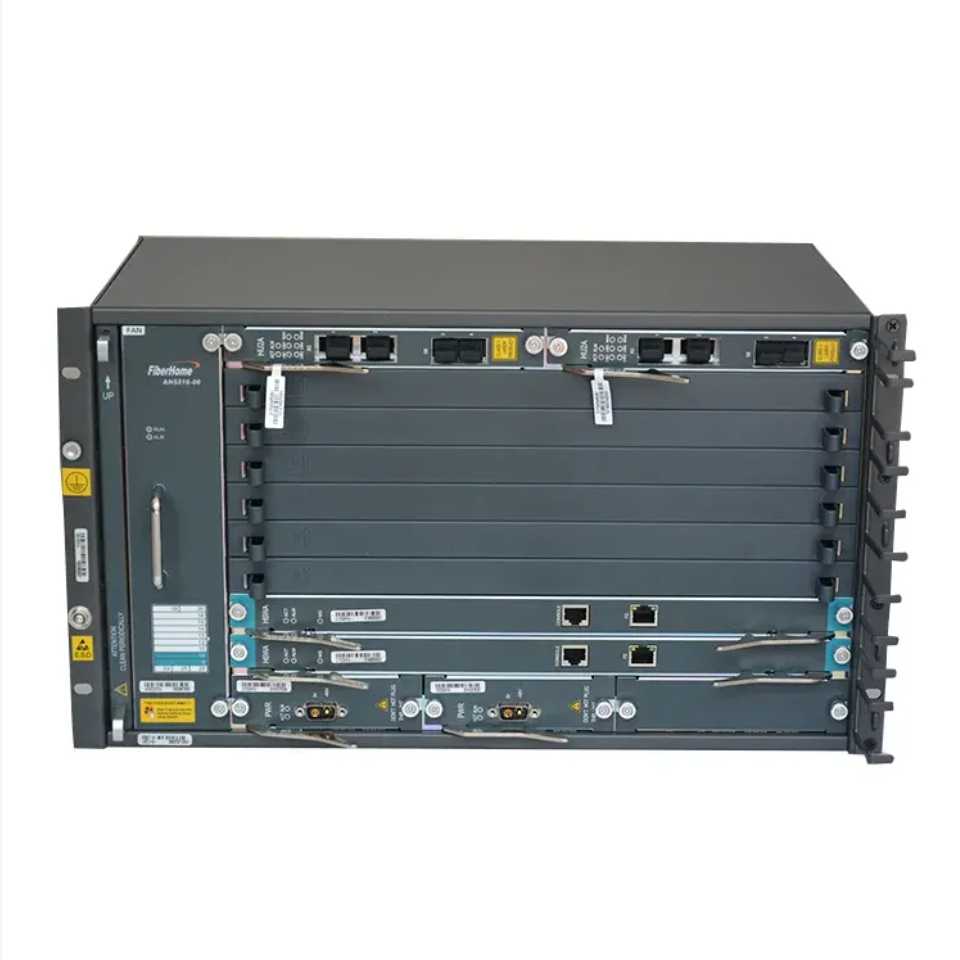

Fiberhome AN5516-06 OLT Chassis with 2xcontrol board, 2xDC power board,2xUplink board
Control board:HSWA
Power board:PWRD
Uplink board:GU6F
AN5516-06 is a MSAN / GPON integrated access product with intermediate capacity offered by FiberHome. It is compact carrier-class central office equipment. It caters for the requirements on networking for FTTH, FTTB, base station backhauling and private line services. It supports multiple services such as Vo IP, TDM, data, IPTV and CATV to meet the requirement of Triple-play. In addition, it is used together with the remote end ONU forming a complete convergence layer function.
| Brand | Fiberhome |
| Model No. | AN5516-06 |
| Dimension: | 550*460*380mm |
| Operating Environment | Temperature: -40℃～+65℃ |
| Humidity:5%~95% (non-condensing | |
| Backplane Exchange capacity | 720Gbit/s |
| Control Board Exchange Capacity | 512Gbit/s |
| Access Capacity | 16*10G EPON |
| 8*10G GPON | |
| 16*EPON | |
| 32*GPON | |
| 96*GE | |
| Access Type | Upstream interface: 10GE optical, GE optical/electricity Service interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface |
| System Performance | Layer 2 / Layer 3 wire-speed forwarding |
| Support static router /RIP/OSPE.MPLS | |
| BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock | |
| Maximum support 1:256 splitting ratio | |
| Maximum support 60KM logical distance | |
| Power Supply Parameters | -48V DC input Supports dual power protection Working Voltage range -38.4V～-72V Support 220V / 110V AC input |
