GFBL XG-PON&GPON C+

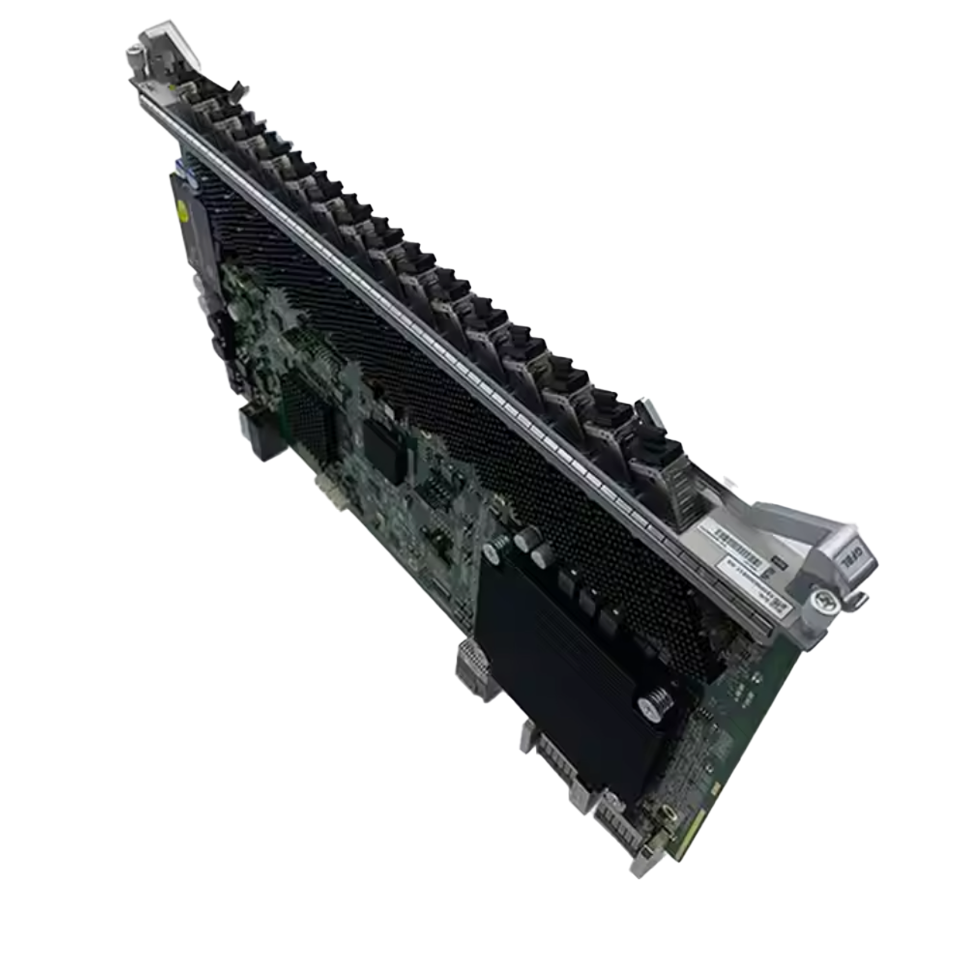

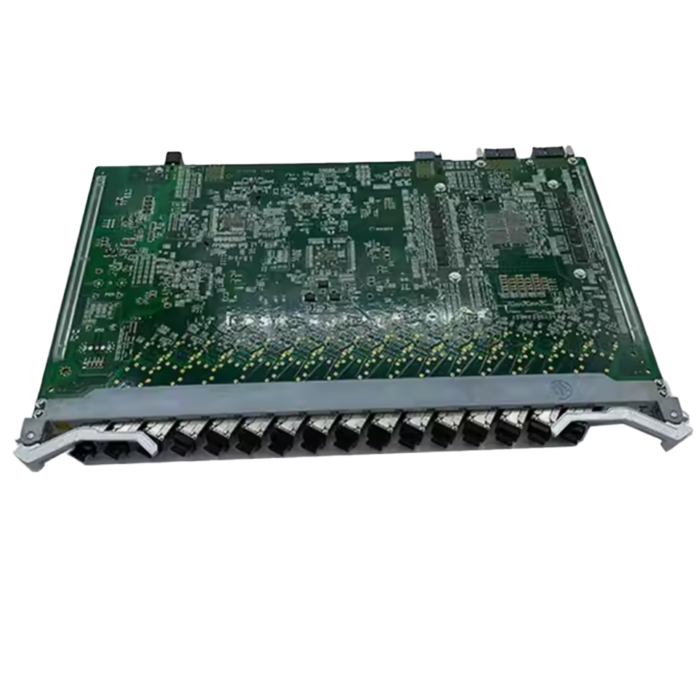

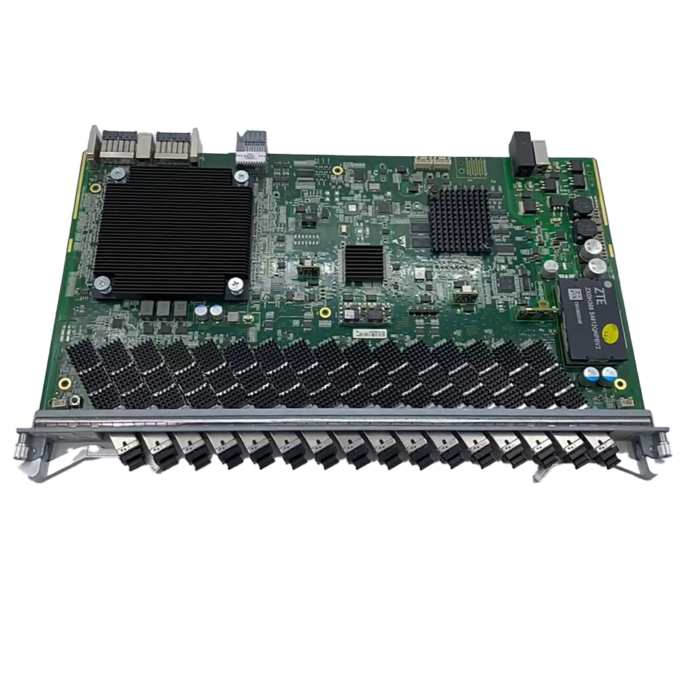

ZTE 16-Ports board GFBL of 10G-PON&GPON combo card with D2 SFP modules

ZTE GFBL Board is 16 port GPON & XG PON Combo interface board suitable for C600,C650,C680 OLT

Specification:

Brand	ZTE
Model	GFBL
Port	16-port
Interface	XG-PON & GPON Combo
Function	XG-PON & GPON service access
Specification	XG-PON & GPON Combo SFP+ interface, with built-in internal multiplexing, SC/UPC optical connector
Management and control module	Configures, controls, and manages the card.
PONMAC module	Implements all the functions on the GPON layer defined in ITU-T G.984.3 and the XGS-PON layer defined by ITU-T G.989.3 and ITU-T G.987.3.
NP module	Implement data processing on the service layer, including service bandwidth and QoS processing based on service types and user needs to meet the SLA requirements. The data processing function complies with TR156.
Optical module	Provide a GPON optical interface that complies with ITU-T G.984.2 or an XGS-PON optical interface that complies with ITU-T G.9807.
Clock module	Processes the system clock in compliance with ITU-T G.8262, G.8264, and G.781.
Weight	1.72 kg
Dimensions (L x H x W)	393.1 mm × 23.9 mm × 214 mm
