ZXA10 C650 OLT

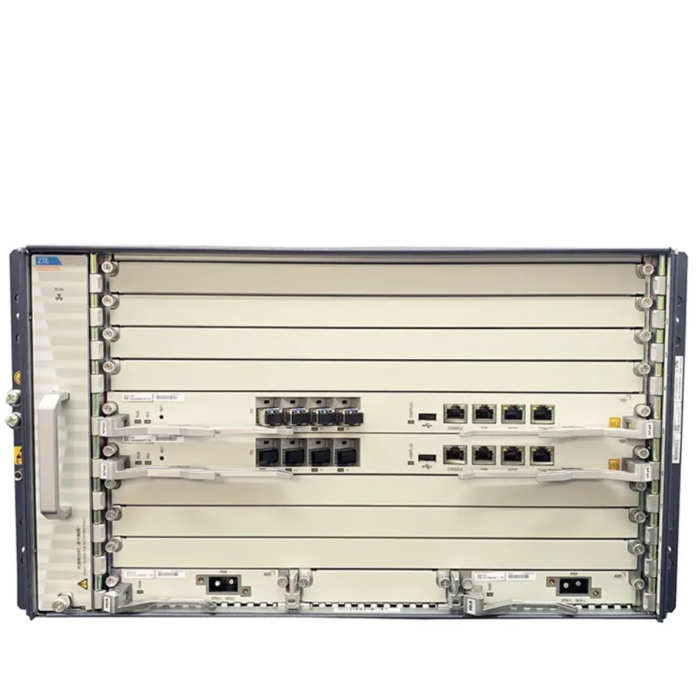

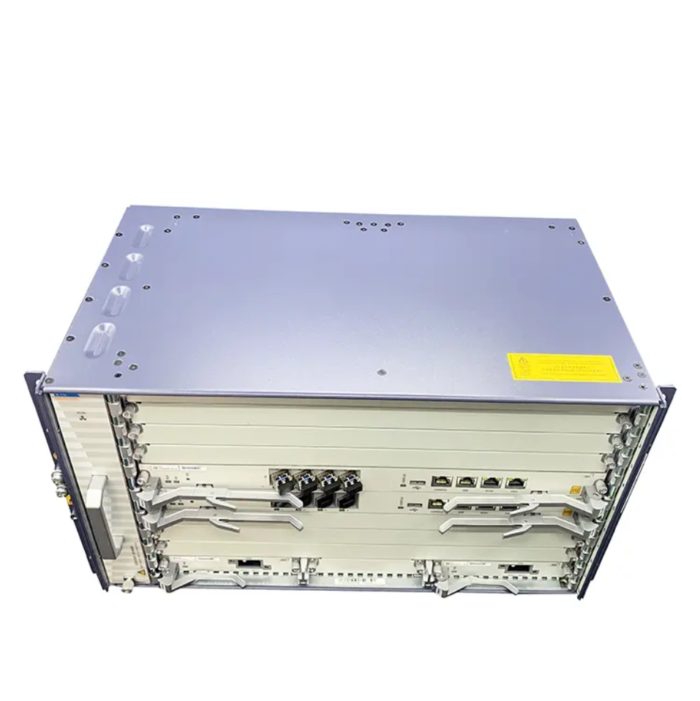

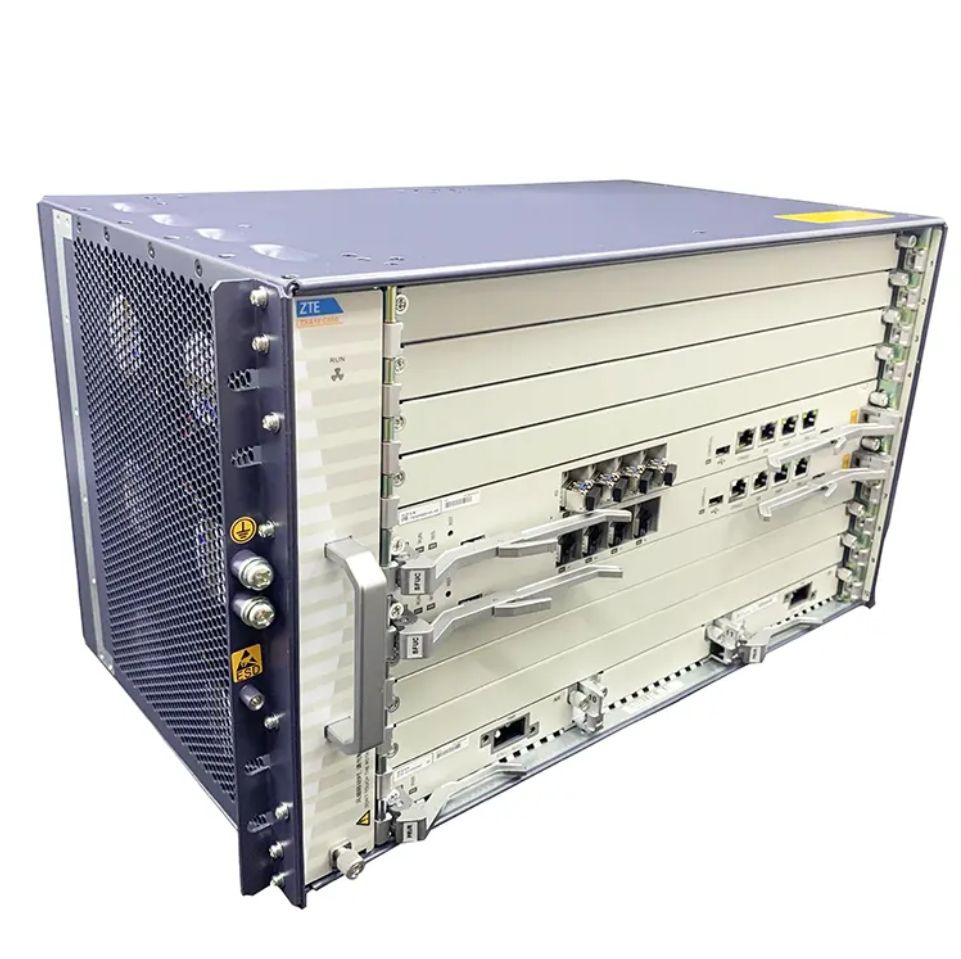

ZTE ZXA10 C650 Chassis with 2xcontrol board, 2xDC power board
Control board:SFUC,SFUB
Power board:PRVR
The ZXA10 C650 is a medium-capacity optical access equipment based on the TITAN platform. It meets the fullscenario access needs of ultra-high bandwidth, big video, FMC and network re-architecture, and provides the integration of transmission and access, as well as carrier-class QoS and security.
ZXA10 C650 provides 7 service slots for plugging user-side subscriber cards and network-side line cards. The ZXA10 C650 can be installed in a ZXA10 IC6320/ZXA10 IC6322/ZXA10 IC6622 cabinet or a third party’s 19″ cabinet that meets IEC standard specifications.
ZXA10 C650 supports 6T switching capacity of backplane bus and 512K MAC address.
| Specification | |
| Switching capacity of backplane bus (Tbit/s) | 6 |
| System switching capacity (Tbit/s) | 7.2 |
| Switching capacity of system layer 2 packet forwarding rate | Distributed unblocked forwarding |
| Switching card switching capacity | 3.6 Tbit/s (single switching board SFUL/SFULV/SFUH/SFUHV) |
| Switching and forwarding delay | Upstream: ≤1500 μs
Downstream: ≤100 μs |
| Full load bit error rate | 10 e-9 (full load transmission) |
| Dimensions (mm) | 263.9 mm × 482.6 mm × 285.3 mm |
| Weight(kg) | 12 (empty)
<30 (full configuration |
