GTGH G22 C+

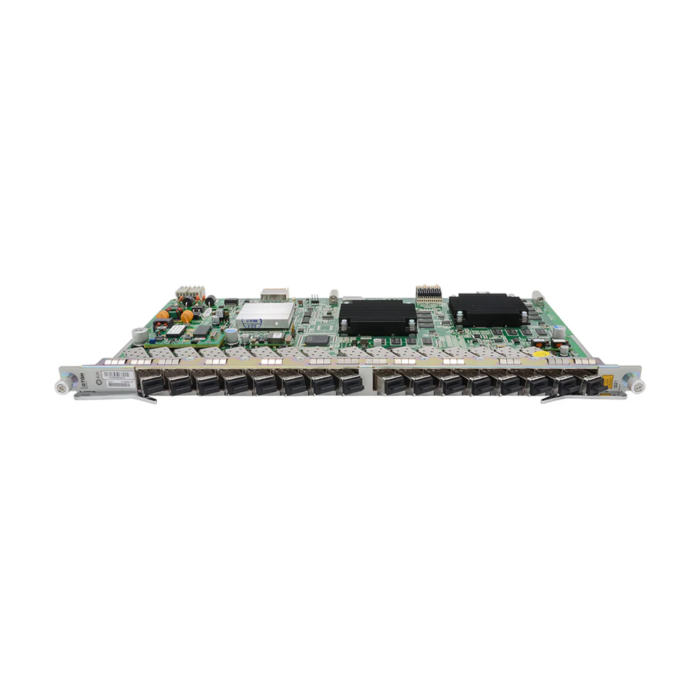

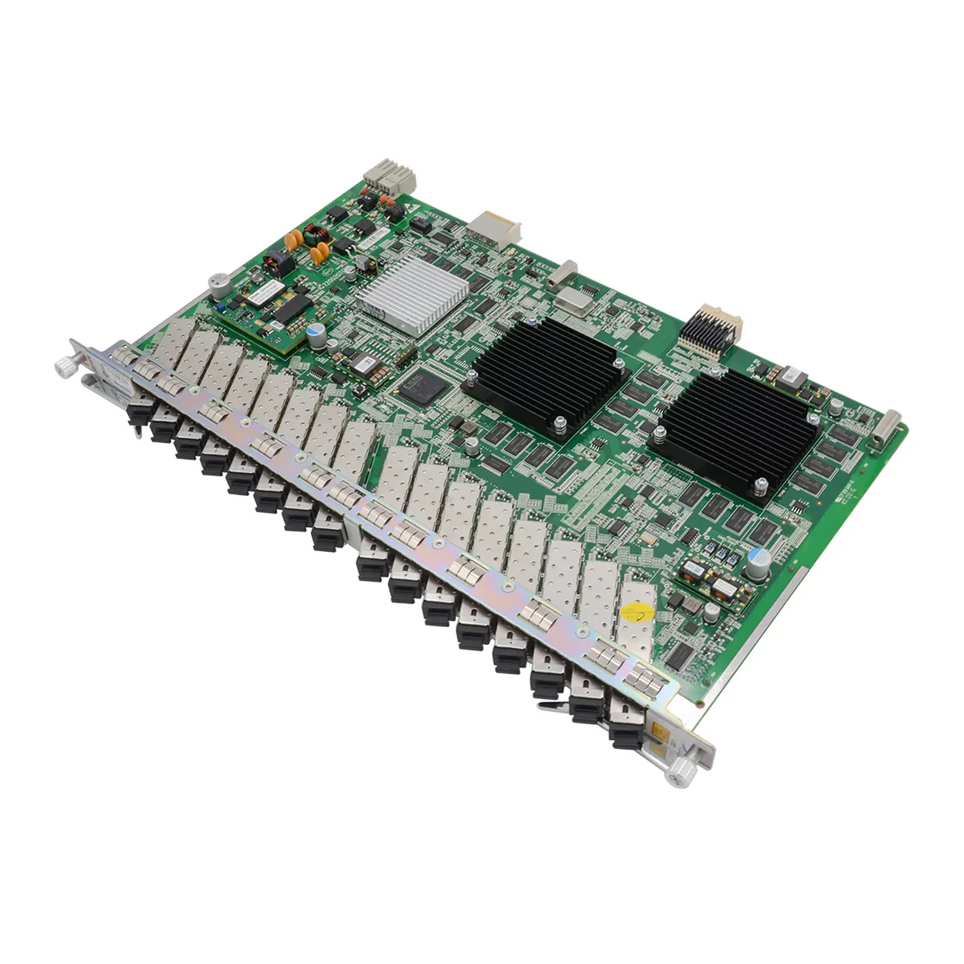

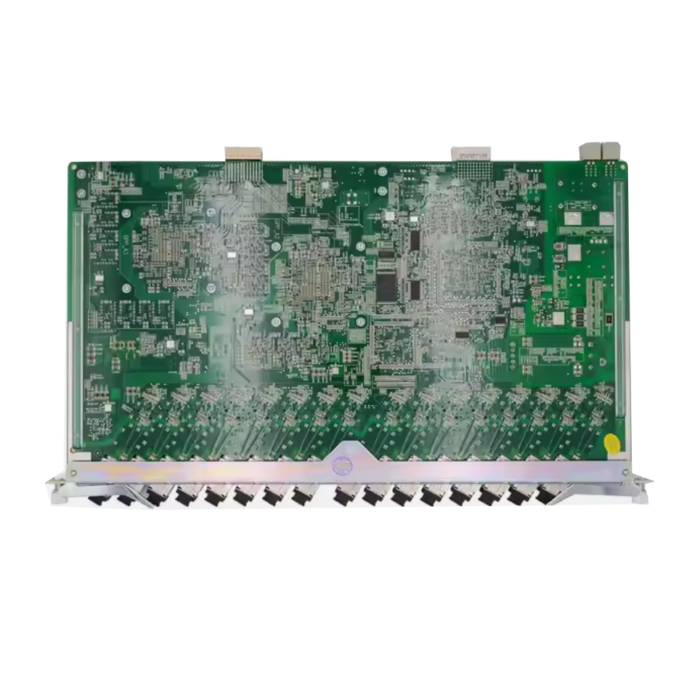

ZTE ZXA10 C300 C320 16-port GPON OLT interface board with C+ module

GTGH is an 16-Port GPON card that used with ZXA10 C300 and ZXA10 C320 OLT.

Maximum split ratio: 1:128
Transmission distance: 20km
Output optical power: 3~7 dBm

Specification
GPON Port	16-GPON Port
GPON SFP Module Specification
Type	C+ Module : Single Fiber Bidirectional Optical Module, Class C+
Operating Wavelength	Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type	SFP
Port Rate	Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Minimun Output Optical Power	C+ Module : 3.00 dBm
Maximum Output Optical Power	C+ Module : 7.00 dBm
Maximum Receiver Sensitivity	C+ Module : -32.00 dBm
Optical Connector Type	SC/PC
Optical Fiber Type	Single-mode
Reach	20.00 km
Overload Optical Power	C+ Module : -12.0 dBm
Extinction Ratio	8.2 dB
Device Specifications
Weight	1kg
Dimensions (W x D x H)	22.86 mm x 237.00 mm x 395.40 mm
