ZXA10 C320 OLT

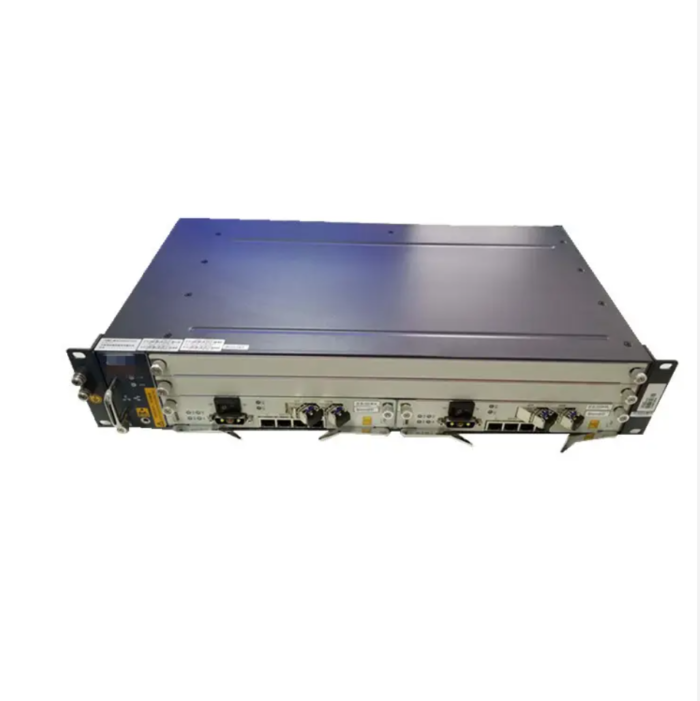

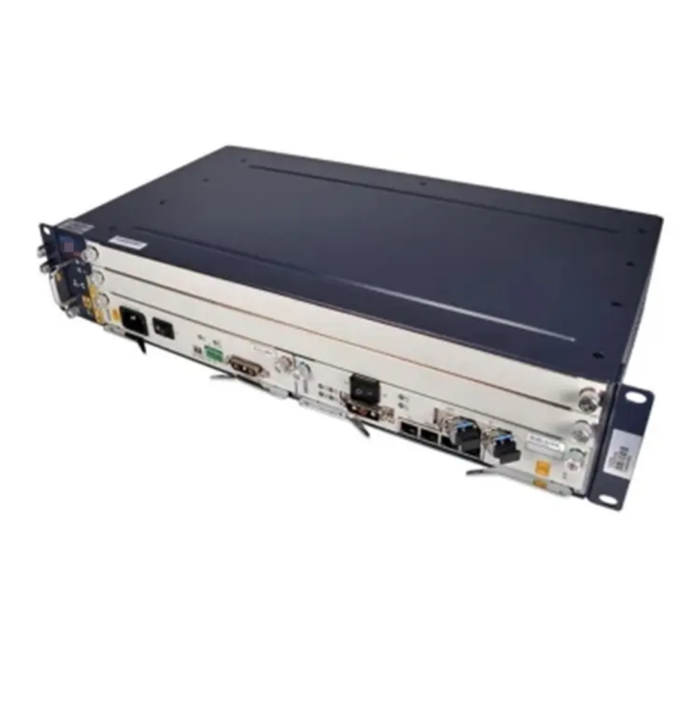

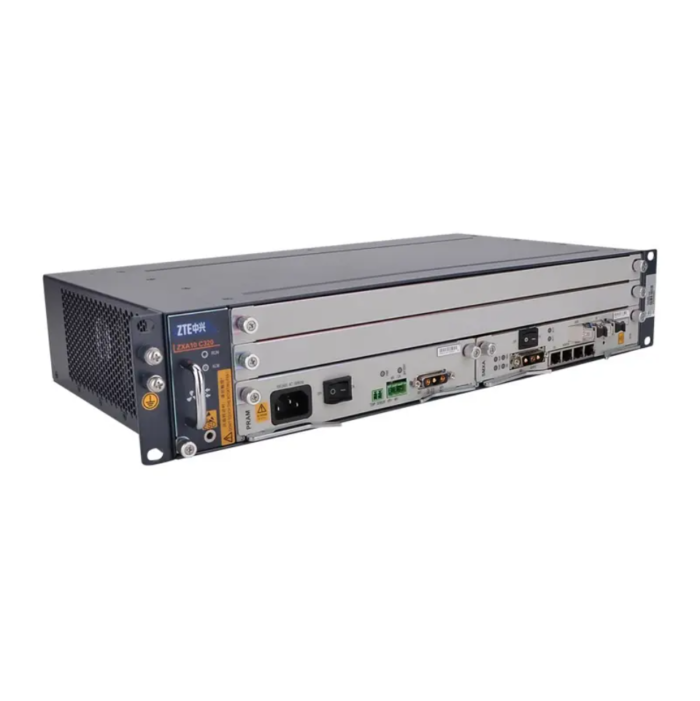

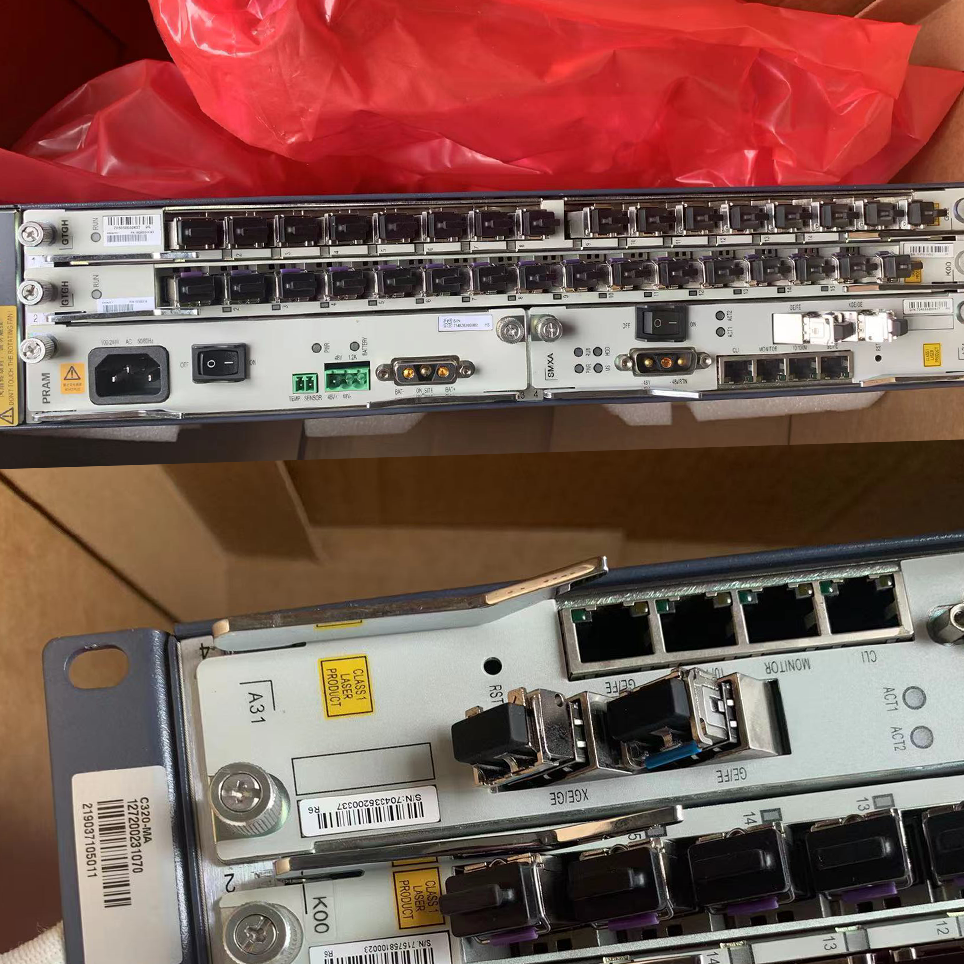

ZTE ZXA10 C320 Chassis with 2xcontrol board, 1xAC power board
Control board:SMXA(11);SMXA(31);
Power board:PRAM
ZTE ZXA10 C320, a small size, full-service optical access convergent platform, provides carrier class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.
ZTE ZXA10 C320 OLT (ZTE C320) is a compact, dense full-service xPON converged optical access platform for next-generation optical access networks, and it supports GPON/EPON/P2P/10GEPON/XG-PON1 common platform access, ZTE ZXA10 C320 supports HSI, VolP, IPTV, CATV, mobile backhaul, WiFi and other full-service access aggregation and management control, providing carrier-class QoS and security reliability.
ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.
| Brand | ZTE |
| Model | ZXA10 C320 |
| Backplane capacity | 420 Gbit/s |
| Switching capacity | 84 Gbit/s |
| Number of service cards | 2 (GPON/P2P/XG-PON1) |
| Number of combined control cards | 2 |
| Number of power supply cards | 1 |
| Number of uplink cards | 1 (10GE/GE/FE/E1/T1) |
| Maximum number of GPON subscribers | 4096 |
| Management Interfaces | CLI, SSH, SNMP, telnet |
| Power | -48 V (DC), 230V (AC) |
| Working temperature and humidity | -25°C – +55°C, 5% – 95% |
| Split Ratio | up to 1:128 |
| Range | 20-60 km |
| Maximum attenuation | SFP B+ 28 dB, SFP C+ 32 dB |
| Dynamic Bandwidth Allocation | NSR-DBA, SR-DBA |
| Support | FEC, AES128, SCB, OLS |
| Dimensions | 86.1 mm (height) x 482.6 mm (width) x 270 mm (depth) |
| Power Supply | Dual DC: 48V/60VAC: 100V~240V |
| Cabinet | Indoor: 2200mm x 600mm x 300mm standard cabinet Outdoor: EC90EB, EC70E |
| Main-Control Switching Card SMXA | Panel interfaces: 1*10GE/GE(optical)+1*GE/FE(Optical)+ 1*GE/FE(electrical) +1*serial port+ 1*management FE+ 1*environment detecting port Ethernet uplink port: MAX. 2*10GE+4*GE or 6*GE |
| Service Card (2 slots) | GTGO(8*GPON) /GTGH(16*GPON)/FTGK(48*P2P)/GTXO(8*XG-PON1) |
