ETGO PX20+

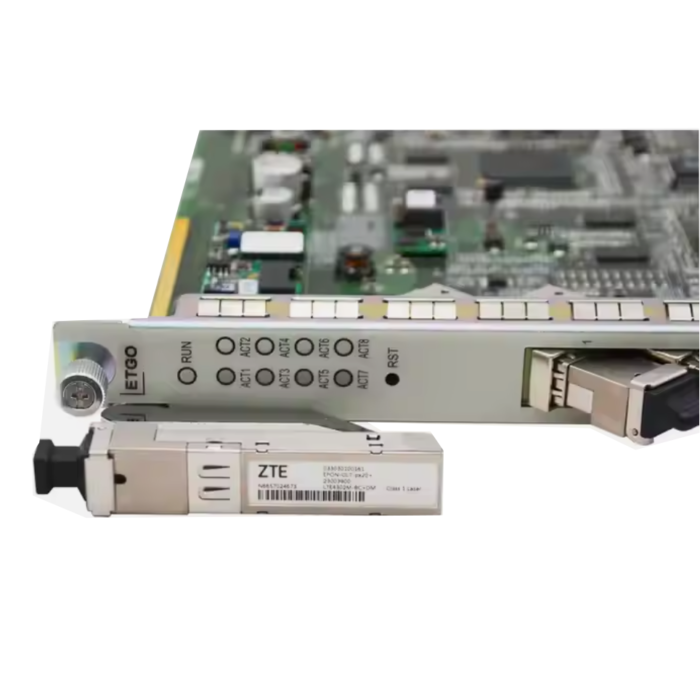

ZTE ZXA10 C320 C300 8-port EPON OLT interface board with PX20+ module

ZTE ETGO is 8-port EPON interface board that used for C320,C300 OLT

Maximum split ratio: 1:64
Transmission distance: 20km
Output optical power: 2.5~7.0 dBm

Specification
Service ports
EPON Port	8-EPON Port
EPON SFP Module Specification
Type	PX20+ Module : Single Fiber Bidirectional Optical Module, Class PX20+
Operating Wavelength	Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type	SFP
Port Rate	1.25 Gbit/s
Minimun Output Optical Power	PX20+ Module : 2.50 dBm
Maximum Output Optical Power	PX20+ Module : 7.00 dBm
Maximum Receiver Sensitivity	PX20+ Module : -30.00 dBm
Optical Connector Type	SC
Optical Fiber Type	Single-mode
Reach	20.00 km
Overload Optical Power	PX20+ Module : -6.0 dBm
Extinction Ratio	9dB
Device Specifications
Weight	1.017kg
Dimensions (W x D x H)	395.5 mm × 22.5 mm × 225 mm
