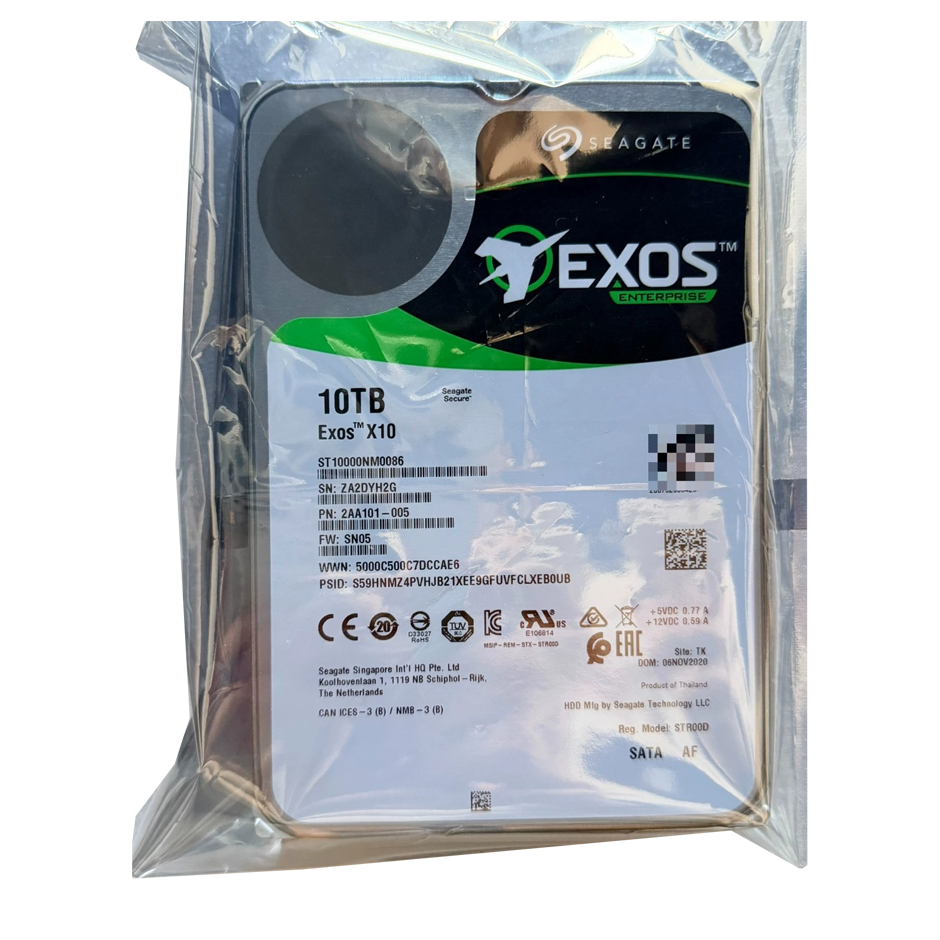

Seagate ST10000NM0086

Seagate (ST10000NM0086) – 10TB Exos X10 (LFF 3.5in) SATA-3 6Gbps 7.2K 256MB HDD

Seagate Helium ST10000NM0086 10TB / 10,000GB 3.5″ 6.0 Gb/s 7,200 RPM Enterprise 512 Emulation Serial ATA Hard Disk Drive

Specifications
Capacity	10TB/10,000GB
Standard Model (512e)	ST10000NM0086
Features
Helium Sealed-Drive Design With Wide Weld	Yes
Digital Environmental Sensors	Yes
Protection Information (T10 DIF)	—
SuperParity	Yes
PowerChoice™ Power/Performance Technology	Yes
Low Halogen/Hot-Plug Support	Yes
Cache, Multisegmented (MB)	256
Organic Solderability Preservative	Yes
Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours)	2.5 Million
Reliabilility Rating @ Full 24×7 Operation (AFR)	0.35%
Non-recoverable Read Errors per Bits Read, Max	1 sector per 10E15
Power-On Hours	8760
512e Sector Size (Bytes per Sector)	512
4Kn Sector Size (Bytes per Sector)	4096
Performance
Spin Speed(RPM)	7200RPM
Interface Access Speed (Gb/s)	6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s)	254MB/s
Random Read/Write 4K QD16 WCD (IOPS)	170, 370
Average Latency (ms)	4.16
Interface Ports	Single
Rotational Vibration @ 1500Hz (rad/s)	12.5
Power Consumption
Idle A (W) Averge	4.5W
Max Operating Power, Random Write (WCD) 4K/4Q RR50% / RW50%	8.0
Max Operating Power, Random Read 4K/16Q (W)	8.4
Power Supply Requirements	+12 V and +5 V
Environmental
Temperature, Operating (°C)	5°C – 60°C
Vibration, Nonoperating: 10Hz to 500Hz (Grms)	2.27
Shock, Operating 2ms (Read/Write) (Gs)	70/40Gs
Shock, Nonoperating, 1ms/2ms (Gs)	250
Physical
Height (mm/in, max)	26.11mm/1.028in
Width (mm/in, max)	101.85mm/4.010in
Depth (mm/in, max)	147.0mm/5.787in
Weight (g/lb)	650g/1.433lb
