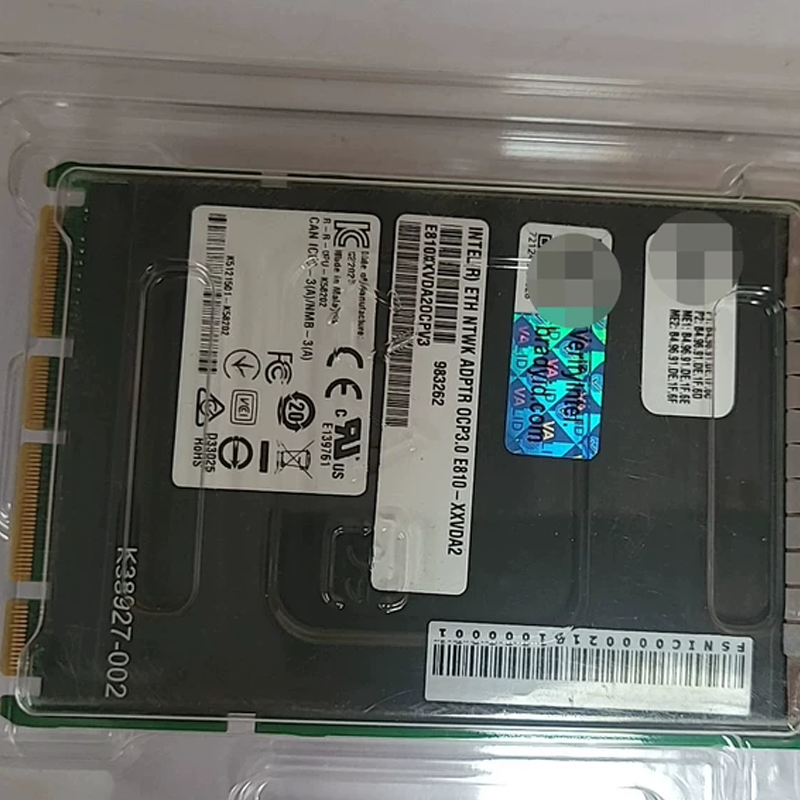

Intel Ethernet Network Adapter E810-XXVDA2 for OCP 3.0(E810XXVDA2OCPV3)
Intel Ethernet Network Adapter OCP3.0 E810-XXVDA2
The Intel Ethernet Network Adapter E810-XXVDA2 for OCP 3.0 is a dual-port 25GbE server network interface card built for Open Compute Project (OCP) 3.0 server designs.
Key Specifications:
• Controller: Intel E810
• Form Factor: OCP NIC 3.0 (Small Form Factor)
• Host Interface: PCIe 4.0 x8 (16 GT/s)
• Ports: 2 x SFP28 (supports 25GbE, 10GbE, and 1GbE data rates; transceivers sold separately)
• Networking & Virtualization Features:
• RDMA support (iWARP and RoCEv2)
• Single Root I/O Virtualization (SR-IOV) and Virtual Machine Device Queues (VMDq)
• Application Device Queues (ADQ) and Dynamic Device Personalization (DDP)
• IEEE 1588 Precision Time Protocol (PTP v1/v2)
• Security & Management: Hardware-based Root of Trust (NIST 800-193 compliant), signed firmware, and secure boot.
