Intel Ethernet Network Adapter E810-XXVDA2 (E810XXVDA2G1P5)
Intel E810XXVDA2G1P5 25 Gigabit Dual-Port PCIe 4.0 x8 Ethernet Network Adapter.

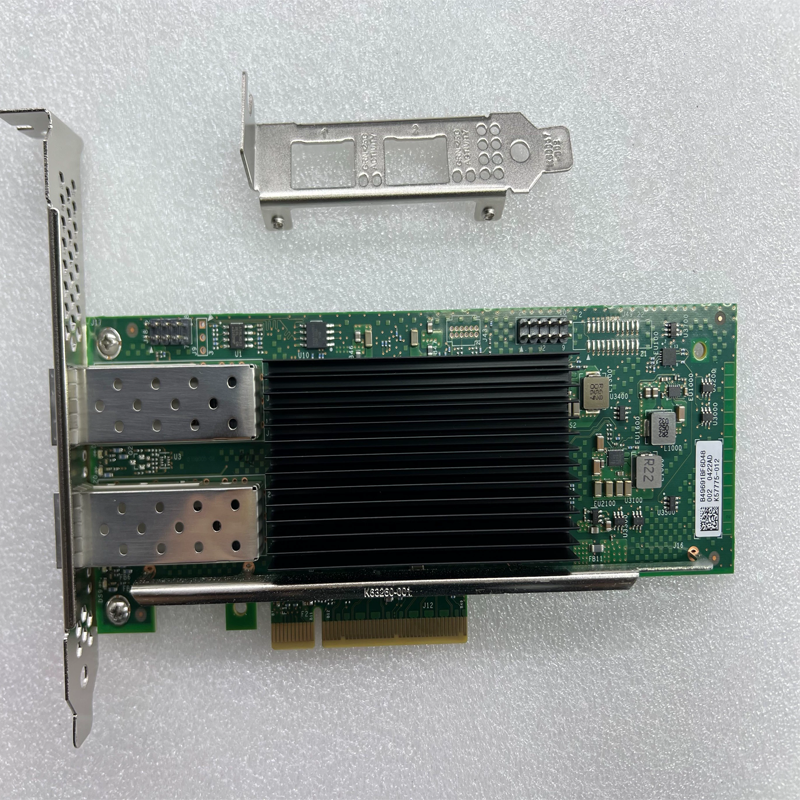

The Intel Ethernet Network Adapter E810-XXVDA2 (Part E810XXVDA2G1P5) is a dual-port 25GbE PCIe network interface card built for enterprise, cloud, and high-performance communication data centers.
Key Specifications:
• Brand & Model: Intel Ethernet Network Adapter E810-XXVDA2 (Product Code: E810XXVDA2G1P5)
• Host Interface: PCI Express 4.0 x8 (backward compatible with PCIe 3.0), utilizing an Intel E810-XXVAM2 controller
• Ports: Dual 25GbE SFP28 ports supporting optical fiber or twinaxial media (25GBase-CR, 25GBase-SR, 25GBase-LR)
• Data Rates: Supports 25GbE, 10GbE, and 1GbE speeds
• Form Factor: Low-profile plug-in card (includes both low-profile and full-height brackets)
• Lifecycle Status: Scheduled for End-of-Life (EOL) / discontinuation by Intel
Advanced Features:
• Virtualization & Partitioning: SR-IOV, VMDq, and Flexible Port Partitioning (FPP)
• Storage & Offloads: iSCSI, NFS, iWARP, and RoCEv2 (RDMA over Converged Ethernet) support
• Performance Enhancements: Intel Data Direct I/O (DDIO), on-chip QoS, and intelligent traffic management offloads.
