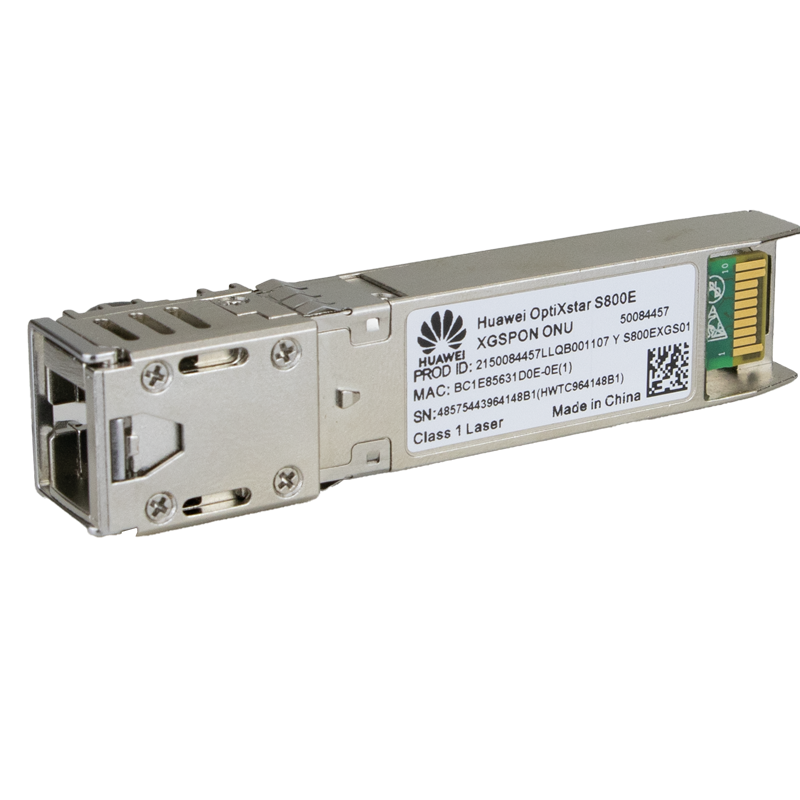

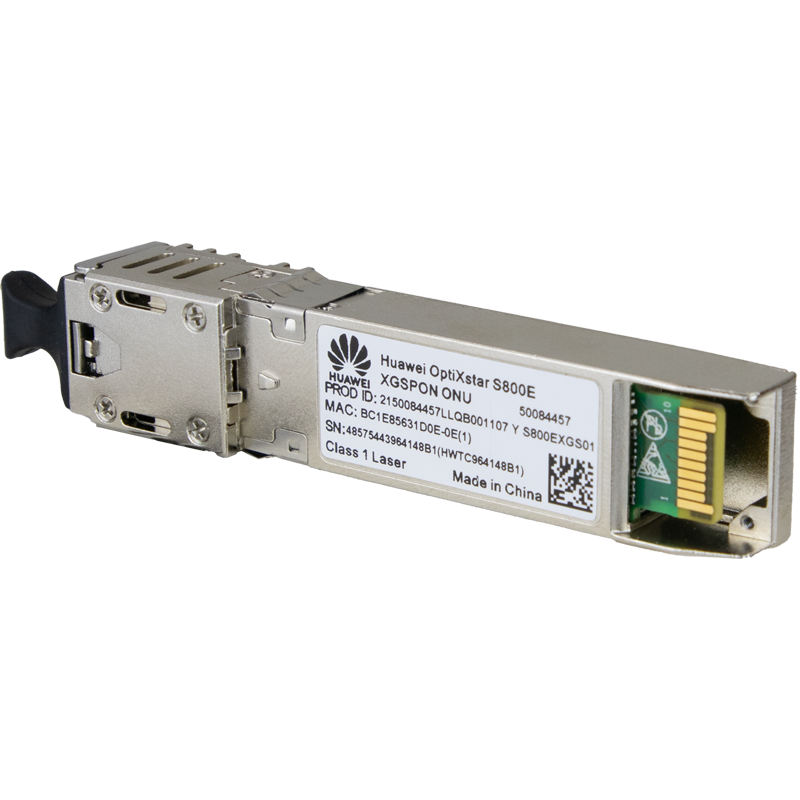

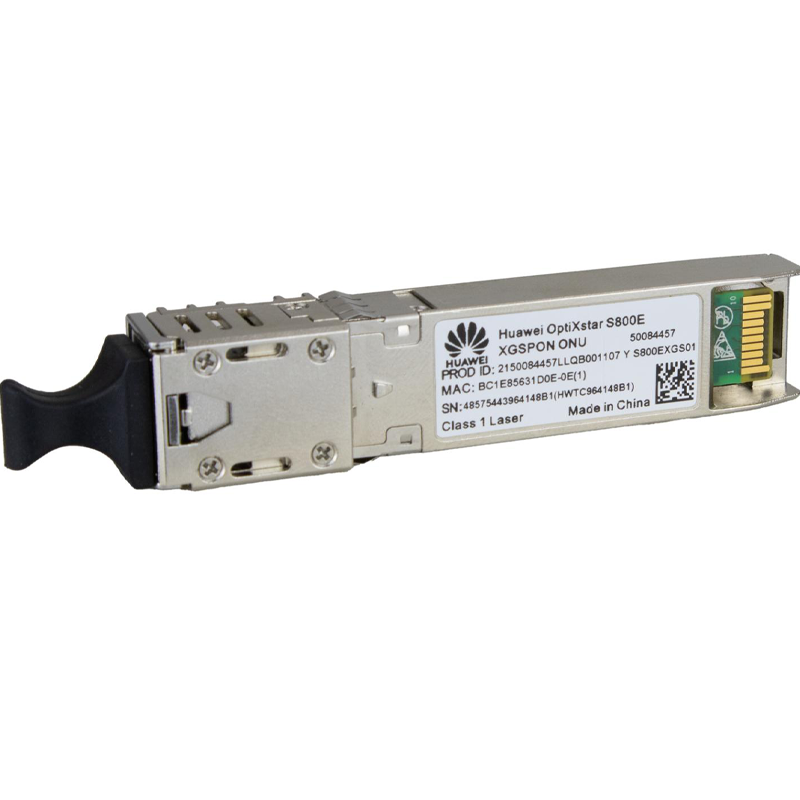

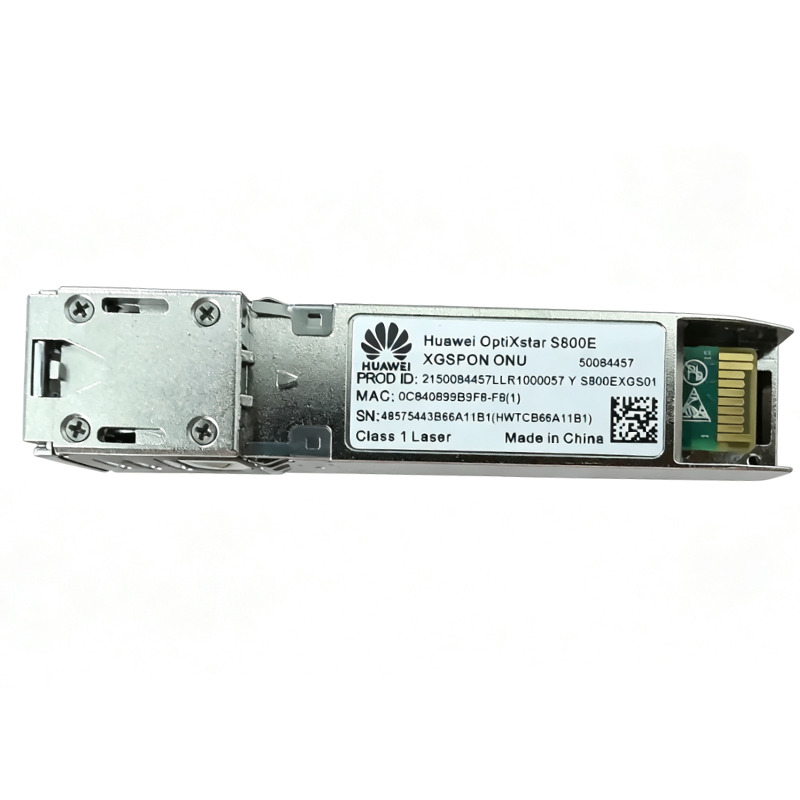

Huawei OptiXstar S800E XGS-PON SFP ONU
Huawei OptiXstar S800E is a miniature Optical Network Unit (ONU) that can be inserted into the Small Form-Factor Pluggable (SFP) port of a camera or Access Point (AP) to provide 10-Gigabit-capable Symmetric Passive Optical Network (XGS-PON) access, meeting video or wireless backhaul requirements.
The Huawei OptiXstar S800E is an XGS-PON ONU client module designed for installation in devices equipped with an SFP+ slot. This allows a standard router or switch to act as an XGS-PON client terminal. The S800E has a standard SC/APC interface, just like a standard ONU/ONT. Maximum receive sensitivity is -28 dBm, and the XGS-PON transmission should be connected directly to the optical module. This product supports automatic speed negotiation and can operate in 1/2.5/5/10 Gbps modes. It supports all key features, such as OMCI communication, IGMP and MLD snooping, and MAC address filtering; a full list can be found in the specifications. One of the limitations of this functionality is the maximum number of supported MAC addresses, which is 256.
| General properties | |
|---|---|
| Dimensions | 65 mm x 13.6 mm x 12.6 mm |
| Libra | About 27 g |
| Permissible operating temperature | From -40 to 85 degrees C (housing temperature) |
| Permissible air humidity | 5%-95% RH non-condensing |
| Supply voltage | 3.3V |
| NNI (WAN) | 1x XGS-PON (SC/APC) |
| UNI (LAN) | Adaptive interface 1 / 2.5 / 5 / 10 Gb/s |
| Maximum power consumption | 2.3 W |
| Port properties | |
| NNI (WAN) | SC/PAC port
Compliance with the ITU-T G.9807 standard Reception sensitivity: ≤ -28dBm Maximum overload power: ≥ -9dBm Tx optical power range: 4 ~ 9 dBm Extinction ratio (ER): ≥ 6dB Bandwidth: Rx: 9.953 Gb/s, Tx: 9.953 Gb/s Tx wavelength: 1260 – 1280 nm (central wavelength: 1270 nm) Rx wavelength: 1575 – 1580 nm (central wavelength: 1577 nm) |
| UNI (LAN) | Adaptive SFP+ interface 1 / 2.5 / 5 / 10 Gb/s |
| Feature List | |
| Smart Management | Variable-length OMCI communication
Detecting rogue ONTs and isolating them from the OLT Simulating and testing PPPoE/DHCP |
| Basic management | OMCI
Backup and restore 802.1ag Ethernet OAM Optical connection measurement and diagnostics |
| Multicasty | IGMP v2/v3 snooping
MLD v1/v2 snooping Fast leave VLAN tag translation, transparent transmission, and downstream multicast packet removal IGMP/MLD packet limiting |
| Security | MAC address filtering
Hard-Isolated |
| QoS | Ethernet bandwidth limit
Priorytet 802.1pSP / WRR / SP+WRR Limiting the bit rate of broadcast packets Flow mapping based on VLAN ID, port ID and/or 802.1p |
