Huawei SmartAX MA5801-GP16
Huawei MA5801-GP16 OLT terminal with 16*GPON ports, 4*10GE/GE upstream ports,Dual AC/DC power supply

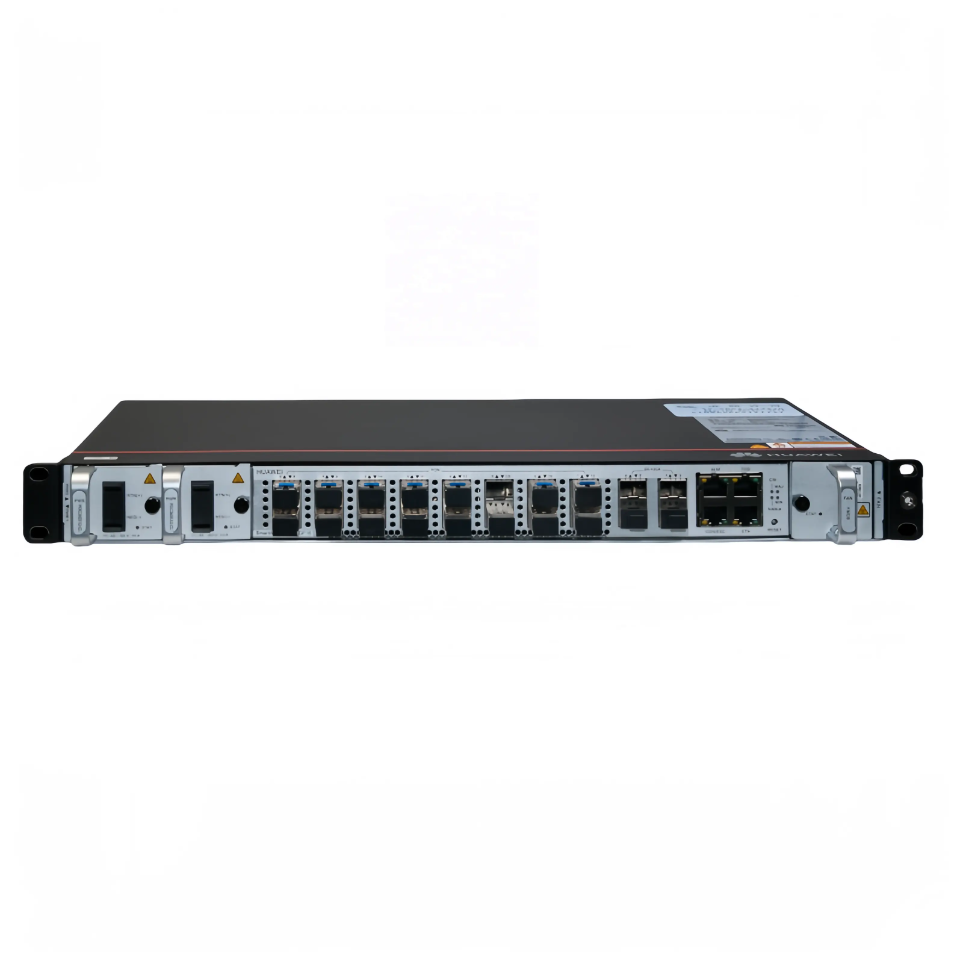

Huawei MA5801-GP16 is a GPON OLT terminal enclosed in a small 1U casing. It has 16 built-in GPON ports, the set includes class C + modules. 4 SFP + slots with a capacity of 10 Gb/s are responsible for the uplink, if necessary, you can also use ordinary SFP modules in them. OLT is equipped with two AC adapters, the maximum power consumption is only 140 W.
GPON OLT terminal (16 ports)
The offered product enables broadcasting GPON network transmission, has 16 ports equipped with C + class SFP modules (SC/UPC connector). Each port supports the maximum split of 1:128, so you can connect up to 2048 subscribers to the MA5801-GP16. The signal between clients should be split using optical splitters (remember to keep an appropriate power budget). The throughput per port is 2.5 Gb/s (to the client) and 1.25 Gb/s (from client).
The product includes GPON C+ optical modules with an SC/UPC connector. It is the most popular type of SFP providing the appropriate power budget – Tx between 3 and 7 dBm and Rx in the range down to -32 dBm.
1U chassis, 4 SFP + (10G) uplink slots, AC power supply
The device has been closed in a small casing adapted to installation in a Rack 19″, height of chassis is 1U. It has 1 fan module and 2 AC power modules. The maximum power consumption is only 140 W, much less than in the case of large, modular terminals.
OLT is equipped with 4 uplink SFP + slots with a capacity of 10 Gb/s. If necessary, you can use ordinary 1G SFP modules in them. Such a large bandwidth will be sufficient to service all subscribers.
| Item | Value |
| Brand | Huawei |
| Model | MA5801-GP16 |
| System switching capacity | 140 Gbit/s |
| MAC addresses | 32768 |
| Access ONT | 1024 |
| IPv4 routing table | 8192 |
| IPv6 routing table | 4096 |
| ARP table | 16384 |
| Maximum fully-loaded weight (AC) | 4.6 kg |
| Power supply mode | l DC power supply (dual backup) |
| l AC power supply (dual backup) | |
| Working voltage range | l DC power supply: –38.4 V to –72 V |
| l AC power supply: 100–240 V | |
| Rated voltage | l DC power supply: –48 V/–60 V |
| l AC power supply: 110 V/220 V | |
| Maximum input current | l DC power supply: 6 A |
| l AC power supply: 2.5 A | |
| Ambient temperature | –40°C to +65°C |
| Ambient humidity | 5%–95% RH |
| Atmospheric pressure | 70–106 kPa |
| Altitude | < 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude. |
| Bit error rate (BER) in full load | A BER smaller than 10 e-7 for a port that transmits data in full load |
| 10GE/GE upstream ports | 4 |
| Service ports | 16 GPON |
| Power consumption | Static power consumption: 55W |
| Typical power consumption: 95W | |
| Maximum power consumption: 140W | |
| Dimensions (W x D x H) (mm) | Excluding mounting ears: 442 x 220 x 43.6 |
| Including IEC mounting ears: 482.6 x 220 x 43.6 | |
| Including ETSI mounting ears: 535 x 220 x 43.6 |
