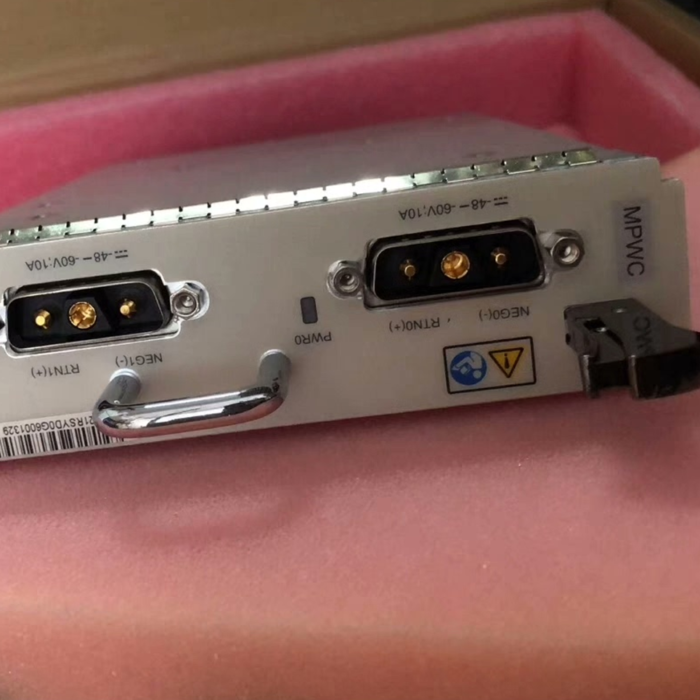

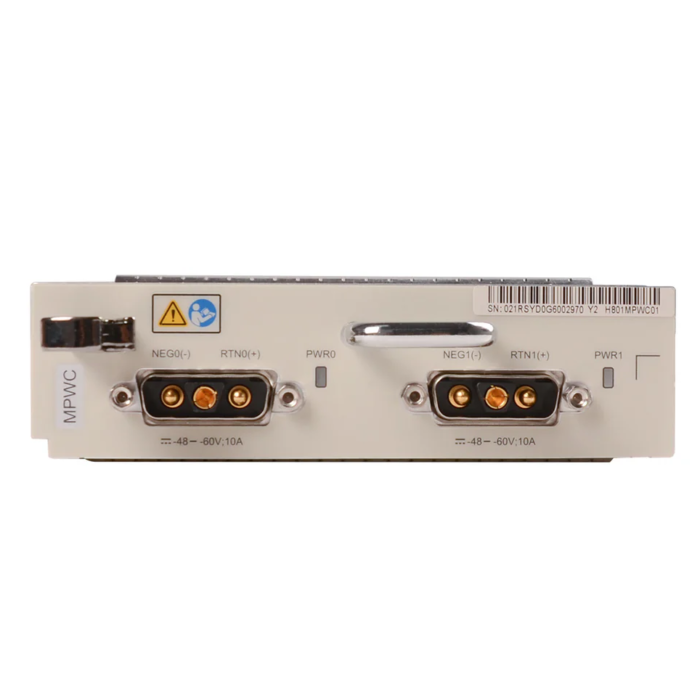

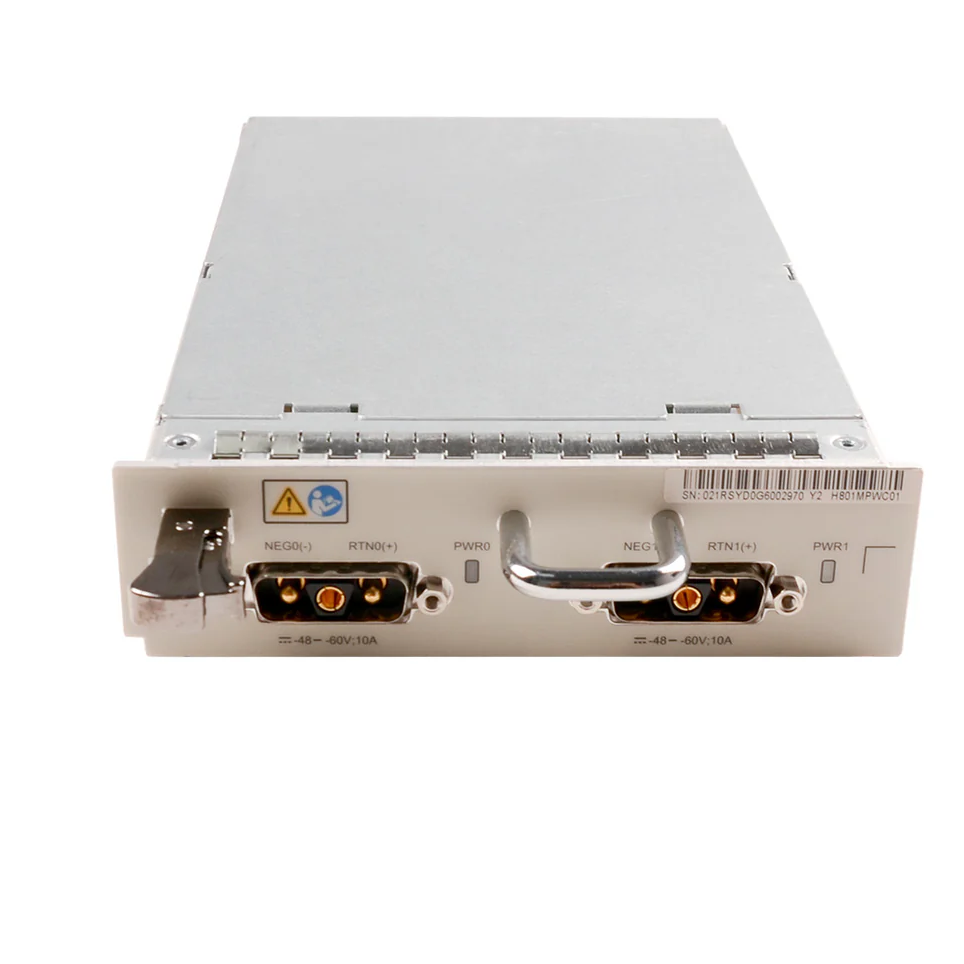

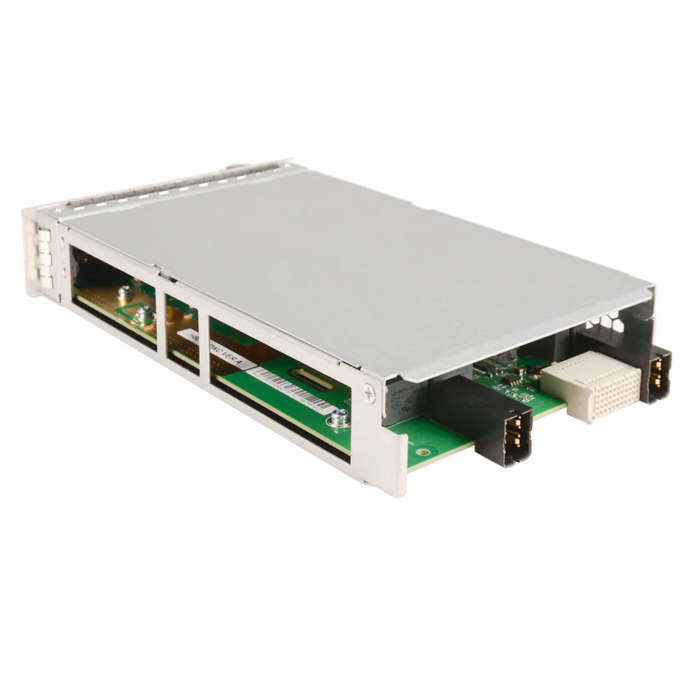

H801MPWC Power Module
Huawei H801MPWC is the MA5608T DC Connect Power Board
The H801MPWC board is a power board with dual DC power inputs.The H801MPWC board leads in the -48 V DC power to the device.
The H801MPWC board supports the following functions:
- Two -48 V DC inputs
- Filtering and current-limiting for the power input port
- Detection of input undervoltage, power supply availability, and power supply faults
- Reporting of the protection alarm together with board ready status
- Indication of power status
| Model | MPWC |
| Port | 3V3 power port |
| Function | Leads in the -48 V power supply. |
| Connection | Use a -48 V feeder cable to connect this port to the power distribution unit
(PDU). Input voltage: -38.4 V to -72 DC. |
| Power Consumption | Static: 2.5 W Maximum: 2.5 W |
| Device Specifications | |
| Dimensions (mm) | 35.56 mm x 251.70 mm x 132.10 mm |
