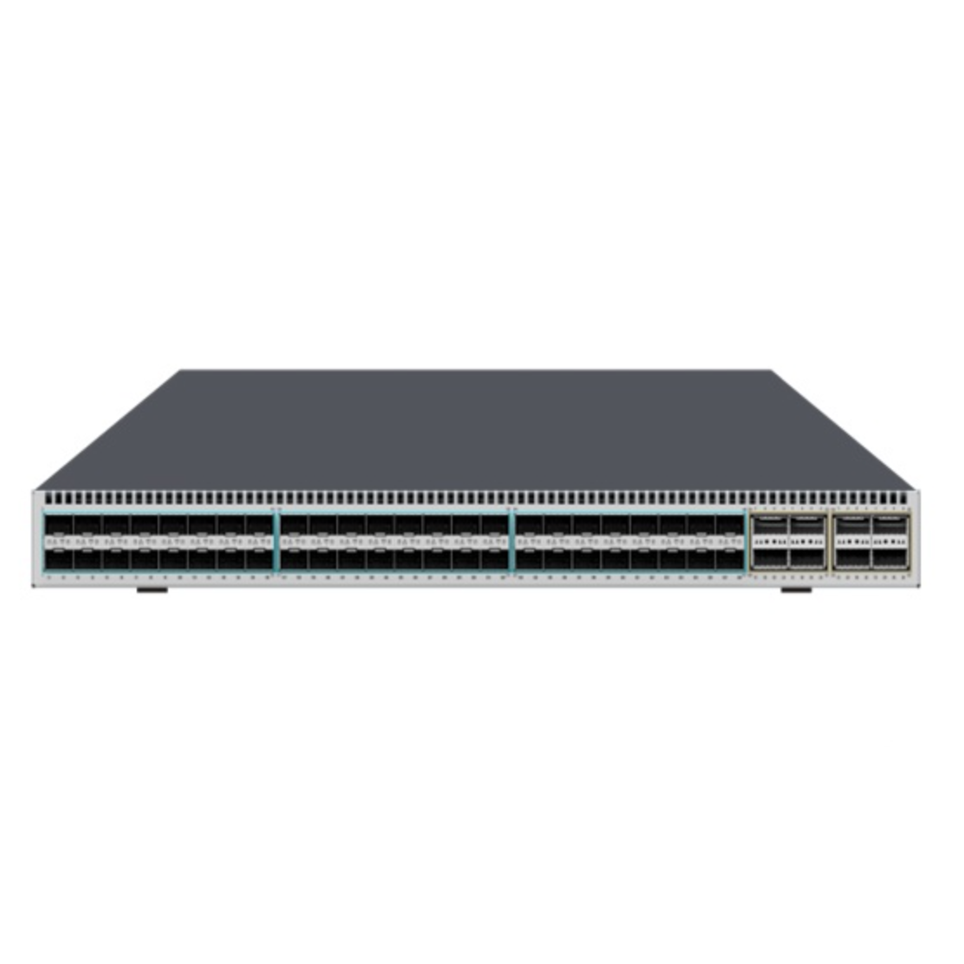

ZTE ZXR10 5960-56QU-HC Switch
ZXR10 5960-56QU-HC
48*25GE SFP28 optical ports,8*100GE QSFP28 optical ports,2*10GSFP+ ports,
2 fan modules, 2 AC/DC/HVDC power supply modules, front-to-back or back-to-front airflow.
The ZXR10 5960-H Series switch is next-generation carrier-grade data center TOR (Top of Rack) switch with ultra-big switching capacity and low latency. It provides high density 10GE/25GE/40GE/100GE interfaces, carrier-class reliability and superior scalability. The ZXR10 5960-H Series switch supports extensive data center service features such as VsC (Virtual Switch Cluster)/VXLAN (Virtual eXtensible Local Area Network)/ SDN (Software Defined Network)/Front-to-back airflow. The ZXR10 5960-H Series switch can work with the ZXR10 9900/9900-S Series switch to build elastic, virtualized, high-quality switching network that meets the requirements of cloud-computing data centers.
System Specification:
| 5960-32LC-H | 5960-52DU-H | 5960-64DL-H | 5960-72DL-H | 5960-72NL-H | 5960-56QU-HC | ||||||||||||
| 100GE QSFP28 | 0 | 4 | 0 | 0 | 0 | 8 | |||||||||||
| 40GE QSFP+ | 32 | 0 | 4 | 6 | 6 | 0 | |||||||||||
| 25GE SFP28 | 0 | 0 | 0 | 0 | 0 | 48 | |||||||||||
| 10GE SFP+ | 0″ | 48 | 48 | 48 | 0 | 2 | |||||||||||
| 10GE BASE-T | 0″ | 0 | 0 | 0 | 48 | 0 | |||||||||||
| Switching Capacity |
2.56Tbps | 1.76Tbps | 1.28Tbps | 1.44Tbps | 1.44Tbps | 4Tbps | |||||||||||
| Packet Forwarding Rate |
1440Mpps | 1320Mpps | 960Mpps | 1080Mpps | 1080Mpps | 2000Mpps | |||||||||||
| Dimensions | 442mm ×440mm×43.6mm | ||||||||||||||||
| Weight | ≤9 kg | ≤9 kg | ≤9 kg | ≤9 kg | ≤9 kg | ≤9 kg | |||||||||||
| External network management |
1 *GE optical | ||||||||||||||||
| Management Port |
1 个 RJ45 console port ，1 个 Mini USB console port | ||||||||||||||||
| Max Power Consumption |
<298W | <260W | <221 W | <231 W | <327 W | <370W | |||||||||||
| Typical Power Consumption |
213W | 170W | 148W | 158W | 275W | 300W | |||||||||||
| 5960-32LC-H | 5960-52DU-H | 5960-64DL-H | 5960-72DL-H | 5960-72NL-H | 5960-56QU-HC | ||||||||||||
| Power Redundancy Pattern |
Two independent and swappable power supply module, support AC 1+1, DC 1+1, mixed AC DC 1+1 |
||||||||||||||||
| DC Power Supply |
-38V ~ -72V | ||||||||||||||||
| AC Power Supply |
100~127V/200~240V, 50~60Hz | ||||||||||||||||
| HVDC Power Supply |
240V/336V | ||||||||||||||||
| Working Temperature Humidity |
Long term working temperature: -5 oC ~ +50 oC Short term working temperature: -10 oC ~ +50 oC 10%~90% |
||||||||||||||||
| MTBF | > 300000 hours | ||||||||||||||||
| MTTR | < 30 minutes | ||||||||||||||||
| Function Specification | |||||||||||||||||
| Function | The ZXR10 5960-H Series Switch | ||||||||||||||||
| Data Center Features |
Support VSC2.0 (Virtual Switching Clustering) Support TRILL (Transparent Interconnection of Lots of Links) Support FCoE (FIP Snooping) Support DCB (Data Center Bridging) Support PFC (Priority-based Flow Control) Support ETS (Enhanced Transmission Selection) Support VxLAN (Virtual eXtensible Local Area Network) Support EVPN (Ethernet VPN) Support SDN (Software Defined Network) Support OpenFlow 1.5/Netconf Support VEPA（802.3Qbg ） Support VDMG (Virtual Device Management Group) Support multi-channel technology |
||||||||||||||||
| L2 Features | Support IEEE 802.1p (COS), IEEE 802.1q (VLAN), IEEE 802.3x Support IEEE 802.1d (STP)/ 802.1w (RSTP)/ 802.1s (MSTP) Support IEEE 802.3ad (LACP) |
||||||||||||||||
| Support IEEE 802.3z (1000Base-X) / 802.3ab (1000BaseT) Support IEEE 802.3an (10GBase-T), IEEE 802.3ae (10Gbase) Support IEEE 802.3ba (40Gbase), IEEE 802.3ba (100Gbase) Support Port mirroring, Traffic mirroring Support VLAN switching, Support VLAN translation Support PVLAN, Support SuperVLAN Support GVRP Support LLDP |
|||||||||||||||||
| IPv4 Features |
Support IPv4 routing protocols, such as static routing, policy based routing , RIP, OSPF, BGP, and IS-IS Support DHCP server/ relay/proxy, DHCP snooping |
||||||||||||||||
| IPv6 Features |
Support dual stack IPv4/IPv6 Support Pingv6、Telnetv6、SNMPv6、VRRPv3 Support IPv6 dynamic routing protocols, such as Static routing, Policy based routing , RIPng, OSPFv3, ISISv6, and BGP4+ Support ND, DHCPv6 snooping, PMTU Support IPv6 ACL Support manual IPv6 tunnel, 6to4 tunnel, 6PE, ISATAP tunnel |
||||||||||||||||
| Multicast | Support IGMP v1/v2/v3, IGMPv1/v2/v3 snooping Support PIM-SM, PIM-DM, PIM-SSM, Bi-direction PIM, MSDP, MBGP, Any-RP Support MLD V1/V2 、MLD V1/V2 Snooping Supporting IGMP listening, filtering, proxying and quick departure Support Controllable Multicast and CAC Channel Access Control Support multicast VLAN registration MVR Support PIMv6 Support PIM-SM、PIM-DM、PIM-SSM Support MSDP Support multicast VLAN registration MVR Supporting restrictions on the number of subscribers based on VLAN/Group |
||||||||||||||||
| MPLS | Support MCE Support LDP, LDP FRR |
||||||||||||||||
| Support MPLS Load balance Support MPLS L2VPN (VPWS/VPLS) Support MPLS L3VPN |
|||||||||||||||||
| QOS | Support traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority Support 8 hardware-based queues per port Support queue scheduling algorithms, such as SP, WRR, DWRR, SP+WRR Support congestion avoidance mechanisms, such as WRED and tail drop Support policing/shaping based on port/flow |
||||||||||||||||
| Security | Support L2-L4 ACL Support standard ACL,MAC ACL, L2 ACL, extended ACL, mixed ACL, VLAN ACL Support time-range ACL configuration, Bidirectional ACL Support 802.1x authentication and 802.1x server Support portal Support MAC authentication Support AAA/ RADIUS and TACACS+ authentication for login users Support SSH v1.0/v2.0 server Support CPU anti-attack, CPU overload protection, Support STP Root Guard, BPDU guard, Support URPF Support RIP/OSPF/BGP MD5 encryption checking |
||||||||||||||||
| Equipment Management |
Support CLI, Telnet, SSH, Local and remote (Radius/Tacacs+) authentication of user Support SNMP v1/v2/v3 Support NetNumen U31 Support Mirroring, RSPAN, ERSPAN Support EasyManager zero deployment and batch inspection tool Support RMON Support NTP Support Syslog, Sflow Support NetFlow (only 5960-HC) Support Hotfix |
||||||||||||||||
| Reliability | Support 1+1 redundancy power supply/ fan module Support LACP |
||||||||||||||||
| Support ZESR/ZESR+(ZTE Ethernet Switch Ring) Support VRRP,VRRPv3,VRRPE Support NSF/GR for OSFP/BGP/IS-IS Support BFD for VRRP/ BGP/ IS-IS/ OSPF Support Ethernet OAM (802.1ag and 802.3ah) |
|||||||||||||||||
| Enhanced Features |
Support Zero-touch-deployment | ||||||||||||||||
