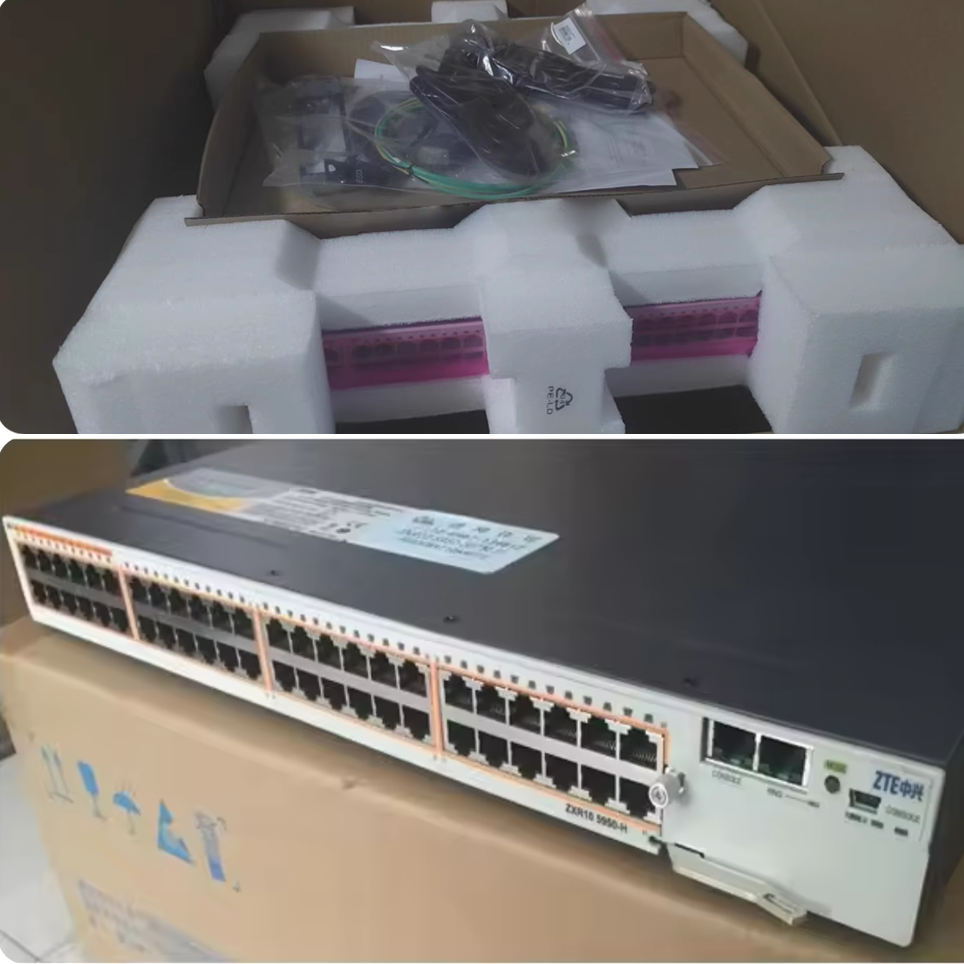

ZTE ZXR10 5950-52TD-L

ZTE ZXR10 5950-52TD-L with 48 Ethernet 10/100/1000M RJ45 electrical ports, 4 10GE SFP+ optical ports, 2AC/DC power supply modules.

Description
Reviews (0)

The ZXR10 5950-L Series switch is 1RU height all gigabit routing stackable switch for carrier access and aggregation scenarios. It provides up to 52 interfaces (48 GE+ 4 10GE). With VSC2.0(Virtual Switch Cluster), it delivers improved resilience and flexibility. The ZXR10 5950-L Series switch supports full IEEE 802.3at Power over Ethernet Plus (PoE+) to fulfill more carrier access scenarios. Zero-touch provisioning, IEEE 802.3az Energy Efficient Ethernet (EEE) make the network not only easy for maintenance but also low consumption.

The ZXR10 5950-L Series switch offers the following switch products:

5950-28TD-L: 24 Ethernet 10/100/1000M RJ45 electrical ports, 4 10GE SFP+ optical ports, 2AC/DC power supply modules.
5950-52TD-L: 48 Ethernet 10/100/1000M RJ45 electrical ports, 4 10GE SFP+ optical ports, 2AC/DC power supply modules.

5950-28PD-L: 24 Ethernet 10/100/1000M RJ45 electrical ports (POE/POE+), 4 10GE SFP+optical ports, 1 Fan Module, 2 AC/DC/HVDC power supply modules.
5950-52PD-L: 48 Ethernet 10/100/1000M RJ45 electrical ports (POE/POE+), 4 10GE SFP+optical ports, 1 Fan Module, 2 AC/DC/HVDC power supply modules.

5950-28SD-L: 24 GE SFP optical ports, 4 10GE SFP+ optical ports, 1 Fan Module, 2 AC/DC/HVDC power supply modules.

System Specifications:

Functions and parameters	5950- 28TD-L	5950- 52TD-L	5950- 28 pd-l		5950- 52PD-L	5950-28SD-L
Dimensi (H * W * D)	43.6mm * 442mm * 440mm
Fixed interface	24 IF RJ45+ 4 10GE SFP +	48 IF RJ45+ 4 10GE SFP +	24 GE RJ45 (POE/POE +) + 4 10GE SFP +		48 GE RJ45 (POE/POE +) + 4 10GE SFP +	24 GE SFP + 4 10GE SFP +
Expansion card slot	N/A	N/A	N/A		N/A	N/A
Weight	<6.2kg	<6.7kg	<7.7kg		<7.8kg	<7.5kg
Management Port	1 GE MNG, 1 konsol RJ45, 1 konsol USB Mini
AC power supply	Rated voltage: 100V ~ 240V,50Hz ~ 60Hz Maximum voltage: 90V ~ 286V,45Hz ~ 66Hz
DC power supply	-40V ~-72V	-40V ~-72V	-38.4V ~-72V		-38.4V ~-72V	-38V ~-60V
HVDC Power Supply	240V/336V	240V/336V	240V/336V		240V/336V	240V/336V
Maximum power consumption	<55W	<74W	<790W (POE:720W)		<1,040W (POE:960W)	<66W
General power consumption	30W	39W	42W		49W	38W
Power redundancy pattern	Two independent and exchangeable power supply modules, support AC 1+1, DC 1+1
Heat dissipation pattern	Fan cooler, supports multi-level speed regulation
Heat dissipation	<168 BTU/h	<207 BTU/h	<196 BTU/h		<224 BTU/h	<185 BTU/h
Working temperature	Long-term working temperature: -10℃~+50℃ Short-term working temperature: -10℃~+55℃
Humidity	5%~95%
Working height	<5000 Meter			<2000 meter
MTBF/MTTR	> 400000 Hours/ < 30 minutes
Switching capacity	128Gbps	176Gbps	128Gbps		176Gbps	128Gbps
Packet forwarding speed	96Mpps	132Mpps	96Mpps		132Mpps	96Mpps
