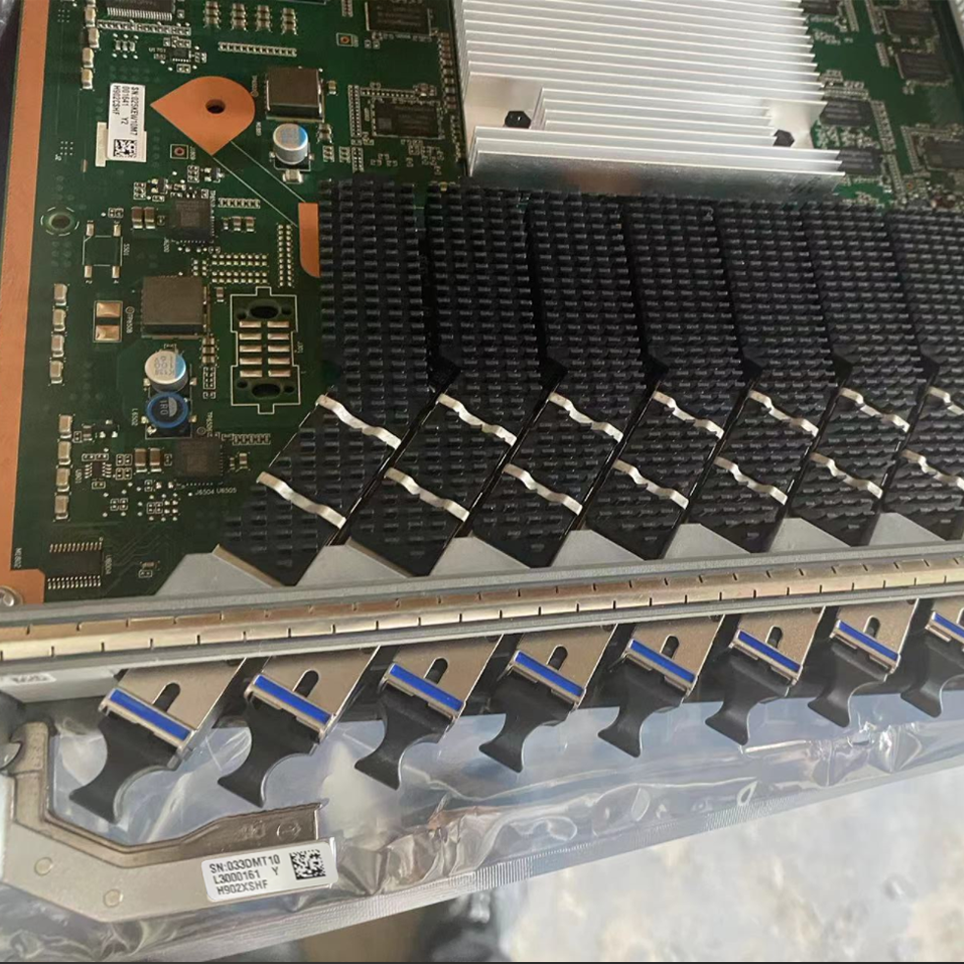

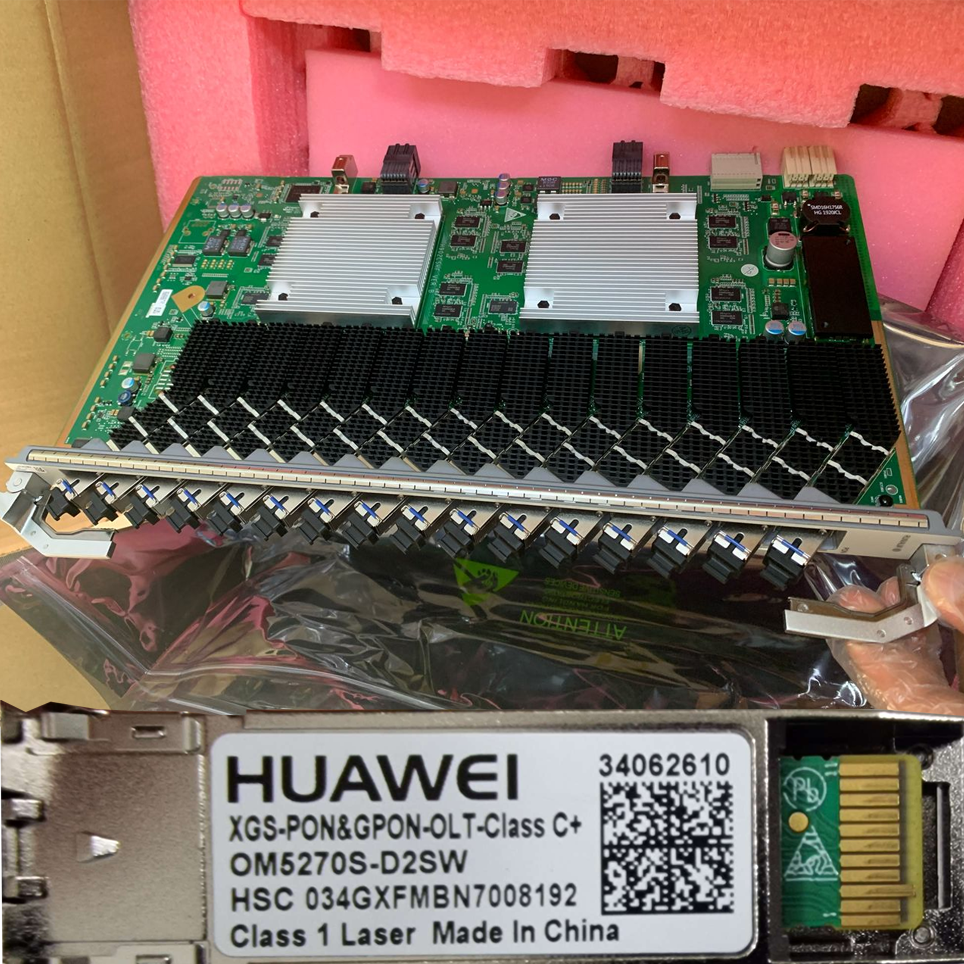

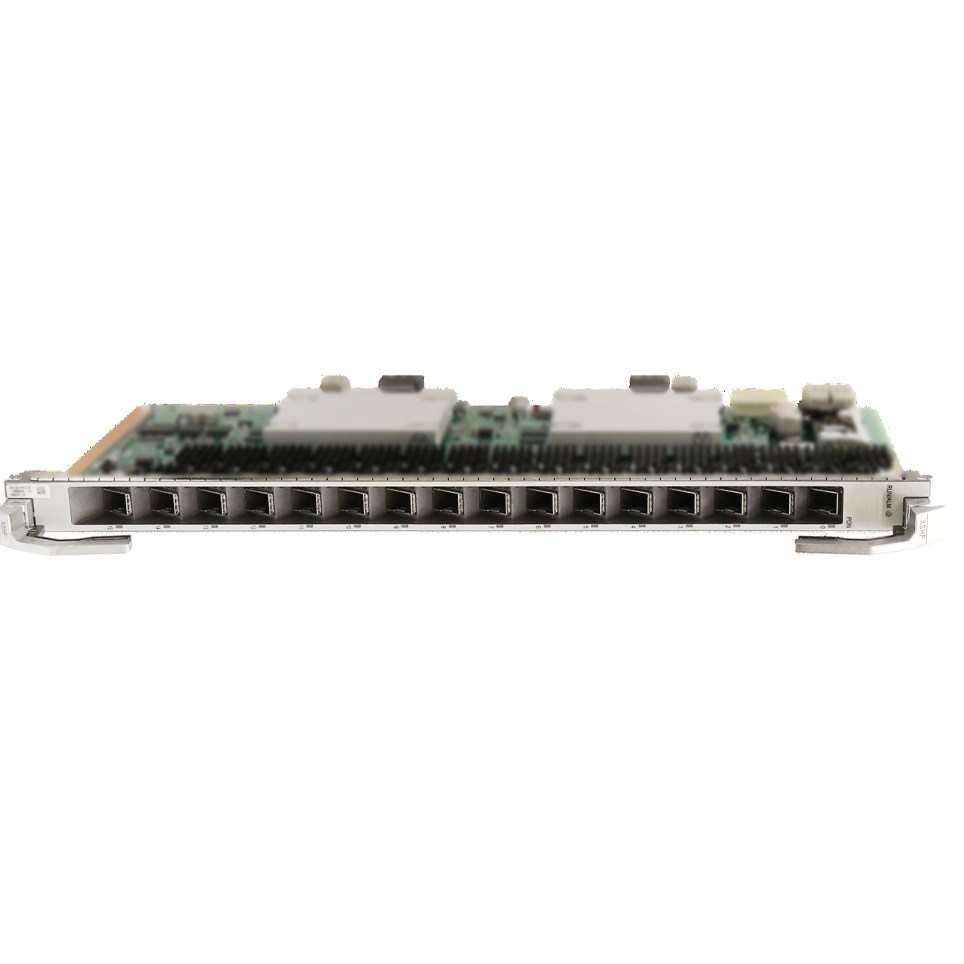

Huawei XSHF XGS-PON&GPON C+ Board
H902XSHF is 16 SFPs XGS-PON & GPON C+ Combo that compatible with all Huawei MA5800X 2/7/15/17 series OLTs.
The H902XSHF card is an interface card for the Huawei MA5800X Combo XGS-PON and GPON 16-port C+ OLT range that allows simultaneous operation of XGS-PON and GPON ONTs on the same PON port.
| GPON Port | 16 XGS-PON & GPON ports |
| XGS-PON&GPON Combo PON Class C+ Module | |
| Type | One-fiber bi-directional optical module |
| Operating Wavelength | GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON & XGS-PONchannel: |
| Encapsulation Type | SFP+ |
| Port Rate | GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s XGS-PON channel: |
| Minimum Output Optical Power | GPON channel: 3 dBm XGS-PON channel: 5 dBm |
| Maximum Output Optical Power | GPON channel: 7 dBm XGS-PON channel: 8 dBm |
| Maximum Receiver Sensitivity | GPON channel: -32 dBm XG-PON channel: -30.5 dBm XGS-PON channel: -29 dBm |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | GPON channel: -12 dBm XG-PON channel: -10 dBm XGS-PON channel: -8 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | Static: 48 W Maximum: 98 W |
| Operating temperature | -40°C to +65°C |
