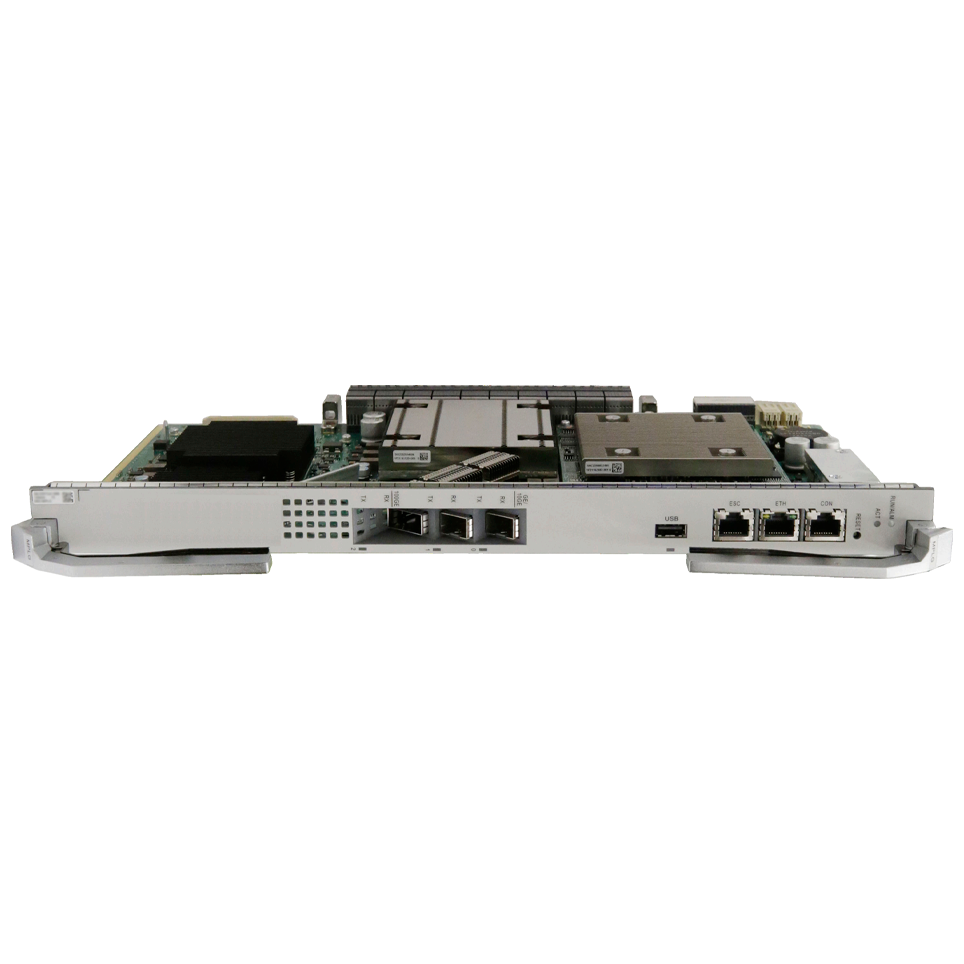

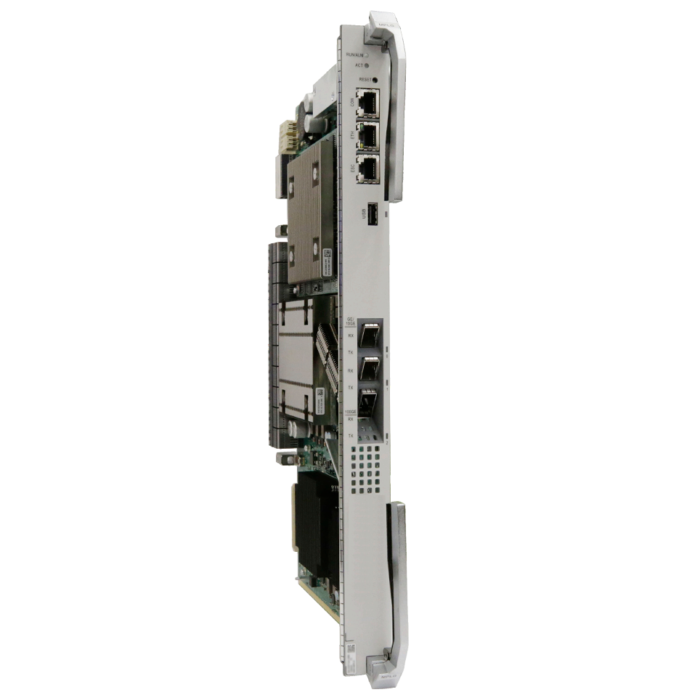

Huawei H901MPLG Control Board
Huawei H901MPLG Control Board for MA5800-X17/MA5800-X15/MA5800-X7 OLT
The H901MPLG board is a super control unit board for optical access. It is the core for system control and service switching and aggregation, and is used for MA5800-X17/X15/X7 subracks.
Tech Specs:
| H901MPLG control / upstream board | |
| Bandwidth per slot (load balancing mode) | 200 Gbit/s |

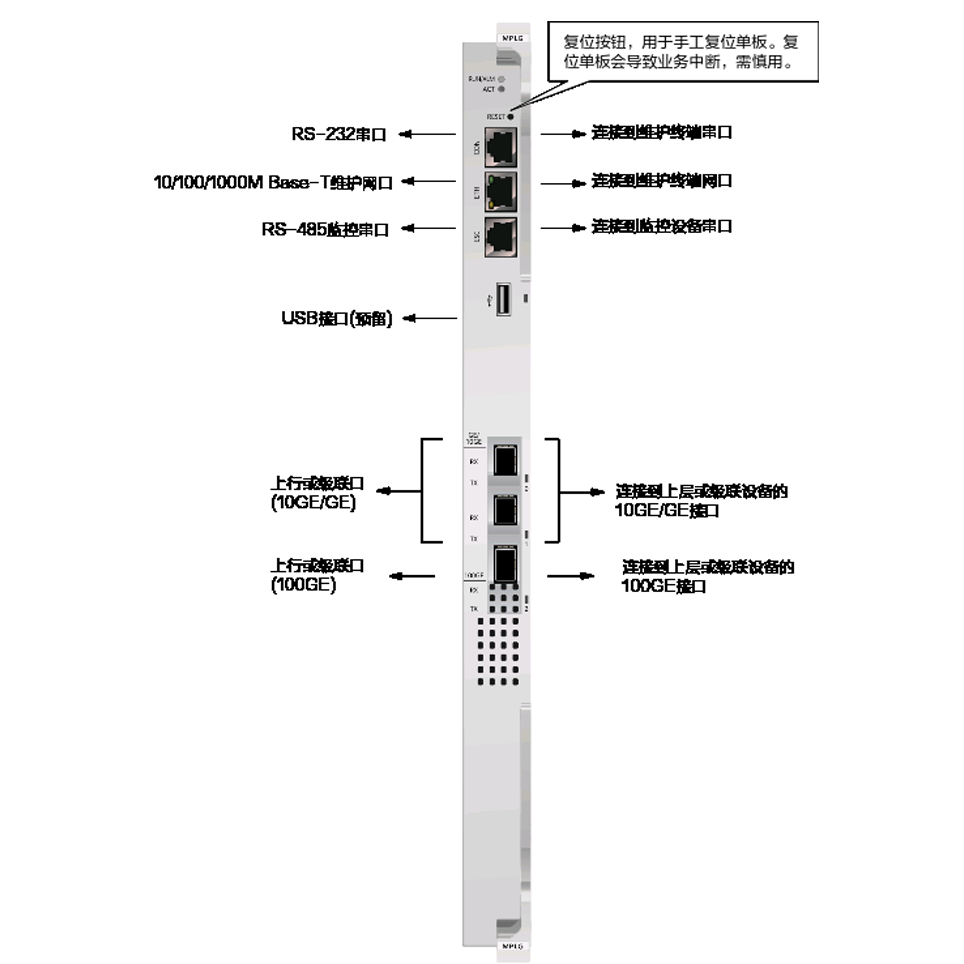

| Upstream or cascading port | 2*SFP+/SFP 10GE/GE/FE
1*QSP28 100G |
| Maximum number of MAC addresses | 262143 |
| Multicast users | 17408 |
| Static programs | 8192 |
| Online programs | IPv4: 8000 IPv6: 2000 |
| Service ports | 139264 |
| IPv4 routing table size | 65536 |
| IPv6 routing table size | 16384 |
| ARP table size | 131072 |
| ND table size | 16384 |
| Sync ETH clock | Yes |
| 1588ACR | No |
| 1588ACR | Yes |
| ALM port (Alarm digital parameters) | No |
| BITS/TOD port | No |
| Stack Management | No |
| Access ONTs | 17408 (earlier than V100R022C0x) 34816 (V100R022C0x and later version) |
