Huawei EA5801E-GP04-H2 OLT

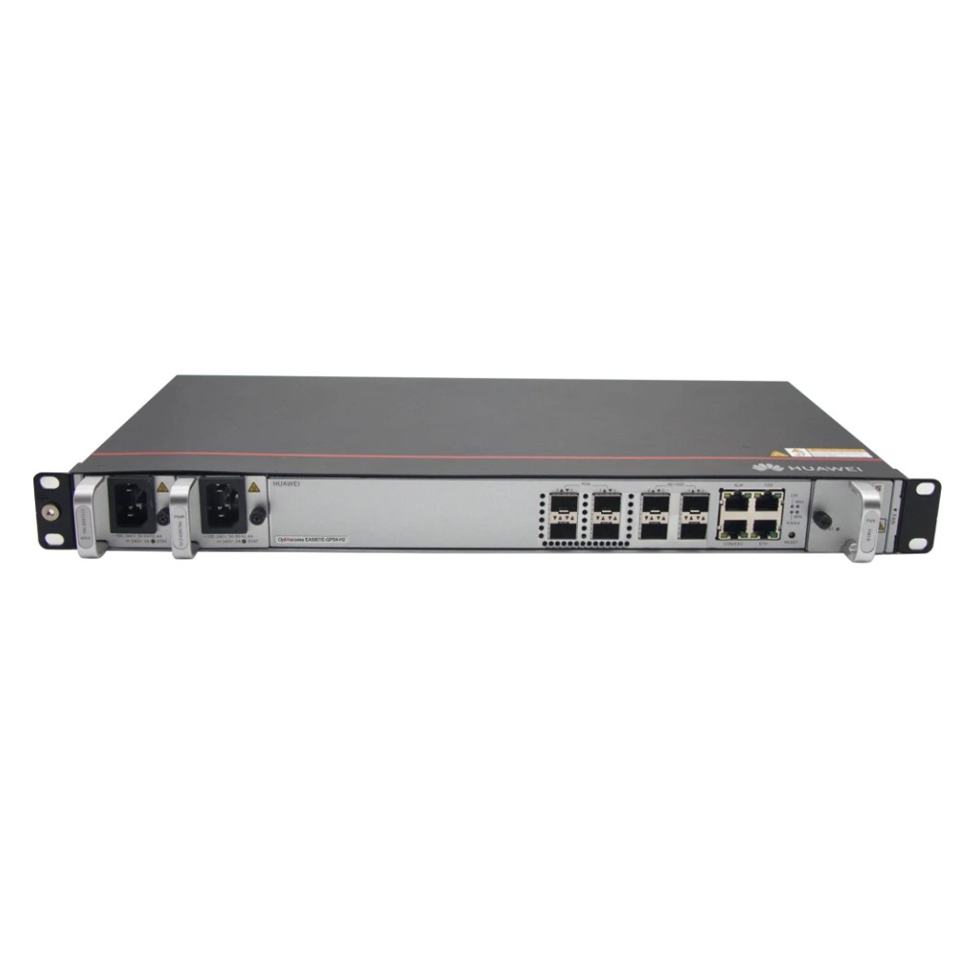

Huawei OptiXaccess EA5801E-GP04-H2 – Compact GPON OLT with 4 Service Ports.
The EA5801E-GP04-H2 is a small-sized box-shaped OLT. It provides 4 GPON ports and a unified platform for bearing multiple
services such as broadband, voice, and video services. With the EA5801E-GP04-H2, all services are carried over one fiber
network, simplifying the network architecture and reducing OPEX.

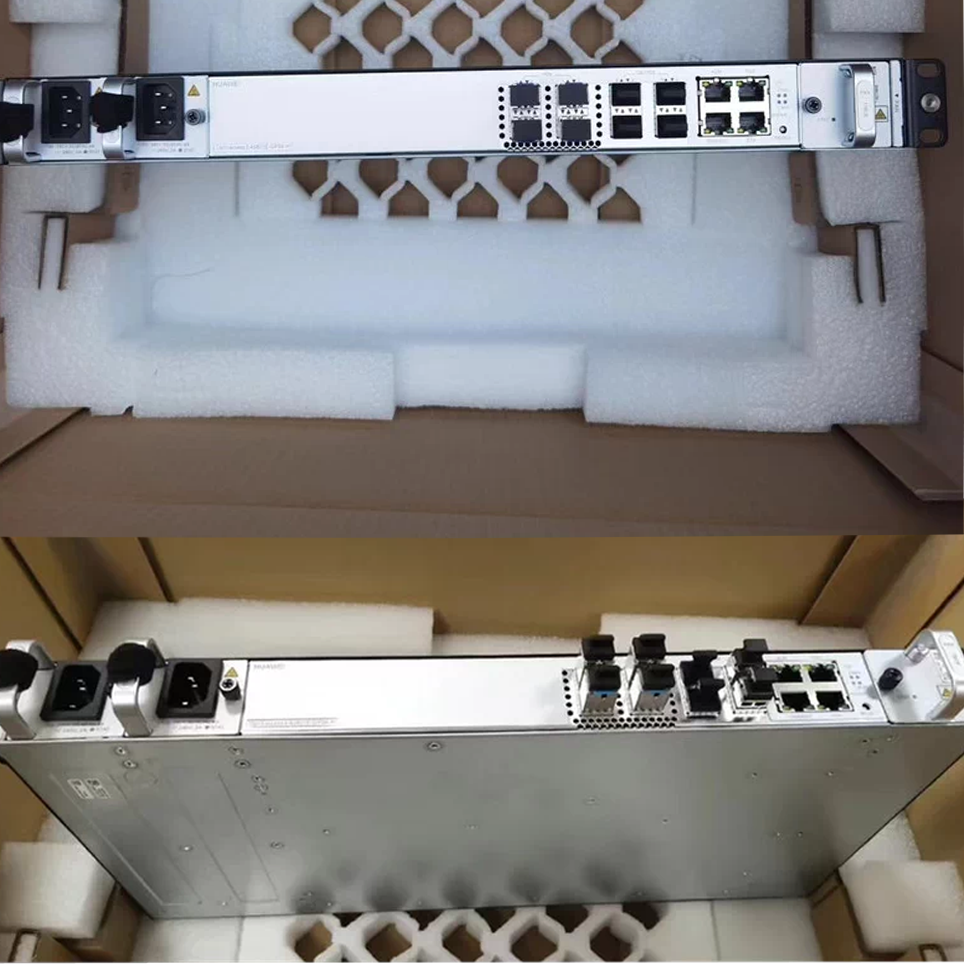

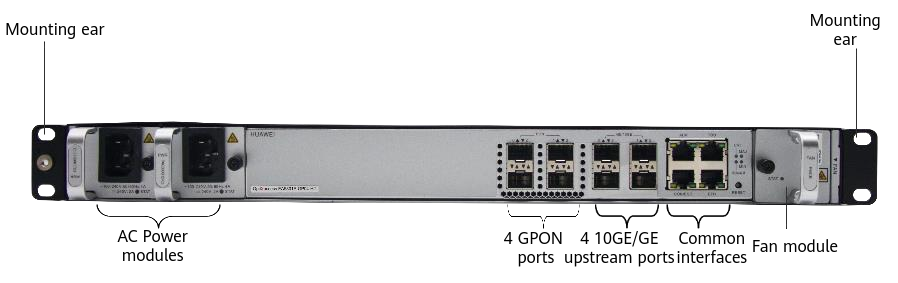

The product is a box-shaped OLT. It houses integrated control and service module, 1 pluggable fan module and 2 pluggable
power modules. Its mounting ears are applicable to IEC specifications and ETSI specifications, and are used in racks or
cabinets of different specifications.
| Item | Value |
| Dimensions (W x D x H) (mm) | Excluding mounting ears: 442 x 220 x 43.6
Including IEC mounting ears: 482.6 x 220 x 43.6 Including ETSI mounting ears: 531 x 220 x 43.6 |
| Maximum fully-loaded weight | 5 kg |
| Power supply mode | AC power supply (dual backup) |
| Working voltage range | AC power supply: 100 V to 240 V |
| Rated voltage | AC power supply: 110 V/220 V |
| Maximum input current | AC power supply: 2.5 A |
| Ambient temperature | -40°C to +65°C
The device can start up at a lowest temperature of -25°C. NOTE The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack. |
| Ambient humidity | 5%-95% RH |
| Atmospheric pressure | 70-106 kPa |
| Altitude | < 4000 m. The air density varies with the altitude and will affect the heat
dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude. |
| System switching capacity | 95 Gbit/s |
| MAC addresses | 32768 |
| Access ONT | 256 |
| IPv4 routing table | 8192 |
| IPv6 routing table | 4096 |
| IP addresses available for built-in DHCP servers | 4096 |
| ARP table | 16384 |
| APs | 128 |
| Portal authentication users | 960 |
| Maximum number of STAs | 1024 |
| Bit error rate (BER) in full load | A BER smaller than 10 e-10 for a port that transmits data in full load |
| Upstream ports | 4 GE/10GE |
| Service ports | 4 GPON |
| Item | Value |
| Power consumption | AC power supply:
l Static power consumption: 47W l Typical power consumption: 58W l Maximum power consumption: 100W NOTE The power consumption of a product is tested in the following conditions: l Static power consumption: 25°C, no optical module in optical ports, and no service. l Typical power consumption: 25°C, 4 x 10GE(10kM) upstream ports, 4 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic. l Maximum power consumption: 65°C, 4 x 10GE(10kM) upstream ports, 4 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic. |
