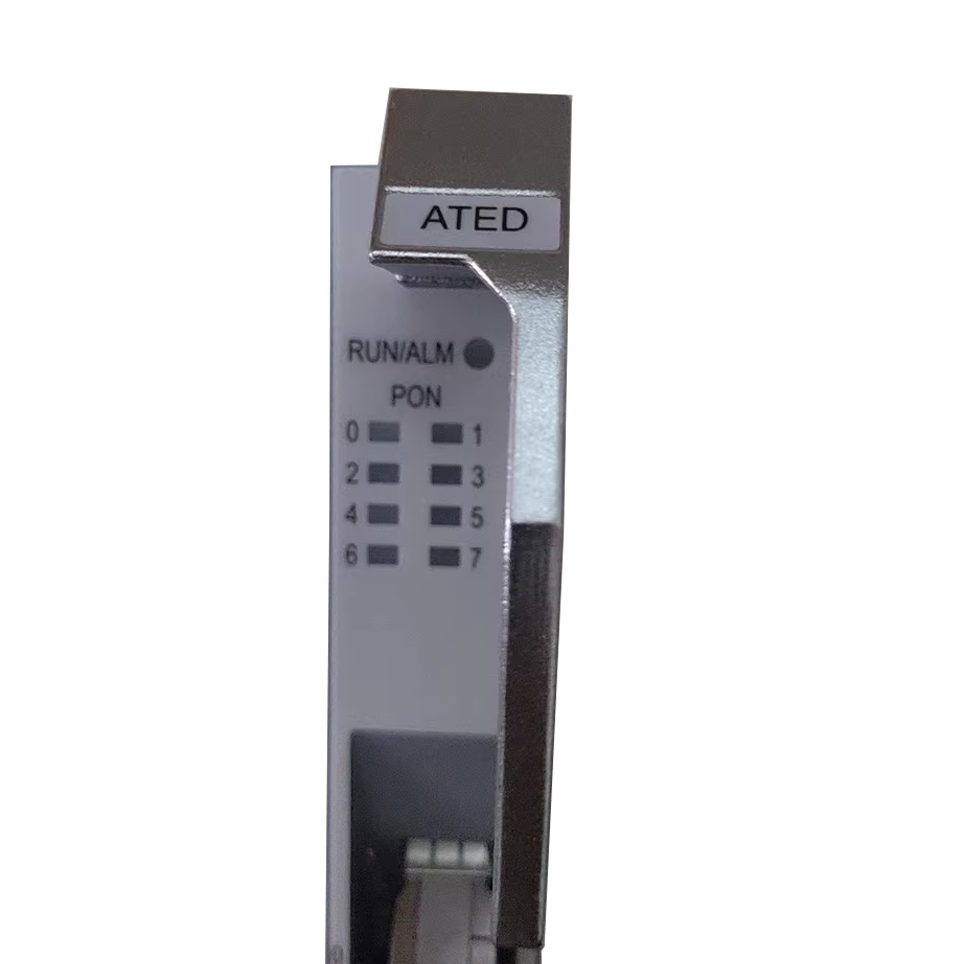

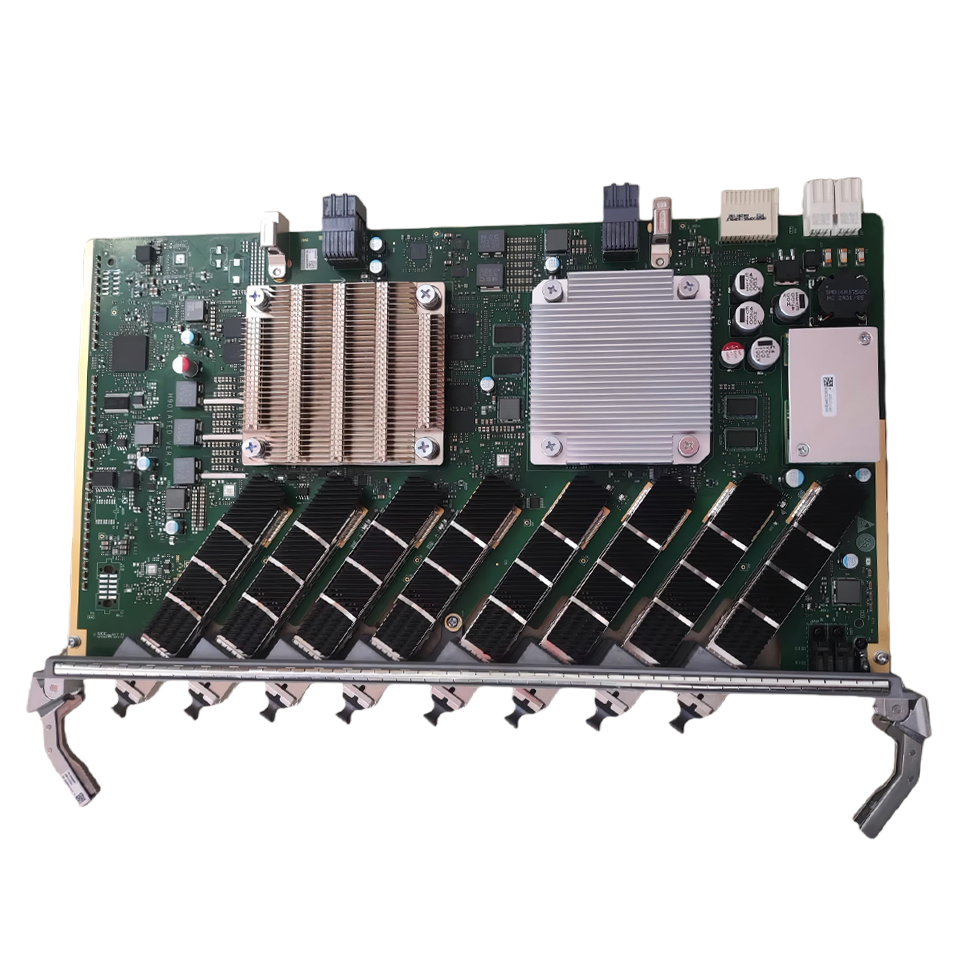

H901ATED board

This board is an asymmetric 8-port 50G-PON & XGS-PON & GPON interface board for the third mock-up OLT. It works with the ONU to enable asymmetric 50G-PON, XGS-PON, and GPON service access.
A single port on the board supports asymmetric 50G-PON, XG(S)-PON, and GPON access. A single port on the board supports XG(S)-PON and GPON by default, while asymmetric 50G-PON requires RTU loading through network management to enable it.

Asymmetric 50G-PON uplink/downlink: 24.8832/49.7664 Gbit/s
XGS-PON uplink/downlink: 9.953/9.953 Gbit/s
XG-PON uplink/downlink: 2.488/9.953 Gbit/s
GPON uplink/downlink: 1.244/2.488 Gbit/s

Port rate: Asymmetric 50G-PON uplink/downlink: 24.8832/49.7664 Gbit/s
XGS-PON uplink/downlink: 9.953/9.953 Gbit/s
XG-PON uplink/downlink: 2.488/9.953 Gbit/s
GPON uplink/downlink: 1.244/2.488 Gbit/s
