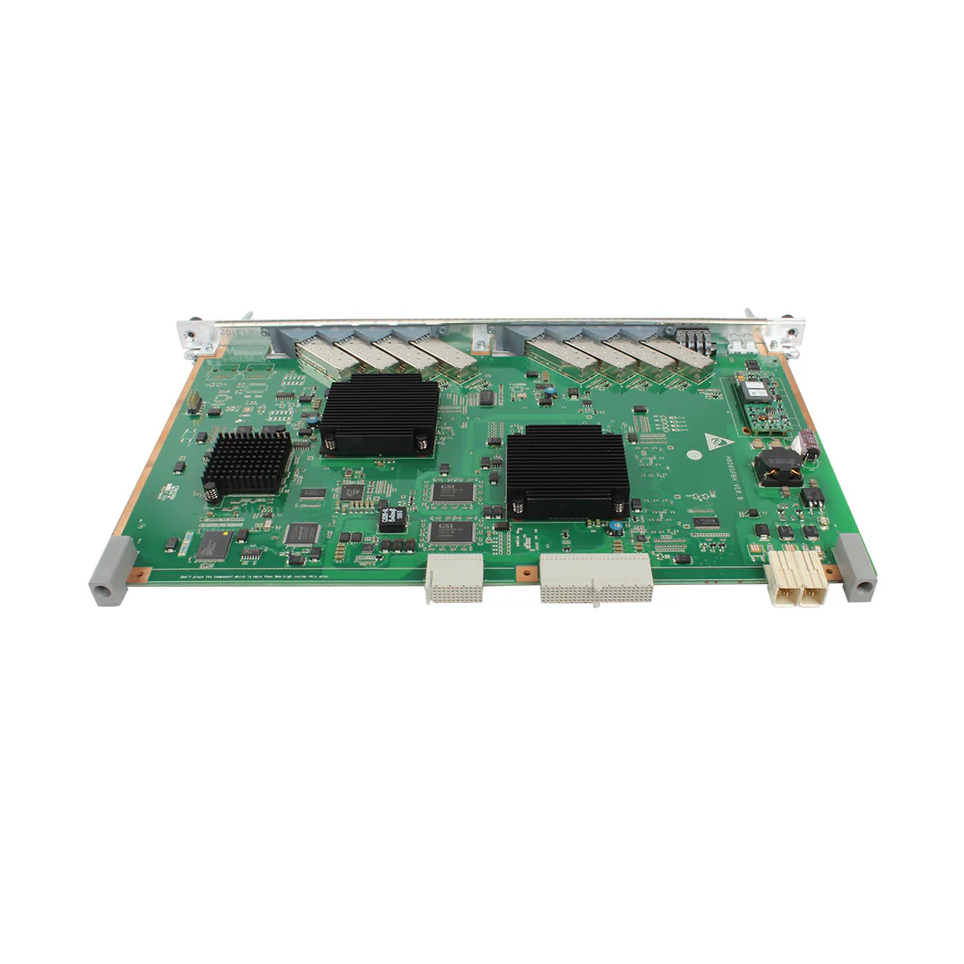

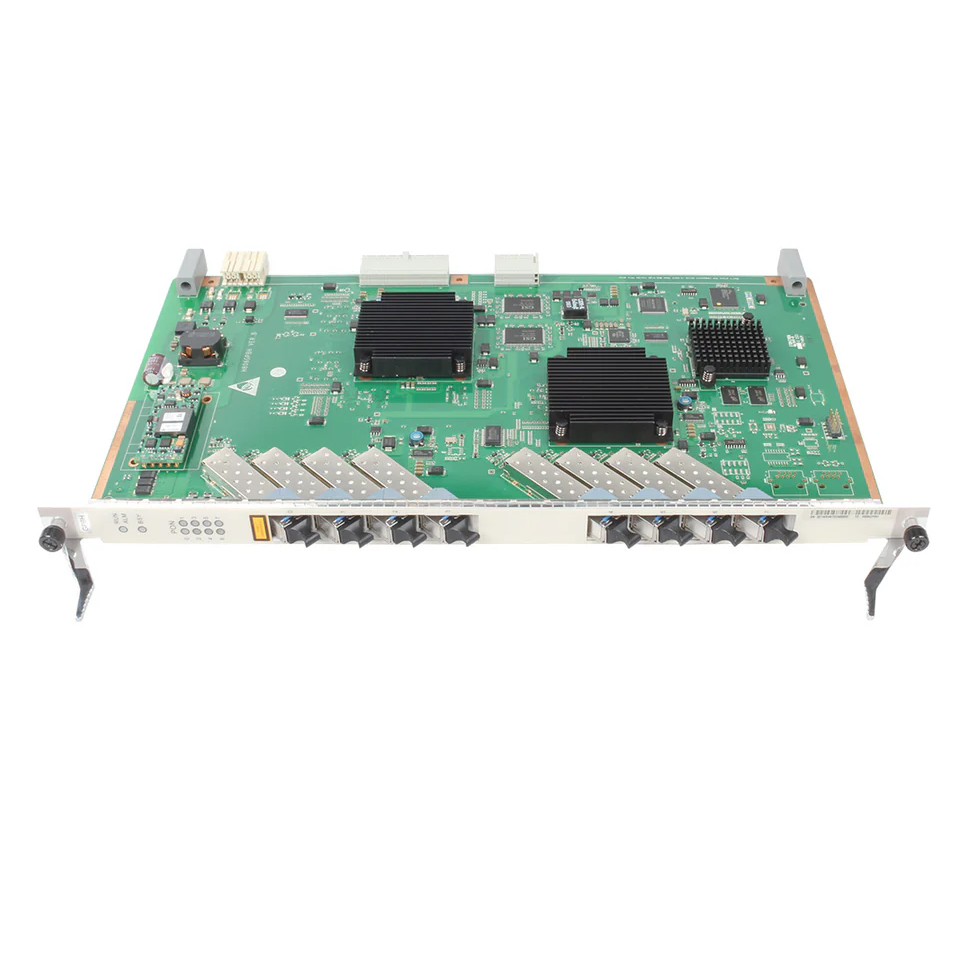

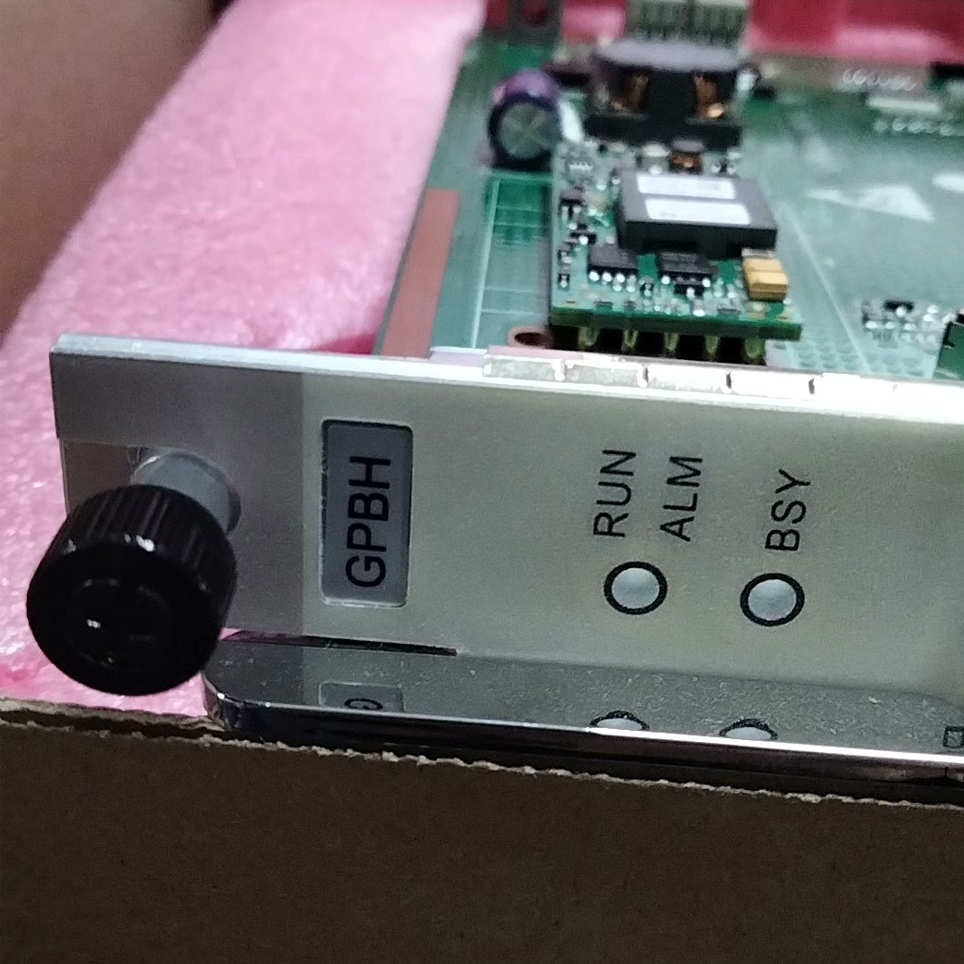

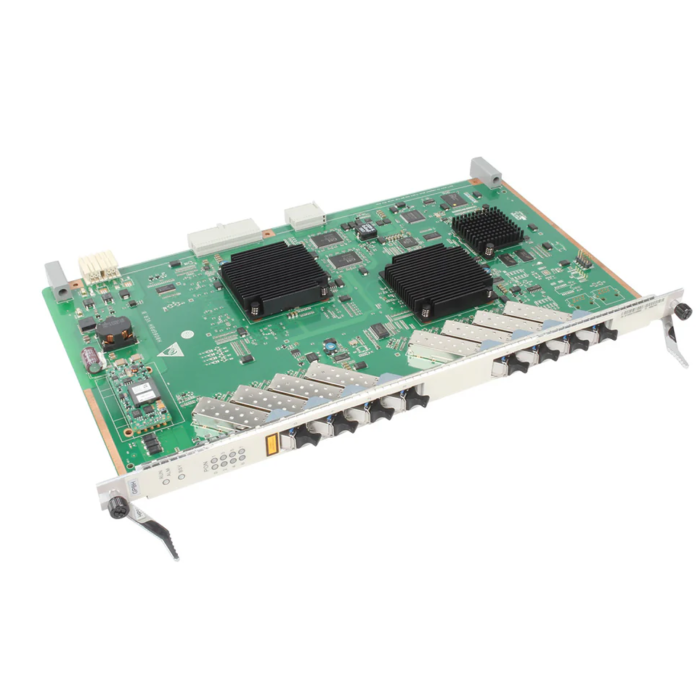

H807GPBH C++ Board
Huawei GPBH is the MA5608T MA5683T MA5680T 8-port GPON OLT interface board with C++ SFP module.
The H807GPBH board is an 8-port GPON OLT interface board for Huawei SmartAX MA5600T series OLT including the MA5608T, MA5683T and MA5680T. It works together with the ONU to provide the GPON access service.
| Model | GPBH |
| GPON Port | 8-GPON Port |
| Type | C+ Module : One-fiber bi-directional optical module, class C+ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
| Minimum Output Optical Power | C+ Module : 3.00 dBm |
| Maximum Output Optical Power | C+ Module : 7.00 dBm |
| Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C+ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Dimensions (mm) | 22.86 (W) x 237.00 (D) x 395.40 (H) |
| Power Consumption | H806GPBH : Static: 32 W, Maximum: 46 W |
| H807GPBH: The data is being tested. | |
| Maximum Frame Size | 2004 bytes |
| Operating temperature | -25°C to +65°C |
