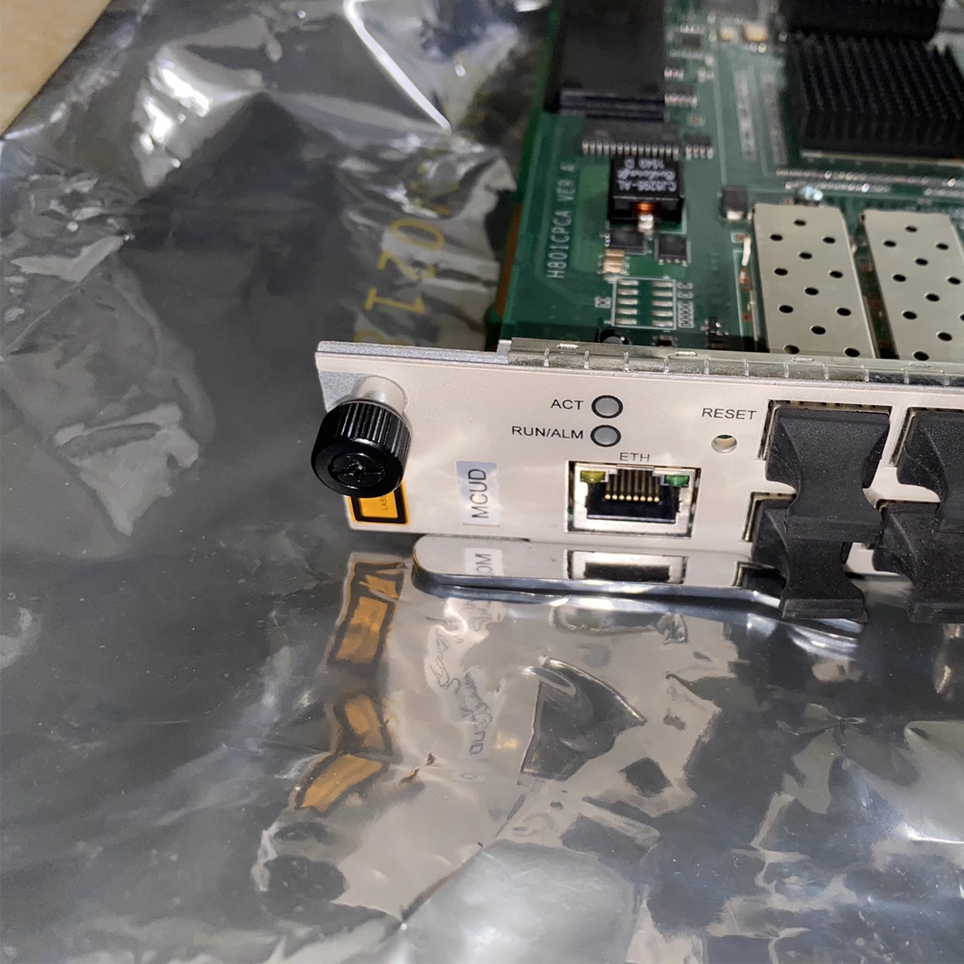

H801MCUD Control Board
Huawei H801MCUD is MA5608T main control board integrated with 4-port GE optical uplink.
The H801MCUD board is an integrated optical-copper mini control unit board. It is the core for system control and service switching and aggregation.GE0 to GE3 (4 x SFP GE ports) and Used for upstream transmission or cascading.
It supports up to 256 Gbit/s switching capacity,supports active/standby mode and load sharing mode, doubling processing performance
supports ISSU, saving the upgrade interruption time and supports synchronization Ethernet.
| Specification | |
| LAN switch | 24 x GE + 4 x 10GE |
| Switching capacity | 256 Gbit/s (active/standby mode) 512 Gbit/s (load sharing mode) |
| Bandwidth per slot | 10 Gbit/s (active/standby mode) 20 Gbit/s (load sharing mode) |
| MAC address table | 32768 |
| Access user | 2048 |
| Multicast user | 2048 |
| Configurable multicast channel | 4096 |
| Concurrent multicast channel | 2000 |
| IPv4 routing table | 5120 |
| IPv6 routing table | 5120 |
| Service port | 20480 |
| ARP table | 8192 |
| ACL rule | 896 |
| Maximum Frame Size | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
| VRF (L3 VPN) | Supported |
| Operating temperature | -25°C to +65°C |
| Power consumption | Static: 24 W Maximum: 26 W |
| Mechanical Specification | |
| Dimensions(mm) | 233 (W) x 134 (D) x 34 (H) |
| Weight(kg) | 1 |
