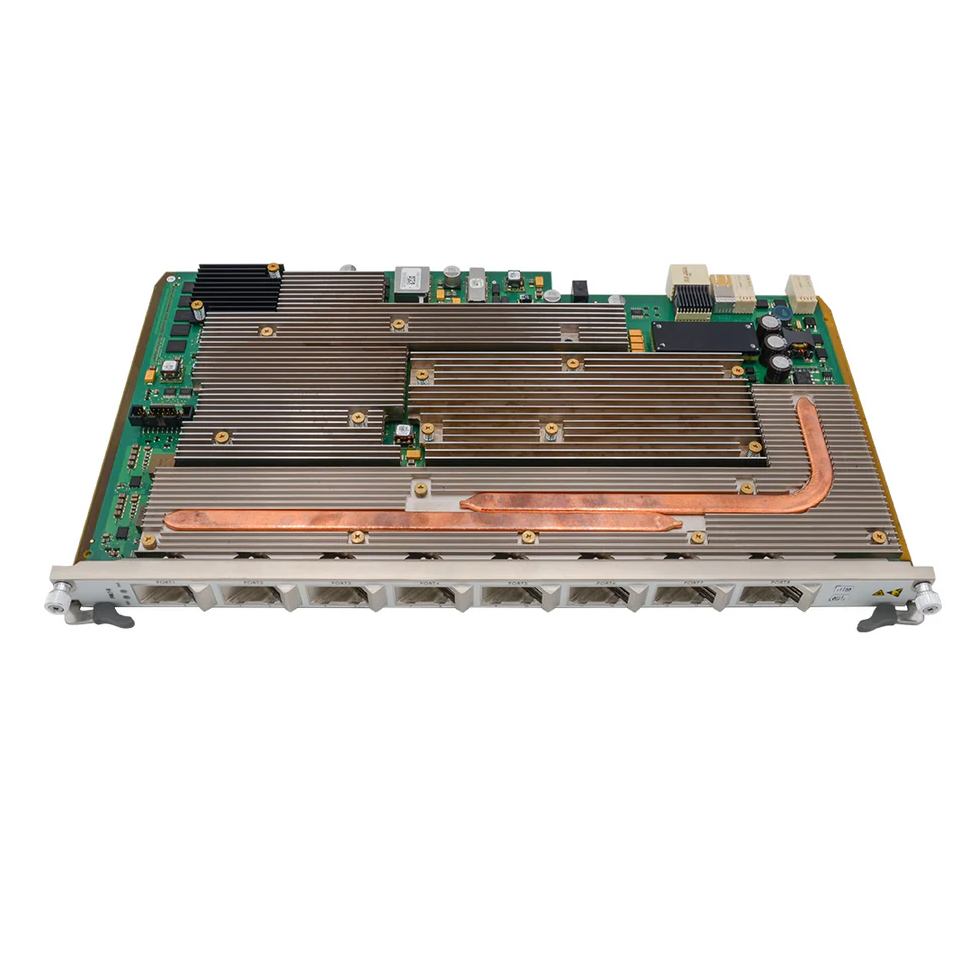

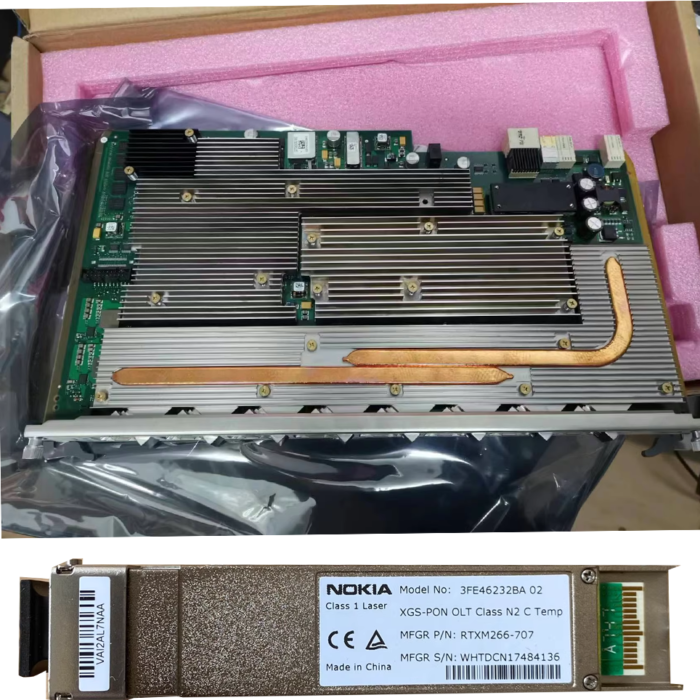

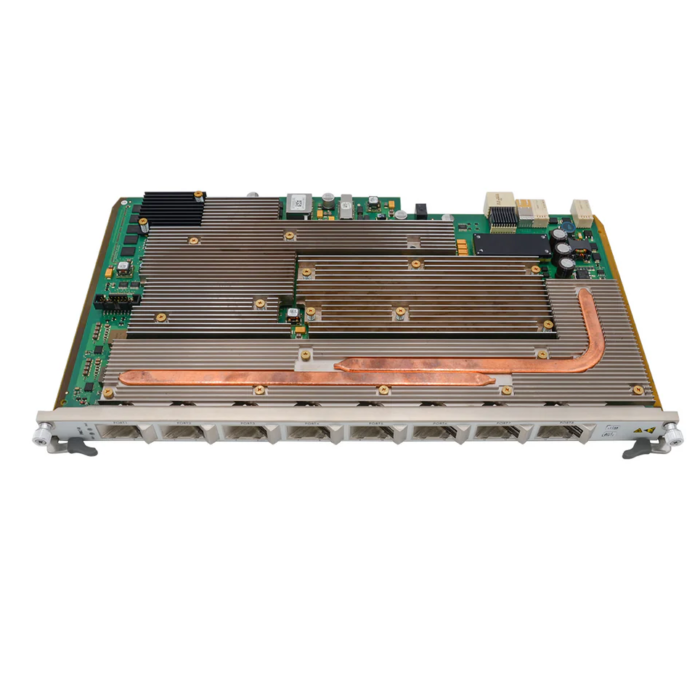

FWLT-B Board
FWLT-B is the NOKIA Alcatel-Lucent 7360 ISAM FX 8-port symmetric 10G GPON (XGS-PON/TWDM-PON) line termination board.
The Nokia Intelligent Services Access Manager (ISAM) FWLT-B is the next-generation fiber line termination card, supporting 10G symmetrical and asymmetrical PON (XGS-PON dual rate) and Time and Wavelength Division Multiplexing Passive Optical Network (TWDM-PON) technology. The card is deployed in the Nokia 7360 ISAM FX, the market-leading fiber access platform that allows coexistence of XGS-PON and TWDM-PON with GPON and EPON, making it easy for operators to evolve their networks. The FWLT-B has eight ports, each supporting up to 10 Gb/s bit rates, enabling operators to deliver greater speeds and capture new revenues.
| Specification | |
| Service ports | |
| 10GPON Port | 8 x 10G XGS-PON/TWDM-PON Port |
| Optical Module | |
| XGS-PON | dual rate, 10G/10G and 10G/2.5G capable |
| TWDM-PON | either 10G/10G or 10G/2.5G capable |
| Encapsulation Type | XFP |
| Operation Conditions | |
| Inlet/ambient temperature range | -5°C to 45°C (23°F to 113°F) ,when used in fully populated ISAM FX rack. |
| Humidity | 10% to 95% (non-condensing) |
| Device Specifications | |
| Weight | 2kg |
| Dimensions (W x D x H) | Height: 405 mm Depth: 225 mm |
