ZTE XGSPON&GPON OLT Class C+
ZTE XGSPON&GPON LT Class C+ Module on XGSPON board GFCH,GFCO.

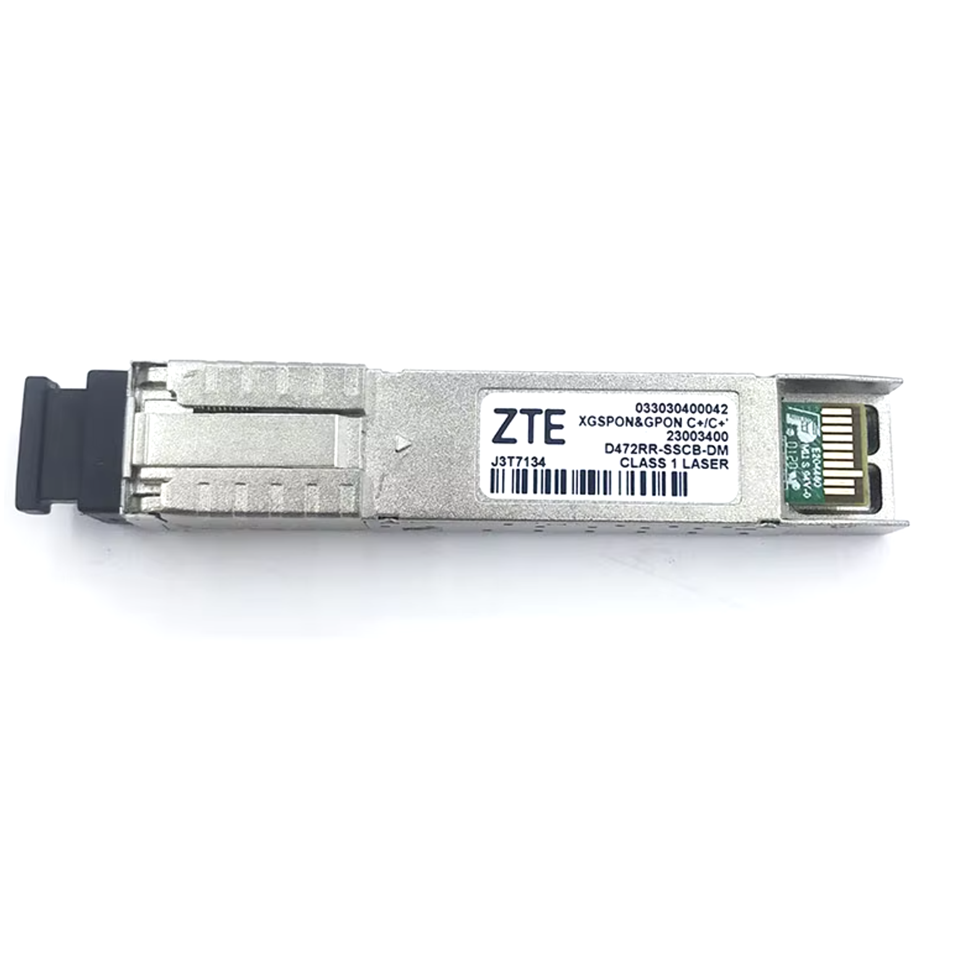

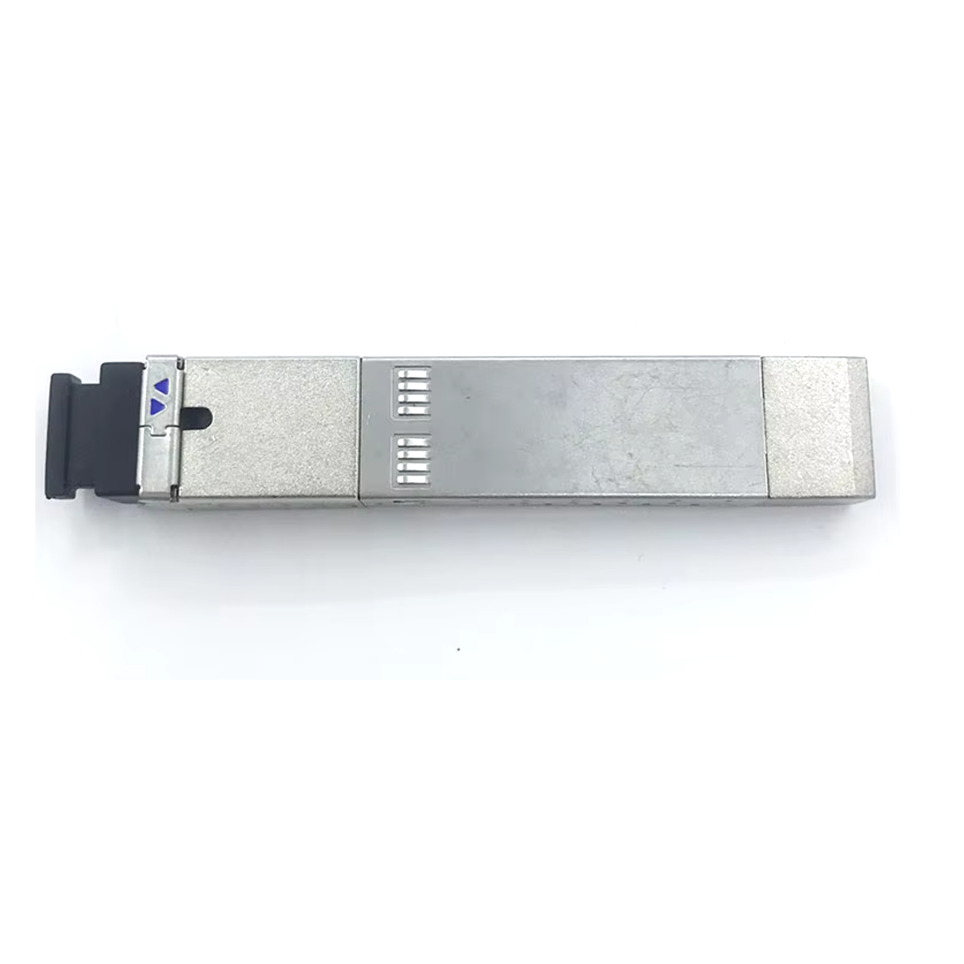

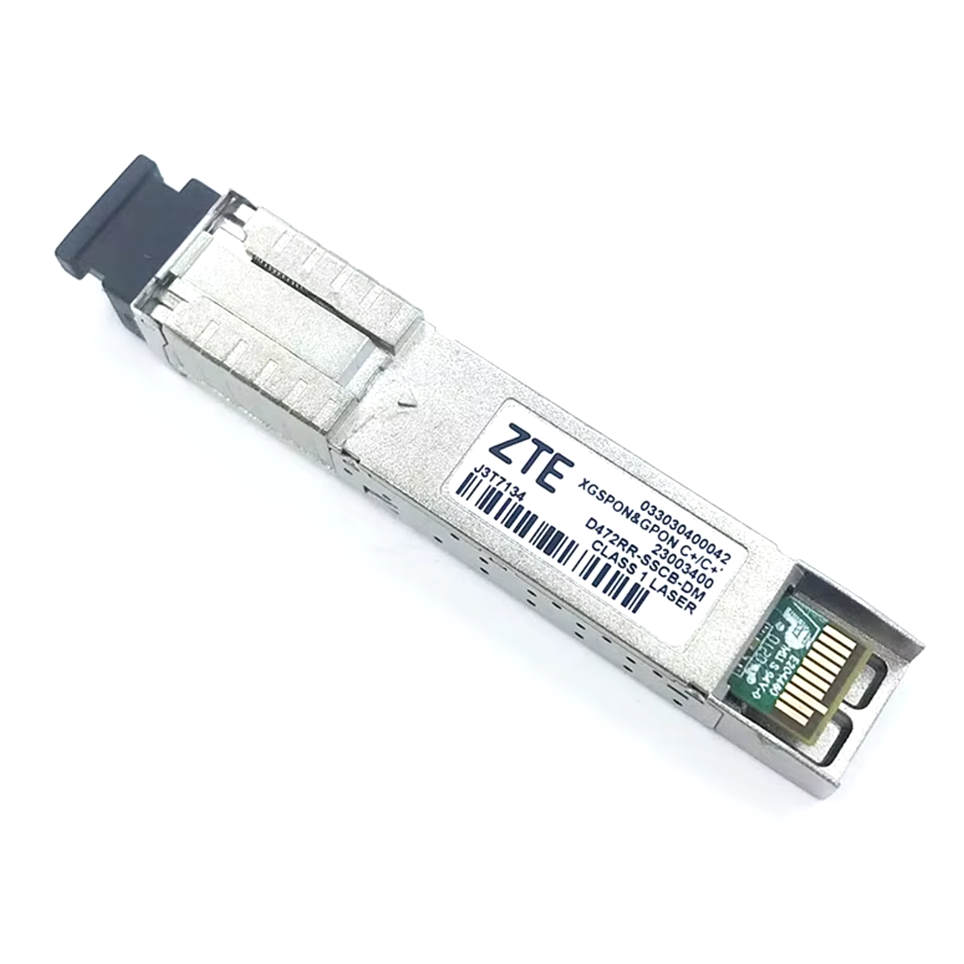

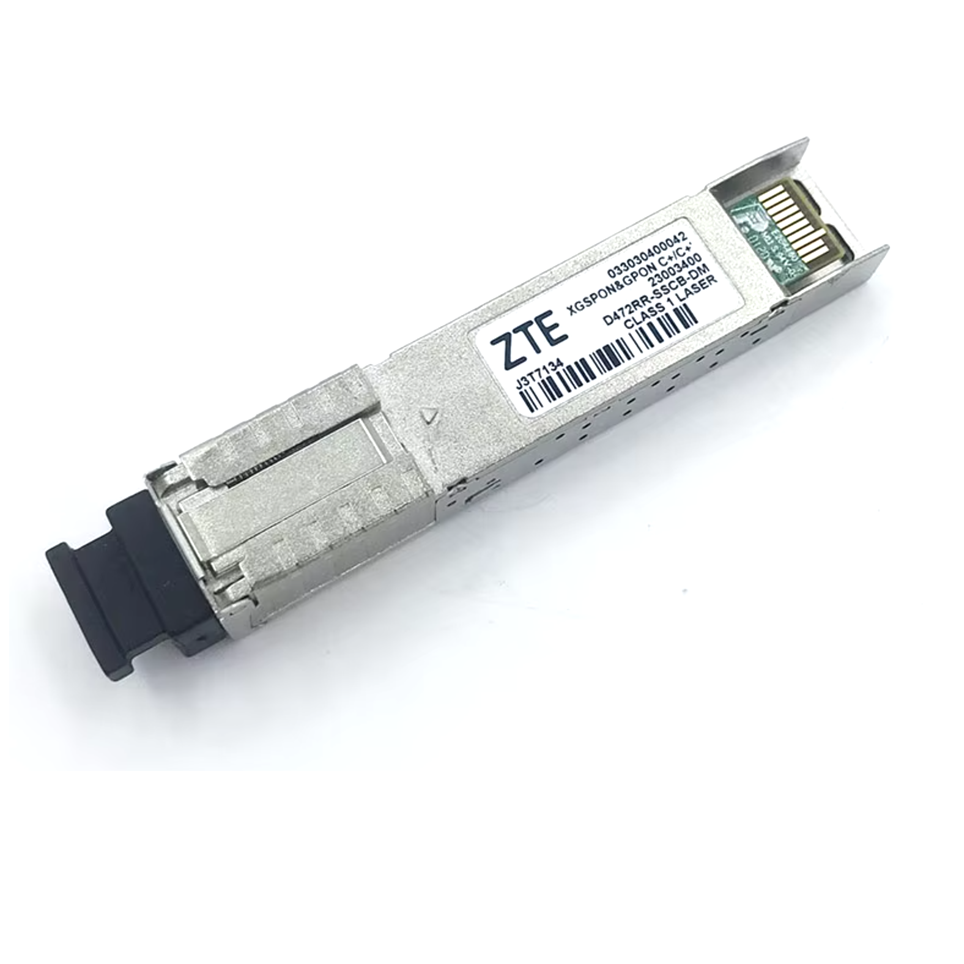

ZTE SFP XGS-PON&GPON-OLT Class C+ Module is Symmetric 10GPON & GPON Optical Module,which applied to ZTE C600 OLT XGS-PON & GPON Combo board, typically GFCH and GFCO.
| Model | XG-PON GPON-OLT Class C+ |
| Type | One-fiber bidirectional optical module, class D |
| No. | 4 |
| Extinction Ratio | 8.2 dB |
| Encapsulation Type | SFP+ |
| Optical Connector Type | SC |
| Minimum Output Optical Power | GPON channel: 6 dBm |
| XG-PON channel: 8 dBm | |
| Maximum Output Optical Power | GPON channel: 10 dBm |
| XG-PON channel: 11 dBm | |
| Maximum Receiver Sensitivity | GPON channel: -35 dBm |
| XG-PON channel: -33.5 dBm | |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | GPON channel: -15 dBm |
| XG-PON channel: -13 dBm | |
| Operating Wavelength | GPON channel: |
| Tx: 1490 nm | |
| Rx: 1310 nm | |
| XG-PON channel: | |
| Tx: 1577 nm | |
| Rx: 1270 nm | |
| Port Rate | GPON channel: |
| Tx: 2.488 Gbit/s | |
| Rx: 1.244 Gbit/s | |
| XG-PON channel: | |
| Tx: 9.953 Gbit/s | |
| Rx: 2.488 Gbit/s |
