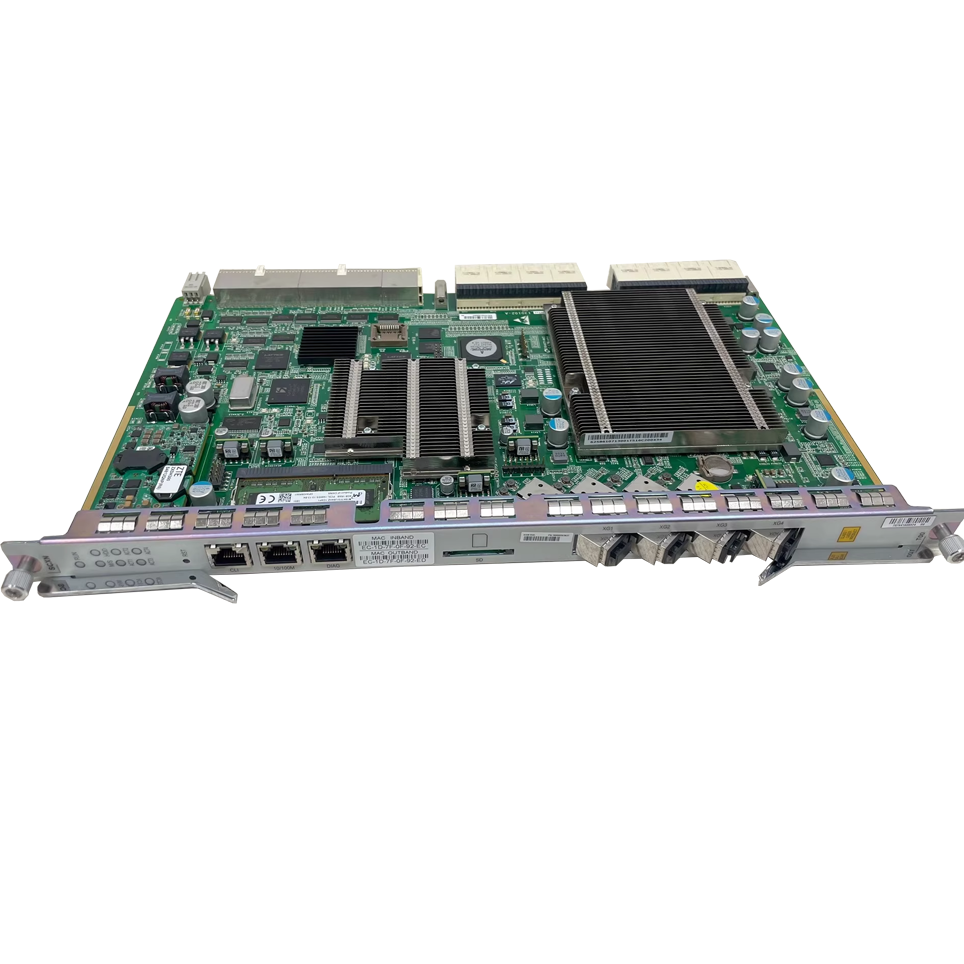

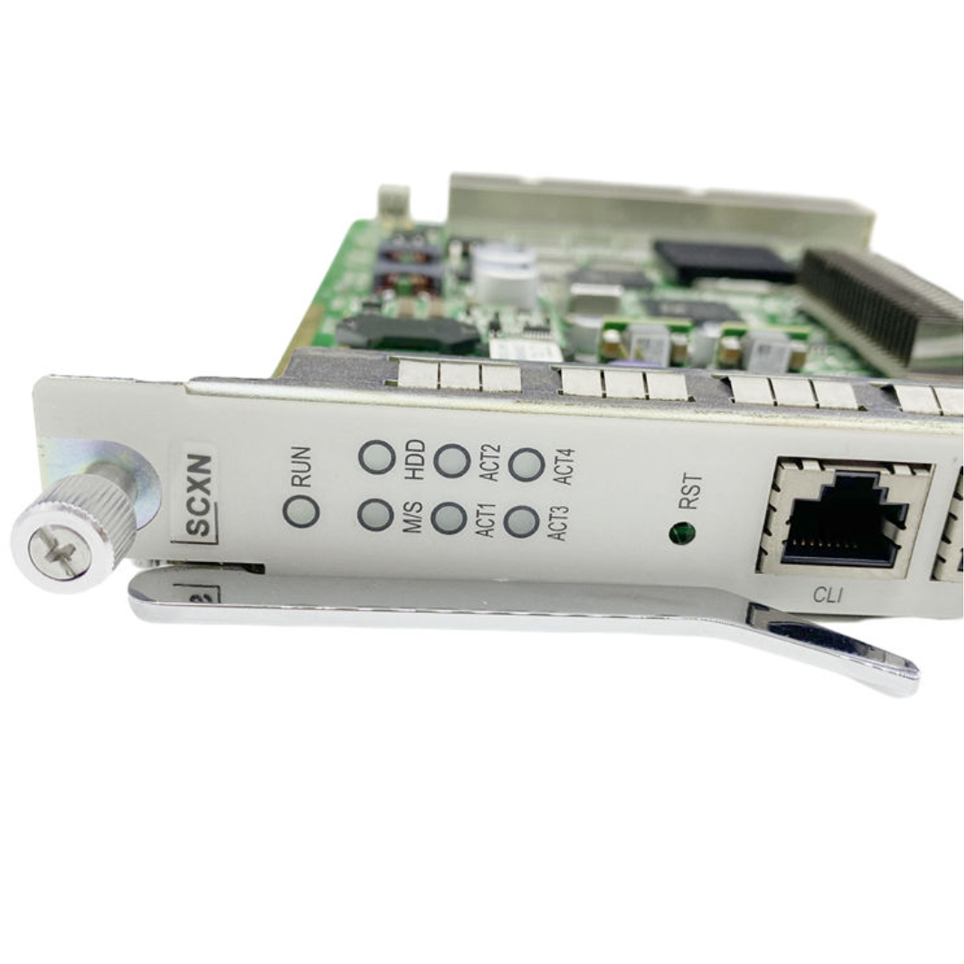

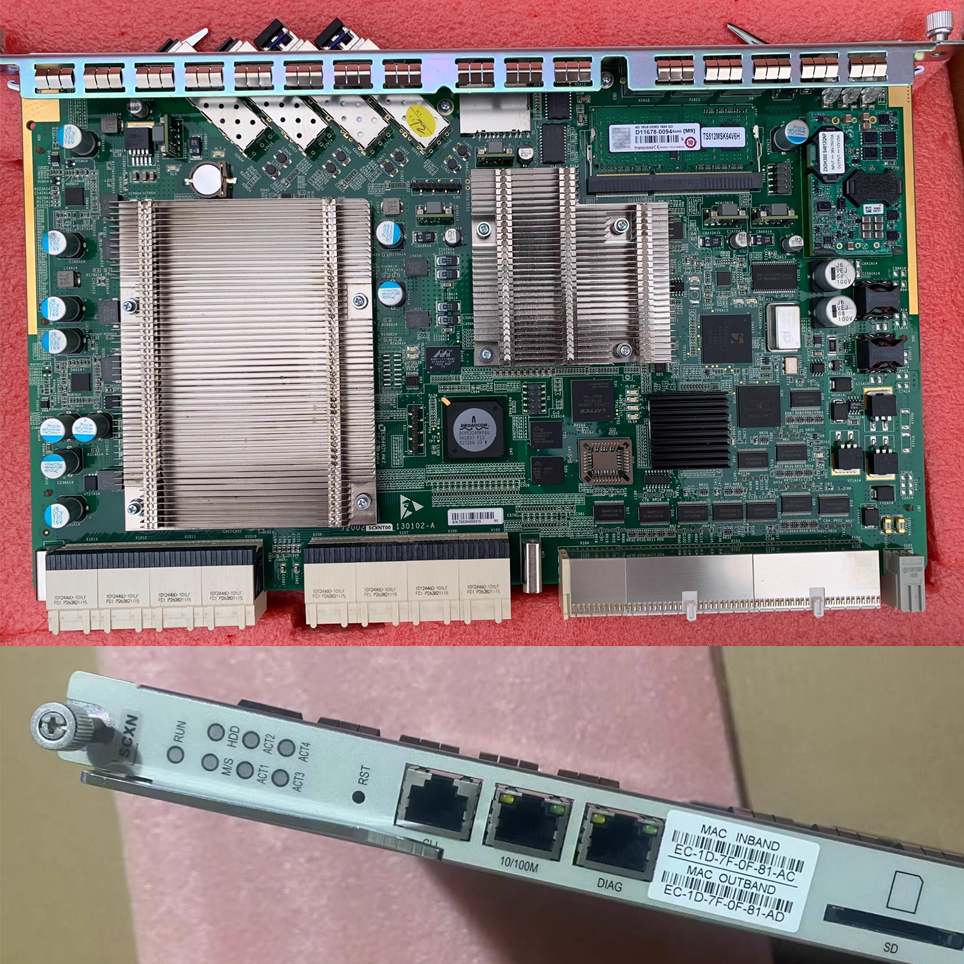

ZTE SCXN 4xGE interface card
SCXN is switching and control card with 4*GE uplink interfaces,used for C300 OLTs
SCXN is the switching and control card, supporting 480 Gbps switching capacity, 32k MAC address table, and VoIP function (with VoIP daughter-card), which can be installed into ZXA10 C300 OLT.
| Name | Technical Parameters |
| Switching Capacity | 480 Gbps |
| Vadid Slot | ZXA10 C300 slot 10/11 ZXA10 C350 slot 6/7 |
| Interface | • 1 out-of-band NM interface • 1 serial interfac • 1 SD card interface • 4 GE uplink interfaces |
| Function | • Provides one out-of-band NM interface, one debugging interface, one SD card interface. • Provides 4 SFP GE optical uplink interfaces • Support load balance work mode. |
| Power Consumption (W) | 65 W (static), 80 W (maximum), 75 W (typical) |
| Dimensions | 395.5 mm × 25 mm × 225 mm (Height × Width × Depth) |
| Weight | 1.145 kg |
| Name | Description | Switching capacity | MAC address table. | Function |
| SCXN | Type-N switching & control card | 480 Gbps | 32k | ZXA10 C300/C350 switching and control card |
| 1 out-of-band NM interface | ||||
| 1 serial interfac | ||||
| 1 SD card interface | ||||
| 4 GE uplink interfaces | ||||
| SCTM | Type-T switching & control card | 2.56 Tbps | 256k | ZXA10 C300/C350 switching and control card |
| 1 out-of-band NM interface | ||||
| 1 serial interface | ||||
| 1 SD card interface | ||||
| 4 10GE uplink interfaces | ||||
| 1 mirroring interface | ||||
| SCXM | Type-M switching & control card | 480 Gbps | 32k | ZXA10 C300/C350 switching and control card |
| 1 out-of-band NM interface | ||||
| 1 serial interfac | ||||
| 1 SD card interface | ||||
| SCXL | Type-L switching & control card | 800 Gbps | 32k | ZXA10 C300/C350 switching and control card |
| 1 out-of-band NM interface | ||||
| 1 serial interfac | ||||
| 1 SD card interface | ||||
| SMXA | Type-L switching & control card | 128 Gbps | 32k | ZXA10 C320 switching and control card |
| 1 out-of-band NM interface | ||||
| 1 serial interfac | ||||
| 1 monitor interface | ||||
| 1 GE uplink electrical interface | ||||
| The GE optical interface is available when a UCDC/1 daughter card is installed. | ||||
| The GE optical interface can be modified to a 10GE optical interface when a UCDC/3 daughter-card is installed. | ||||
| 1 GE optical interface and 1 10GE optical interface are available when a UCDC/5 daughter card is installed |
