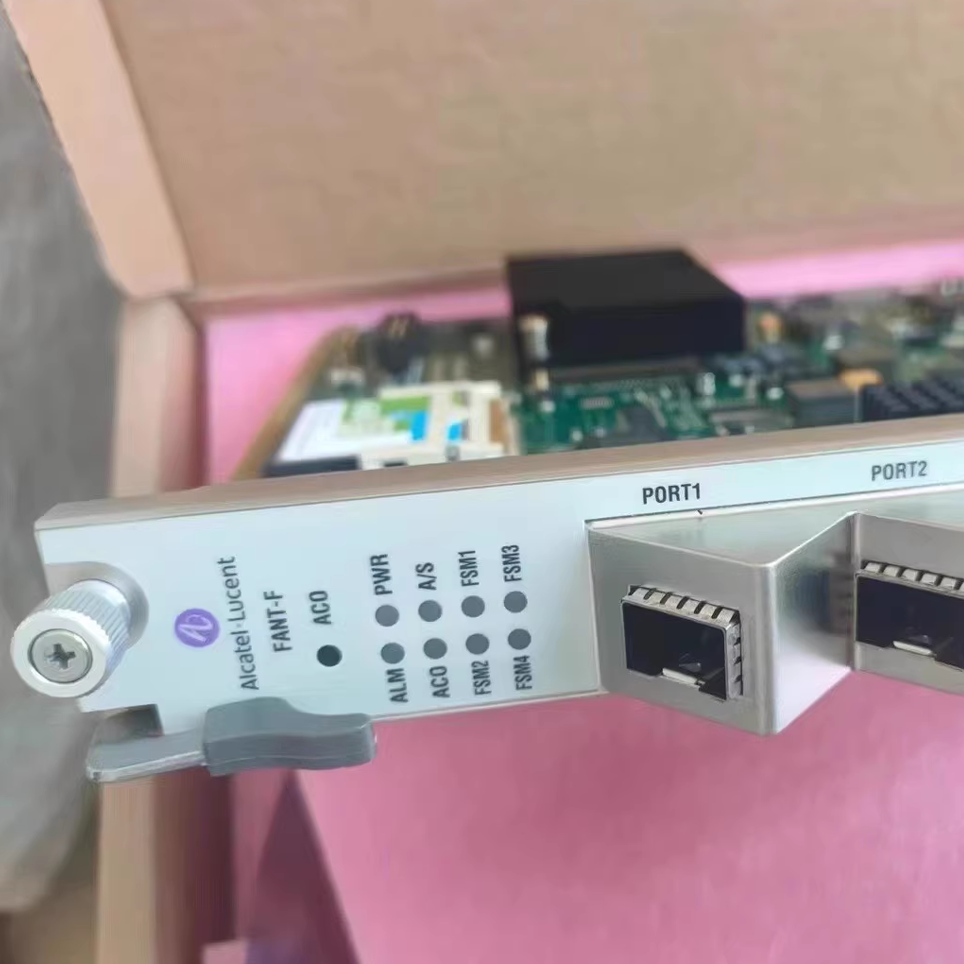

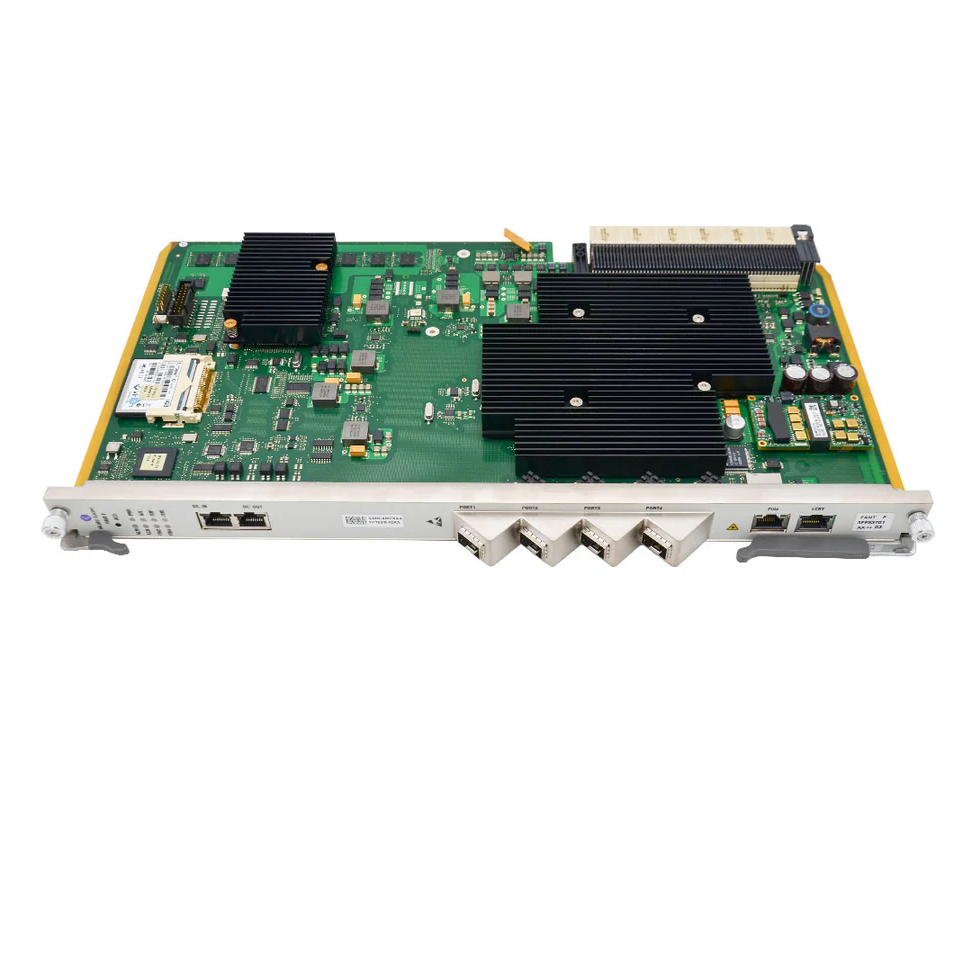

Nokia FANT-F Control Board
FANT-F is the NOKIA 7360 ISAM FX network termination board integrated with 4-port 10GE/GE optical uplink port.

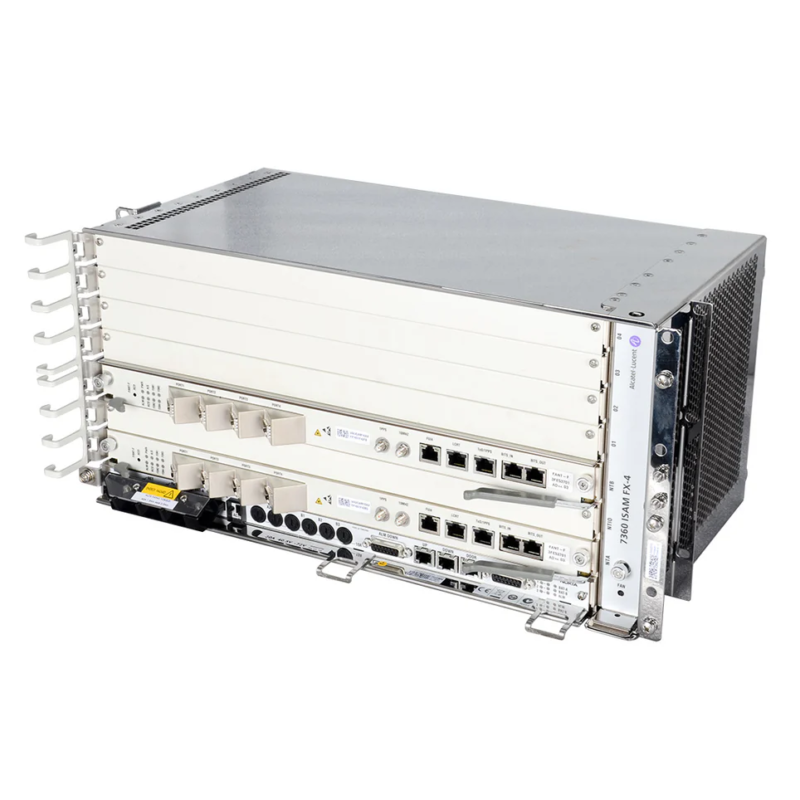

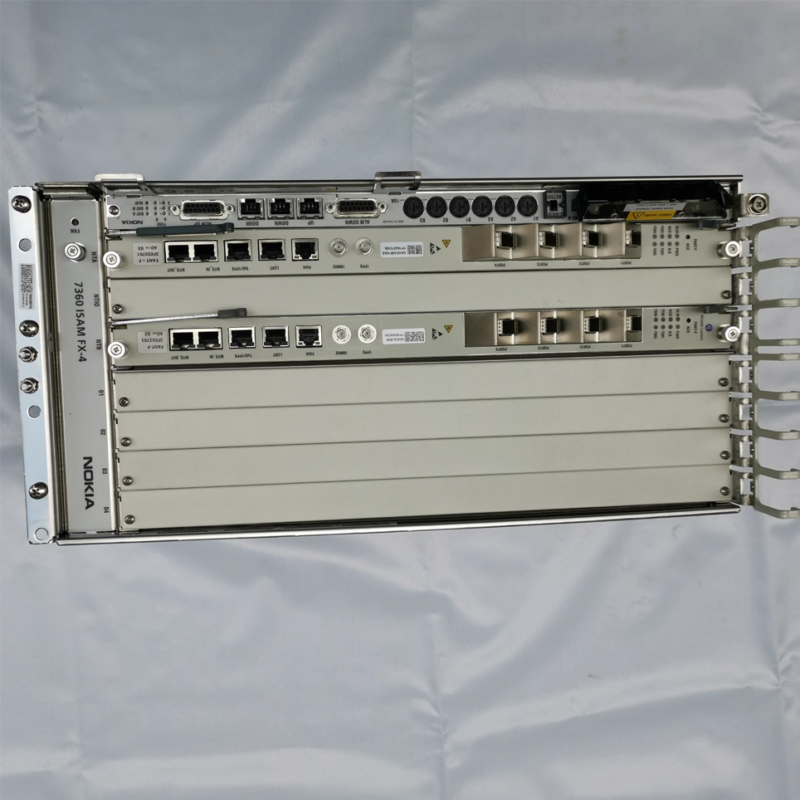

The Nokia Intelligent Services Access Manager (ISAM) FANT-F network termination (NT) card is a controller board that provides service and network intelligence in the Nokia 7360 ISAM FX access node. It provides 480 Gb/s switching matrix and 40 Gb/s connection to each line card, which makes it ideal for delivery of high capacity services in fiber networks.
FANT-F supports active-active redundancy and 480 Gb/s switching matrix (bidirectional)
The FANT-F card provides four configurable small form-factor pluggable (SFP+) supporting 10 Gb/s and 1 Gb/s links
| Specification | |
| Throughput | 480 Gb/s switching matrix (bidirectional) |
| Maximum number of MAC addresses (FDB) | 128 k |
| Maximum number of IP interfaces | 512 |
| ARP table size: IPv4 | 16K |
| ARP table size: IPv6 | 8K |
| Maximum number of IP routes: IPv4 | 16K |
| Maximum number of IP routes: IPv6 | 8K |
| Maximum number of ONTs | 16 k |
| Maximum number of UNIs | 16 k |
| External interfaces | 4-port optical 10 Gb/1 Gb interface
Optical and electrical connection through SFP and SFP+ standards 1-port electrical 10/100/1000Base-T (RJ-45 connector) 2-port BITS interface: only on BITS variant; 1 port in, 1 port out, using ITU-T G.703 (ANSI interfaces available on a separate generic flow control [GFC] unit) |
| Device Specifications | |
| Weight | 2kg |
| Dimensions (W x D x H) | 405 mm x 225mm x 30 mm |
