NGLT-C C+ Board

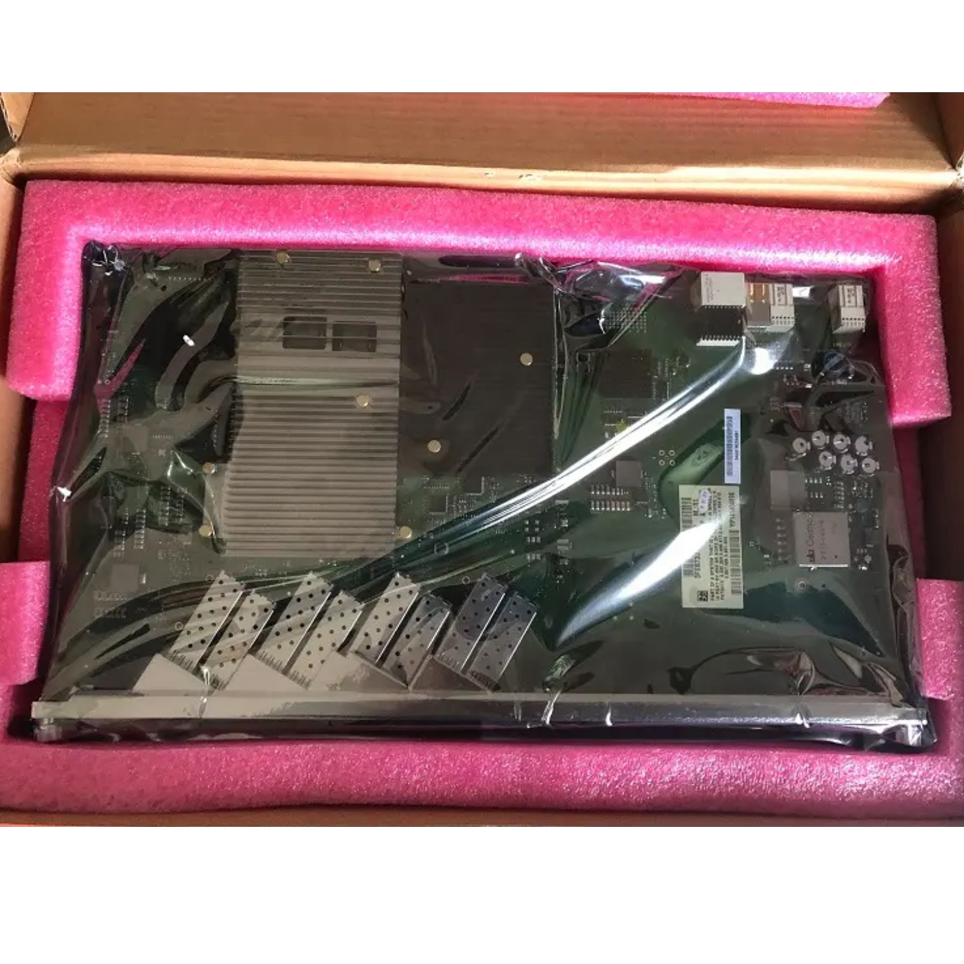

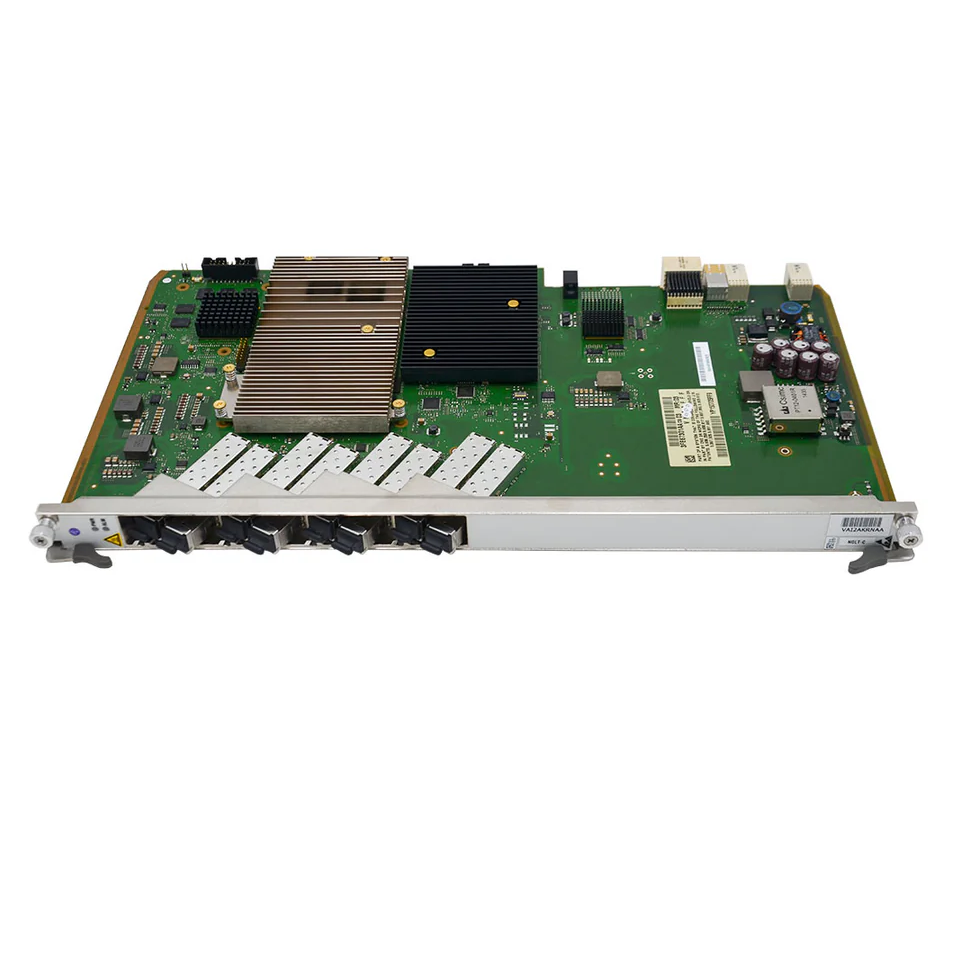

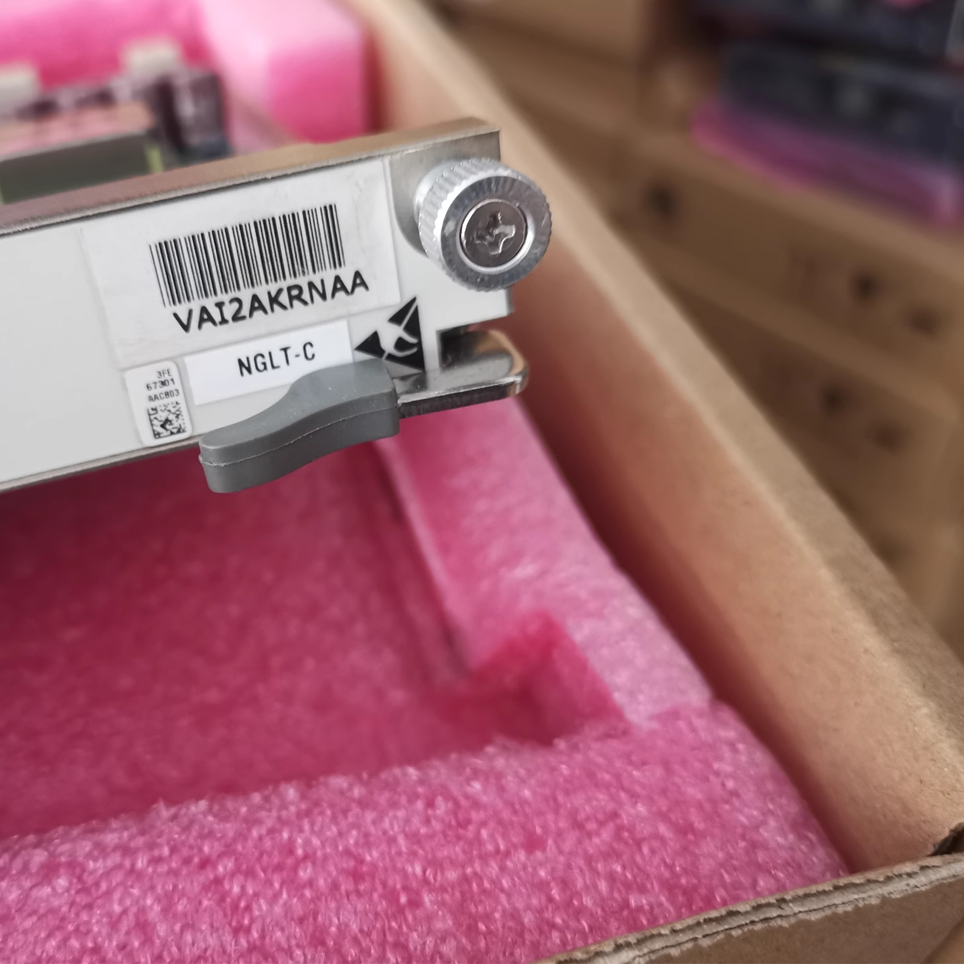

NGLT-C C+ is the NOKIA Alcatel-Lucent 7360 ISAM FX 8-port GPON OLT line termination board with C+ module.
NOKIA Alcatel-Lucent ISAM NGLT-C is a Gigabit Passive Optical Network (GPON) line termination card with 8 GPON interfaces. With a single line card service providers can connect more than 2,000 subscribers or 32,000 subscribers in a fully filled rack configuration.
| Specification | |
| Service ports | |
| GPON Port | 8-GPON Port |
| GPON SFP Module Specification | |

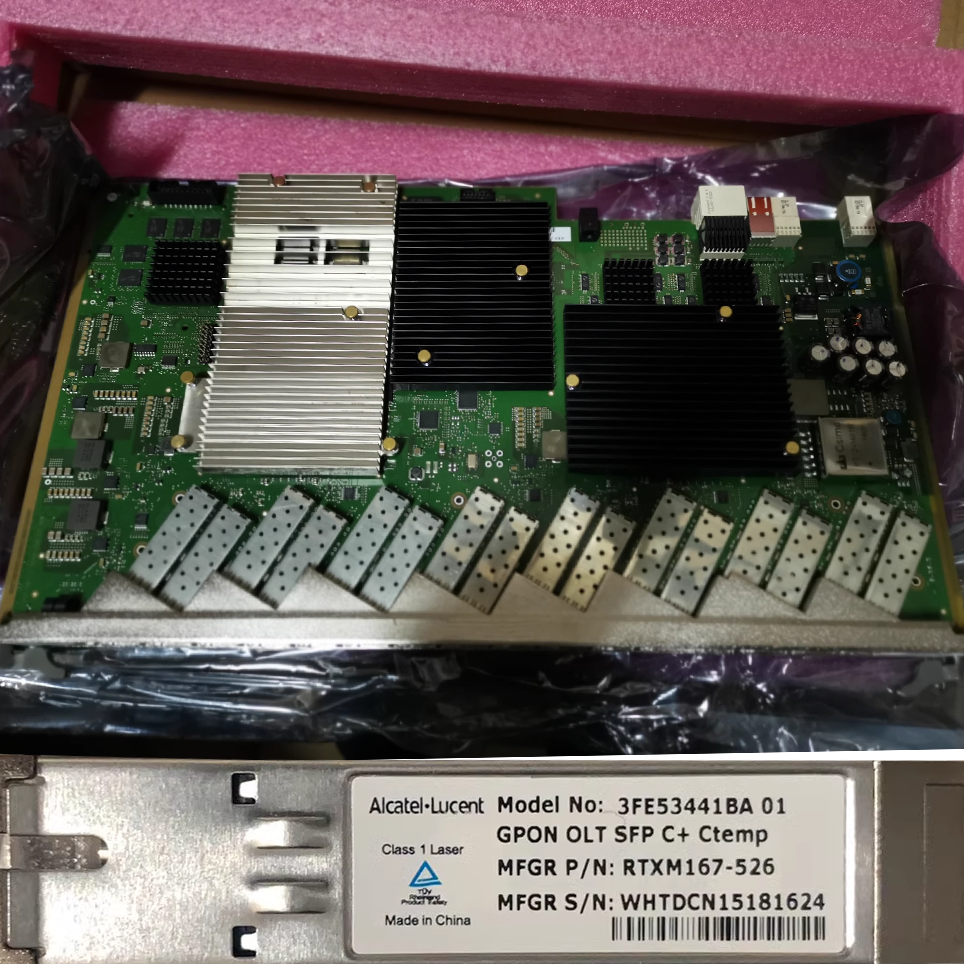

| Type | C+ Module: Single Fiber Bidirectional Optical Module, Class C+ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimun Output Optical Power | C+ Module : 3.00 dBm |
| Maximum Output Optical Power | C+ Module : 7.00 dBm |
| Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 30km/60km (18.6mi/37.3mi) |
| Overload Optical Power | C+ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Weight | 0.9kg |
| Dimensions (W x D x H) | 405 mm x 225/205 mm 15.9 in. x 8.6/8.1 in. |
| Maximum number of ONTs per PON | 128 |
| Maximum number of UNIs per PON | 768 |
| Maximum number of TCONTs per PON | 1024 |
| Maximum number of GEM ports per PON | 2048 |
