Huawei XGS-PON&GPON OLT Class D
Huawei XGSPON&GPON Combo OLT Class D Module on XGSPON board CSHF, CSHD

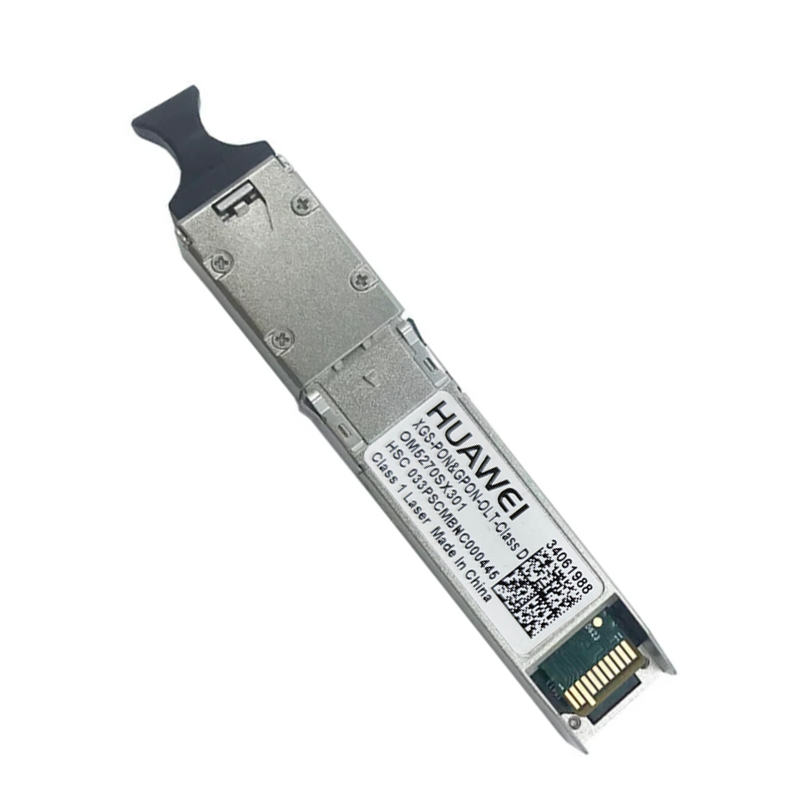

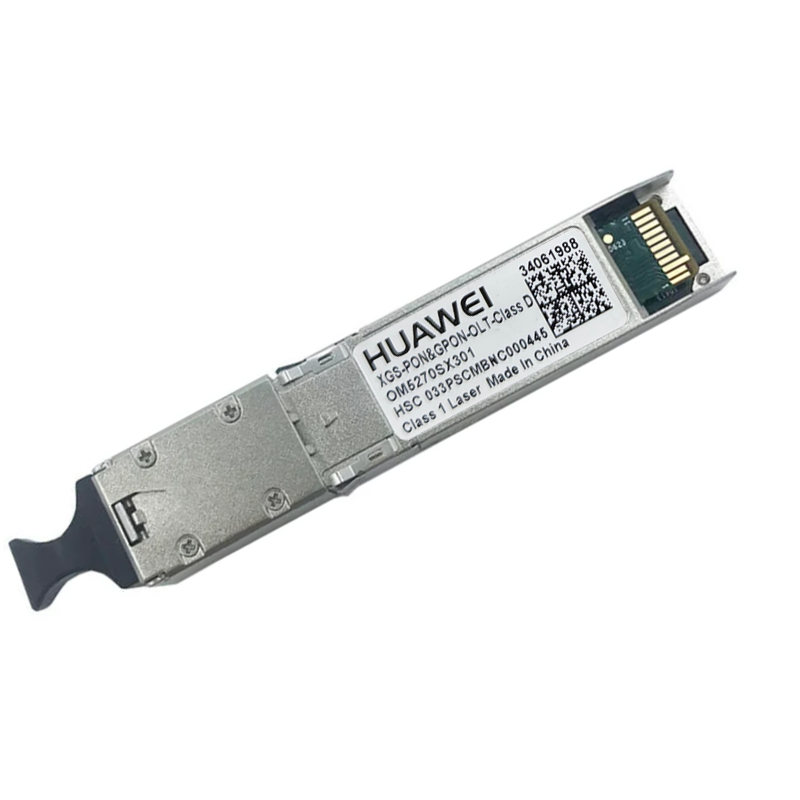

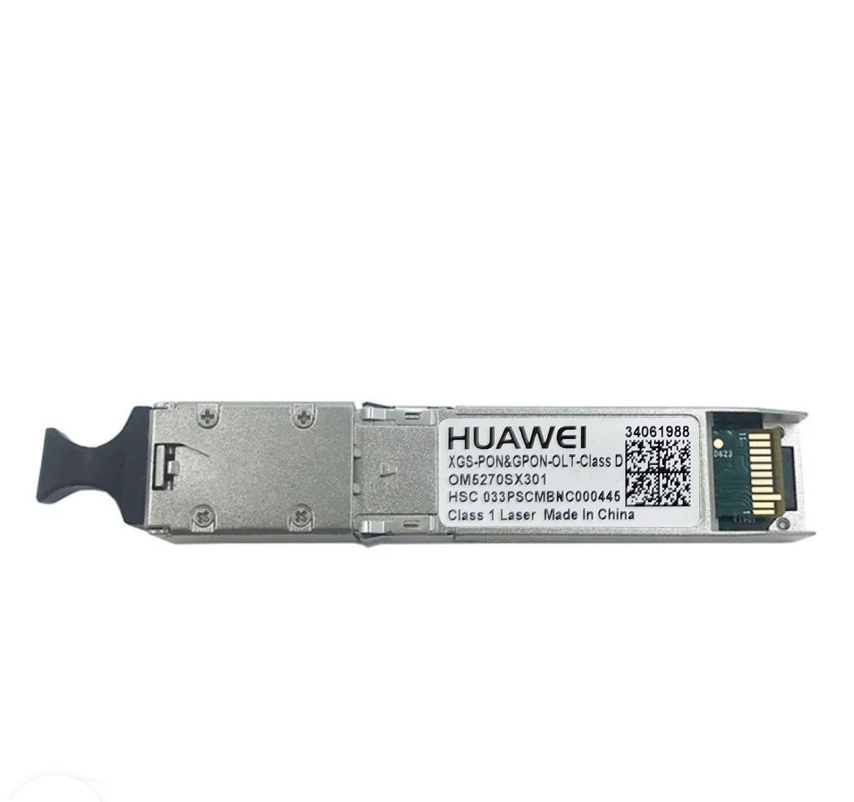

Huawei SFP XGS-PON&GPON-OLT Class D Module is Symmetric 10GPON & GPON Combo Optical Module applied to Huawei MA5800 OLT XGS-PON & GPON Combo board, typically CSHF and CSHD.
| Specification | ||
| Type | Class D | |
| Operating Wavelength | GPON Channel: Tx:1490nm Rx:1310nm XGS-PON Channel: Tx: 1577nm Rx:1270nm |
|
| Encapsulation Type | SFP+ | |
| Port Rate | GPON Channel: Tx: 2.488Gbit/s Rx: 1.244Gbit/s XGS-PON Channel: Tx: 9.953Gbit/s Rx: 9.953/2.488Gbit/s |
|
| Minimum Output Optical Power | GPON Channel: 6dBm XGS-PON Channel: 8dBm |
|
| Maximum Output Optical Power | GPON Channel: 10dBm XGS-PON Channel: 11dBm |
|
| Maximum Receiver Sensitivity | GPON Channel:-35dBm XG-PON Channel: -33.5dBm XGS-PON Channel:-32dBm |
|
| Optical Connector Type | SC | |
| Optical Fiber Type | Single-mode | |
| Extinction Ratio | 8.2dB | |
| Dimension(D x W x H mm) | 80x20x15 | |
