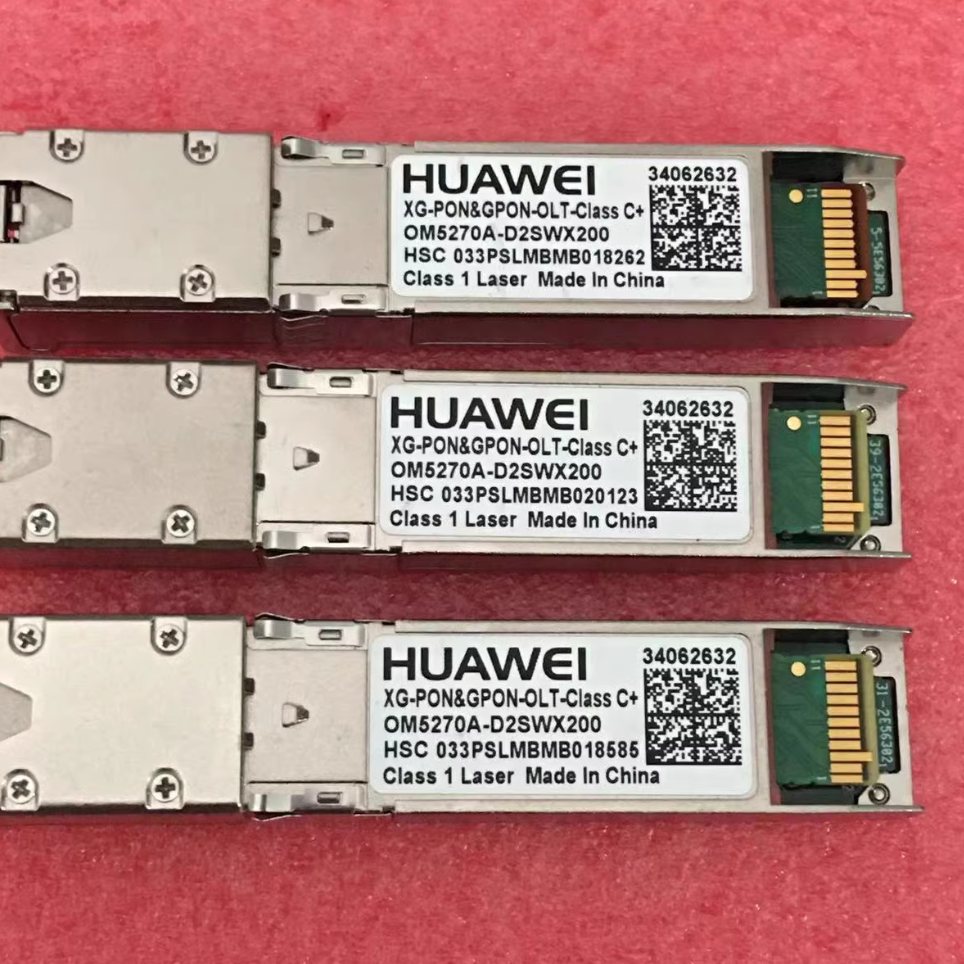

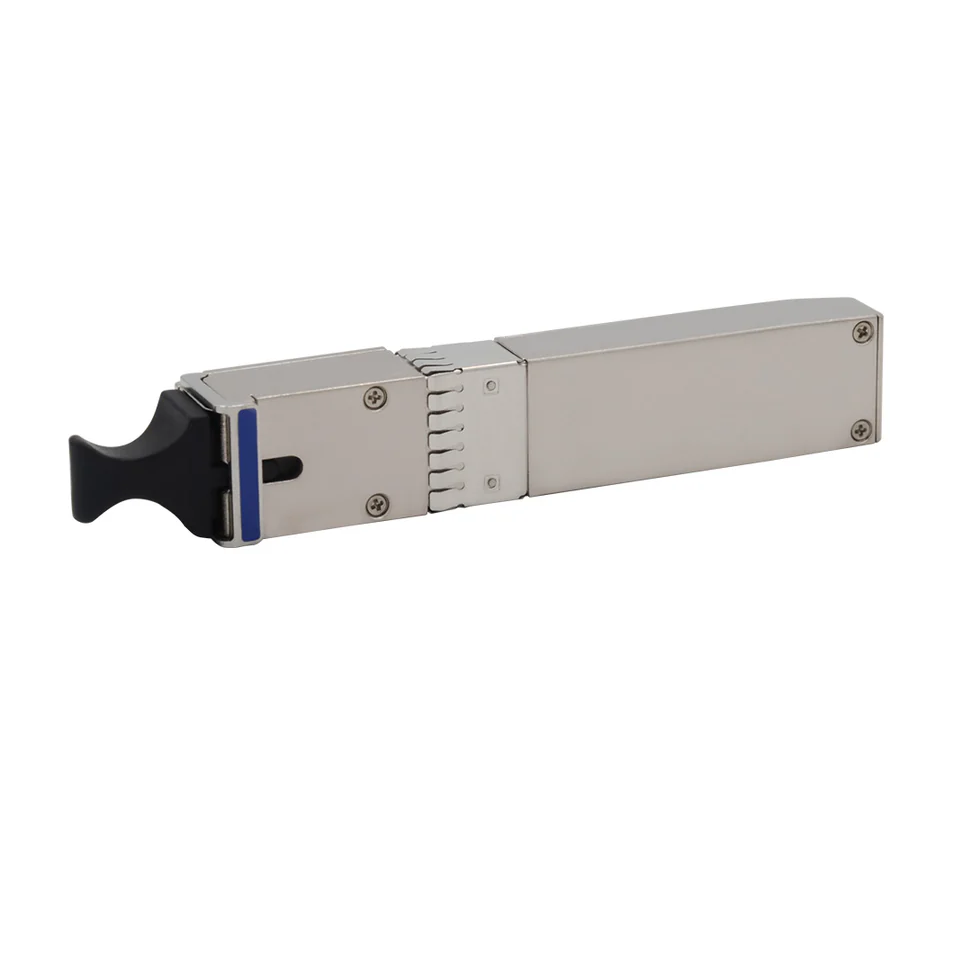

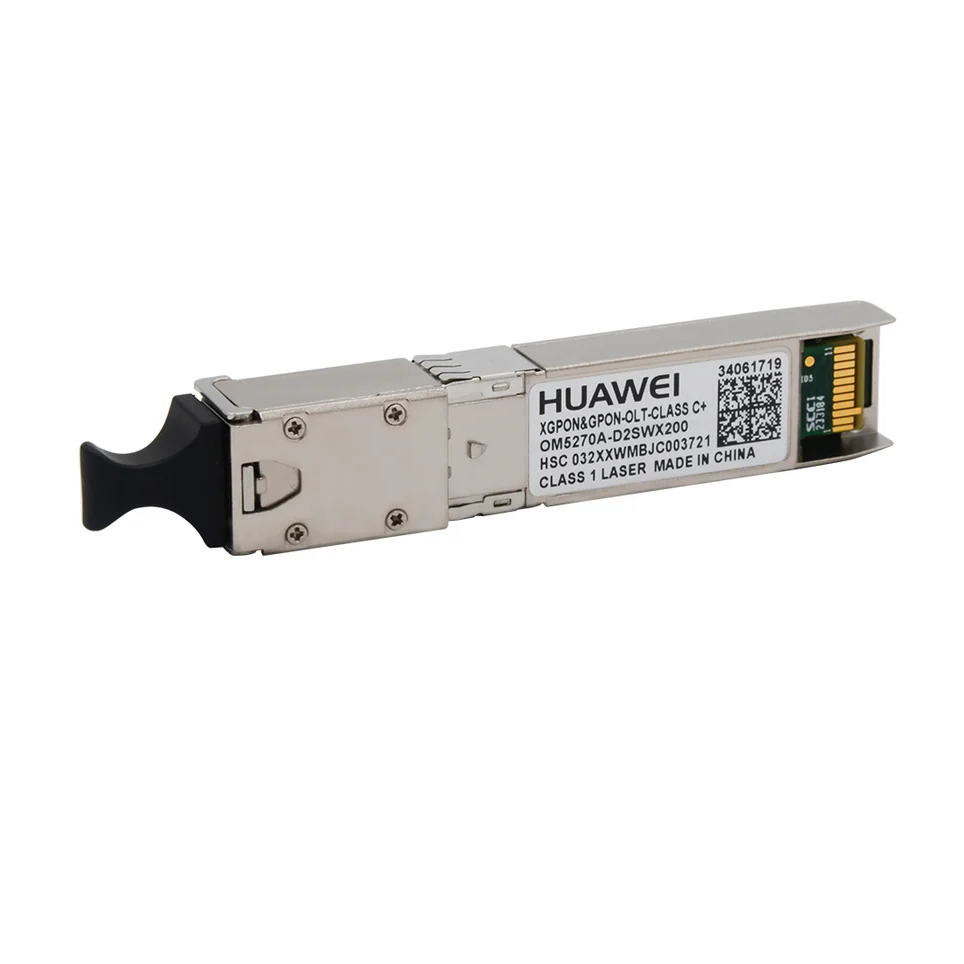

Huawei XG-PON&GPON OLT Class C+ Module
Huawei XG-PON&GPON-OLT Class C+ Module applied to XGPON board CGID, CGUD, CGHD, CGHF, CGUF.
Huawei SFP XG-PON&GPON-OLT Class C+ Module is Asymmetric 10GPON & GPON Combo Optical Module applied to Huawei MA5800 OLT XGS-PON & GPON Combo board.
| Specification | ||
| Type | Class C+ | |
| Operating Wavelength | GPON Channel: Tx:1490nm Rx:1310nm XGS-PON Channel: Tx: 1577nm Rx:1270nm |
|
| Encapsulation Type | SFP+ | |
| Port Rate | GPON Channel: Tx: 2.488Gbit/s Rx: 1.244Gbit/s XG-PON Channel: Tx: 9.953Gbit/s Rx: 2.488Gbit/s |
|
| Minimum Output Optical Power | GPON Channel: 3dBm XG-PON Channel: 5dBm |
|
| Maximum Output Optical Power | GPON Channel: 7dBm XG-PON Channel: 8dBm |
|
| Maximum Receiver Sensitivity | GPON Channel:-32dBm XG-PON Channel: -30.5dBm |
|

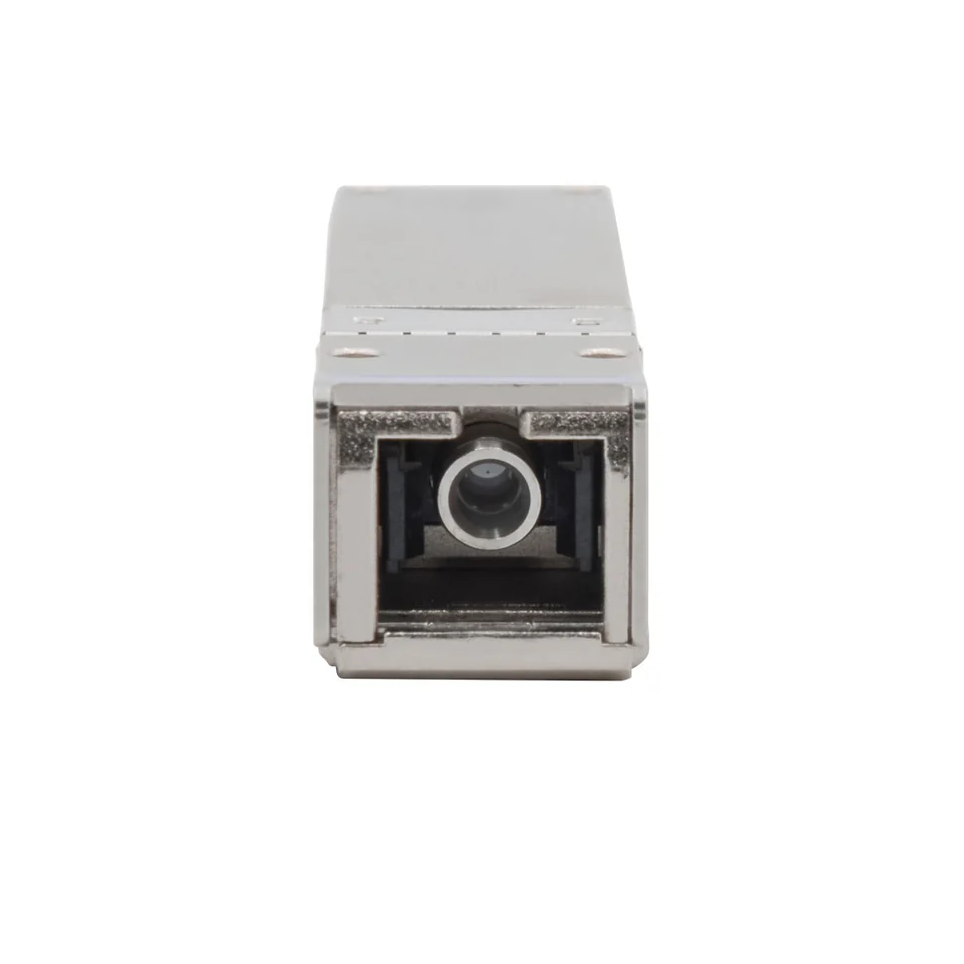

| Optical Connector Type | SC | |
| Optical Fiber Type | Single-mode | |
| Overload Optical Power | GPON Channel:-12dBm XG-PON Channel: -10dBm |
|
| Extinction Ratio | 8.2dB | |
