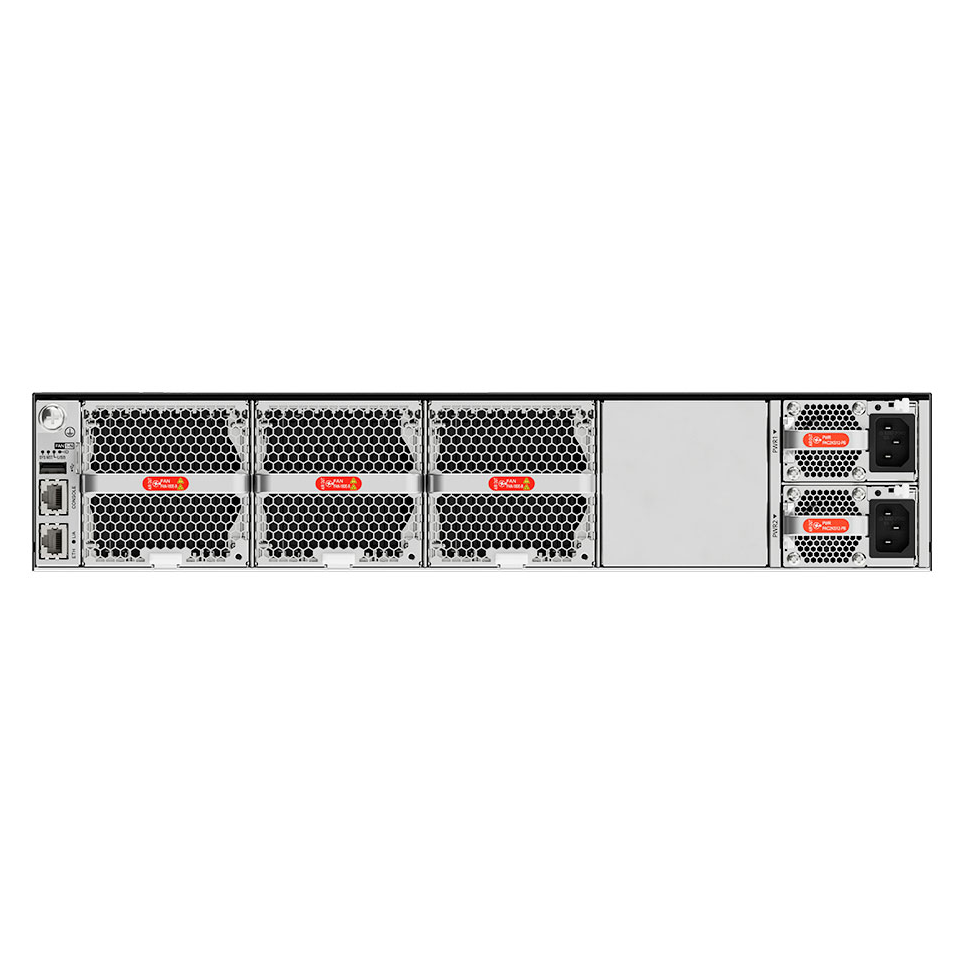

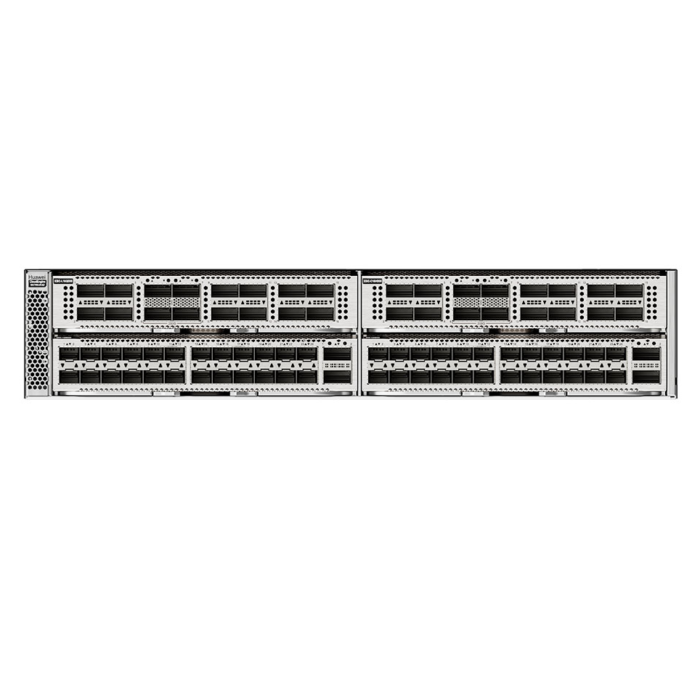

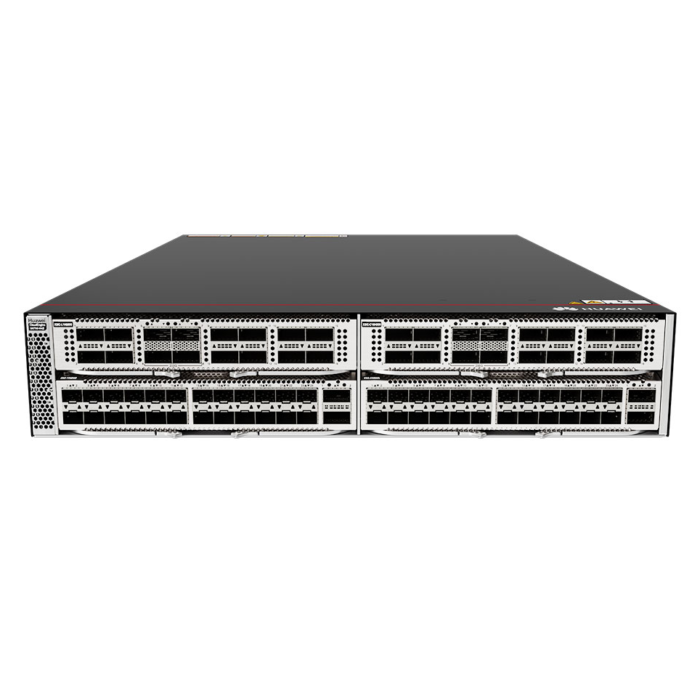

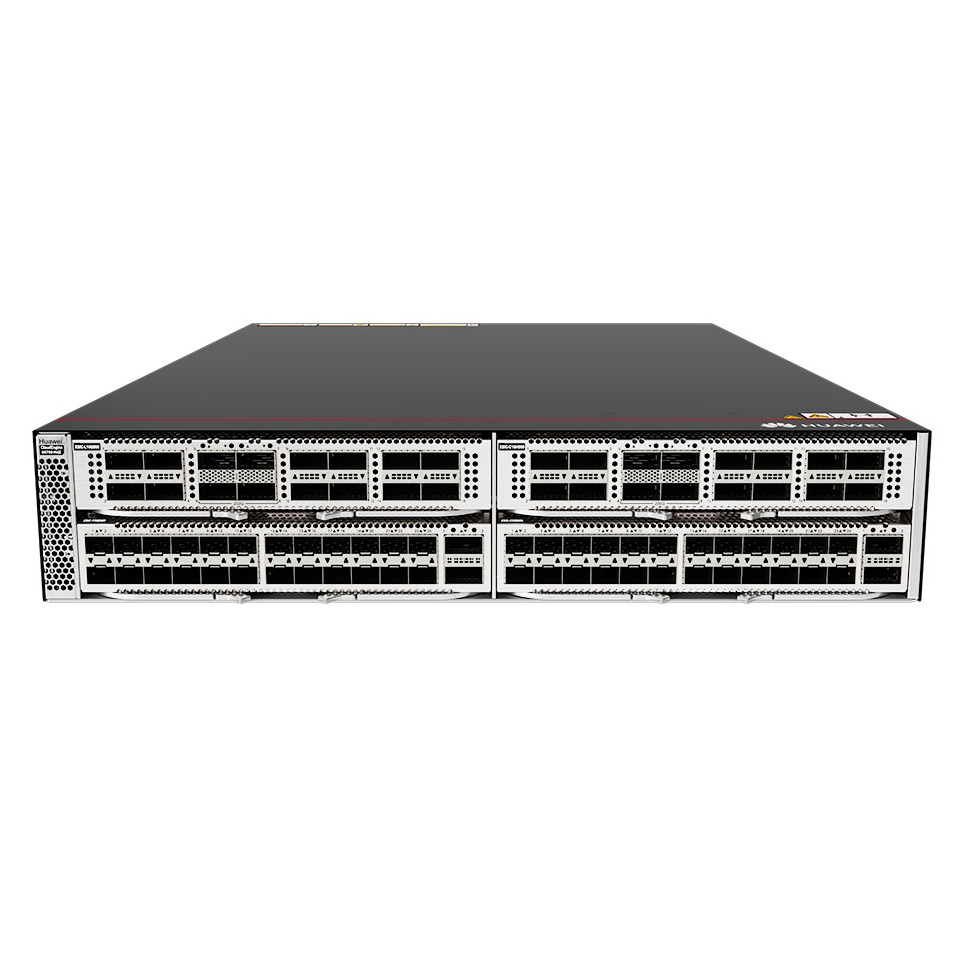

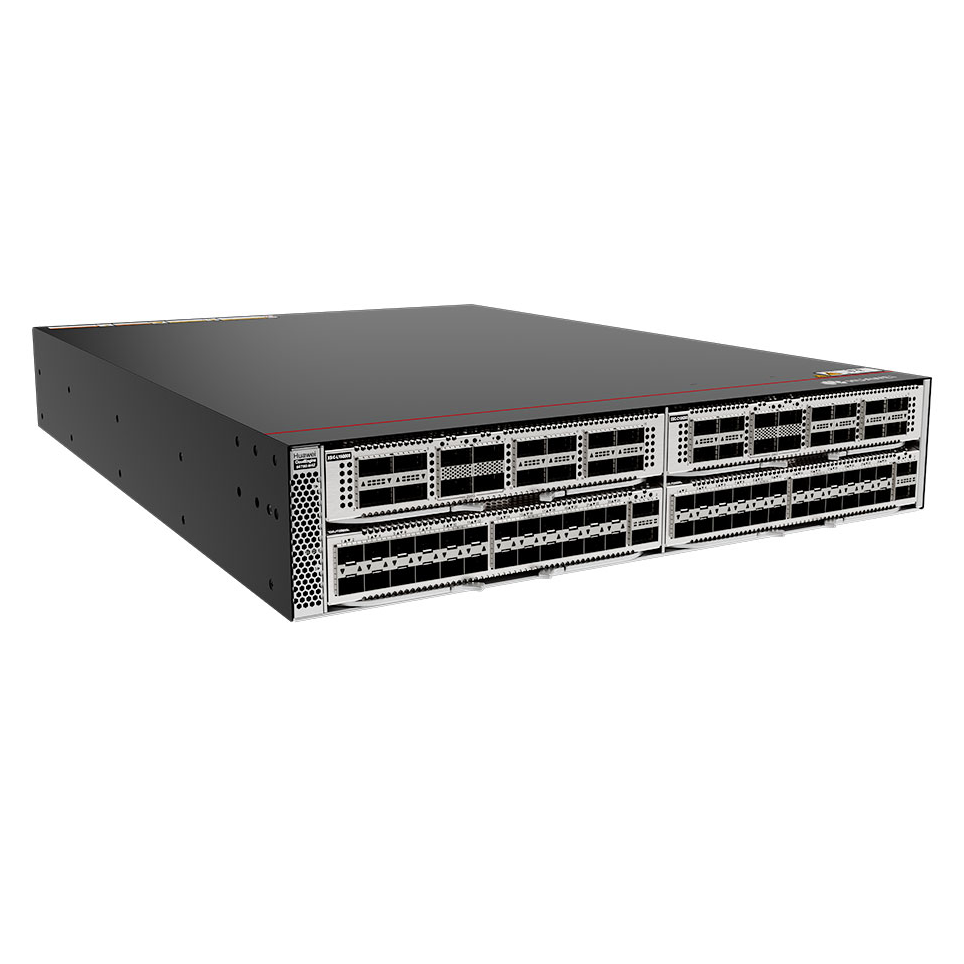

Huawei S6780-H4Z Switch
CloudEngine S6780-H4Z with 1*AC+1*L-MLIC-S67H S67XX-H Series Basic SW,Per Device
CloudEngine S6780-H series switches are Huawei’s next-generation enterprise-class core and aggregation switches that provide 64 x 100GE/32 x 25GE ports and 16 x 400GE optical ports.
CloudEngine S6780-H series switches are Huawei’s next-generation 2 U flexible card switches. They provide high-density 100GE and 400GE optical ports, and feature high performance, high reliability, cloud-based management, and intelligent O&M. Based on Huawei’s industry-leading software and hardware platform, the switches are launched for security, Internet of Things (IoT), and cloud-network. Moreover, the switches adopt technologies, such as free mobility, VXLAN, SRv6, and slicing, to deliver ultimate user experience and carrier-class reliability. These make CloudEngine S6780-H series switches the ideal core or aggregation switches on a cloud campus network to facilitate digital transformation of global customers. Therefore, they can be widely used at the aggregation and core layers of large campus networks or at the core layer of small- and medium-sized campus networks in various industries, such as transportation, manufacturing, and education.
Specifications:
| Product Model | CloudEngine S6780-H4Z |
| Forwarding Performance | 2400 Mpps |
| Switching Capacity2 | 14.4Tbps /16Tbps |
| Fixed Ports | 4 x half-width flexible cards and flexible combinations of multiple types of cards: 24 x GE/2.5GE/10GE SFP+ ports + 2 x 40GE/100GE QSFP28 ports 24 x GE/2.5GE/10GE/25GE SFP28 ports + 2 x 40GE/100GE QSFP28 ports 10 x 40GE/100GE QSFP28 ports 16 x 40GE QSFP ports 16 x 40GE/100GE QSFP28 ports 8 x GE/2.5GE/10GE/25GE SFP28 ports + 4 x 400GE QSFP-DD ports |
| Power Supply Type | 1+1 power supply backup |
| MAC Features | MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses MAC address learning limiting based on ports and VLANs |
| VXLAN Features | Distributed and centralized VXLAN gateways BGP EVPN VXLAN configuration through NETCONF VXLAN route switching |
| iPCA Quality Awareness | Direct marking of service packets to obtain real-time statistics about dropped packets and packet loss rate Measurement of the dropped packets and packet loss rate on Layer 2/Layer 3 devices and networks |
| QoS | Traffic classification based on information from the link layer to the application layer Complete queue scheduling and congestion control algorithms Accurate multi-level scheduling for data flows Hardware-based low-latency QoS queues for multicast packets |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
