Huawei S6730-H48X6C-V2 Switch
Back to products
Huawei S6730-H28X6CZ-V2

Huawei S6730-H48Y6C-V2

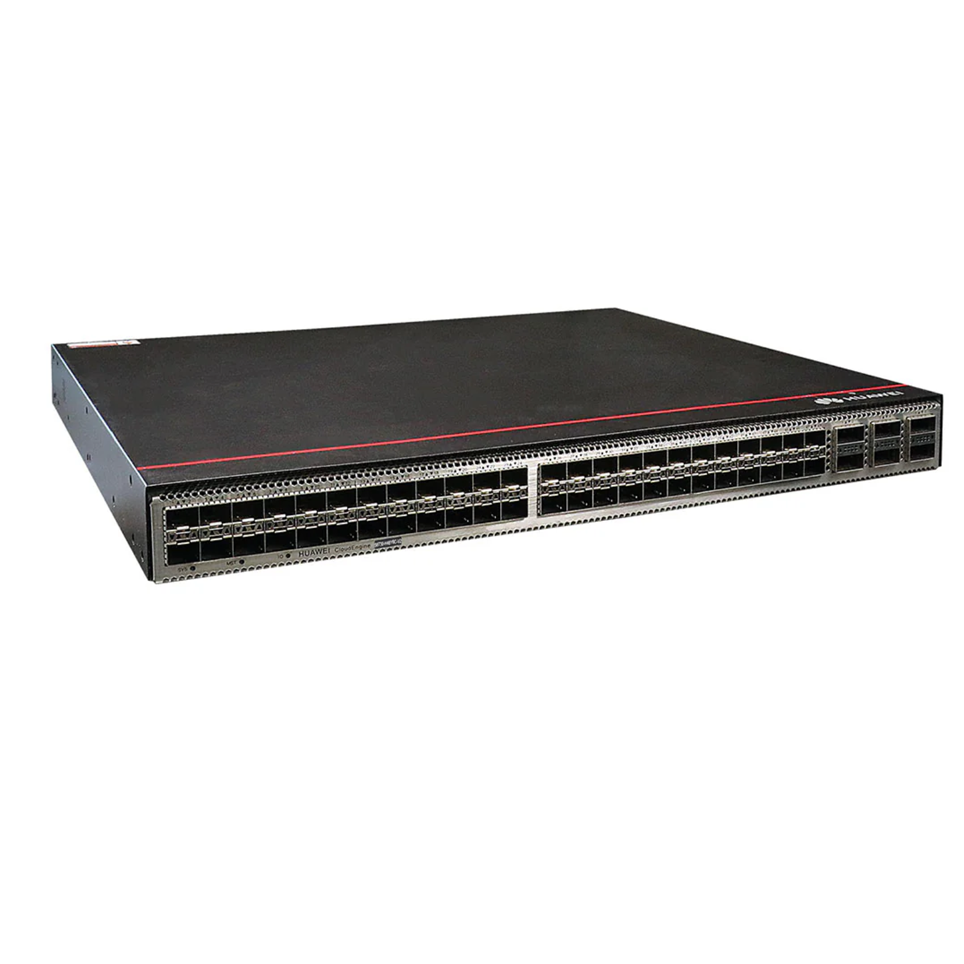

Huawei CloudEngine S6730-H48Y6C-V2 switch with 48-port 1GE/10GE/25GE SFP28, 6-port 40GE/100GE QSFP28, 2 power slots, with 2xAC power module equipped

Inquiry
Category: Tags: , ,
Huawei CloudEngine S6730-H48Y6C-V2 switch with 48-port 1GE/10GE/25GE SFP28, 6-port 40GE/100GE QSFP28

With 2 power slots, 2xAC power module equipped

Switching Capacity: 3.6Tbps/4.8Tbps

Forwarding performance: 980 Mpps

Non-PoE switch

Dual pluggable power modules, 1+1 power backup

Applicable power module: PAC600S12-CB(600W AC)；PDC1000S12-DB(1000W DC)

The default rate of a QSFP28 port is 100GE.

The S6700 series Ethernet switches are next-generation 10G fixed switches. The S6700 can function as an access switch in an Internet data center (IDC) or a core switch on a campus network. The S6700 has industry-leading performance and provides line-speed 10GE access ports and line-speed 40GE even 100GE uplink ports. It can be used in a data center to provide 10 Gbit/s access to servers or function as a core switch on a campus network to provide 40 Gbit/s even 100 Gbit/s traffic aggregation.

Table 1 S6730-H48Y6C-V2 Similar Ports Switches Comparison

Model Fixed Ports Switching Capacity Forwarding Capacity RTU License
S6730-H48Y6C-V2 48-port 1GE/10GE/25GE SFP28, 6-port 40GE/100GE QSFP28 3.6Tbps/4.8Tbps 980Mpps No
S6730-H48X6C 48-port 10GE SFP+,6-port 40GE/100GE QSFP28 2.16Tbps/2.4Tbps 490Mpps Yes, 40G to 100G License
S6720-50L-HI-48S 48-port 10GE SFP+,2-port 40GE/100GE QSFP28,4-port 40GE QSFP+ 2.56Tbps 420Mpps No
S6720-54C-EI-48S-AC
S6720-54C-EI-48S-DC		 48-port 10GE SFP+,2-port 40GE QSFP+ 2.56 Tbps 1080Mpps No
S6720-52X-PWH-SI 48-port PoE++ 100M/1000M/2.5GE/5GE/10GE BASE-T(MultiGE port),4-port 10GE SFP+ 2.56 Tbit/s 480 Mpps No
S6720-56C-PWH-SI
S6720-56C-PWH-SI-AC		 32-port 1000 Base-T,16-port multi-gigabit Base-T, 4-port 10 GE SFP+ 2.56 Tbit/s 240 mpps No

Table 2 S6730-H48Y6C-V2 applicable modules and cables recommended for you

Model Description
GE SFP Copper Modules
SFP-1000BaseT Electrical Transceiver,SFP,GE,1000BASE-T RJ45 0.1km
GE eSFP Optical Modules
eSFP-GE-SX-MM850 Optical Transceiver,GE, eSFP 1000BASE-SX MMF 0.1km 850nm LC
OGSC10DD0/SFP-GE-LX-SM1310 Optical Transceiver,GE, eSFP1000BASE-LX10/LH SMF 10km 1310nm LC
OGSC40DD0/SFP-GE-EX-C Optical Transceiver,GE, eSFP 1000BASE-EX SMF 40km 1310nm LC
S-SFP-GE-LH40-SM1550 Optical Transceiver,GE, eSFP SMF 40km 1550nm LC
10GE SFP+ Optical Modules
SFP-10G-SR/SFP-10G-SR-C Optical Transceiver,SFP+,10GBASE-SR MMF 0.3km 850nm LC
OSX010000 Optical Transceiver,SFP+,10G SMF 10km 1310nm LC
OSX040N01 Optical Transceiver,SFP+,10GBASE-ER SMF 40km 1550nm LC
SFP-10G-CU1M 1m 10G SFP+ high-speed copper cable
SFP-10G-CU3M 3m 10G SFP+ high-speed copper cable
SFP-10G-CU5M 5m 10G SFP+ high-speed copper cable
SFP-10G-AC10M 10m 10G SFP+ high-speed copper cable
SFP-10G-AOC3M 3m 10G SFP+ AOC cable
SFP-10G-AOC10M 10m 10G SFP+ AOC cable
40GE QSFP+ Optical Modules
QSFP-40G-eSR4 Optical Transceiver,QSFP+,40GBASE-eSR4 MMF 0.3km 850nm MPO/PC
QSFP-40G-LR4 Optical Transceiver,QSFP+,40GBASE-LR4 SMF 10km 1310nm LC
QSFP-40G-eSM4 Optical Transceiver,QSFP+,40GBASE-eSM4 SMF 10km 1310nm MPO/APC
QSFP-40G-ER4 Optical Transceiver,QSFP+,40GBASE-ER4 SMF 40km 1310nm LC
QSFP-40G-CU1M 1m 40G QSFP+ to QSFP+ high-speed copper cable
QSFP-40G-CU3M 3m 40G QSFP+ to QSFP+ high-speed copper cable
QSFP-40G-CU5M 5m 40G QSFP+ to QSFP+ high-speed copper cable
QSFP-4SFP10G-CU1M 1m 40G QSFP+ to 4*SFP+ high-speed copper cable
QSFP-4SFP10G-CU3M 3m 40G QSFP+ to 4*SFP+ high-speed copper cable
QSFP-4SFP10G-CU5M 5m 40G QSFP+ to 4*SFP+ high-speed copper cable
QSFP-H40G-AOC10M 10m 40G QSFP+ to QSFP+ AOC cable
QSFP-4SFP10-AOC10M 10m 40G QSFP+ to 4*SFP+ AOC cable
100GE QSFP28 Optical Modules
QSFP-100G-eSR4 Optical Transceiver,QSFP28,100GBase-eSR4 MMF 0.3km 850nm MPO/PC
QSFP28-100G-LR4/QSFP28-100G-10KM Optical Transceiver,QSFP28,100GBASE-LR4 SMF 10km 1310nm LC
QSFP-100G-ER4 Optical Transceiver,QSFP28,100GBASE-ER4 SMF 40km 1310nm LC
QSFP28-100G-CU1M 1m 100G QSFP28 to QSFP28 high-speed copper cable
QSFP28-100G-CU3M 3m 100G QSFP28 to QSFP28 high-speed copper cable
QSFP28-100G-CU5M 5m 100G QSFP28 to QSFP28 high-speed copper cable
QSFP-100G-AOC-5M 5m 100G QSFP28 to QSFP28 AOC cable
QSFP-100G-AOC-10M 10m 100G QSFP28 to QSFP28 AOC cable
Tech Specs
Item Specification
Description 48-port 1GE/10GE/25GE SFP28, 6-port 40GE/100GE QSFP28, 2 power slots, with 2xAC power module equipped
Interoperability VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)
For detailed interoperability certifications and test reports
iPCA Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels
VXLAN VXLAN L2 and L3 gateways
Centralized and distributed gateways
BGP-EVPN
Configured through the NETCONF protocol
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body):
43.6 mm x 442.0 mm x 420.0 mm
Maximum dimensions (the depth is the distance from ports on the front panel
to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm
Dimensions with packaging (H x W x D) [mm(in.)] 175 mm x 650 mm x 550 mm
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 7.03 kg (15.5 lb)
Weight with packaging [kg(lb)] 10.01 kg (22.07 lb)
Typical power consumption [W] 256 W
Typical heat dissipation [BTU/hour] 873.50 BTU/hour
Maximum power consumption [W] 384 W
Maximum heat dissipation [BTU/hour] 1310.25 BTU/hour
Static power consumption [W] 167 W
MTBF [year] 47.81 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 67 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 58 dB(A)
Number of card slots 0

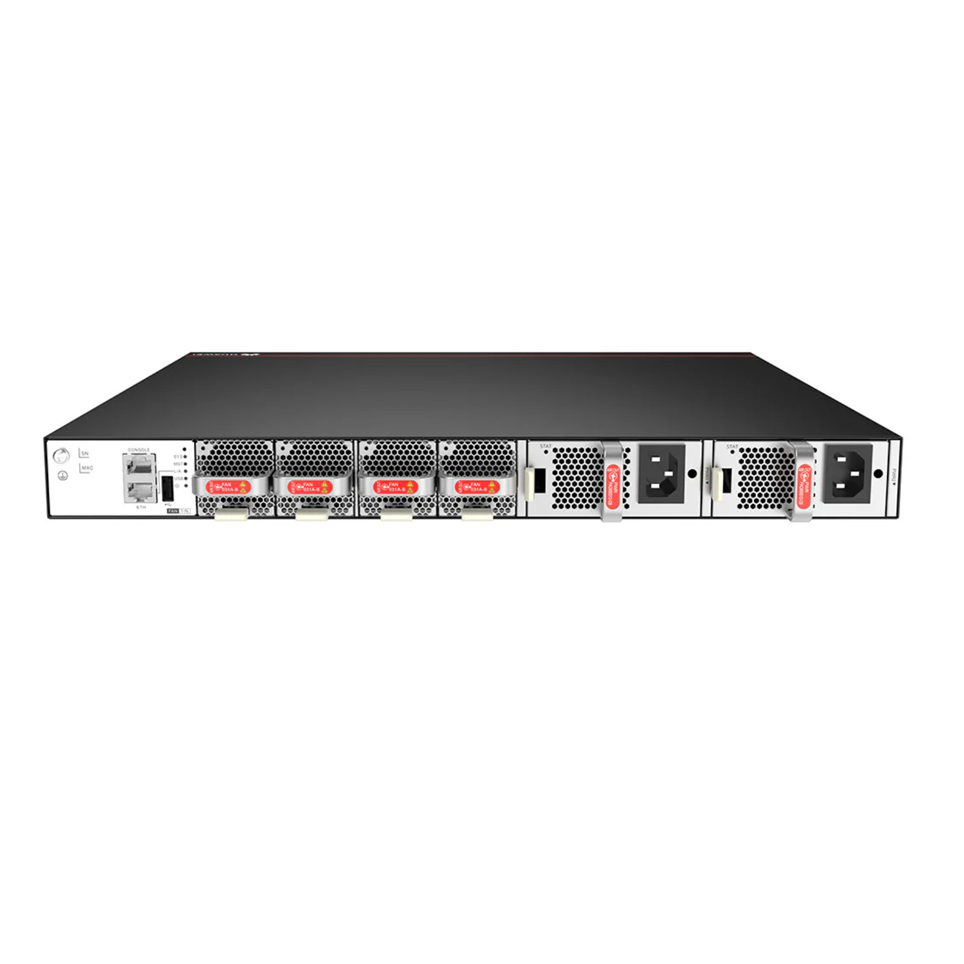

Number of power slots 2
Number of fans modules 4
Redundant power supply 1+1
Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)] –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F)

every time the altitude increases by 220 m (722 ft.).
Devices cannot start when the temperature is lower than 0°C (32°F).
When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V] AC input: 100 V AC to 240 V AC; 50/60 Hz
High-voltage DC input: 240 V DC
DC input: –48 V DC to –60 V DC
Input voltage range [V] AC input: 90–290 V AC; 45–65 Hz
High-voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum input current [A] The current specifications depend on the pluggable power modules in use.

For details, see the related power module specifications.
Memory 4 GB
Flash memory 4 GB in total. To view the available flash memory size, run the display version command.
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] –
Power supply surge protection [kV] AC power module configured: ±6 kV in differential mode, ±6 kV in common mode
DC power module configured: ±2 kV in differential mode, ±4 kV in common mode
Types of fans Pluggable
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air intake from front, air exhaustion from rear (front-to-rear)
PoE Not supported
Part Number 02354NGU
Certification EMC certification
Safety certification
Manufacturing certification
