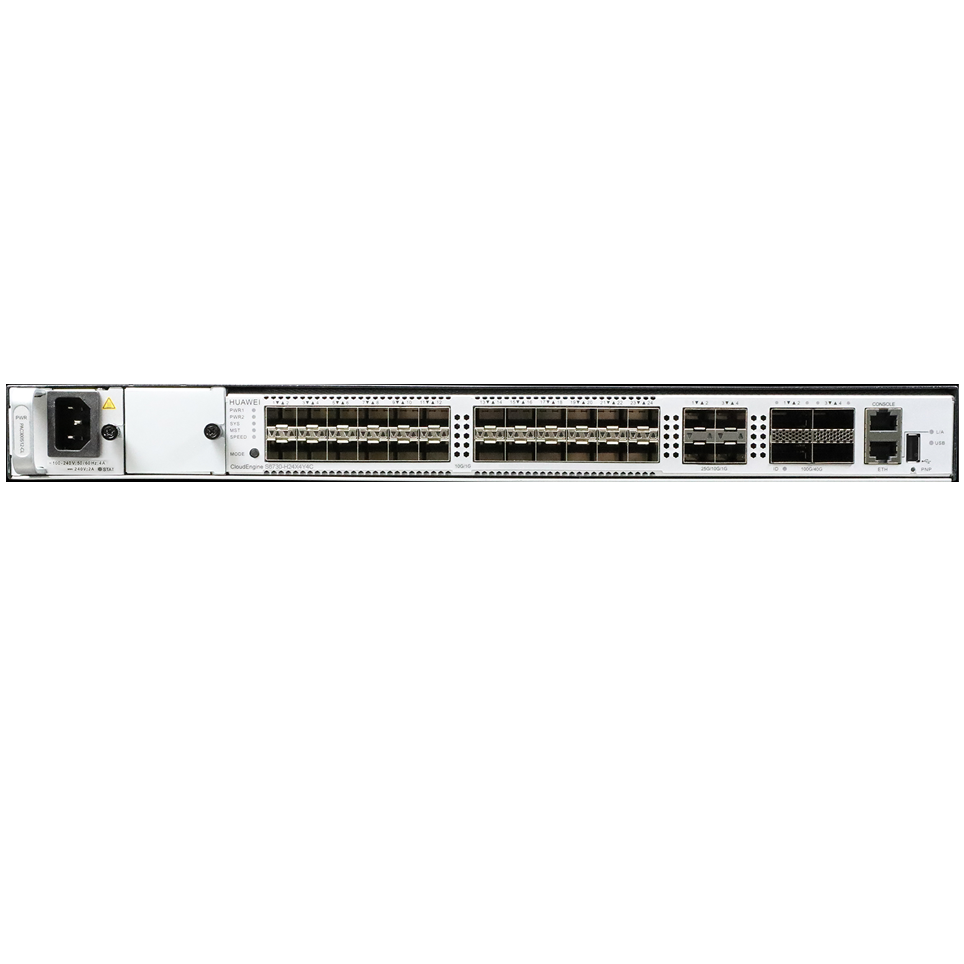

Huawei S6730-H24X4Y4C
Huawei CloudEngine S6730-H24X4Y4C switch with 24-ports 10GE SFP+, 4-ports 25GE SFP28, 4-ports 100GE QSFP28, 2 power slots, with 1xAC power module equipped
Huawei CloudEngine S6730-H24X4Y4C switch with 24-port 10GE SFP+, 4-port 25GE SFP28, 4-port 100GE QSFP28, 2 power slots
Switching capacity: 1.48Tbps/2.4Tbps
128K MAC address entries
Applicable power module:
PDC260S12-DL (260 W DC Power Module)
PAC300S12-CL (300 W AC&240 V DC Power Module)
CloudEngine S6730-H Series 10 GE Switches deliver 10 GE downlink and 100 GE uplink connectivity for enterprise campuses, carriers, higher education institutions, and governments, integrating native Wireless Local Area Network (WLAN) Access Controller (AC) capabilities, to support up to 1024 WLAN Access Points (APs).
| Item | Specification |
| Fixed Ports |
24*10GE SFP+ ports, 4*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module |
| Dimensions with packaging (H x W x D) [mm(in.)] | 115 mm × 545 mm × 360 mm (4.53 in. x 21.46 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Weight without packaging [kg(lb)] | 3.4 kg (7.5 lb) |
| Weight with packaging [kg(lb)] | 4.65 kg (10.25 lb) |
| Typical power consumption [W] | 186 W |
| Typical heat dissipation [BTU/hour] | 634.65 BTU/hour |
| Maximum power consumption [W] | 253 W |
| Maximum heat dissipation [BTU/hour] | 863.26 BTU/hour |
| MTBF [year] | 54.68 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 64.5 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 3 |
| Redundant power supply |
1+1 AC and DC power can be used together. |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC |
| Maximum input current [A] |
300 W AC: 4 A 260 W DC: 10 A |
| Memory | 4 GB |
| Flash memory | 2 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Power supply surge protection [kV] | Using AC power modules: ±6 kV in differential mode, ±6 kV in common modeUsing DC power modules: ±2 kV in differential mode, ±4 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air flows in from the left side and front panel, and exhausts from the right side. |
| PoE | Not supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
| Part Number |
02353NRD |
