Huawei QSFP28-100G-LR4 10KM

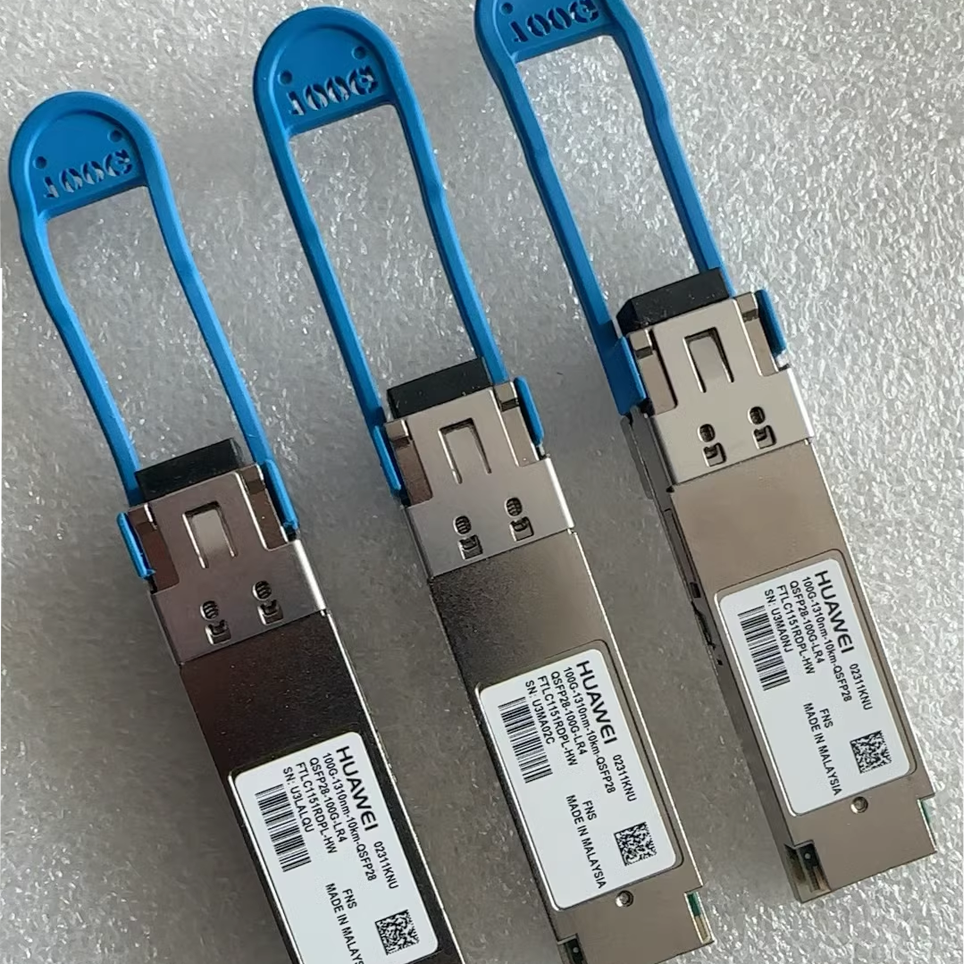

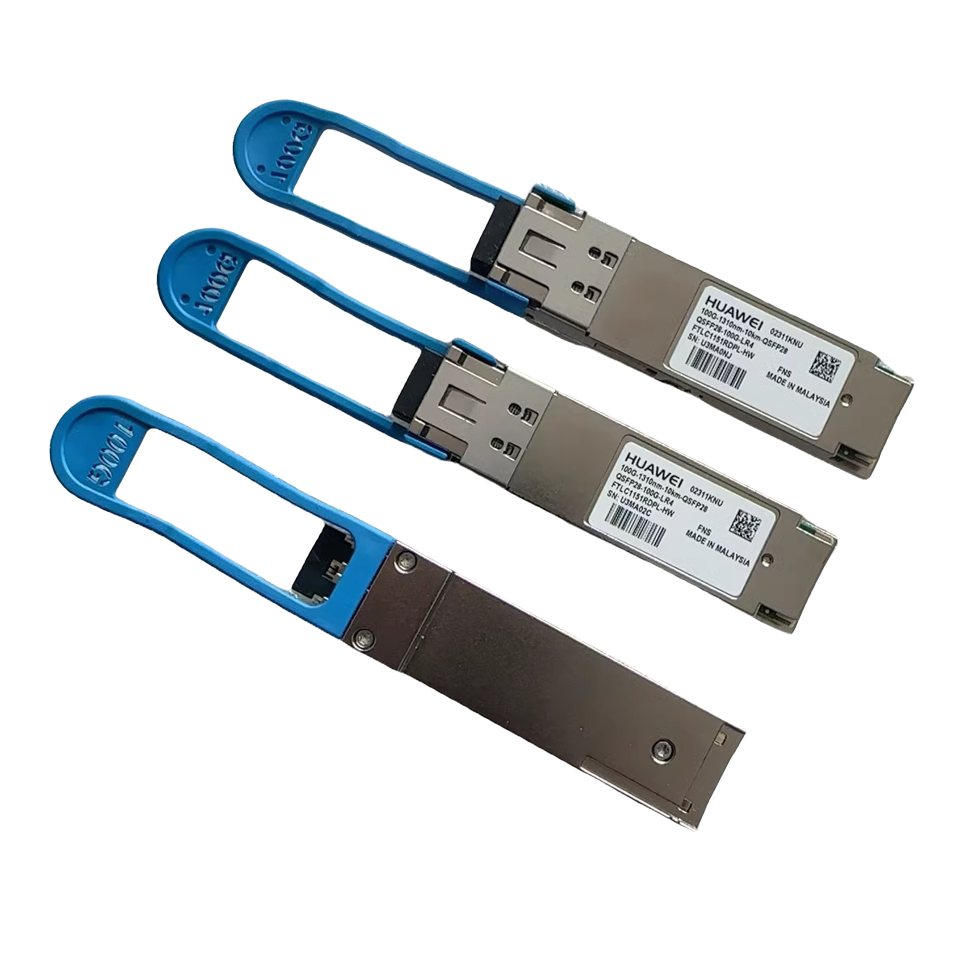

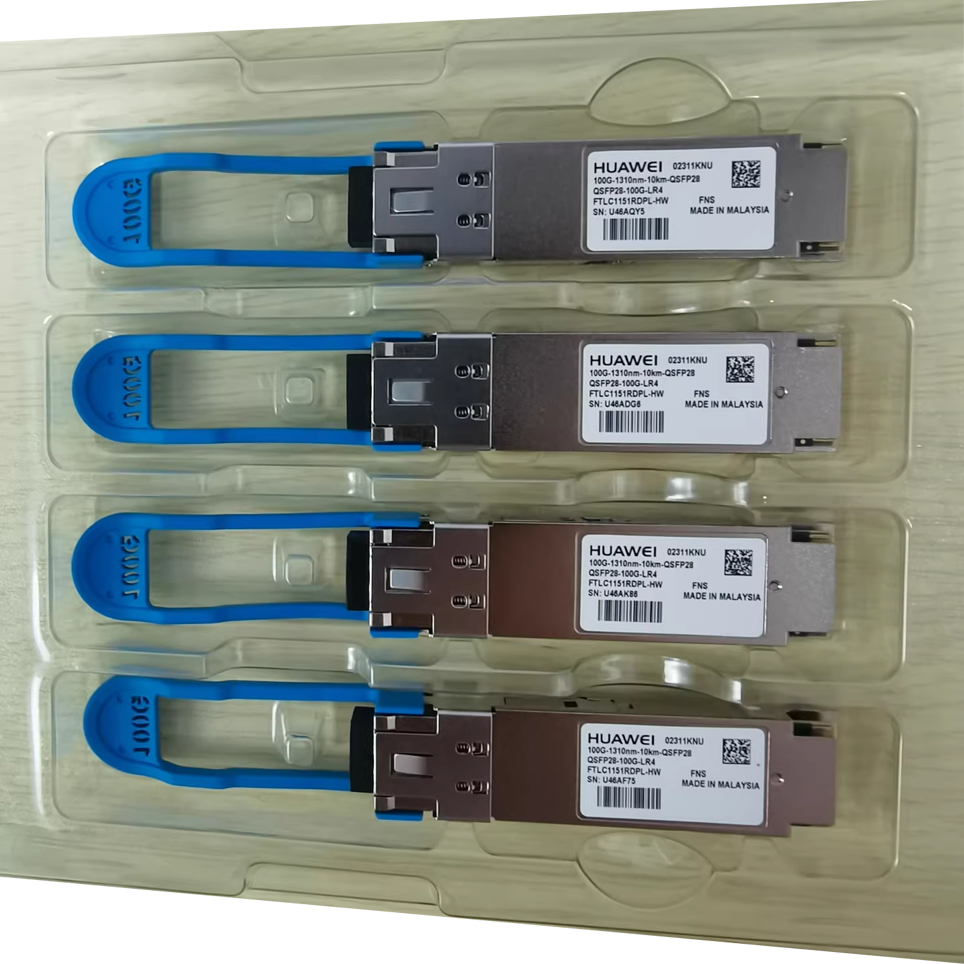

Huawei QSFP28-100G-LR4 10KM Optical Transceiver
|
Item |
Description |
|---|---|
|
Part number |
02311KNU |
|
Version support |
Supported in V200R001C00 and later versions |
|
Transceiver form factor |
QSFP28 |
|
Transmission speed |
100GE |
|
Center wavelength (nm) |
1295, 1300, 1304, 1309 |
|
Standards compliance |
100GBASE-LR4 |
|
Connector type |
LC |
|
Type of the end face of the fiber ceramic ferrule |
PC or UPC |
|
Applicable cable and maximum transmission distance |
Single-mode fiber (G.652) (with diameter of 9 μm): 10 km |
|
Modal bandwidth |
– |
|
Transmit power (dBm) |
-4.3 to +4.5 |
|
Maximum receiver sensitivity (dBm) |
-8.6 |
|
Overload power (dBm) |
4.5 |
|
Extinction ratio (dB) |
≥ 2 |
|
Operating temperature |
0°C to 70°C |
