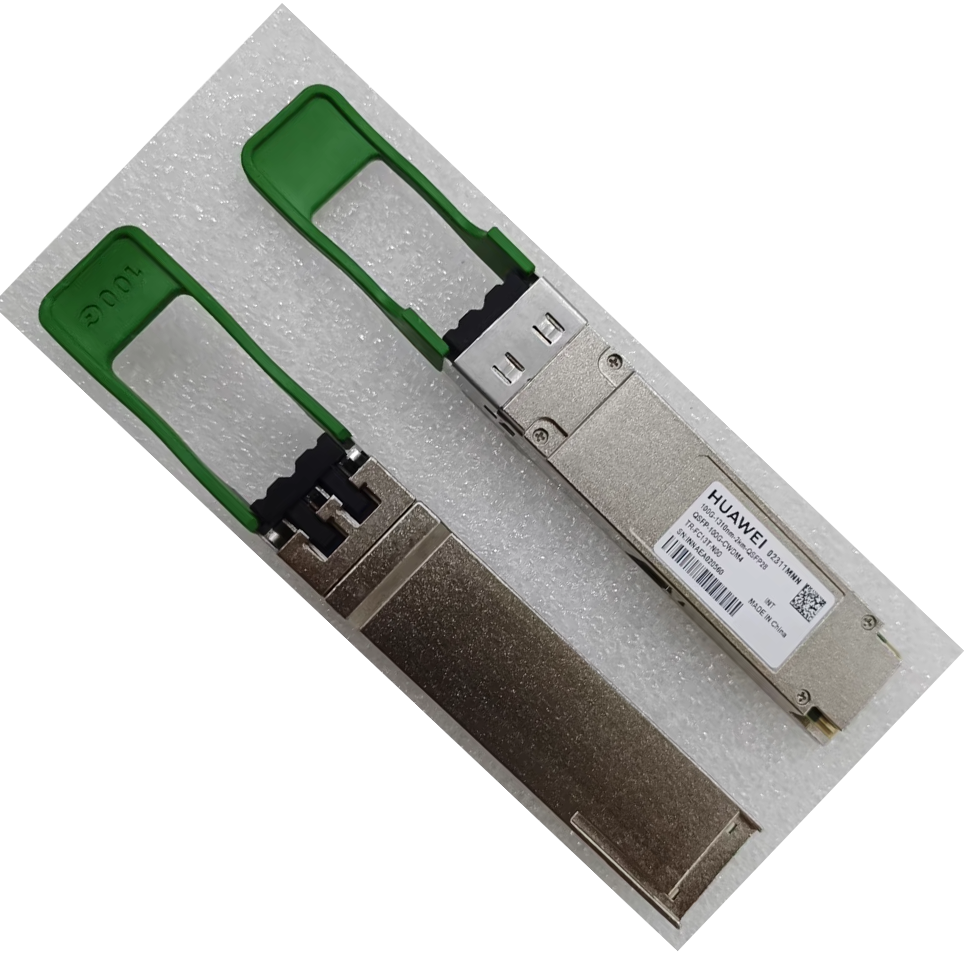

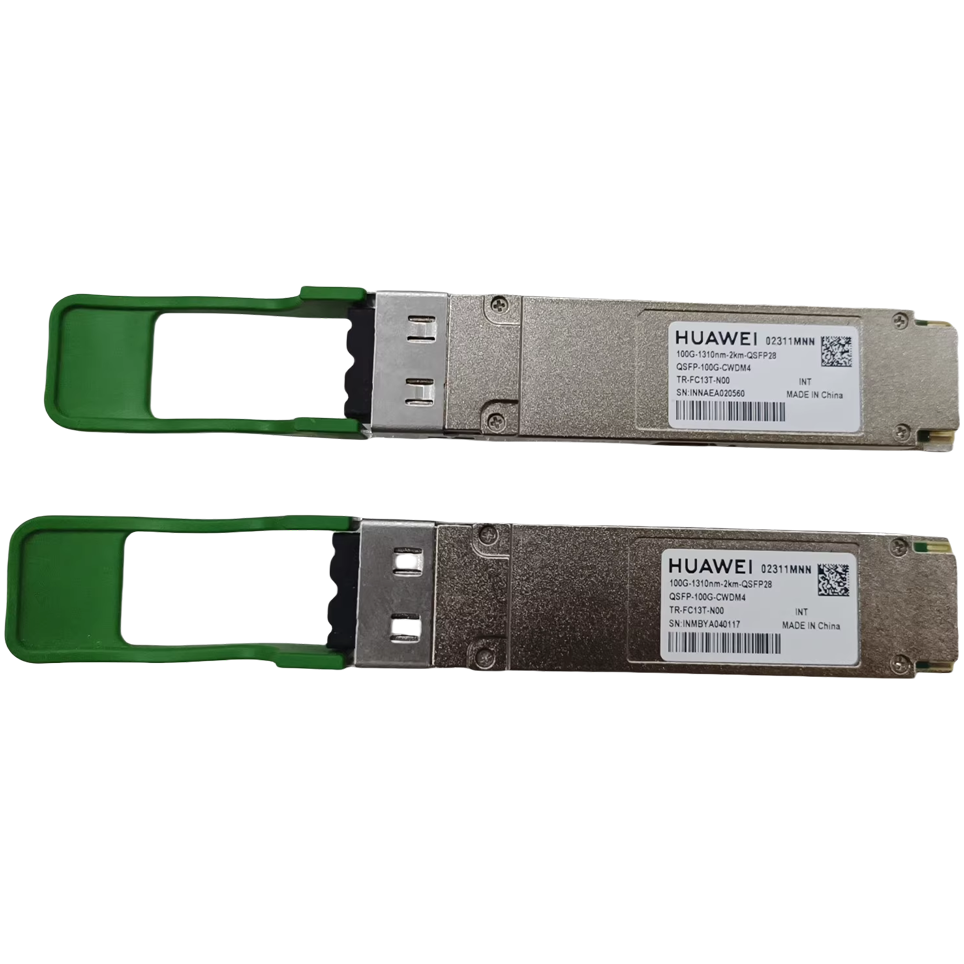

Huawei QSFP-100G-CWDM4 Module
Huawei QSFP-100G-CWDM4-1310nm-2km-LC
| Item | Value |
|---|---|
| Basic Information | |
| Module name | QSFP-100G-CWDM4 |
| Part Number | 02311MNN |
| Model | QSFP-100G-CWDM4 |
| Form factor | QSFP28 |
| Application standard | 100GBase-CWDM4 |
| Connector type | LC |
| Optical fiber type | SMF |
| Working case temperature [°C(°F)] | 0°C to 70°C |
| Transmission rate [bit/s] | 100Gbit/s |
| Target transmission distance [km] | 2 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 1310 nm |
| Maximum Tx optical power [dBm] | 2.5 dBm |
| Minimum Tx optical power [dBm] | -6.5 dBm |
| Minimum extinction ratio [dB] | 3.5 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity (AVG) [dBm] | -10 dBm |
| Overload power (AVG) [dBm] | 2.5 dBm |
