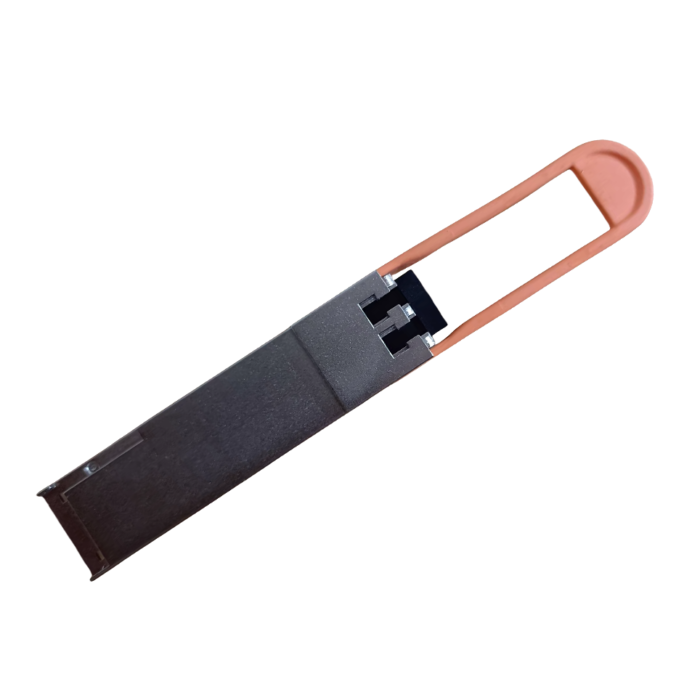

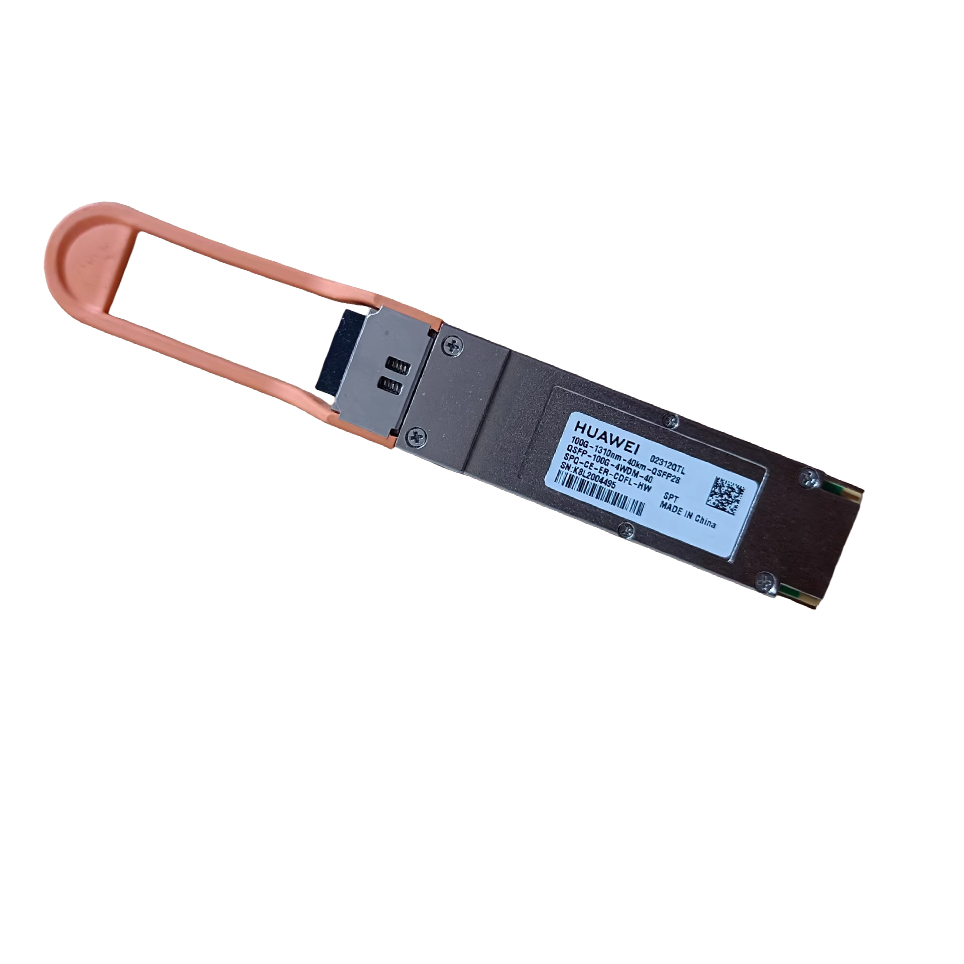

HUAWEI QSFP-100G-4WDM-40 Module
Huawei 02312QTL QSFP-100G-4WDM-40 100GBase-4WDM-40 Optical Transceiver
| Item | Value |
|---|---|
| Basic Information | |
| Module name | QSFP-100G-4WDM-40 |
| Part Number | 02312QTL |
| Model | QSFP-100G-4WDM-40 |
| Form factor | QSFP28 |
| Application standard | 100GBASE-4WDM |
| Connector type | LC |
| Optical fiber type | SMF |
| Working case temperature [°C(°F)] | 0°C to 70°C |
| Transmission rate [bit/s] | 100Gbit/s |
| Target transmission distance [km] | 40 km |
| Transmitter Optical Characteristics | |
| Center wavelength [nm] | 1310 nm |
| Maximum Tx optical power [dBm] | 2.9 dBm |
| Minimum Tx optical power [dBm] | -2.5 dBm |
| Minimum extinction ratio [dB] | 8 dB |
| Receiver Optical Characteristics | |
| Rx sensitivity (AVG) [dBm] | -21.4 dBm |
| Overload power (AVG) [dBm] | -3.5 dBm |
