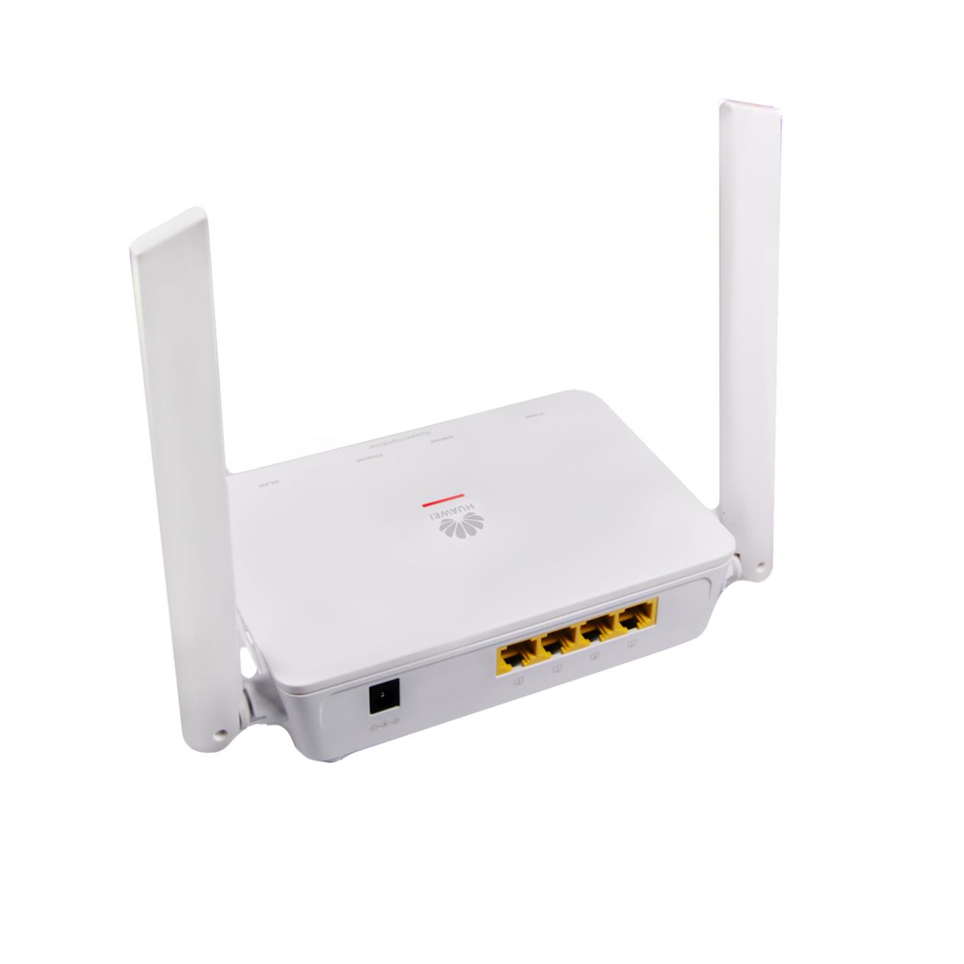

Huawei Original OptiXstar K562e-10
Edge ONT Huawei OptiXstar Mesh K562e-10
Huawei K562e-10 is a wireless router supporting the Wi-Fi 6 standard. It can transmit wireless networks in both the 2.4 GHz and 5 GHz bands simultaneously, utilizing IEEE 802.11 b/g/n/ax in the 2.4 GHz band and IEEE 802.11 a/n/ac/ax in the 5 GHz band. The maximum theoretical throughput is 574 Mbps in the 2.4 GHz band and 2402 Mbps in the 5 GHz band. The device features 4 gigabit Ethernet ports (10/100/1000 Mbps), with one of the ports usable as a WAN port. The router supports Mesh networking and can wirelessly communicate with other Huawei solutions. Pairing devices is simple using the button located on the housing.
Specifications:
| Huawei K562e-10 | |
| Physical | |
|---|---|
| Dimensions (H x W x D) | 35 mm × 155 mm × 105 mm (without pads or antennas) |
| Weight (Without power adapter) | About 239 g |
| Rated Power Input for Power Adapter | 100 – 240 V AC, 50/60 Hz |
| System power supply | 12 V DC, 1 A |
| Static power consumption | 4,2 W |
| Max power consumption | 12 W |
| Indicator | 4 status indicators |
| Buttons | Reset and WLAN/WPS button |
| Memory | 128MB Flash, 256MB RAM |
| Installation mode | On the desk/Wall-mounted |
| Operating temperature | 0°C – +40°C |
| Operating humidity | 5% RH to 95% RH (noncondensing) |
| Ethernet ports | 4 gigabit Ethernet ports
10/100/1000 Mb/s |
| Antenna type | 2 external antennas |
| Wi-Fi | |
| Supported Protocol | Wi-Fi 6
2,4 GHz: IEEE 802.11 b/g/n/ax 5 GHz: IEEE 802.11 a/n/ac/ax |
| MIMO | 2×2 MIMO (2.4GHz&5GHz) |
| Antenna gain | 7 dBi |
| Air interface rate | 2,4 GHz: 574 Mb/s
5 GHz: 2402 Mb/s |
| Others | 1024-QAM
160 MHz channel width WPA3 DL MU MIMO |
| Software | |
| Home Network | Plug and play One-click pairing and automatic networking Automatic Wi-Fi configuration synchronization Wi-Fi channel optimization within the home network Wi-Fi roaming (802.11k/802.11v) within the home network VR/4K over Wi-Fi Network self-healing Mesh network (tree type) |
| Home Network Management | Web management (only from LAN side) Technician APP eAI acceleration management Management of mobile phone APPs of users:
|
| Smart interconnection | 2 upstream modes: Ethernet upstream mode and Wi-Fi upstream mode
Working modes:
Auto-sensing of LAN or WAN on the network port (Internet access available when the network cable is connected to either port)
Auto-detection of Internet access mode (PPPoE/DHCP) |
| Layer 3 Features | PPPoE/static IP/DHCP NAT/NAPT Port forwarding ALG, UPnP DDNS/DNS server/DNS client IPv6/IPv4 dual stack Static/default routes |
| Q&M | Web UI Dual-system software backup and rollback |
| Security | SPI firewall Parent control |
