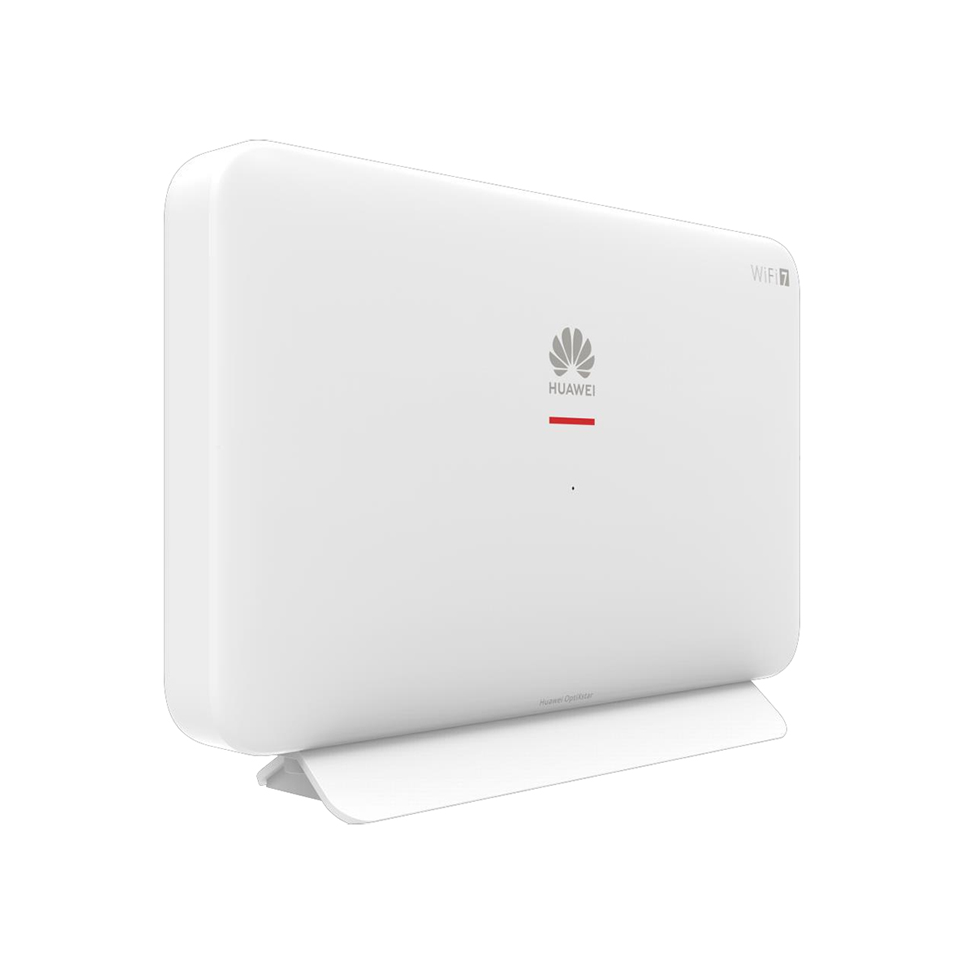

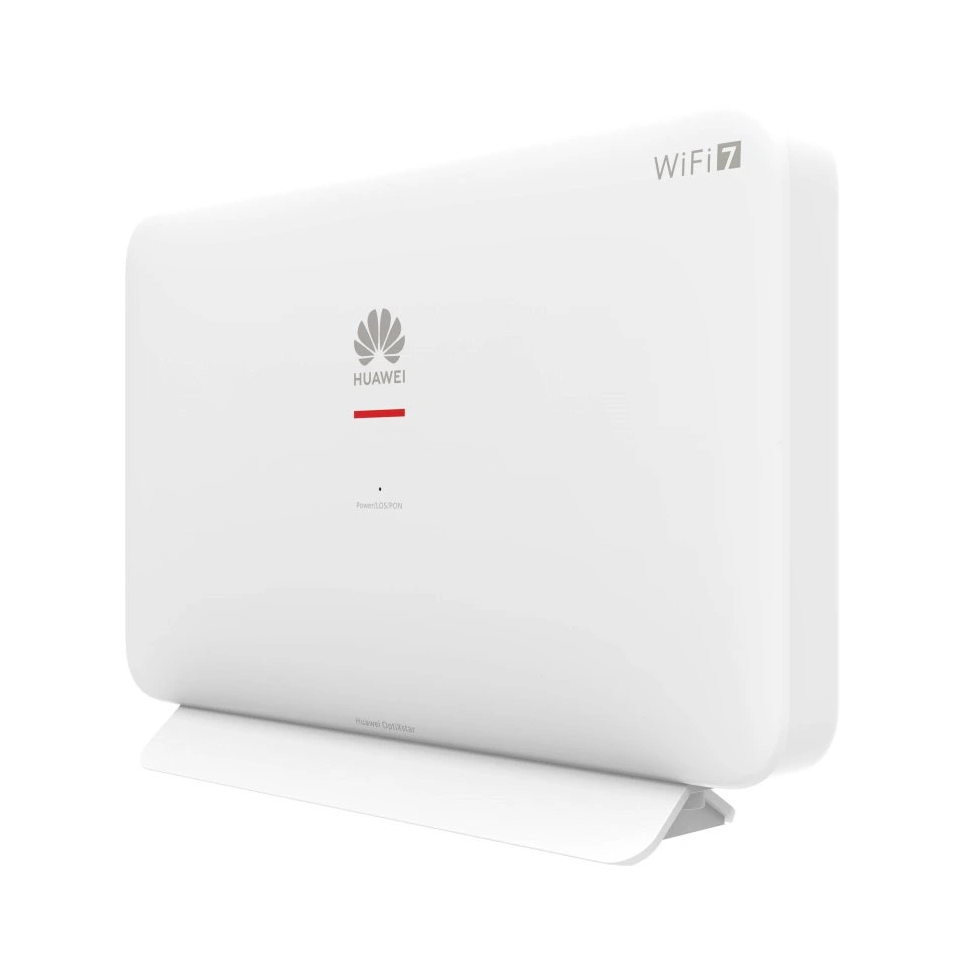

Huawei Original OptiXstar EN8145B7N XGS-PON ONT
Huawei OptiXstar EN8145B7Ns XGS-PON ONT terminal Wi-Fi 7 WITH 1×2.5GE+3xGE+1xPOTS+1xUSB SC/APC
Huawei OptiXstar EN8145B7Ns is an XGS-PON and Wi-Fi 7 routing-type ONT. It uses the XGS-PON and Wi-Fi 7 technologies to implement ultra-broadband access, high performance and wide coverage for users. The high forwarding performance ensures the user experience of voice and data services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
It provides one 2.5GE port, three GE ports, one POTS port, one USB port and 2.4GHz&5GHz Wi-Fi 7 functions.
Specifications
| Huawei EN8145B7Ns | |
| Main Parameters | |
|---|---|
| Dimensions (H x W x D) | 157 mm x 250 mm x 30 mm (excluding the base) |
| System power supply | 12 V DC, 1,5 A |
| Power adapter input | 100 – 240 V AC, 50/60 Hz |
| Installation mode | Vertically placed on a desk or mounted on a wall |
| Operating temperature | 0°C ~ +40°C |
| Operating humidity | 5%–95% RH, non-condensing |
| NNI (WAN) | XGS-PON |
| UNI (LAN) | 1x 2.5GE, 3x GE, 1x POTS, 1x USB 2.0, Wi-Fi 7 |
| Optical connector | SC/APC |
| Memory | 128 MB Flash, 512 MB RAM |

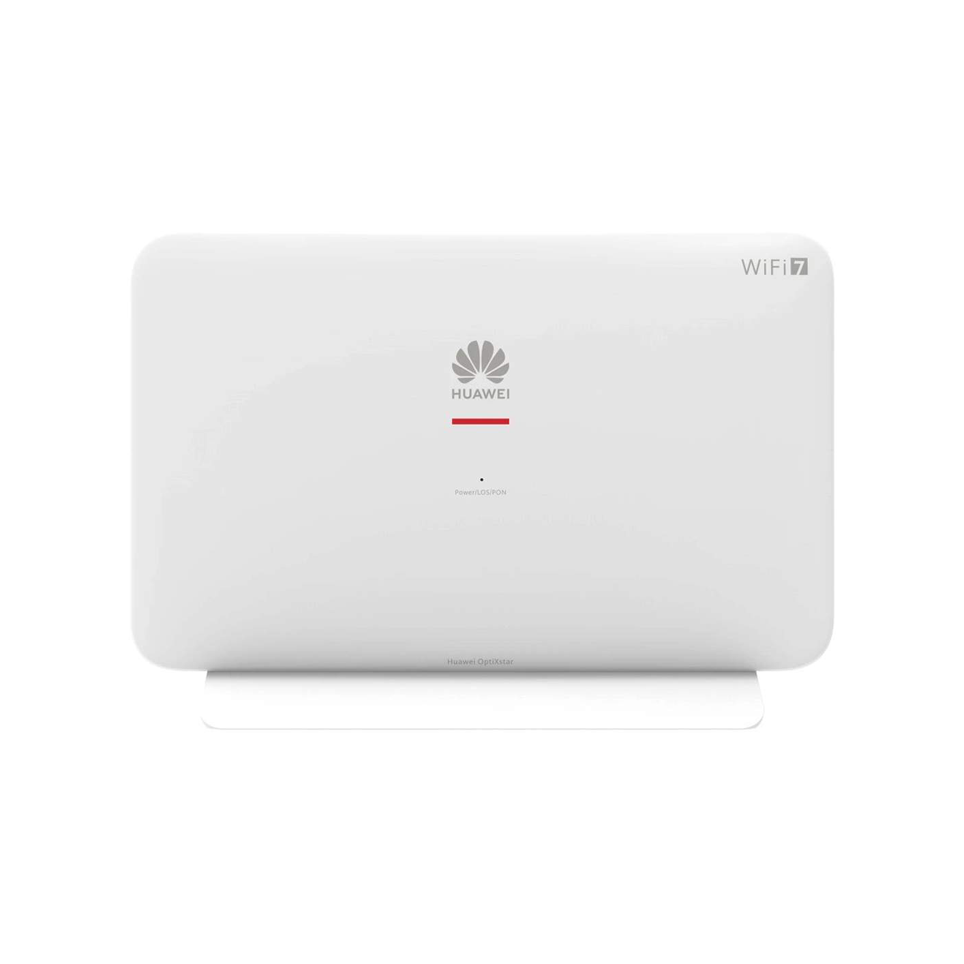

| Indicator | Indicator on front panel (POWER+LOS+PON integrated)

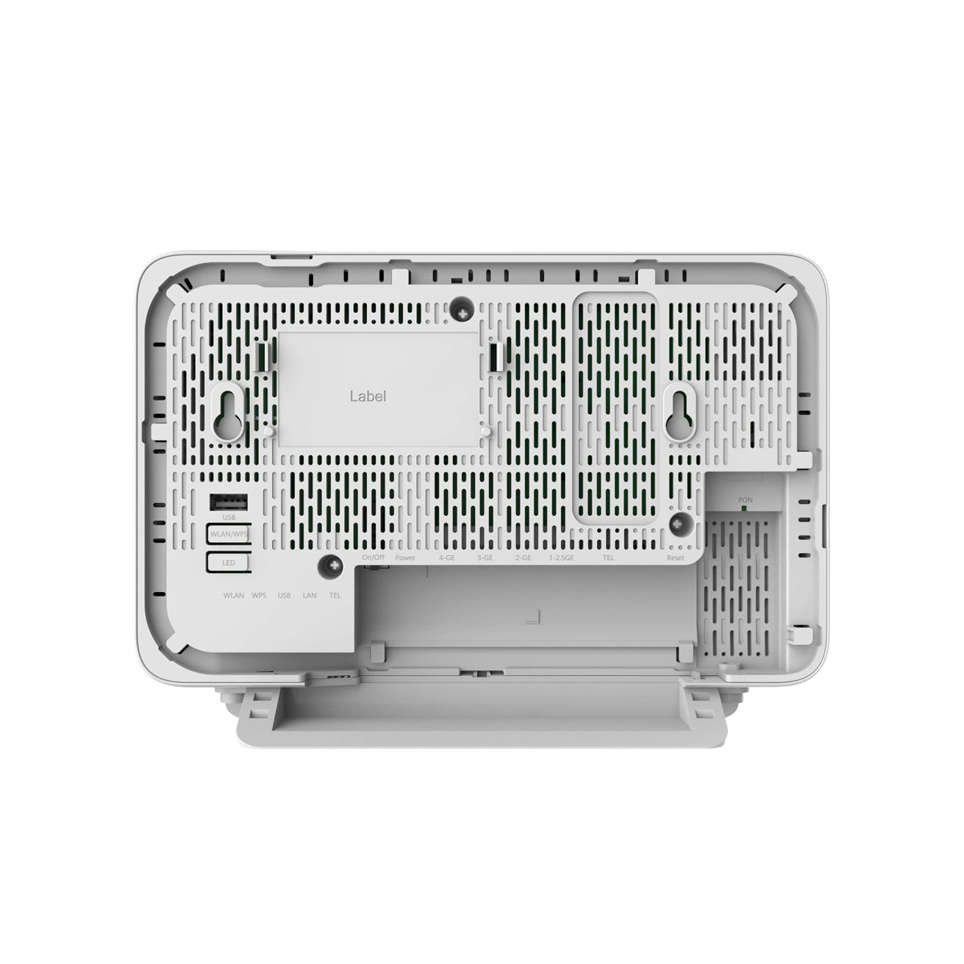

Indicators on rear panel: WLAN/WPS/USB/LAN/TEL |
| Interface properties | |
| XGS-PON port | Class N1/N2/E1 Receiver sensitivity: -28 dBm Wavelengths: 1260–1280 nm upstream, 1575–1580 nm downstream Upstream and downstream rate: 9.953 Gbit/s upstream, 9.953 Gbit/s downstream Wavelength blocking filter (WBF) Flexible mapping between GEM Port and TCONT SN/Password/SN+Password/Bi-directional authentication based on OMCI Upstream and downstream FEC SR-DBA and NSR-DBA |
| Ethernet port | Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limitation on the number of learned MAC addresses MAC address learning GE port supports 10 Mbit/s, 100 Mbit/s and 1000 Mbit/s auto-adaptation 2.5GE port supports 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s and 2500 Mbit/s auto-adaptation |
| WLAN | IEEE 802.11 b/g/n/ax/be (2.4 GHz) IEEE 802.11 a/n/ac/ax/be (5 GHz) 2×2 MIMO (2.4 GHz&5 GHz) Antenna gain: 5 dBi WMM (Wi-Fi Multi Media) Air interface rate: 688 Mbit/s(2.4 GHz); 2882 Mbit/s(5 GHz) 4096 QAM 160 MHz frequency bandwidth WPA3/WPA2/WPA1 WPS Multiple SSIDs MU-MIMO MLO (Multi-Link Operation) Multi-RU |
| POTS port | Maximum REN: 4 G.711A/μ, G.729a/b, and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (with the SIP protocol) |
| USB port | USB2.0 FTP-based network storage File/Print sharing based on SAMBA DLNA function |
| Product Function | |
| Smart Interconnection | Smart Wi-Fi coverage SIP/H.248 auto-negotiation Any port any service Parental control |
| Smart service | Scheduled Wi-Fi shutdown Smart Wi-Fi sharing: Portal/802.1x authentication; SoftGREbased sharing |
| Smart O&M | IPTV video quality diagnosis eMDI Rogue ONT detection and isolation from the OLT Call emulation, and circuit test and loop-line test PPPoE/DHCP simulation testing WLAN emulation |
| Common O&M | OMCI/Web UI/TR069 Variable-length OMCI messages Dual-system software backup and rollback |
| Multicast | IGMP v2/v3 proxy
IGMP v2/v3 snooping MLD v1/v2 snooping |
| Security | SPI firewall Anti-DOS attack Filtering based on MAC/IP/URL addresses |
| Layer 3 features | PPPoE/Static IP/DHCP NAT/NAPT Port forwarding ALG, UPnP DDNS/DNS server/DNS client IPv6/IPv4 dual stack, DSLite and IPv6 SPI Static/Default routes Multiple services on one WAN port |
| Home network feature | Visualized home network management User-defined bandwidth allocation Wi-Fi optimization & Wi-Fi roaming Wi-Fi O&M intelligent identification and antiinterference |
| QoS | Ethernet port rate limitation 802.1p priority SP/WRR/SP+WRR Broadcast packet rate limitation |
