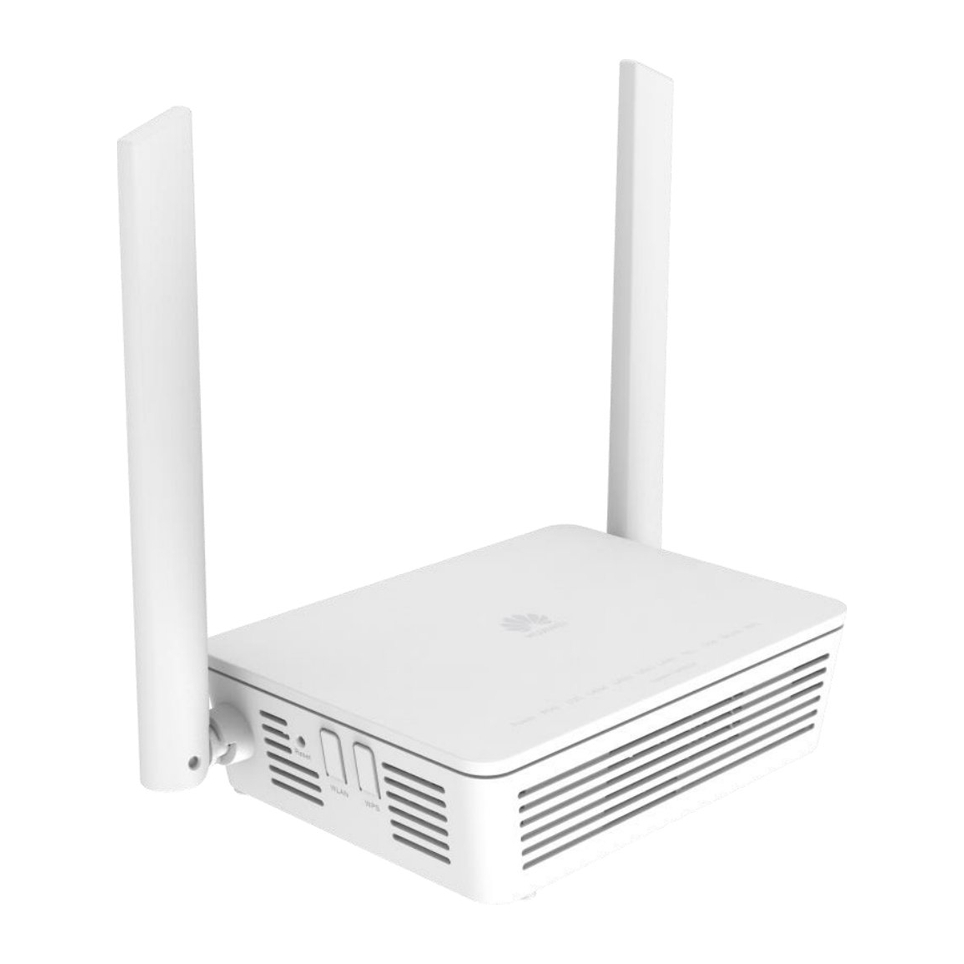

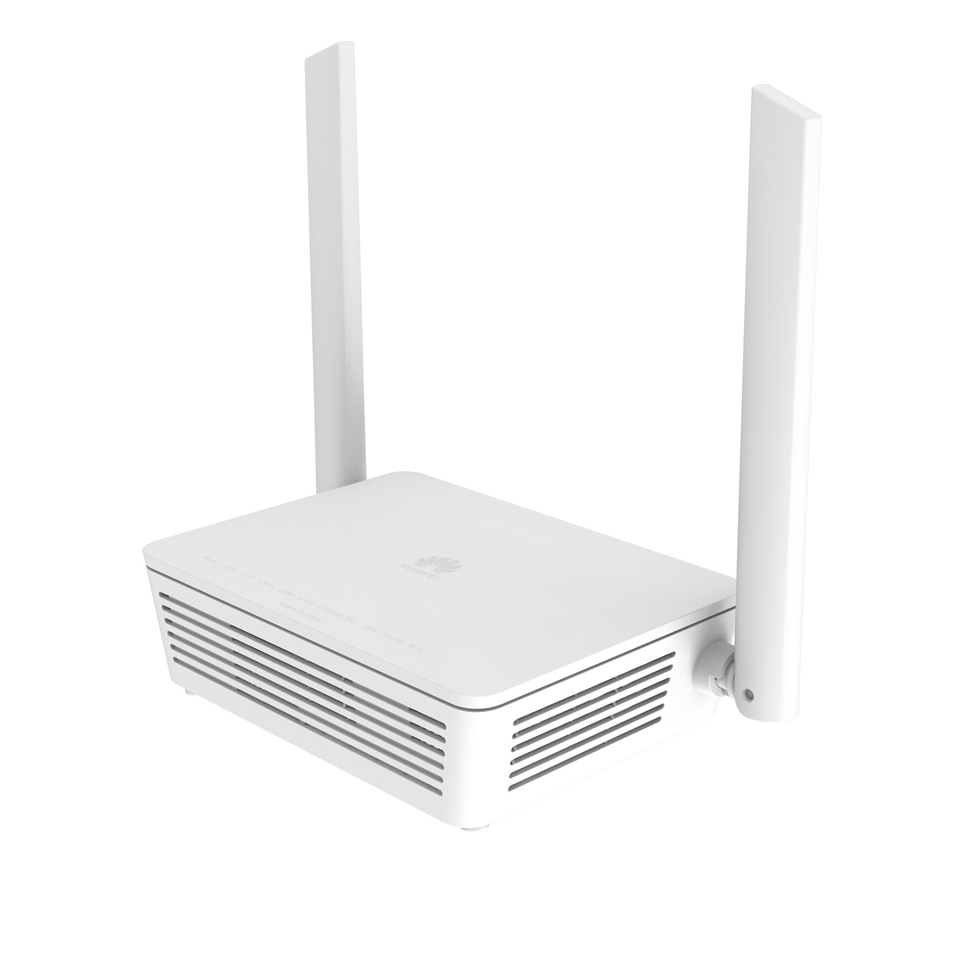

Huawei Original OptiXstar EG8145B7N-50 Wi-Fi 7
Huawei OptiXstar EG8145B7N-50 GPON ONT terminal Wi-Fi 7 GPON ONT With 1x 2.5GE+3x GE+1x POTS+1x USB SC/APC.
Huawei OptiXstar EG8145B7N-50 is a GPON and Wi-Fi 7 routing-type ONT. It uses the GPON and Wi-Fi 7 technologies to implement ultra-broadband access, high performance and wide coverage for users. The high forwarding performance ensures the user experience of voice and data services, and provides customers with an ideal all-optical access solution and future oriented service support capability. It provides one 2.5GE port, three GE ports, one POTS port, one USB port and 2.4GHz&5GHz Wi-Fi 7 function.
Specifications
| Huawei EG8145B7N-50 | |
| Device Parameters | |
|---|---|
| Dimensions (H x W x D) | 40 mm x 150 mm x 108 mm (without external antenna and pads) |
| Weight | About 282 g |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 5% RH to 95% RH (noncondensing) |
| System power supply | 12 V DC, 1,5 A |
| Power adapter input | 100 – 240 V AC, 50/60Hz |
| Memory | 128 MB Flash
256 MB RAM |
| Static power consumption | 5 W |
| Maximum power consumption |
14 W |
| NNI (WAN) | GPON |

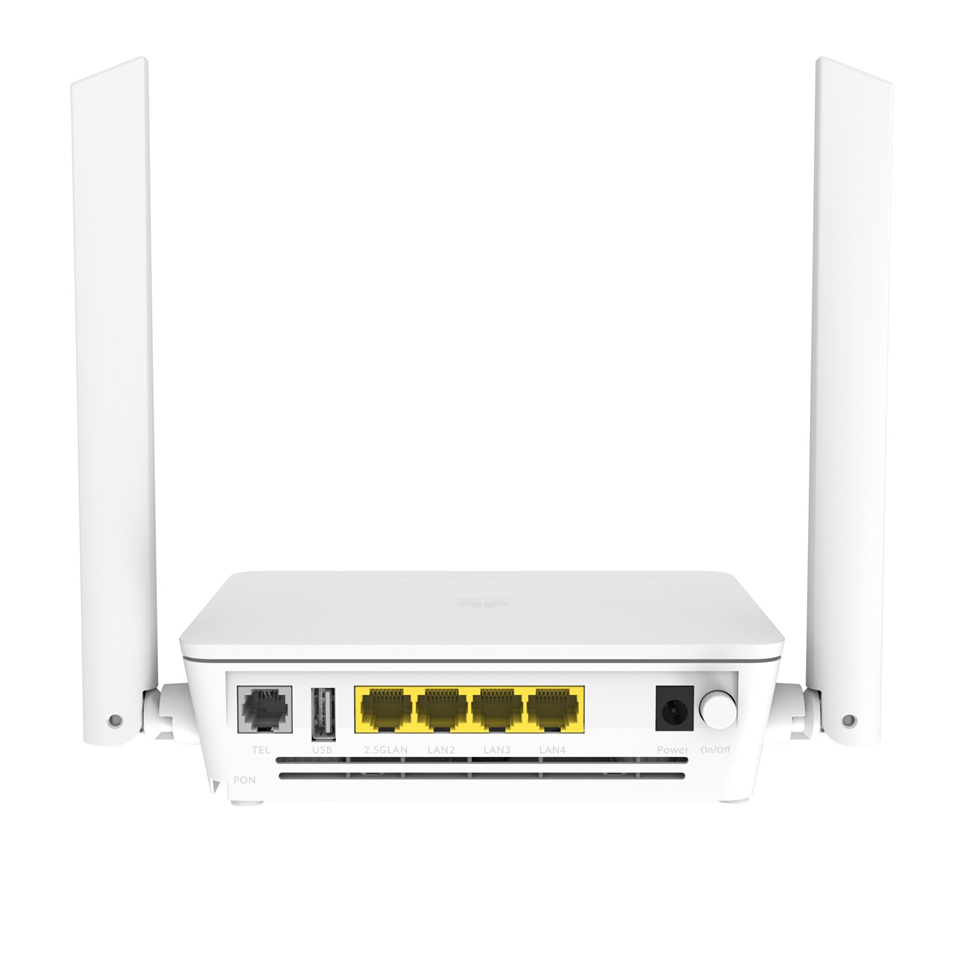

| UNI (LAN) | 1x 2.5GE, 3x GE, 1x POTS, 1x USB, Wi-Fi 7 |
| Optical connector | SC/APC |
| Indicators | Power / PON / LOS / LAN1 / LAN2 / LAN3 / 2.5GLAN / TEL / USB / WLAN / WPS |
| Interface Parameters | |
| GPON port | Class B+ Receiver sensitivity: -27 dBm Overload optical power: -8 dBm Wavelengths: US 1310 nm, DS 1490 nm Wavelength blocking filter (WBF) of G.984.5 Flexible mapping between GEM Port and TCONT GPON: consistent with the SN or password authentication defined in G.984.3 Bi-directional FEC SR-DBA and NSR-DBA |
| WLAN | IEEE 802.11 b/g/n/ax/be (2.4GHz) IEEE 802.11 a/n/ac/ax/be (5GHz) 2×2 MIMO (2.4GHz&5GHz) Antenna gain: 5 dBi Air interface rate: 688 Mbit/s (2.4GHz), 2882 Mbit/s (5GHz) 4096 QAM 160 MHz frequency bandwidth OFDMA MU-MIMO DCM BSS Coloring Beamforming Band steering WPA3 MLO (Multi-Link Operation) Multi-RU WMM/Multiple SSIDs/WPS |
| POTS port | Maximum ringer equivalence number (REN): 4 G.711A/μ, G.729a/b and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (with the SIP protocol) |
| USB port | USB2.0 FTP-based network storage File/Print sharing based on SAMBA DLNA function |
| Ethernet port | 1×2.5GE+3xGE Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning GE port supports auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s 2.5GE port supports auto-adaptive 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s or 2500 Mbit/s |
| Product Function | |
| Smart interconnection | Smart Wi-Fi coverage SIP/H.248 auto-negotiation Any port any service Parental control |
| Smart service | Scheduled Wi-Fi shutdown Smart Wi-Fi sharing: Portal/802.1x authentication; SoftGRE-based sharing |
| Smart O&M | IPTV video quality diagnosis Rogue ONT detection and isolation from the OLT Call emulation, and circuit test and loop-line test PPPoE/DHCP simulation testing Neighboring AP scanning |
| Layer 3 features | PPPoE/Static IP/DHCP NAT/NAPT Port forwarding ALG, UPnP DDNS/DNS server/DNS client IPv6/IPv4 dual stack, DS-Lite and IPv6 SPI Static/Default routes Multiple services on one WAN port |
| Multicast | IGMP v2/v3 snooping IGMP v2/v3 proxy MLD v1/v2 snooping |
| Security | SPI firewall Filtering based on MAC/IP/URL addresses Secure boot |
| Q&M | OMCI/Web UI/TR069 Variable-length OMCI messages Dual-system software backup and rollback |
| QoS | Ethernet port rate limitation 802.1p priority SP/WRR/SP+WRR Broadcast packet rate limitation |
| Home network feature | Visualized home network management User-defined bandwidth allocation Wi-Fi optimization & Wi-Fi roaming Wi-Fi O&M |
