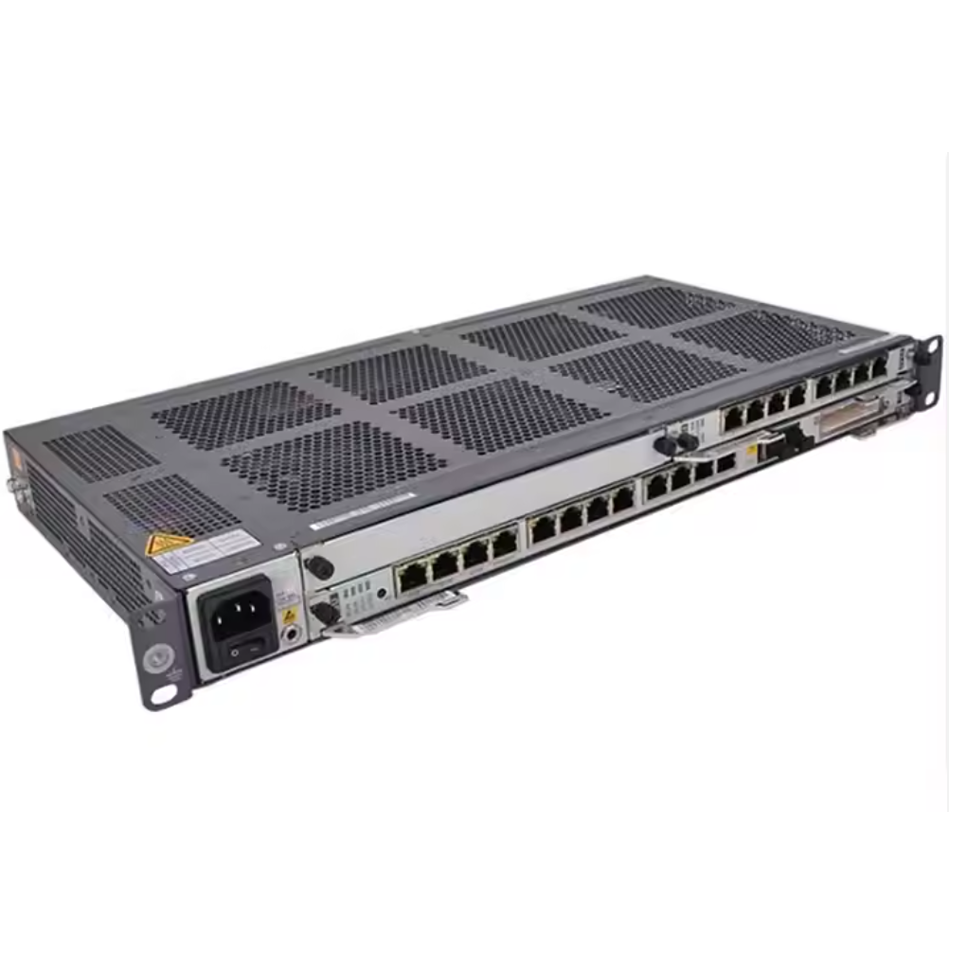

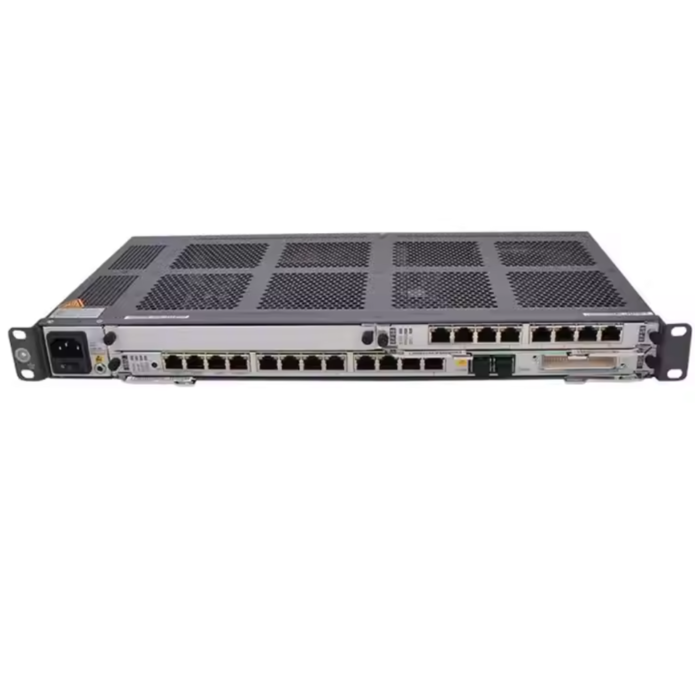

Huawei OptiX OSN500
OSN 500 Subrack, 2 PCS Power Cable, 1 PCS Earth Cable, 2 PCS Mount Ear, accessory Package.
Huawei OSN500 is a STM-4 level MSTP, supports a chain or ring network by using the STM-1/STM-4 optical interfaces. Besides OSN 500, Thunder-link.com also provide larger capacity OSN3500, OSN 7500, if your service requirement is STM16 level, we can provide OSN 1500, OSN 2500.
Tech Specs:
| Specifications | ||||
| Cross-connect Capacity | Higher-order full cross-connections of 21.25 Gbit/Lower-order full cross-connections of 5 Gbit/s. | |||
| Service Slots | 3 slots for processing boards | |||
| Supported interfaces | SDH interfaces | STM-1 optical interface: S-1.1, L-1.1 and L-1.2 STM-4 optical interface: S-4.1, L-4.1 and L-4.2 |
||
| PDH interfaces | 75-ohm/120-ohm E1 electrical interface 100-ohm T1 electrical interface 75-ohm E3/T3 electrical interface |
|||
| Ethernet interfaces | 10/100BASE-T(X), 1000BASE-T 100BASE-BX/FX/LX/VX/ZX, 1000BASE-SX/LX/VX/ZX |
|||
| Maximum Number of Services Supported by a Single Subrack |
Service Interface | Max | Service Interface | Max |
| STM-1 | 4 | E1/T1 | 84 | |
| E3/T3 | 6 | GE | 8 | |
| FE | 16 | |||

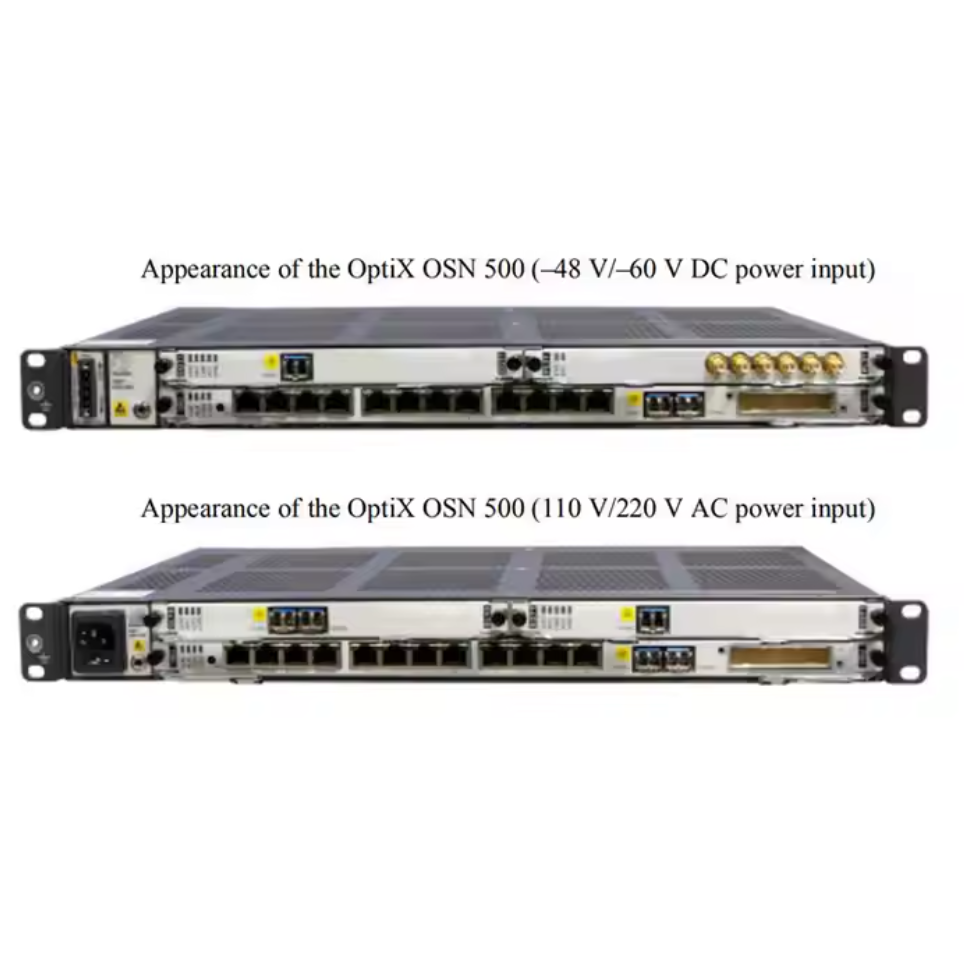

| Power Supply | DC: -48V DC or -60V DC AC: 220V/110V AC |
|||
| Clock Synchronization | 120-ohm external clock source Line clock source Tributary clock source |
|||
| Auxiliary Interface | F2 transparent data interface Local modem interface/Remote NM interface |
|||
| Mechanical Specification | ||||
| Dimensions(mm) | 442 (H) x 220 (W) x 44 (D) | |||
| Weight(kg) | 10 | |||
