Huawei OptiX OSN3500

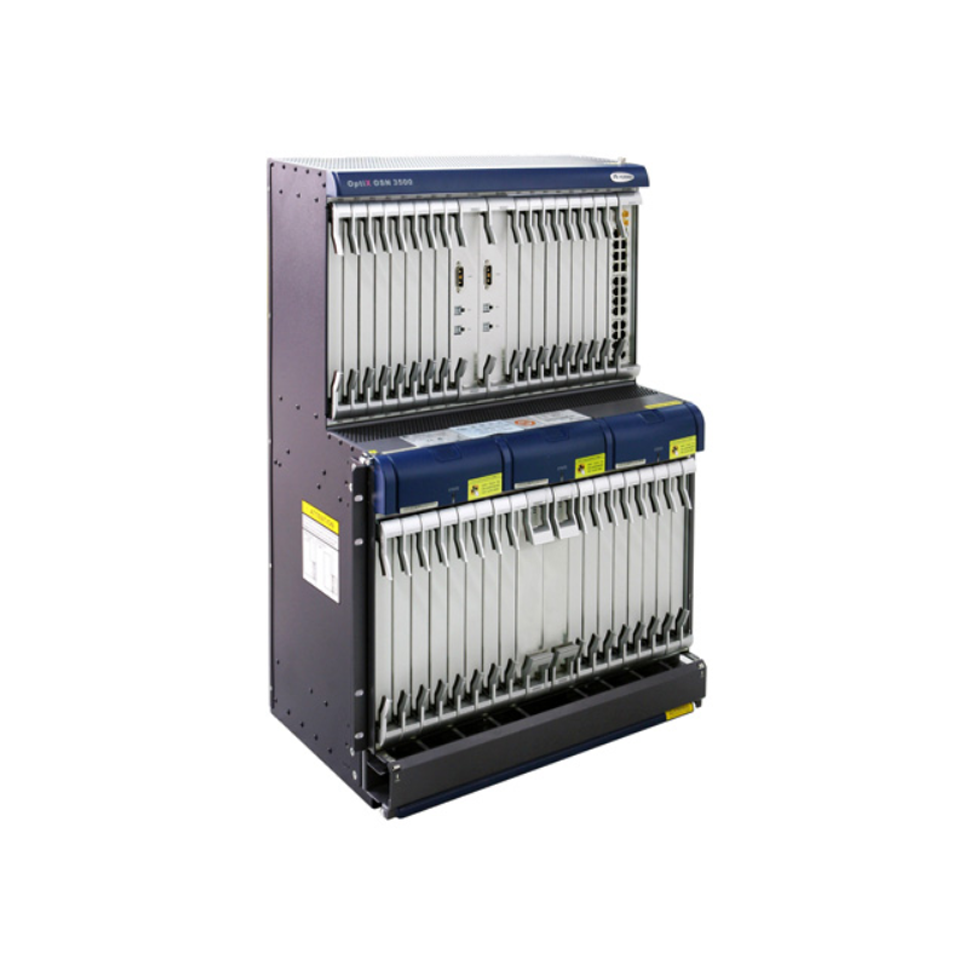

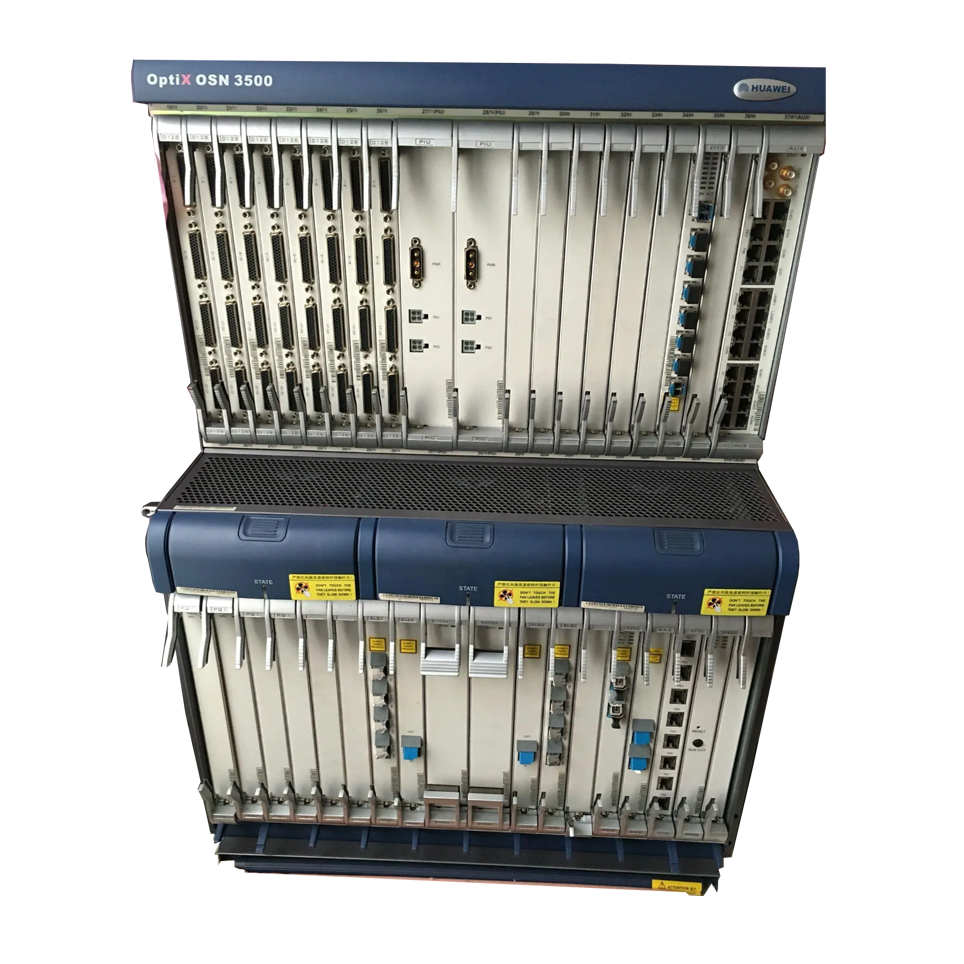

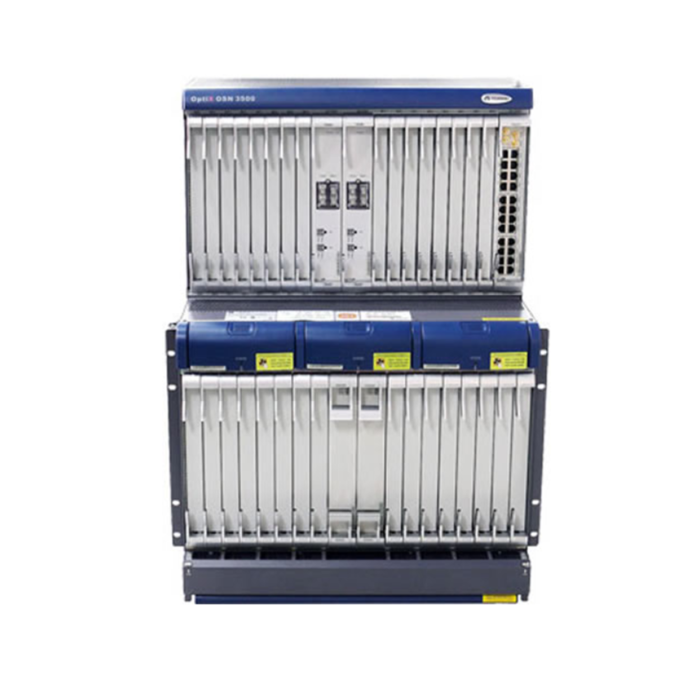

Huawei STM-64/STM-16 level MSTP OSN3500 Subrack with 15 service slots, equipped with 2xSSN1PIUB, 1xSSN1AUX.
Huawei OSN3500 (SDH intelligent optical transmission equipment) is a new generation of intelligent optical transmission equipment developed. It adopts a unified switching architecture and can be used as a packet device and TDM device based on MPLS/MPLS-TP technology.
OSN3500 empty subrack SSNESUBRACK default equipped with 2 SSN1PIU (Power Interface Unit), 1 SSN1AUX (System Auxiliary Interface Board), 2 PCS power cable, 1 PCS earth cable, 1 accessory package. Others system board and service board are configurable.
Tech Specs:
| Specifications | ||||
| Switch Capacity | TDM: 200 Gbit/s (higher order), 20 Gbit/s (lower order) Packet: 160 Gbit/s |
|||
| Service Slots | 15 slots for processing boards and 16 slots for interface boards | |||
| Supported interfaces | MSTP interfaces | STM-1 /4/16/64, E1/E3/E4/T1/T3, FE/GE/10GE, DDN, IMA/ATM, FEC/EFEC, E1 optical interface, SAN, Video | ||
| PCM interfaces | FXS/FX O, 2/4 wire/E&M V.35/X .21/V.11/V.24/V.28, RS232/422, G.703 64Kbit/s codirectional interface |
|||
| Packet transport interfaces | E1, ch STM-1, ATM STM-1, FE/GE/10GE | |||
| WDM interfaces | 40-cha nnel DWDM interfaces, compliant with ITU-T G.694.1 8-chan nel CWDM interfaces, compliant with ITU-T G.694.2 |
|||
| Power Supply | DC: -48V DC or -60V DC AC: 220V/110V AC |
|||
| Maximum Number of Services Supported by a Single Subrack |
Service Interface | Max | Service Interface | Max |
| STM-64 | 12 | STM-16 | 60 | |
| STM-4 | 142 | STM-1 | 224 | |
| STM-1 (electrical) | 132 | E4 | 32 | |
| E3/T3 | 117 | E1/T1 | 504 | |
| E1 Optical | 112 | FE | 180 | |
| GE | 56 | 10GE | 16 | |
| DDN (N×64K) | 64 | Framed E1 | 64 | |
| FXS/FXO | 90 | 2/4 wire/E&M | 64 | |
| STM-1 ATM | 60 | STM-4 ATM | 15 | |
| ESCON | 56 | FICON/FC100 | 22 | |
| FC200 | 8 | DVB-ASI | 56 | |
| Clock Synchronization | Line clock source Tributary clock source Two external clock inputs/outputs (2 MHz or 2 Mbit/s) |
|||
| Auxiliary Interface | Orderwire interface, NNI connection interfaces management serial interface, serial interfaces, 64 kbit/s codirectional data channel, 10M/100M NM interface, commissioning interface Alarm interface, Cabinet alarm indicator interface |
|||
| Mechanical Specification | ||||
| Dimensions(mm) | 722 (H) x 497 (W) x 295 (D) | |||
| Weight(kg) | 38 | |||
