Huawei OptiX OSN 9800 M24

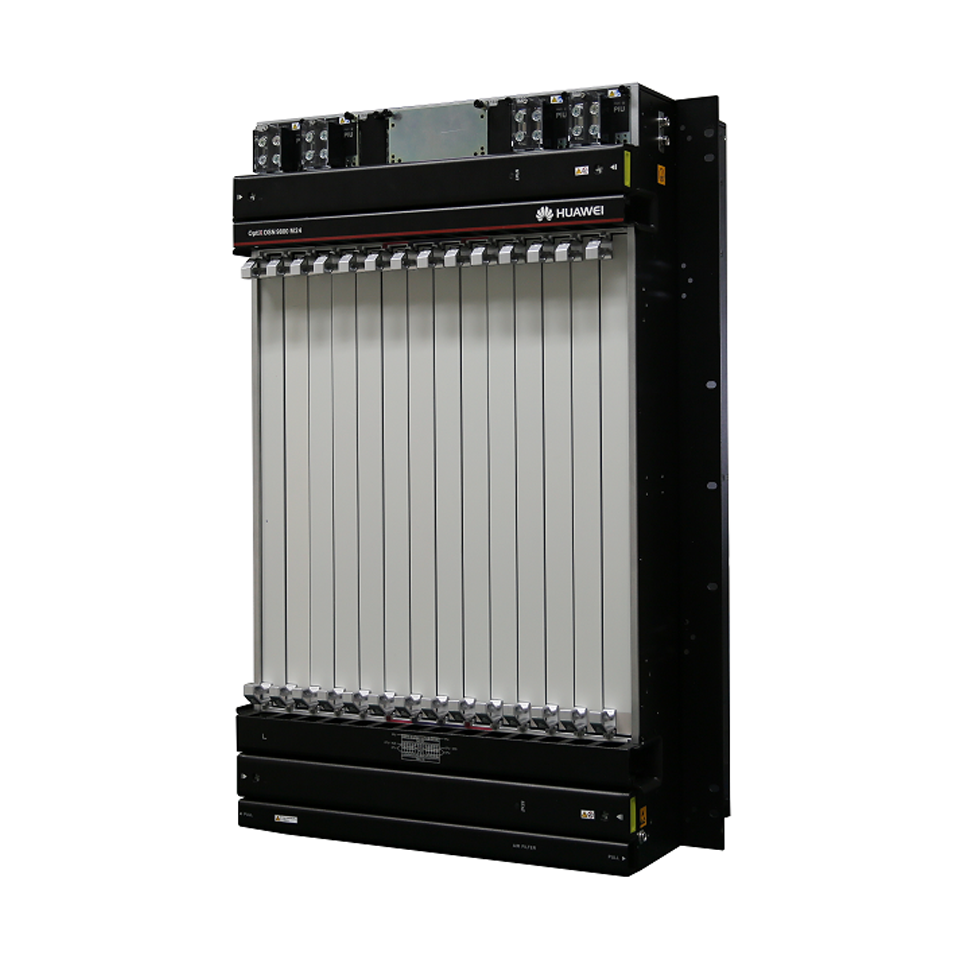

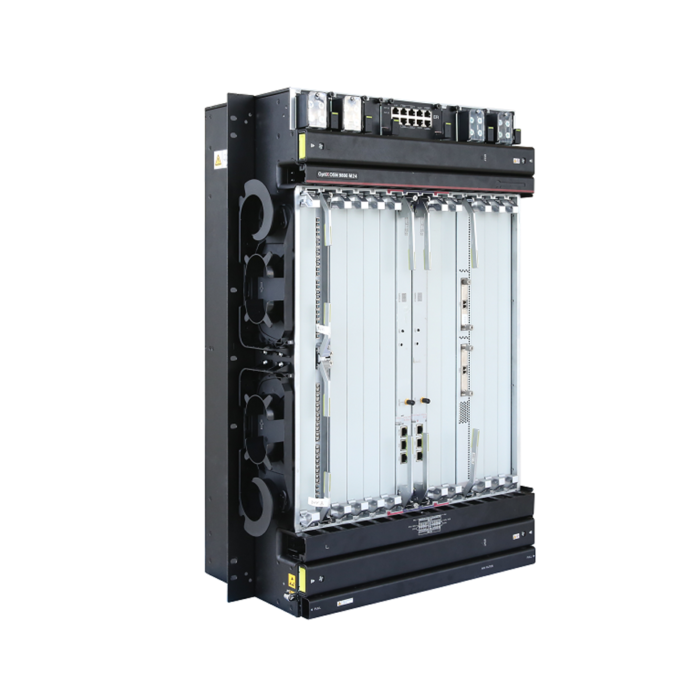

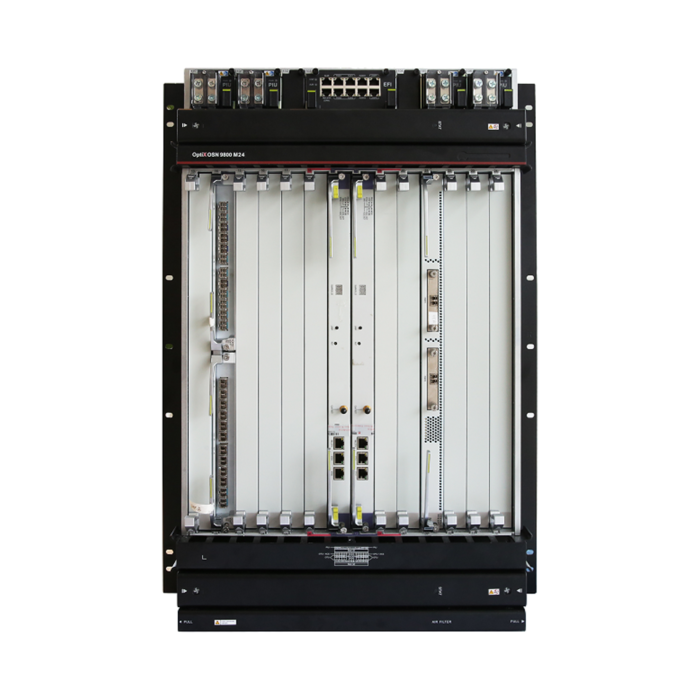

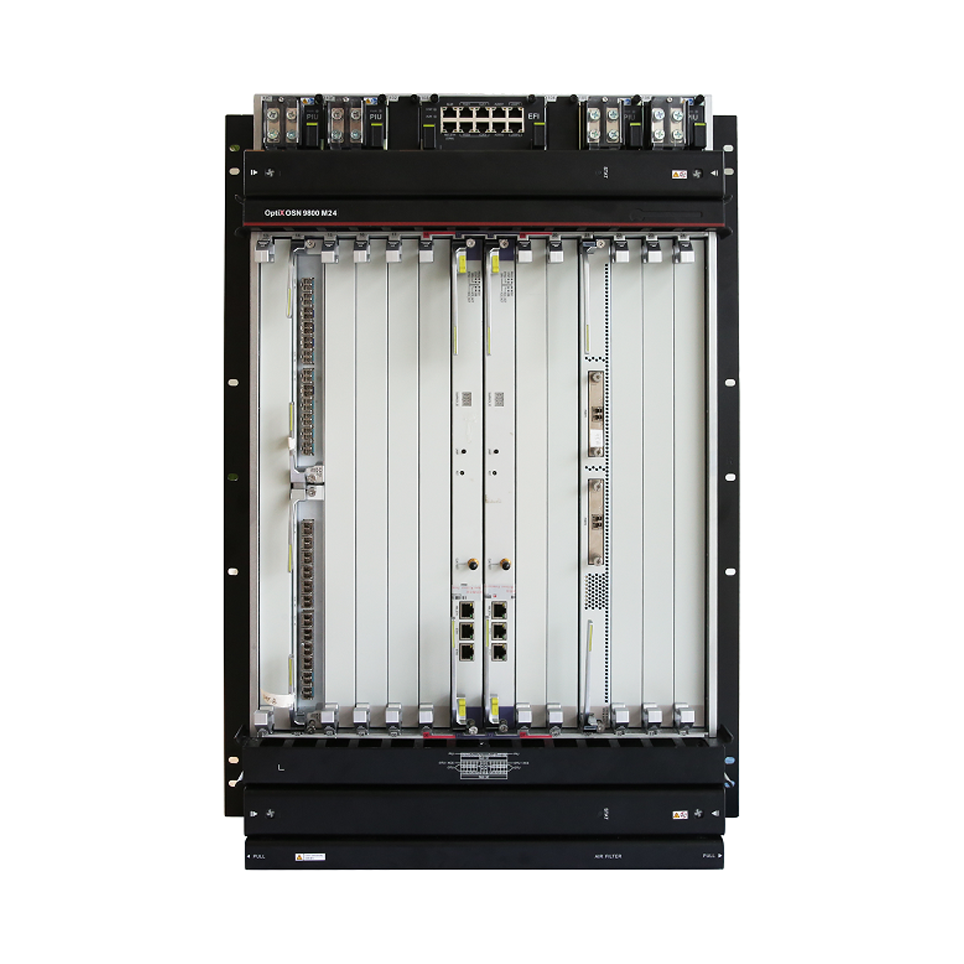

Huawei OSN 9800 M24, with 4xPIU 1xEFI, 24 service slots.
Huawei OSN 9800 M24 is an optical subrack product that meets the requirements of miniaturized OLA sites and line degree optical subracks of ROADM,it supports 24 x 5.5 U service boards, and 12 x 11 U service boards.
Tech Specs:
| Specifications | |
| Number of Slots for Service Boards | 1:1 cross-connect mode: 12 large slots or 24 small slots
1:3 cross-connect mode: 10 large slots or 20 small slots |
| Optical Switching Capability | 1 to 20-degree ROADM |
| Max. Number of Wavelengths | DWDM:
|
| Wavelength Range | DWDM: 1524.50 nm to 1572.06 nm (super C-band)
CWDM: 1471 nm to 1611 nm (S+C+L Band) |
| Max. Rate Per Channel | 400 Gbit/s (OTUC4) |
| Service Type | SDH/SONET Ethernet SAN OTN Video |
| Line Rate | 2.5 Gbit/s 10 Gbit/s 100 Gbit/s 200 Gbit/s 400 Gbit/s |
| Supported Pluggable Optical Modules | eSFP SFP+ TSFP+ CFP CFP2 QSFP28 SFP28 QSFP+ QSFP-DD |
| Max. Rate Per Channel | 800 Gbit/s (OTUC8) |
| Line Rate | 2.5 Gbit/s 10 Gbit/s 100 Gbit/s 200 Gbit/s 400 Gbit/s 800 Gbit/s |
| Working environment | |
| Nominal Working Voltage | -48 V/-60 V DC |
| Temperature | Long-term operation: 0°C (32 °F) to 45°C (113 °F)
Short-term operation: -5°C (23 °F) to 50°C (122 °F) |
| Humidity | Long-term operation: 5% to 85%
Short-term operation: 5% to 90% |
| Mechanical Specifications | |
| Dimensions(mm) | 747.2 (L) × 442(W) × 295 (D) |
| Cabinet | ETSI 300/600 cabinets, such as A63B
19-Inch Cabinet |
| Weight(kg) | 26.49 kg (58.4 lb.) |
