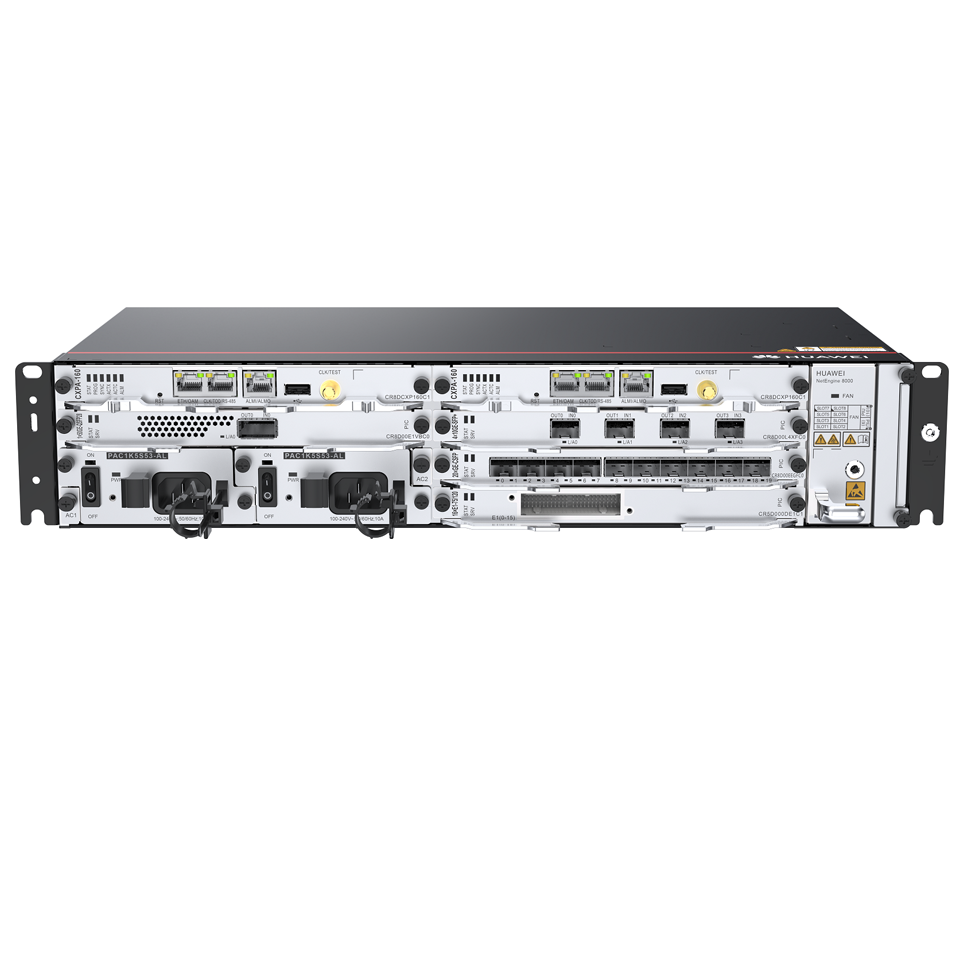

Huawei NE8000 M6 AC

Huawei NE8000 M6 AC with 2*CXP-160, 2*DC Power, 6*service slots

Huawei NE8000 M6 AC all-scenario access and aggregation routers are intelligent high-end routers designed for the industry market. Primarily intended for scenarios such as access and aggregation, private line, data center egress, and data center interconnection, these routers provide a simplified and intelligent IP bearer network solution featuring simplified architecture, smart connection, and committed high availability.

Tech Specs:
Item Specification
Switching capacity 320 Gbit/s
Forwarding Performance 72 Mpps
Max. Capacity of a Board 50 Gbit/s
Number of slots 11
Interface Types 50GE/25GE/10GE/GE/FE/CPOS/E1
Capacity Density (G/U) 80
Cabinet installation standards ETSI 21-inch; IEC 19-inch
MTBF [year] 163.45 year
MTTR [hour] 0.5 hour
Power supply mode DC
Rated input voltage [V] –48 V/–60 V
Input voltage range [V] –40 V to –72 V
Maximum input current [A] 30 A
Rated output power [W] 1200 W
Heat dissipation mode Air cooling
Airflow direction From left to right
Noise at normal temperature (acoustic power) [dB(A)] < 55 dB(A)
Redundant CXPs 1:01
Redundant power supply 1+1
Long-term operating temperature [°C(°F)] –40°C to +65°C (–40°F to +149°F)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage altitude [m] < 5000 m
Dimensions with packaging [mm] 335 (H) x 585 (D) x 390 (W)
Chassis height [U] 2 U
Weight with packaging [kg] 6.9 kg
