Huawei NE8000 M4 Router DC
Huawei Ne8000 M4 Router DC
NE 8000 – M4

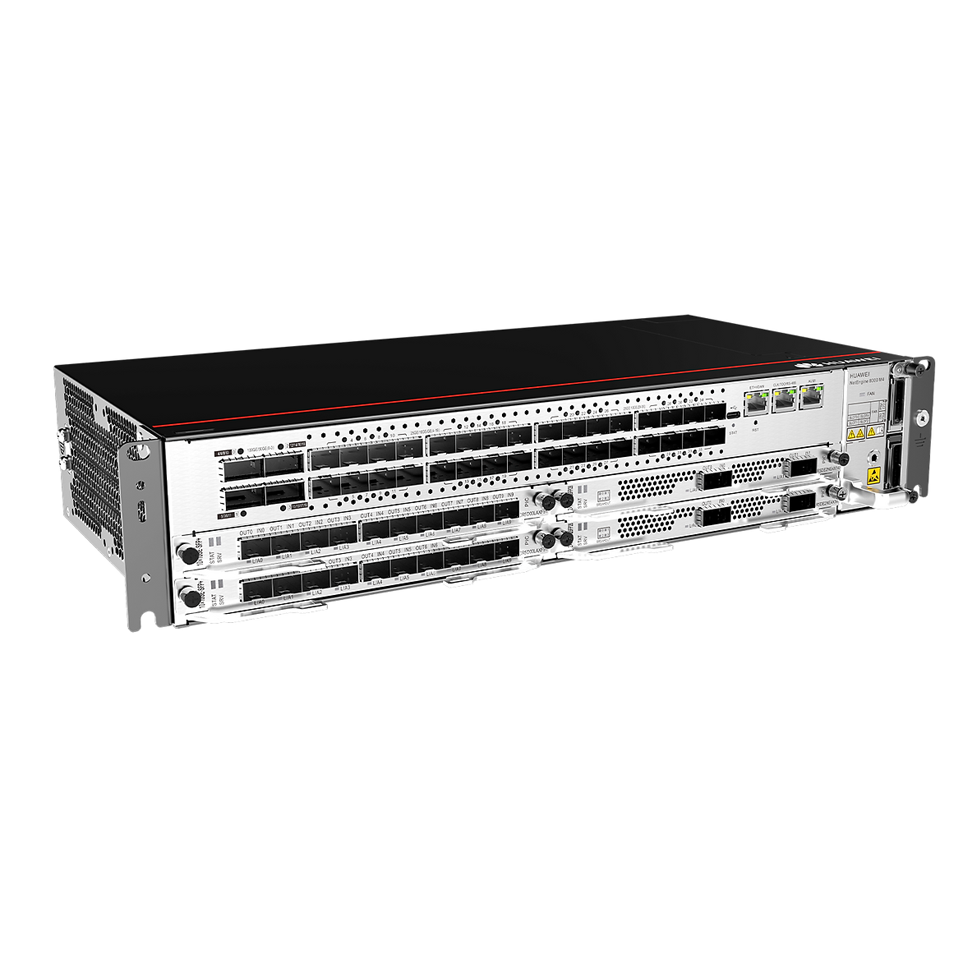

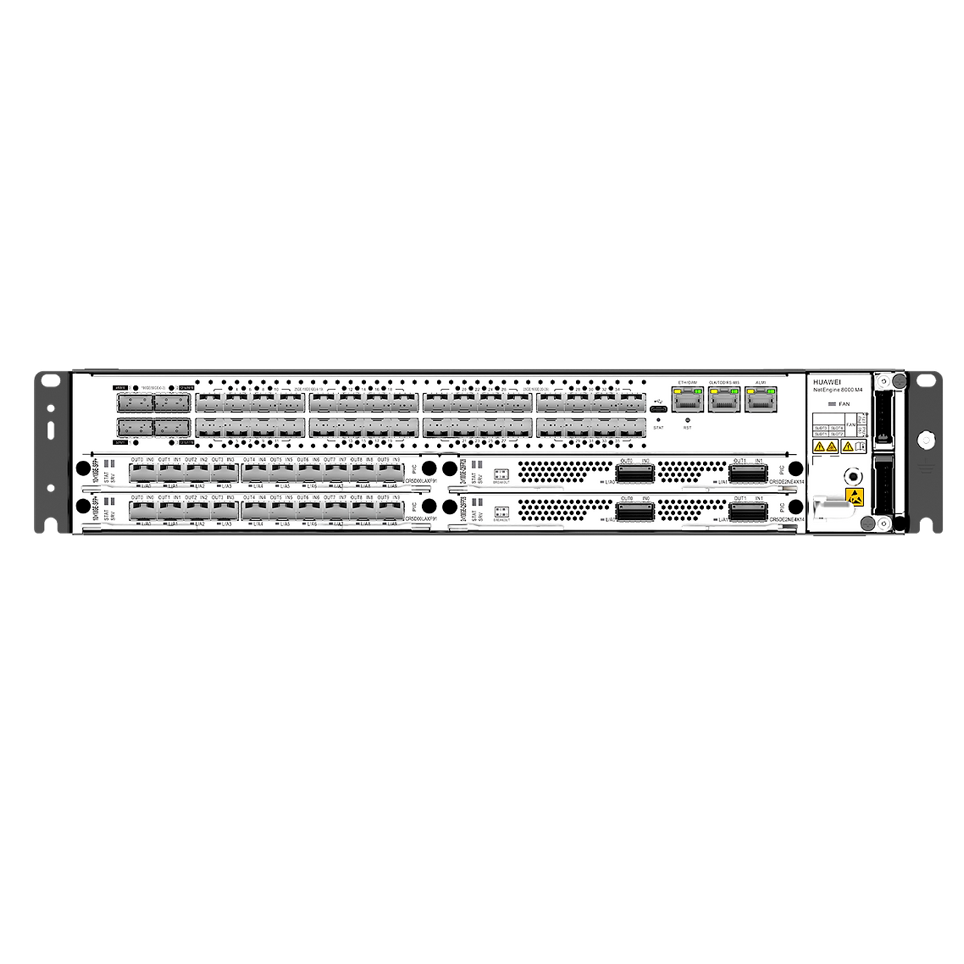

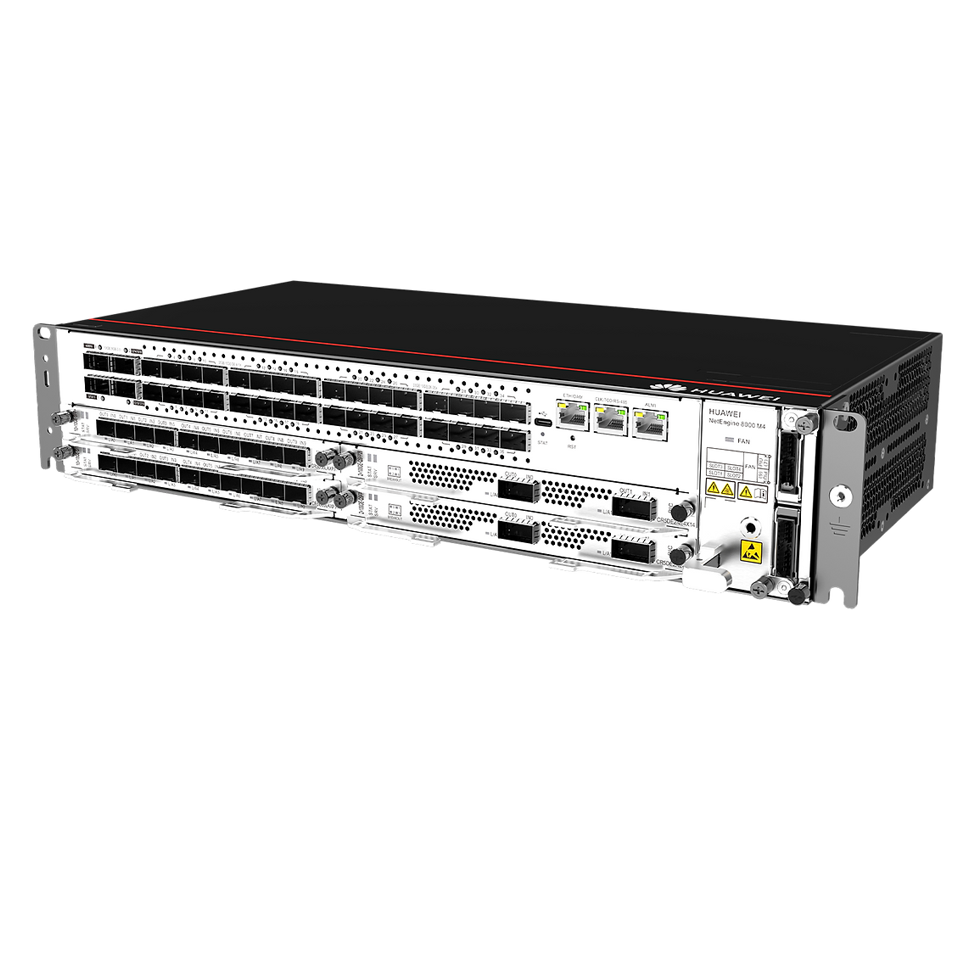

The NetEngine 8000-M4 is a multi-service router measuring only 2U in height and 220mm in depth, serving up to 64k PPPoE/IPoE users and up to 1.2Tb of forwarding.Its four service slots provide 100GE, 50GE, 40GE, 25GE, 10GE and GE ports that flexibly adapt to different scenarios.It supports major protocols such as BGP, OSPF, MPLS, SRv6 and EVPN, and its compact design saves space and significantly reduces CAPEX.
| Maximum Switching Capacity | 2.4 Tbit/s |
| Maximum Forwarding Capacity | 455 Mpps |
| Maximum plate capacity | 200 Gbit/s |
| Capacity density(G/U) | 800 |
| Controller board | Integrada |
| SFU | 2, 1+1 (integrada) |
| CPU | 16-core, 2.0 GHz |
| SDRAM | 16GB |
| Storage | 16 GB |
| Flash memory | 64MB |
| Number of Service Plates | 4 |
| Maximum number of ports 10GE | 72 |
| Maximum number of ports FE | 96 |
| Maximum number of ports 50GE | 12 |
| Maximum number of ports 25GE | 64 |
| Maximum number of ports GE | 96 |
| Maximum number of electrical ports | 96 |
| Maximum number of ports 100GE | 12 |
| Maximum number of ports 40GE | 12 |
| Power supplies | There are two, one of redundancy |
| Ventilation module | There are two, one of redundancy |
| Dimensions (A x L x P) | 88,9 x 442 x 220 mm (2U) |
| Weight (full) | 7,2 Kg |
| Maximum current | 30 A |
| Typical energy consumption | 1200 W |
| Input Voltage | -40 V to -72 V |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| MTBF | 33,40 years |
| MTTR | 0.5 hours |
