Huawei MA5633

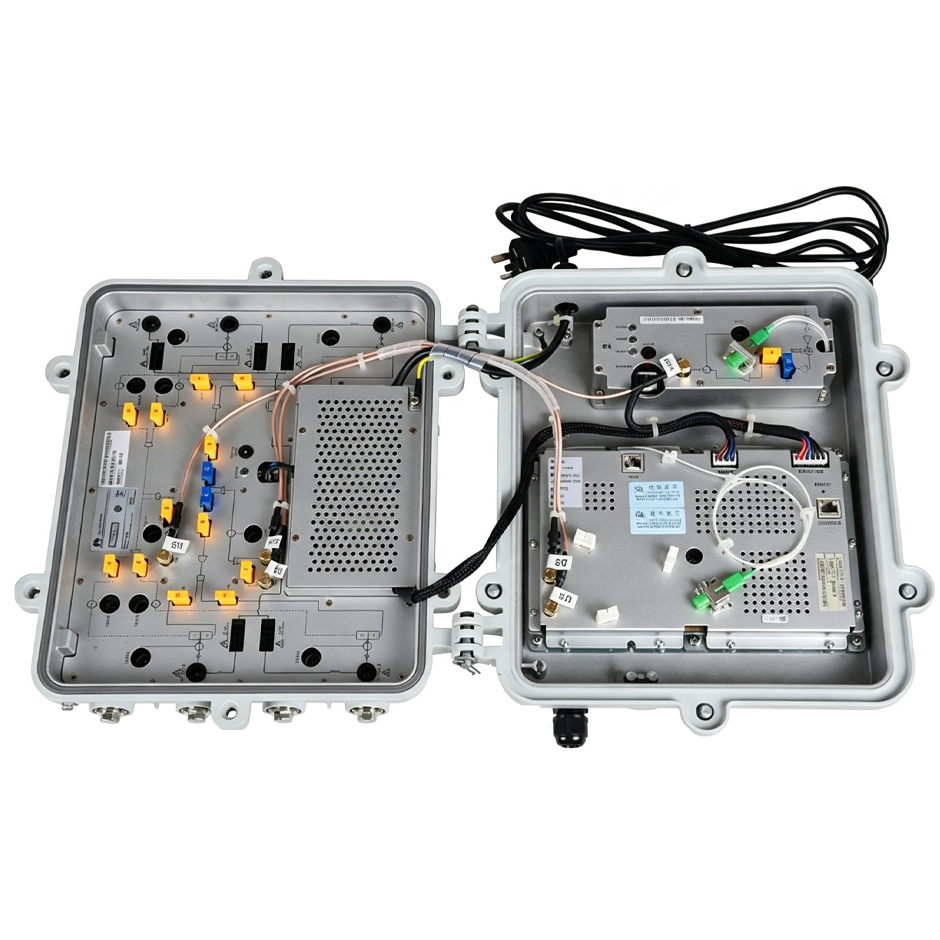

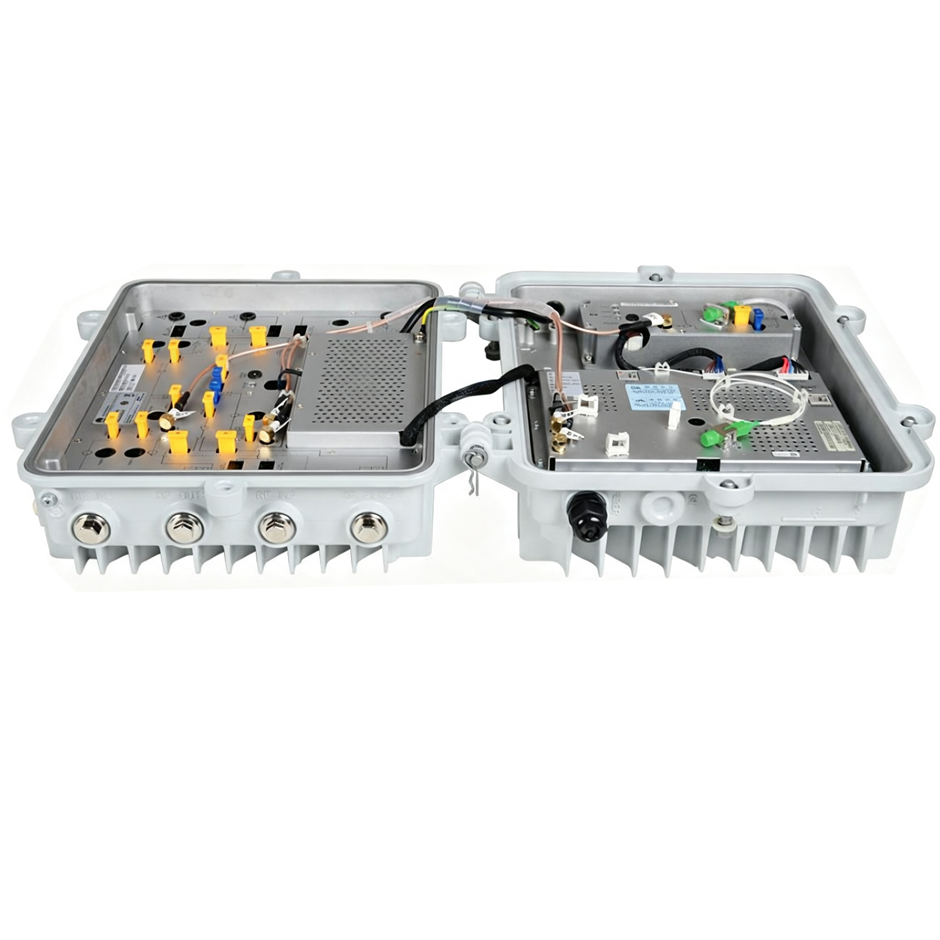

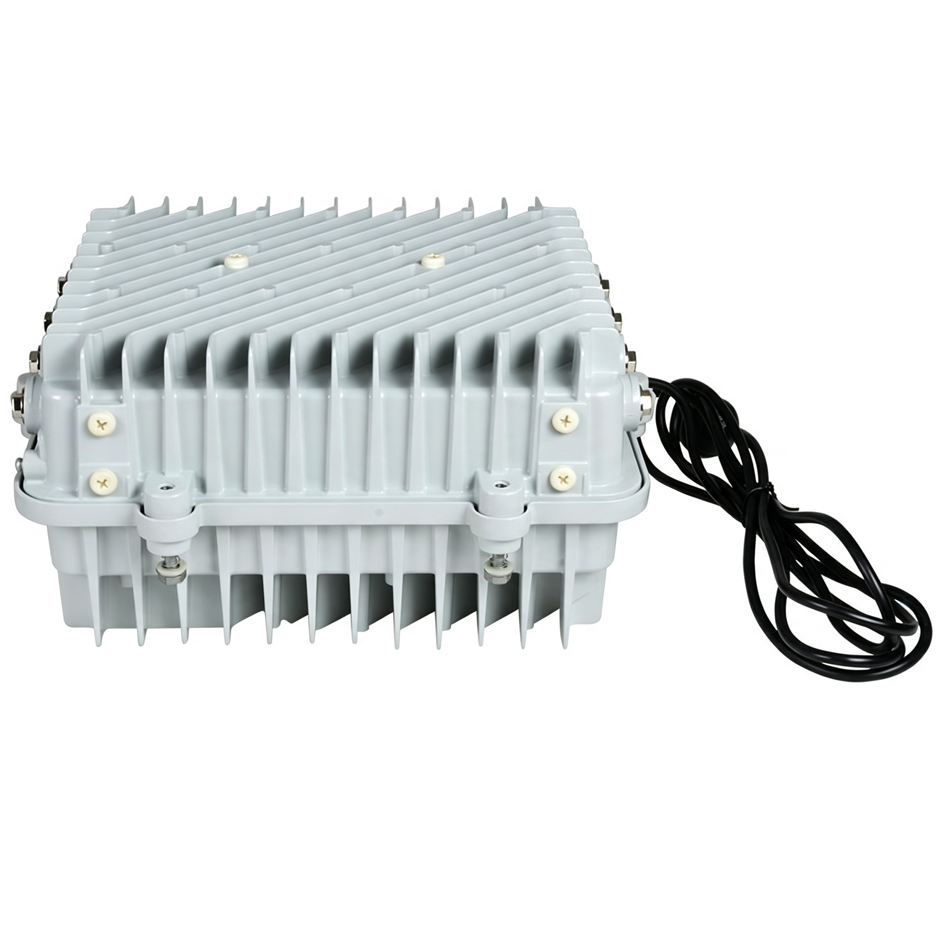

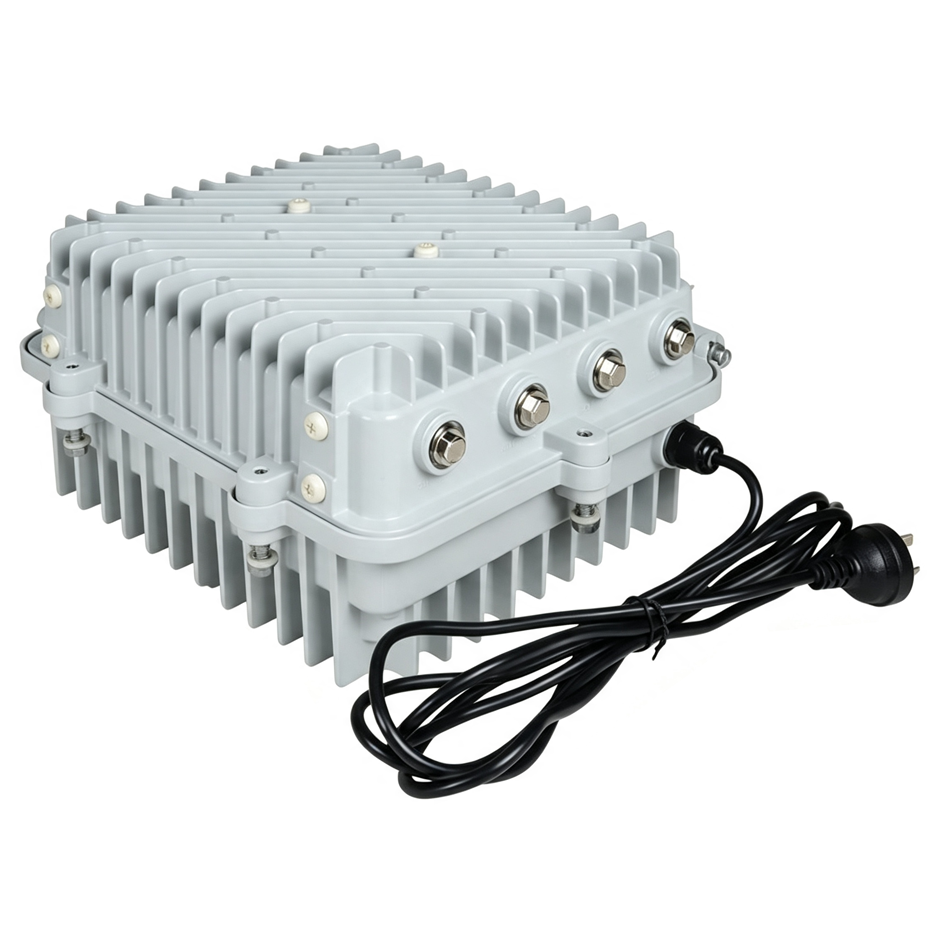

Huawei MA5633, single GPON, FC/APC, 0 in 4 out, with optical receiver, 220V AC
The Huawei SmartAX MA5633 is a distributed converged cable access platform (D-CCAP) coaxial media converter (CMC) device.It is designed for broadcast and television operators to transition traditional Hybrid Fiber-Coaxial (HFC) networks into digital, high-bandwidth bi-directional networks. By pushing fiber deeper into the network, it allows operators to provide Gigabit-grade services over existing coaxial cables.
| Product | MA5633 | ||
| CATV | |||
| Channel frequency range | Upstream: 87-1002MHz; Downstream: 5-65MHz | ||
| Channel depth | Upstream: 1.6MHz, 3.2MHz, 6.4MHz
Downstream: 6MHz(American Standard)/8MHz(European standard |
||
| Width of a single channel | Downstream: 50Mbps; Upstream: 40Mbps | ||
| Maximum rate | Downstream: 800M Upstream: 160M | ||
| Number of support terminal | DOCSIS 2.0 CM 384; DOCSIS 3.0 CM 256 | ||
| Standard | C-DOCSIS/DOCSIS 2.0/DOCSIS 3.0/Euro-DOCSIS 2.0/Euro-DOCSIS 3.0 | ||
| Downstream output level of the backplane | 110 dBuV | ||
| Input and output impedance | 75Ω | ||
| Emission depletion | > 16 dB | ||
| GPON | |||
| Connector type | SC/PC (UPC) | ||
| Maximum transmission distance (km) | 20 | ||
| Center wavelength (nm) | Receive (Rx): 1490
Transmit (Tx): 1310 |
||
| Standards compliance | ITU-T G.984.2 CLASS B+ | ||
| Security Standards | |||
| Subscriber security | DHCP option 82
Authentication, authorization and accounting (AAA) Relay agent info option (RAIO) MAC address anti-spoofing MAC address anti-flapping Source address verification (SAV) User isolation BPI+ X.509 authentication Message integrity check TFTP proxy |
||
| System security | Destination IP address filtering (IP address access list)
Anti-DoS (denial of service) attack Anti-ICMP or anti-IP address attack Destination MAC address filtering Source route filtering Firewall and blacklist Setting of permitted or denied source IP address segments |
||
| Specifications | |||
| Network-side port | GPON/GE | ||
| RF port num | 4*RF OUT | ||
| Power supply | 110 V AC or 220 V AC local power supply | ||
| Power Consumption | without a built-in power amplifie: 39W; with a built-in power amplifie: 93W | ||
| EMC | ClassB | ||
| Installation method | outdoor cabinet mounted, wall mounted, cable mounted, pole mounted | ||
| Lighting proof | Power port: 6Kv;
The impact of current differential mode 3kA/ mode 5kA Coaxial port core of skin 3K |
||
| Dimensions (W x D x H) | 400mm×153mm×275mm | ||
| Weight (kg) | <8.6 | ||
