Huawei H903GPSF C+ Board

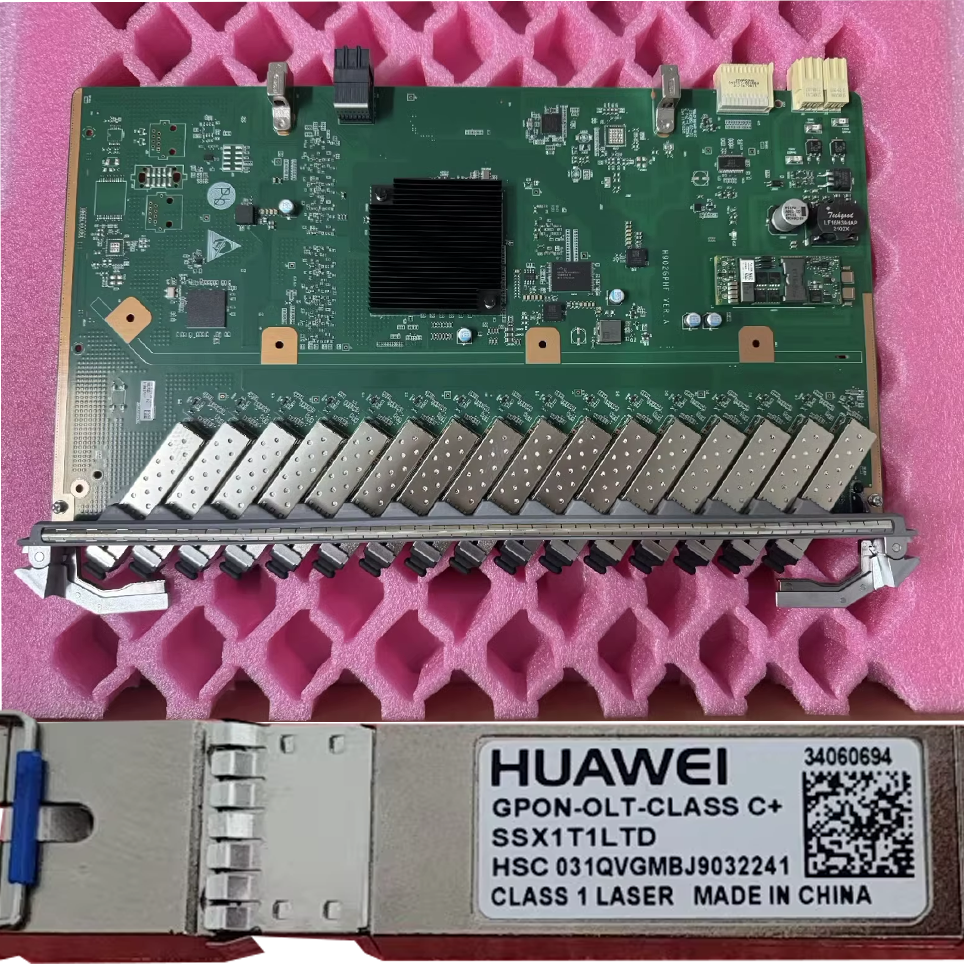

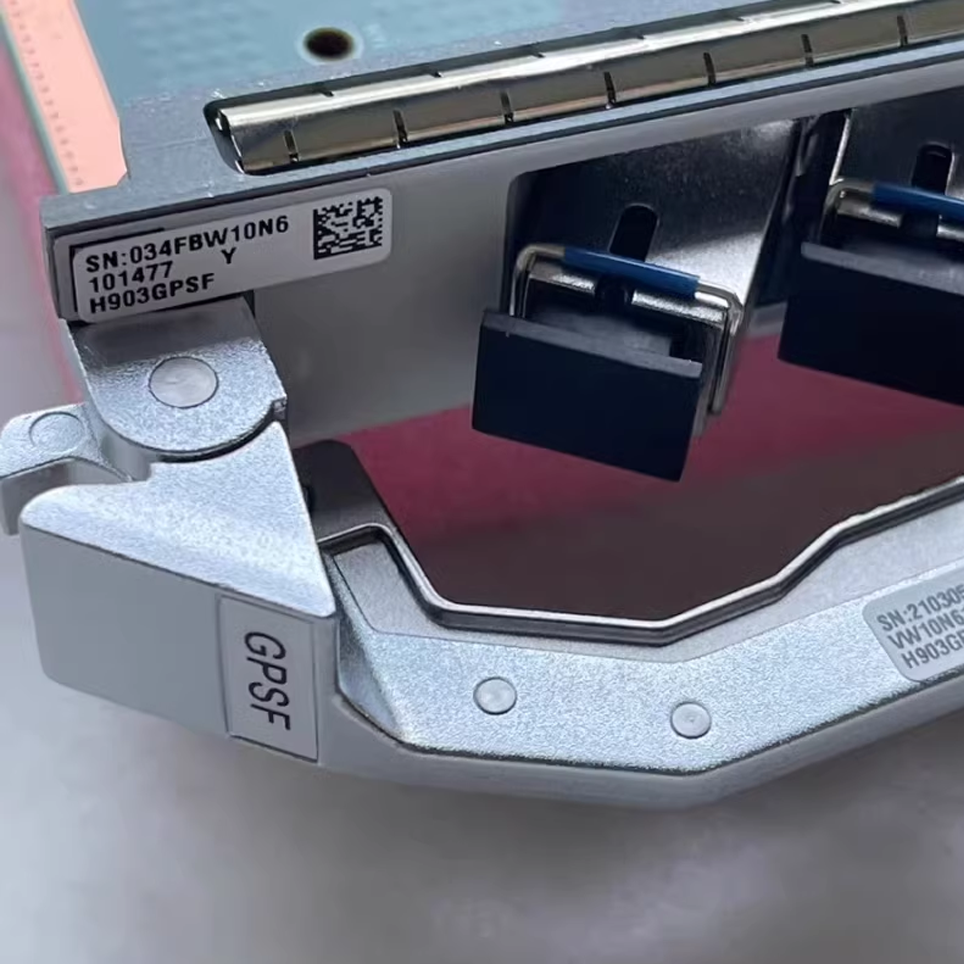

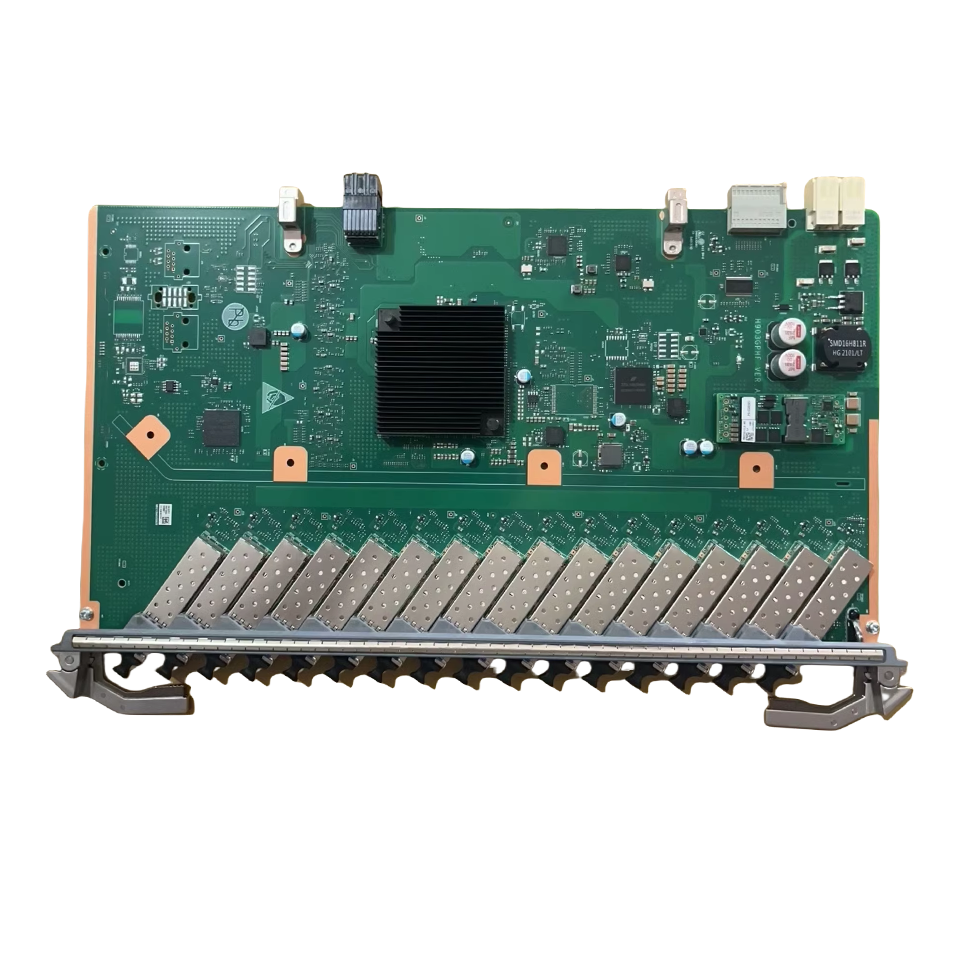

H903GPSF is the Huawei MA5800 series 16-port GPON OLT interface board with C+ SFP module.
Huawei GPSF Service Board is 16-port GPON OLT interface board with C+ SFP module for Huawei MA5800X2,X7,X15,X17 OLT system,maximum access 16*128 GPON subscribers.
Tech Specs:
| GPON Port | 16-GPON Port |
| Type | C+ Module : One-fiber bi-directional optical module, class C+ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
| Minimum Output Optical Power | C+ Module : 3.00 dBm |
| Maximum Output Optical Power | C+ Module : 7.00 dBm |
| Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C+ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption | Static: 25W; Maximum:50W |
| Maximum Frame Size | 2004 bytes |
| 9216 bytes (jumbo frame enabled) | |
| Operating temperature | -40°C to +65°C |
