Huawei ETP4860-B1A1 Power

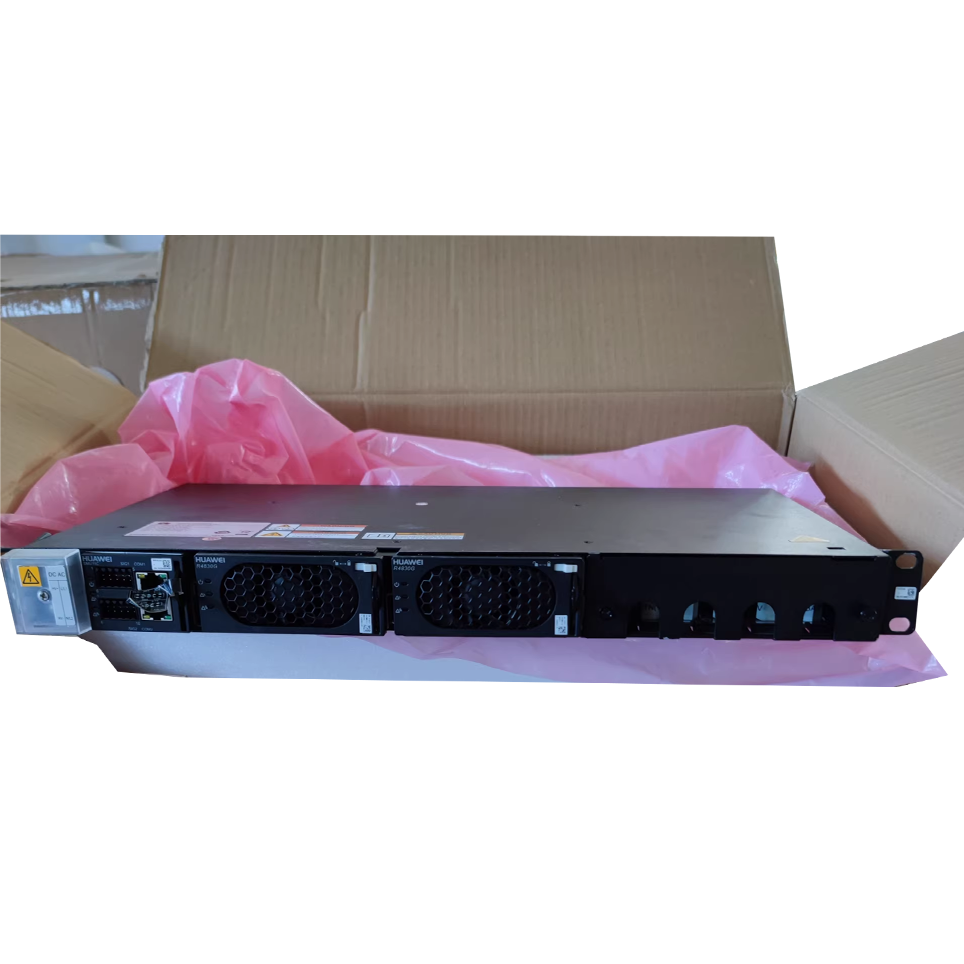

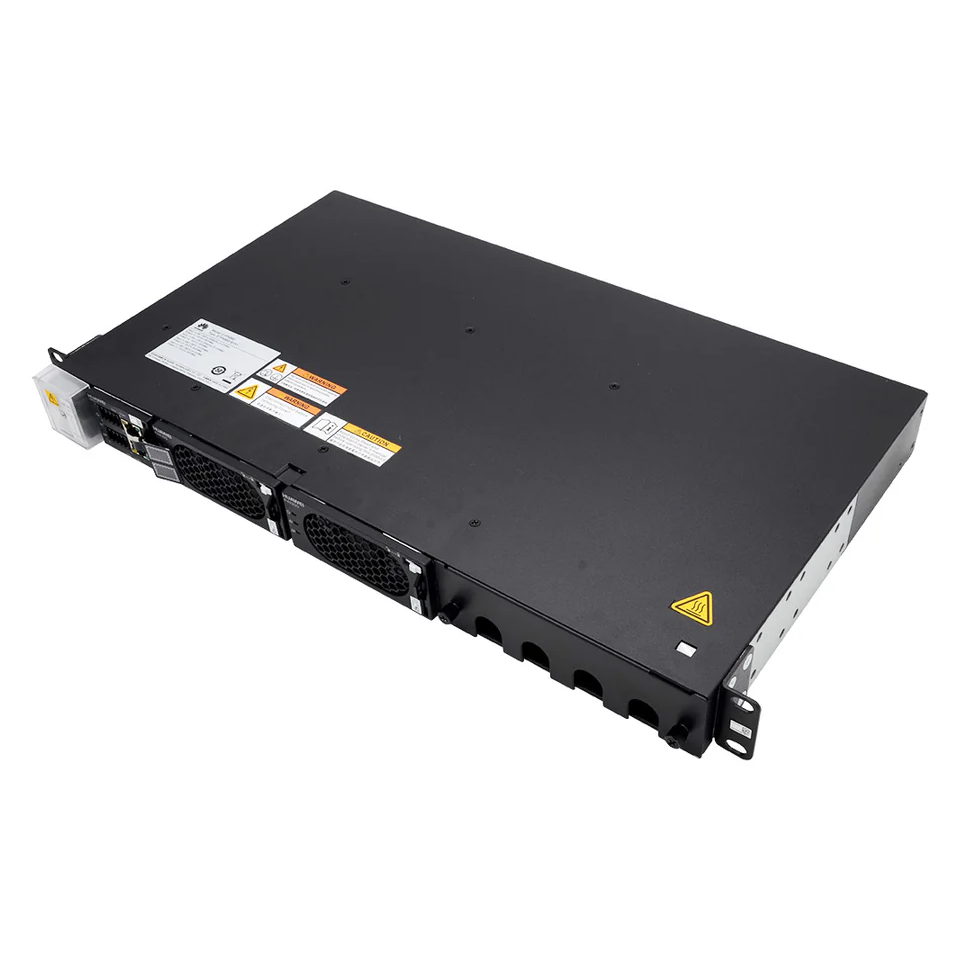

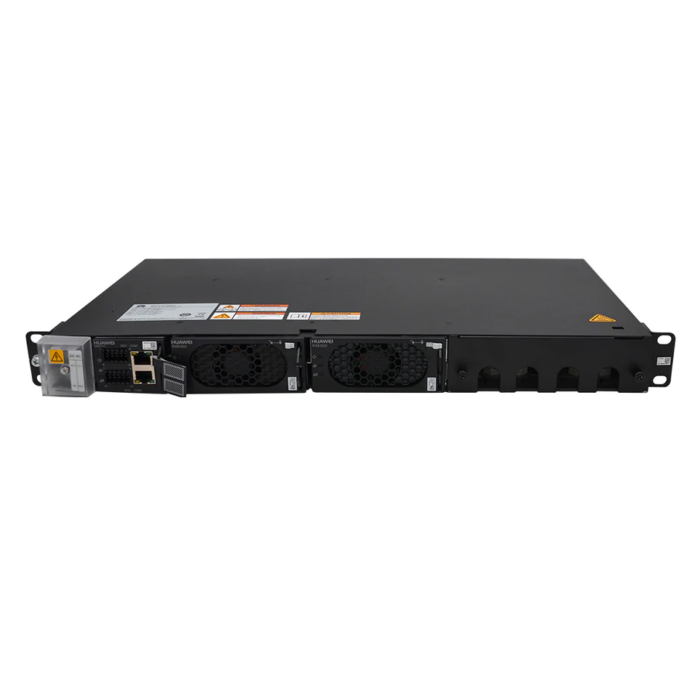

ETP4860-B1A1 is Huawei 60A power converter with 2xR4830G, 1xSMU11C.
1U height, can be installed in a 19-inch rack
ETP4860-B1A1, 3 LOAD, 1 BATT
Provides comprehensive battery management.
Supports AC or HVDC input. AC input voltage range: 85–300 V AC; HVDC input voltage range: 85–420 V DC
Supports SMU11B, SMU11C monitor module, configured with SMU11C by default.
One northbound RS485 port, one southbound RS485 port, and one CAN port on SMU11C
SMU11C support LIVE-C APP, user:liveapp, password: Changeme_123; support Chinese, English and Japanese
SMU11B has one northbound FE port, one southbound RS485 port, and one CAN port
SMU11B supports SNMP and WebUI, IP: https://192.168.0.10, login user: admin, password: Changeme; and supports language of English, Chinese, French, Spanish, Portuguese, Russian, Italian, German, Turkish and Japanese.
ETP4860-B1A1 is an embedded power system, supports two 30A rectifiers maximum output current 60A; and supplies power to –48 V DC telecom equipment such as Huawei OSN8800 OSN3500 MA5800, provides excellent performance such as intelligent battery management, remote monitoring, etc..
| Specification | |
| Operating temperature | –40°C to +65°C; when the operating
temperature ranges from 55°C to 65°C, rectifier power is derated automatically |
| Operating humidity | 5%–90% RH (non-condensing) |
| AC Input system | 220 V AC single-phase/110 V AC dual-livewire |
| DC Input system | HVDC (HV+, HV–) input |
