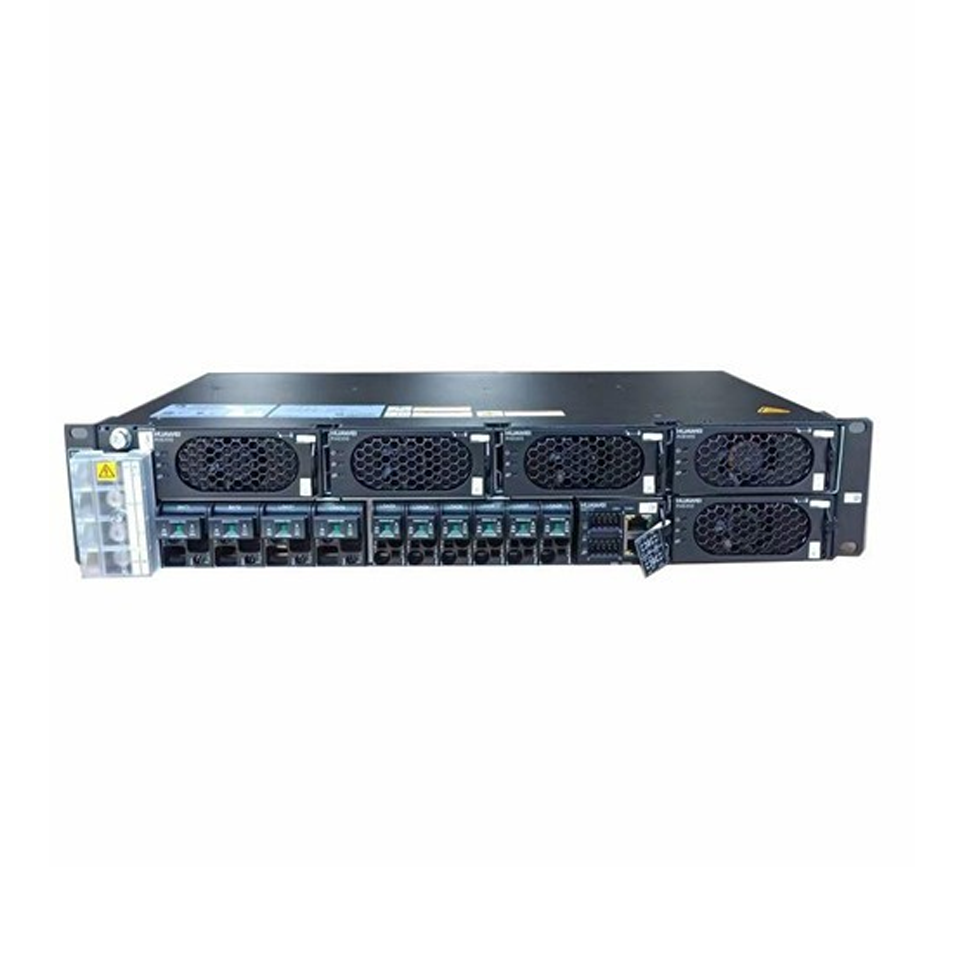

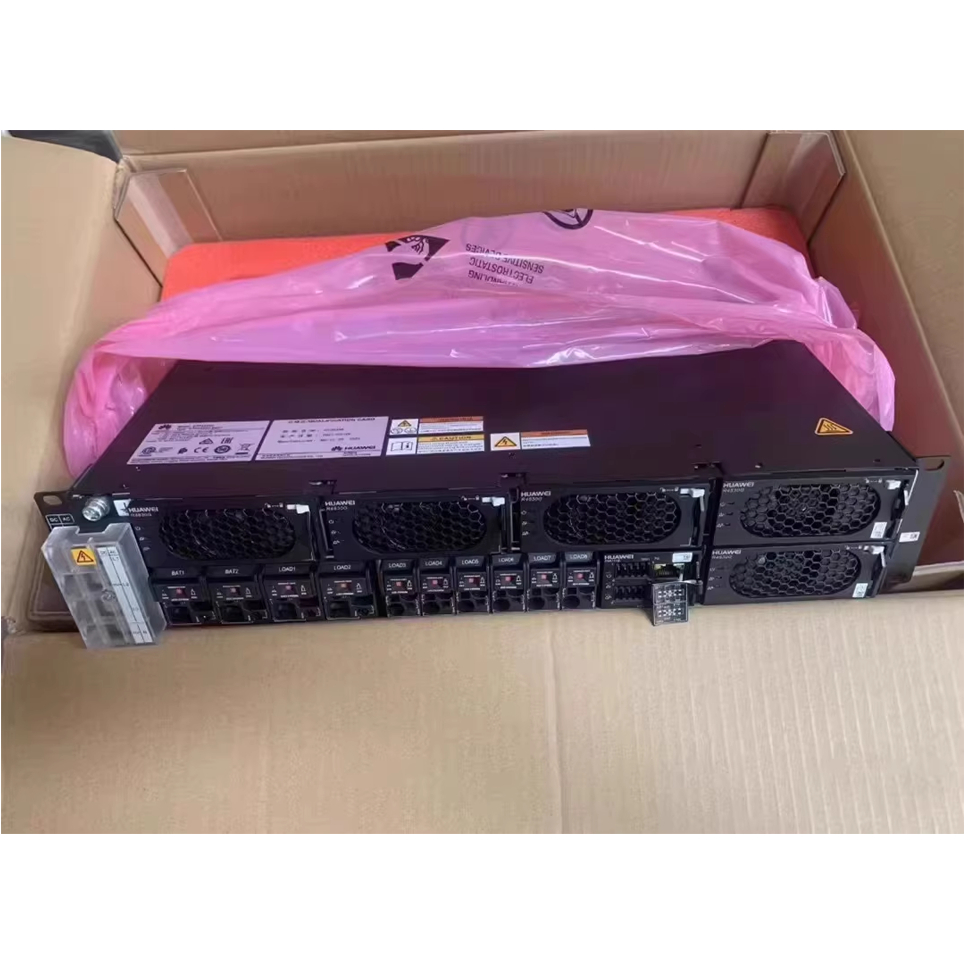

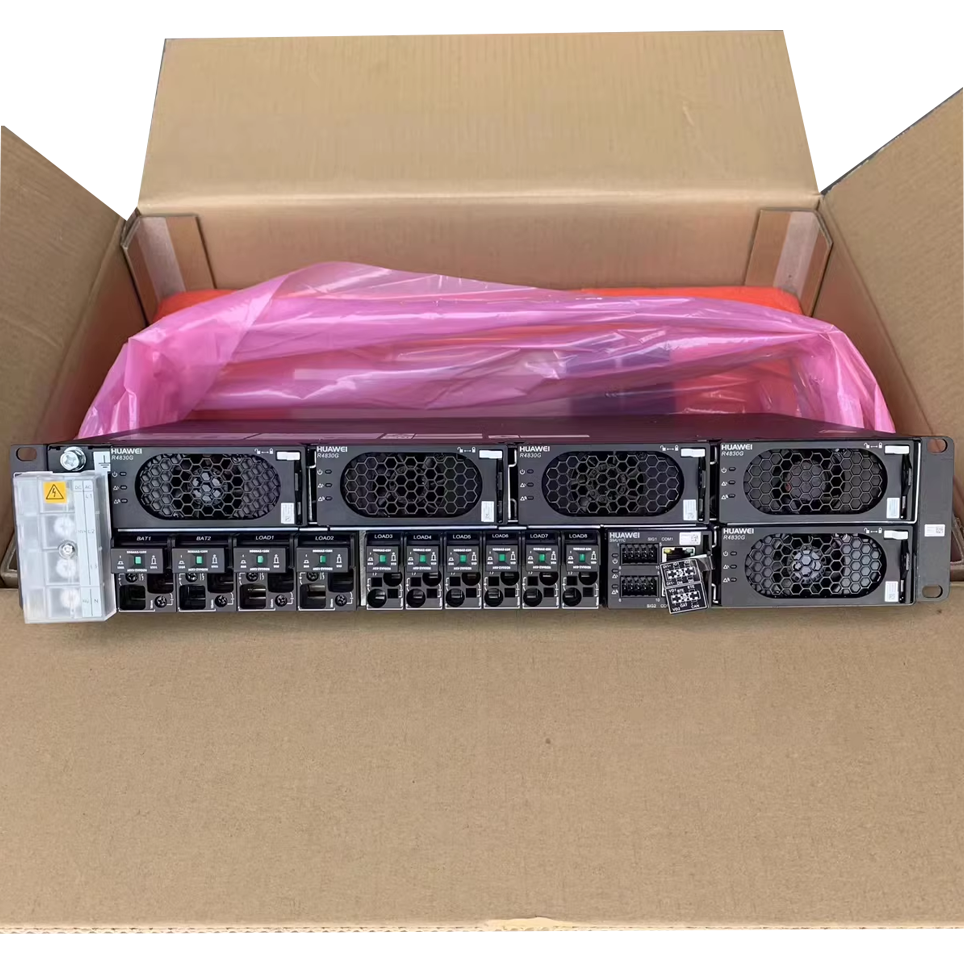

Huawei ETP48200-B2A1 48V 200A Embedded Power
Huawei ETP48200-B2A1 200A Embedded Power with 5xR4830G, 1xSMU11C/1xSMU11B
2 U power system, can be installed in an ETSI rack or a 19-inch rack
ETP48200-B2A1, 8 LOAD, 2 BATT
Provides comprehensive battery management.
Supports AC or HVDC input. AC input voltage range: 85–300 V AC; HVDC input voltage range: 85–420 V DC
Supports SMU11B, SMU11C monitor module, configured with SMU11C by default.
One northbound RS485 port, one southbound RS485 port, and one CAN port on SMU11C
One northbound FE port, one southbound RS485 port, and one CAN port on SMU11B
SMU11C support LIVE-C APP, user:liveapp, password: Changeme_123; support Chinese, English and Japanese
SMU11B supports SNMP and WebUI, IP: https://192.168.0.10, login user: admin, password: Changeme; and supports language of English, Chinese, French, Spanish, Portuguese, Russian, Italian, German, Turkish and Japanese.
ETP48200-B2A1 is an embedded power system that supplies power to –48 V DC telecom equipment. It has a maximum output current of 200 A, and supplies power to –48 V DC telecom equipment such as Huawei OSN8800 OSN3500 MA5800, provides excellent performance such as intelligent battery management, remote monitoring, etc.
| System Configurations |
|
| Subrack | 2 U power system |
| Power distribution unit (PDU) | AC or DC input: M6 OT wiring terminal
DC output: supports a maximum of two 80 A circuit breakers or four 63 A and two 40 A circuit breakers Battery route: A maximum of two 100 A circuit breakers are supported
NOTE: When the circuit breaker is switched off, the –48 V (–) circuit is disconnected, and the RTN (+) circuit is connected. |
| Rectifier | A maximum of five R4830G1s, R4815G1s, (R4830G1 and R4815G1 support HVDC input) can be configured |
| Monitoring module | SMU11B or SMU11C |
| Specification | |
| Operating temperature | –40°C to +65°C; when the operating temperature ranges from 55°C to 65°C, rectifier power is derated automatically. |
| Operating humidity | 5%–90% RH (non-condensing) |
| AC Input system | 220/380 V AC three-phase four-wire (compatible with 220 V AC single-phase and 110 V AC dual-live wire) |
| DC Input system | HVDC (HV+, HV–) input |
