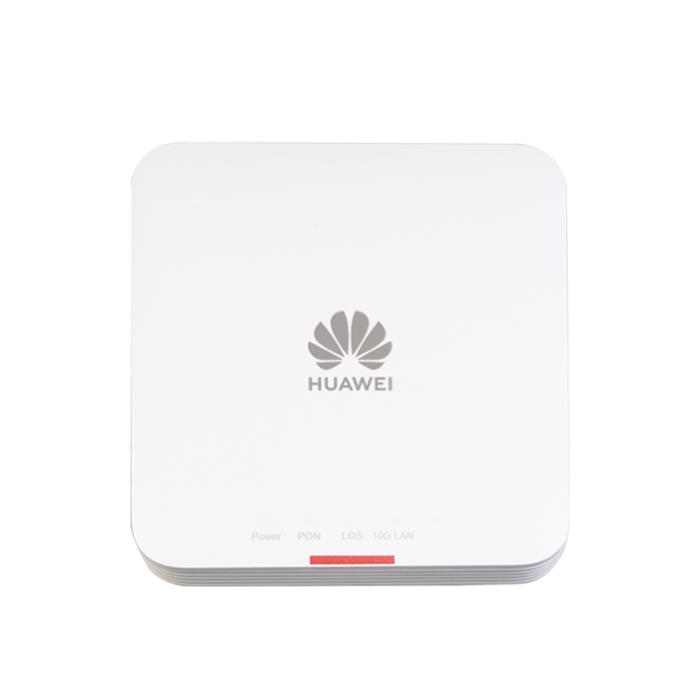

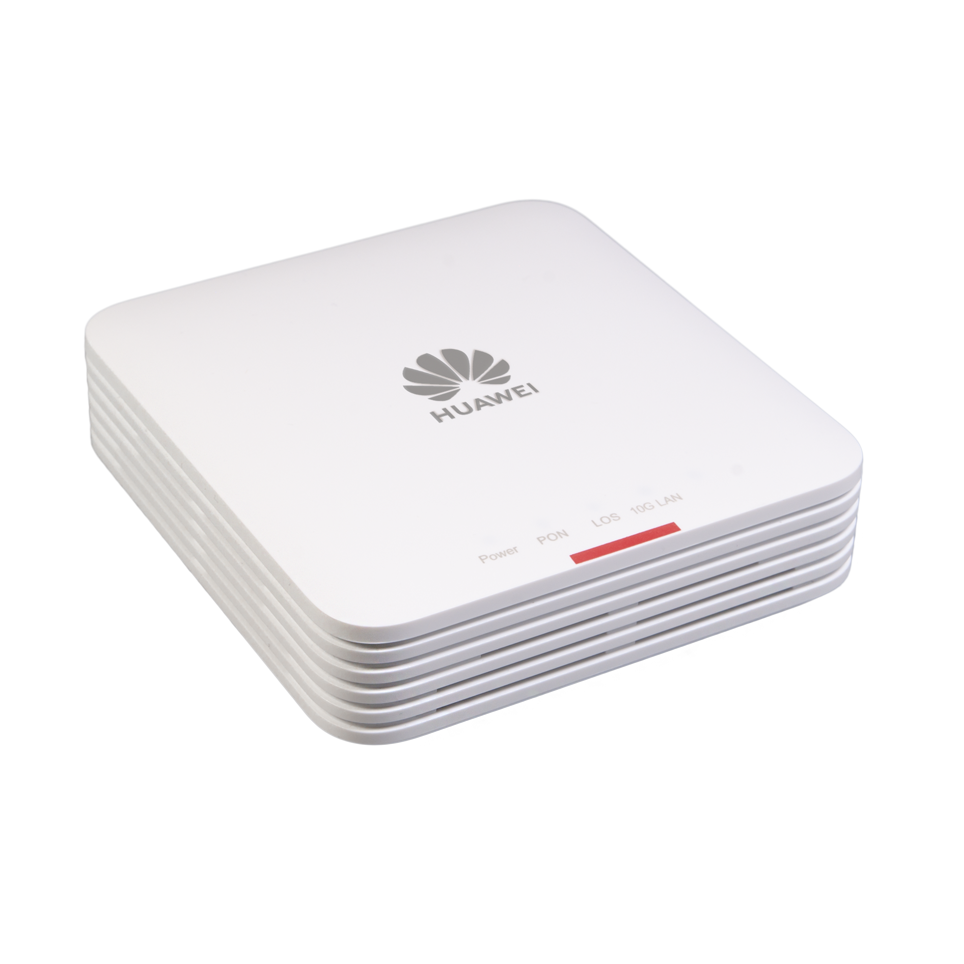

Huawei Original EN8010Ts-20 XGS-PON ONT

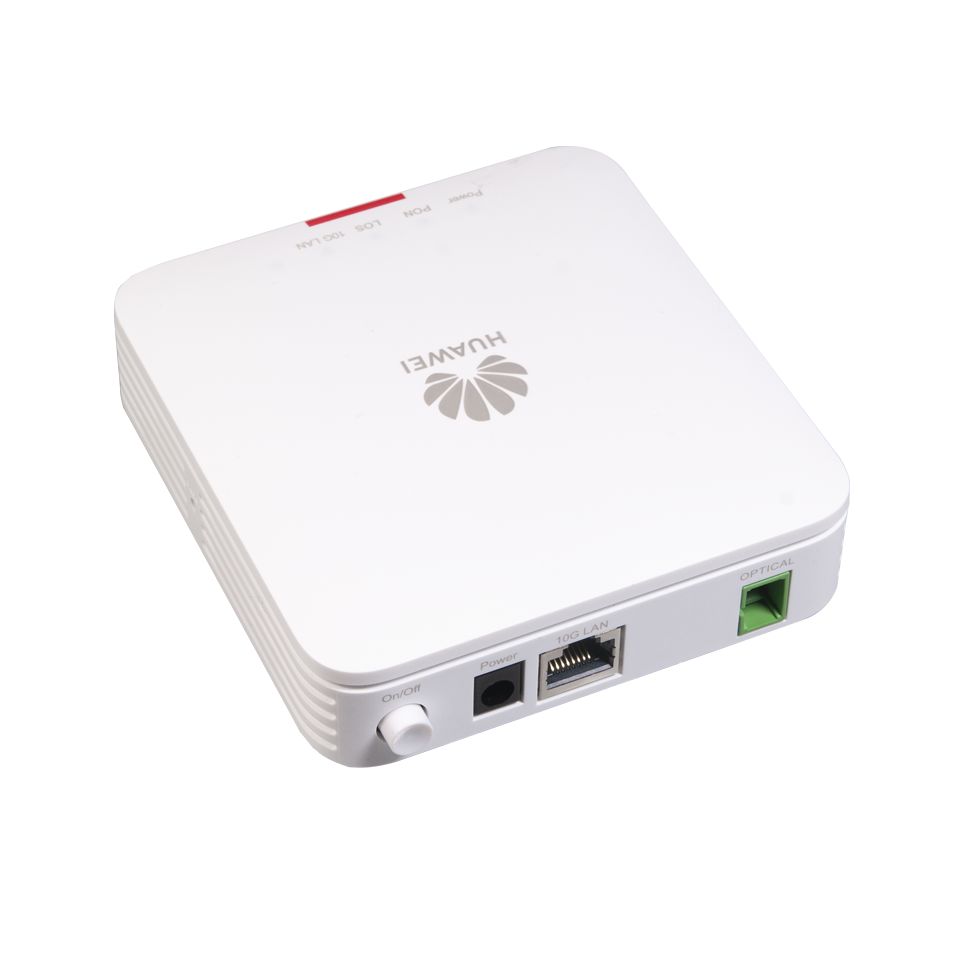

Huawei EN8010Ts-20 XGS-PON ONT terminal with 1x 10GE SC/APC.
The Huawei OptiXstar EN8010Ts-20 is an XGS-PON bridging-type ONT in the Huawei all-optical access solution. It uses the XGS-PON technology to implement ultra-broadband access for users.
Specifications
| Huawei EN8010Ts-20 | |
| General features | |
|---|---|
| Dimensions | 32 x 105 x 110 mm |
| Weight | 163 g |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Indicators | Power / PON / LOS / 10G LAN |
| Memory | 128MB Flash
32 MB RAM |
| System power supply | 12 V DC, 1 A |
| Static power consumption | 5 W |
| Maximum power consumption | 6 W |
| NNI | XGS-PON |
| UNI | 1x 10G Ethernet |
| Optical connector | SC/APC |
| Interface features | |
| XGS-PON port | Class N1/N2/E1 Receiver sensitivity: -28 dBm Wavelengths: US 1260-1280 nm, DS 1575-1580 nm Wavelength blocking filter (WBF) Flexible mapping between GEM Port and TCONT SN/Password/SN+Password/Bi-directional authentication based on OMCI Upstream and downstream FEC SR-DBA and NSR-DBA 9.95328 Gbit/s upstream, 9.95328 Gbit/s downstream |
| Ethernet port | Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning Auto-adaptive 10000Mbit/s, 5000Mbit/s, 2500Mbit/s, 1000Mbit/s, 100Mbit/s |
| Functions | |
| Smart O&M | Variable-length OMCI messages Rogue ONT detection and isolation from the OLT PPPoE/DHCP simulation testing |
| Security | MAC address filtering |
| Multicast | IGMP v2/v3 snooping MLD v1/v2 snooping Fast leave VLAN tag translation, transparent transmission, and removal for downstream multicast packets IGMP/MLD protocol packet rate limitation |
| Power Saving | Indicator power saving |
| QoS | Ethernet port rate limitation 802.1p priority SP/WRR/SP+WRR Broadcast packet rate limitation Flow mapping based on the VLAN ID, port ID, or/and 802.1p |
| O&M | OMCI/Web UI Dual-system software backup and rollback 802.1ag Ethernet OAM Optical link measurement and diagnosis |
