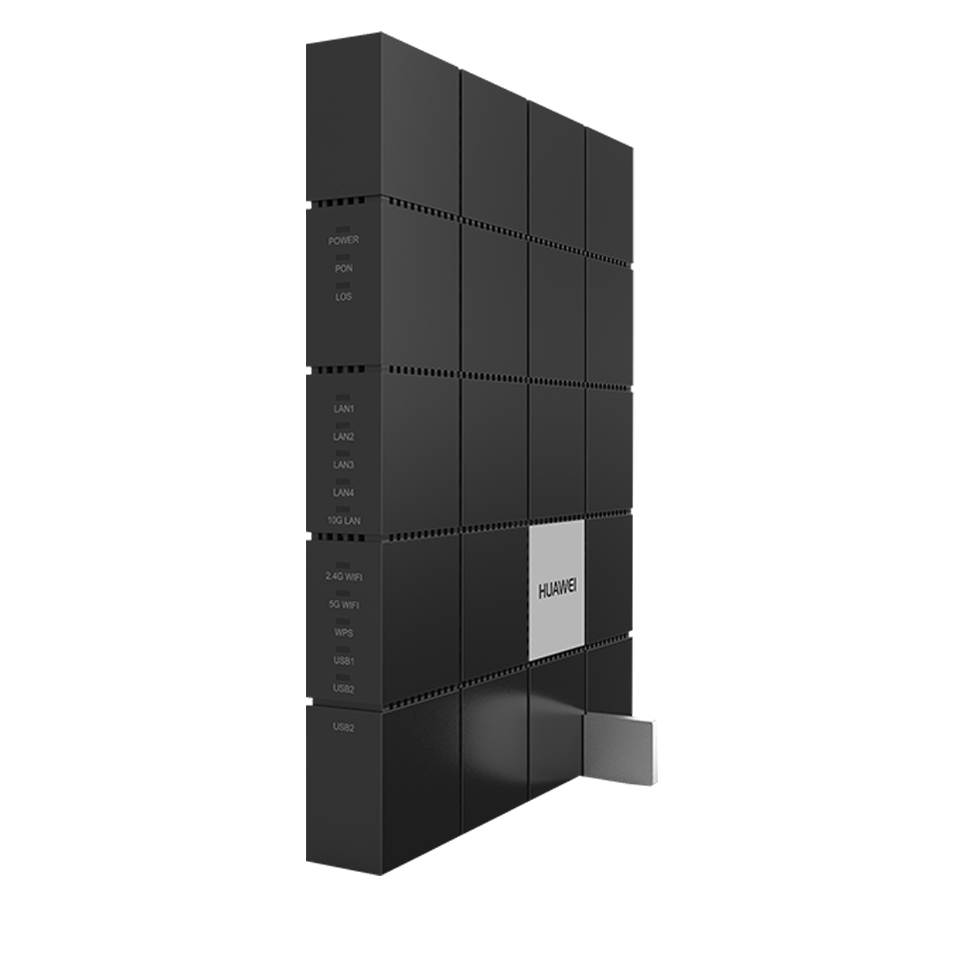

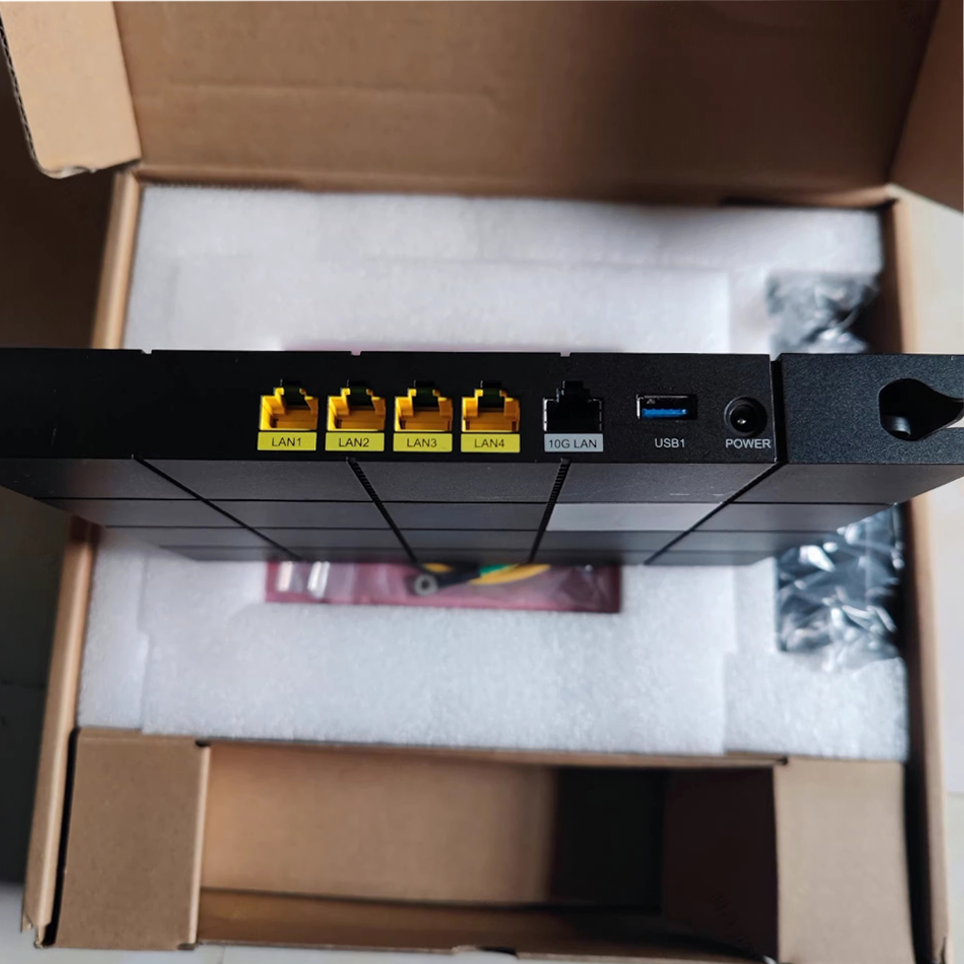

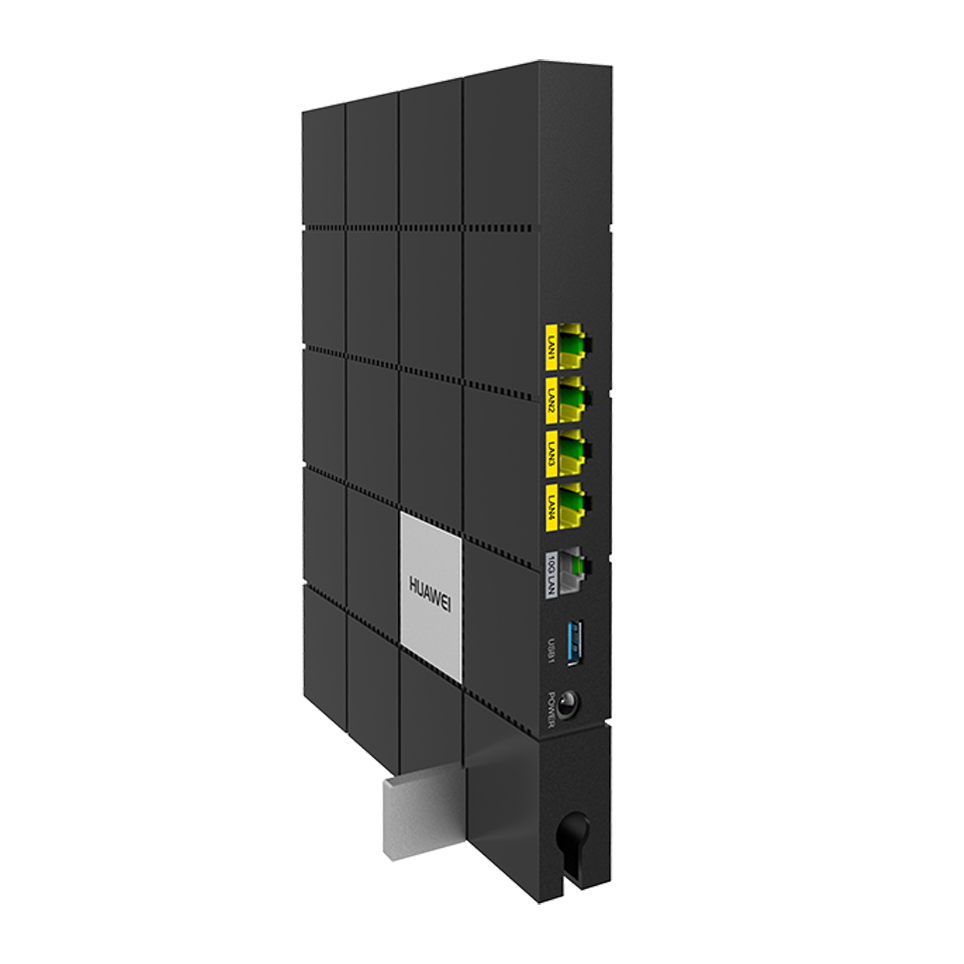

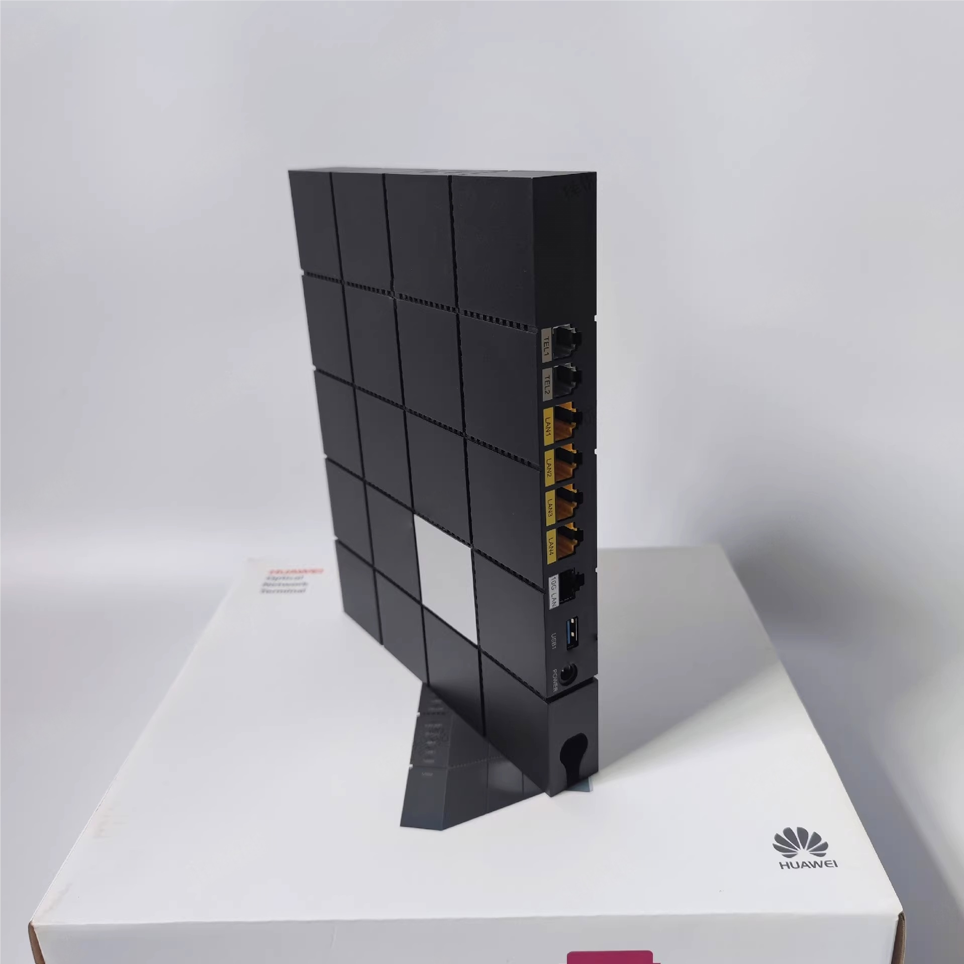

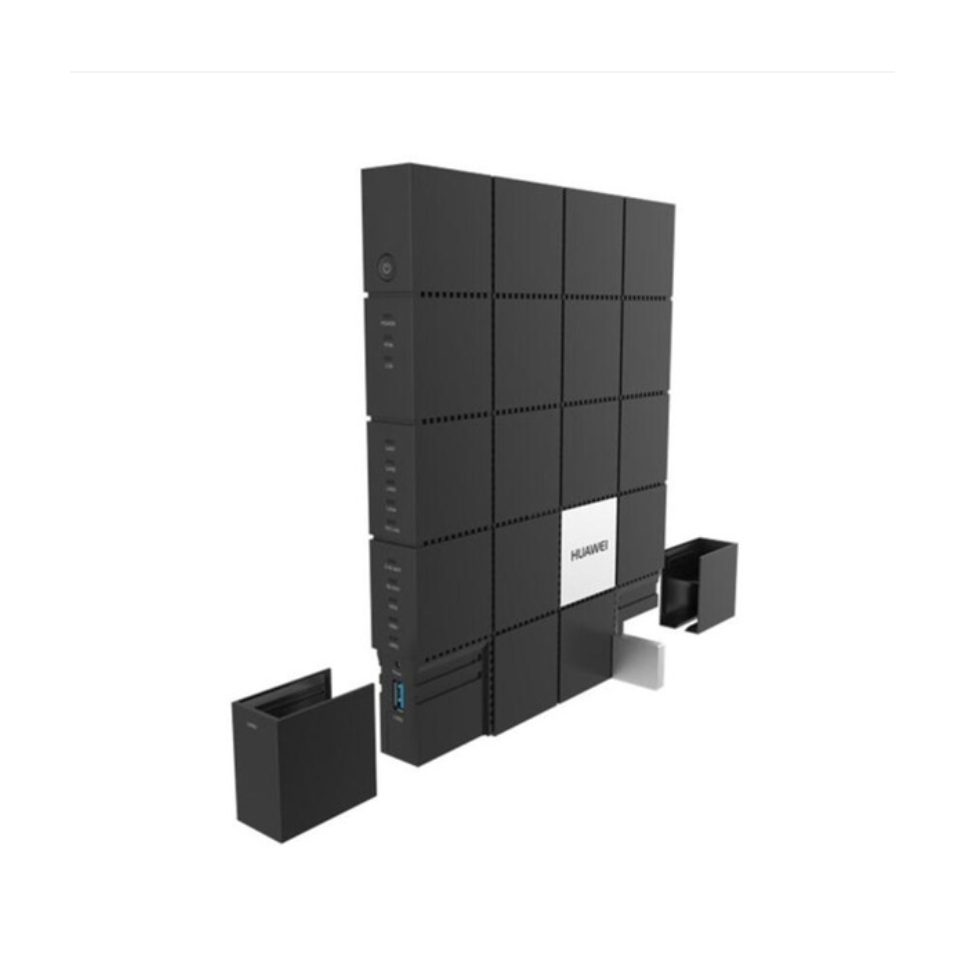

Huawei Original EchoLife HN8055Q
HN8055Q is XG-PON routing-type ONT with 4xGE+1x10GE+2xPOTS+1 USB+2.4G&5G WiFi.
HN8055Q uses XG-PON technology to implement ultra-broadband access for users in the Huawei all-optical access solution. It provides 4 GE+1 10GE+2 POTS+1 USB+2 WiFi(4 GE ports, 1 10GE port,2 POTS ports, 1 USB port, 1 2.4G WiFi port and 1 5G WiFi port). Its high forwarding performance guarantees the user experience of voice, data, and HD video services, and gives customers an ideal all-optical access solution and future-oriented service support capability.
| NNI | XG-PON OR 10G-EPON |
| Optical interface | SFP+ Optical Module |
| UNI | 1*10GE+4*GE+2*POTS+2USB |
| WiFi standard | 2.4G & 5G Wi-Fi 5 |
| Antenna gain | NONE |
| Dimensions(WidthxDepthxHeight) | 238mmx190mmx26mm (Without the base) |
| Power supply | Power supply: 11-14V DC, 3A; Input power: 100-240V AC, 50/60HZ |
| Operating temperature and operating humidity | 0°C-+40°C; 5%-95%, non-condensing |
| Cooling | Passive cooling |
| Maximum number of MAC addresses learned | 1024 |
| L2 forwarding capability | 10Gbit/s in downstream direction in Ethernet ports 5;
4 Gbit/s in downstream direction in Ethernet ports 1-4; 2.5 Gbit/s in upstream direction |
| IPv4 L3 forwarding capability | 10Gbit/s in downstream direction in Ethernet ports 5;
4 Gbit/s in downstream direction in Ethernet ports 1-4; 2.5 Gbit/s in upstream direction |
| IPv6 L3 forwarding capability | 10Gbit/s in downstream direction in Ethernet ports 5;
4 Gbit/s in downstream direction in Ethernet ports 1-4; 2.5 Gbit/s in upstream direction |
